Enhanced Delete Support in .NET 4.5

By Vijay Prativadi on October 08, 2012
Today, in this article let’s play around with one of the interesting and most useful concepts in .NET 4.5.
  • 0
  • 0
  • 2497

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in .NET 4.5.

Question: What is enhanced delete support?

In simple terms "It provides enhanced deleting support with various methods invocation as per the usage".

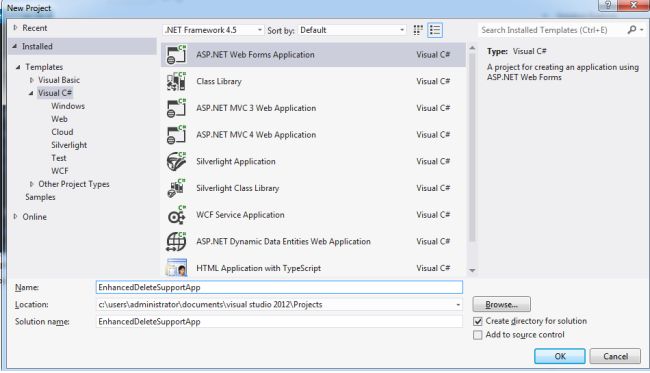

Step 1: Create a new "ASP.Net Web Forms Application", as in:


Step 2: Create an Entity Data Model Framework and set it up with an appropriate database.

Step 3: The complete code of webform1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="EnhancedDeleteSupportApp.WebForm1" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <asp:GridView ID="GridView1" runat="server" BackColor="LightGoldenrodYellow" ItemType="EnhancedDeleteSupportApp.Employee"

                BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None"

                AutoGenerateColumns="false" SelectMethod="GetData" UpdateMethod="UpdateData"

                AutoGenerateEditButton="true" AutoGenerateDeleteButton="true" DeleteMethod="DeleteData">

                <AlternatingRowStyle BackColor="PaleGoldenrod"></AlternatingRowStyle>

                <FooterStyle BackColor="Tan"></FooterStyle>

                <HeaderStyle BackColor="Tan" Font-Bold="True"></HeaderStyle>

                <PagerStyle HorizontalAlign="Center" BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue">

                </PagerStyle>

                <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite"></SelectedRowStyle>

                <SortedAscendingCellStyle BackColor="#FAFAE7"></SortedAscendingCellStyle>

                <SortedAscendingHeaderStyle BackColor="#DAC09E"></SortedAscendingHeaderStyle>

                <SortedDescendingCellStyle BackColor="#E1DB9C"></SortedDescendingCellStyle>

                <SortedDescendingHeaderStyle BackColor="#C2A47B"></SortedDescendingHeaderStyle>

                <Columns>

                    <asp:BoundField DataField="Id" HeaderText="ID" ReadOnly="true" />

                    <asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" />

                    <asp:BoundField DataField="LastName" HeaderText="LastName" SortExpression="LastName" />

                    <asp:BoundField DataField="Age" HeaderText="Age" SortExpression="Age" />

                </Columns>

            </asp:GridView>

        </div>

    </center>

    </form>

</body>

</html>


Step 4: The complete code of webform1.aspx.cs looks like this:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

namespace EnhancedDeleteSupportApp

{

    public partial class WebForm1 : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

        }

        public IQueryable GetData()

        {

            return objEntities.Employee;

        }

        public void UpdateData(Employee employee)

        {

            if (ModelState.IsValid)

            {

                objEntities.Entry(employee).State = System.Data.EntityState.Modified;

                objEntities.SaveChanges();

            }

        }

        public void DeleteData(int id)

        {

            Employee obj_Employee = objEntities.Employee.Find(id);

            objEntities.Employee.Remove(obj_Employee);

            objEntities.SaveChanges();

        }

        #region Instance VariablesCompanyEntities objEntities = new CompanyEntities();#endregion

    }

}


Step 5: The output of the application looks like this:



Step 6: The data deleted output of the application looks like this:

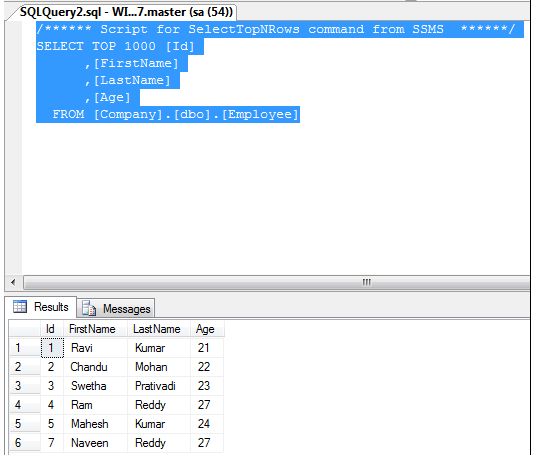

Step 7: The deleted data showing in database output of the application looks like this:
