Chapter 1: SQL Server 2008 R2 Editions and Enhancements

Posted by Microsoft Press Free Book | SQL Server 2005/2008 February 02, 2011
This chapter introduces the new SQL Server 2008 R2 features, capabilities, and editions from a DBA's perspective. It also discusses why Windows Server 2008 R2 is recommended as the underlying operating system for deploying SQL Server 2008 R2. Last, SQL Server 2008 R2 hardware and software requirements and installation strategies are also identified.

Installation, Upgrade, and Migration Strategies

Like its predecessors, SQL Server 2008 R2 is available in both 32-bit and 64-bit editions, both of which can be installed either with the SQL Server Installation Wizard or through a command prompt. As was briefly mentioned earlier in this chapter, it is now also possible to use  Sysprep in conjunction with SQL Server for automated deployments with minimal administrator intervention.

Last, DBAs also have the option to upgrade an existing installation of SQL Server or conduct a side-by-side migration when installing SQL Server 2008 R2. The following sections elaborate on the different strategies.

The In-Place Upgrade

An in-place upgrade is the upgrade of an existing SQL Server installation to SQL Server 2008 R2. When an in-place upgrade is conducted, the SQL Server 2008 R2 setup program replaces the previous SQL Server binaries with the new SQL Server 2008 R2 binaries on the same machine. SQL Server data is automatically converted from the previous version to SQL Server 2008 R2. This means that data does not have to be copied or migrated. In the example in Figure 1-5, a DBA is conducting an in-place upgrade on a SQL Server 2005 instance running on Server 1. When the upgrade is complete, Server 1 still exists, but the SQL Server 2005 instance, including all of its data, is now upgraded to SQL Server 2008 R2.

Figure 1-5.gif


FIGURE 1-5 An in-place upgrade from SQL Server 2005 to SQL Server 2008 R2

NOTE SQL Server 2000, SQL Server 2005, and SQL Server 2008 are all supported for an in-place upgrade to SQL Server 2008 R2. Unfortunately, earlier editions, such as SQL Server 7.0 and SQL Server 6.5, cannot be upgraded to SQL Server 2008 R2.

In-Place Upgrade Pros and Cons

The in-place upgrade strategy is usually easier and considered less risky compared to the side-by-side migration strategy. Upgrading is also fairly quick, and additional hardware is not required. Because the names of the server and instances do not change during the upgrade process, applications still point to the old instances. As a result, this strategy is less time consuming, because there is no need to make changes to application connection strings.

The disadvantage is that there is less granular control over the upgrade process. For example, when running multiple databases or components, a DBA does not have the flexibility to choose individual items for upgrade. Instead, all databases and components are upgraded to SQL Server 2008 R2 at the same time. Note also that the instance remains offline during the in-place upgrade. This means that if a mission-critical database, an application, or an important line-of-business application is running, a planned outage is required. Furthermore, if a disaster transpires during the upgrade, the rollback strategy can be a complex and time consuming affair. A DBA might have to install the operating system from scratch, and then install SQL Server and restore all of the SQL Server data.

SQL Server 2008 R2 High-Level In-Place Strategy

The high-level in-place upgrade strategy for upgrading to SQL Server 2008 R2 consists of the following steps:

  1. Ensure that the instance of SQL Server you plan to upgrade meets the hardware and software requirements for SQL Server 2008 R2.
  2. Review the deprecated and discontinued features in SQL Server 2008 R2. Refer to "SQL Server Backward Compatibility" at http://msdn.microsoft.com/en-us/library/cc707787(SQL.105).aspx for more information.
  3. Ensure that the version and edition of SQL Server that will be upgraded is supported. To review all the upgrade scenarios supported for SQL Server 2008 R2, see "Version and Edition Upgrades" at http://msdn.microsoft.com/en-us/library/ms143393(SQL.105).aspx.
  4. Run the SQL Server Upgrade Advisor for SQL Server 2008 R2. The Upgrade Advisor is a tool included with SQL Server 2008 R2 or downloaded directly from the Microsoft Web site. It analyzes the installed components on the SQL Server instance you plan to upgrade to ensure that the system supports SQL Server 2008 R2. The Upgrade Advisor generates a report identifying anomalies that require fixing or attention before the upgrade can begin.
  5. Install the SQL Server 2008 R2 prerequisites.
  6. Begin the upgrade to SQL Server 2008 R2 by running Setup.

Side-by-Side Migration

The term side-by-side migration describes the deployment of a brand-new SQL Server 2008 R2 instance alongside a legacy SQL Server instance. When the SQL Server 2008 R2 installation is complete, a DBA migrates data from the legacy SQL Server database platform to the new SQL Server 2008 R2 database platform. Side-by-side migration is depicted in Figure 1-6.

NOTE It is possible to conduct a side-by-side migration to SQL Server 2008 R2 by using the same server. You can also use the side-by-side method to upgrade to SQL Server 2008 on a single server.

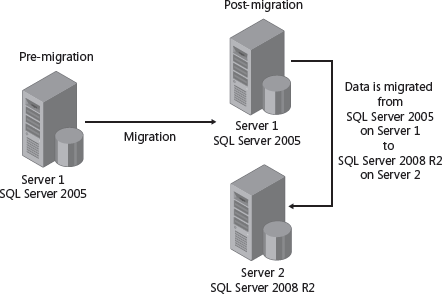

Figure 1-6.gif


FIGURE 1-6 Side-by-side migration from SQL Server 2005 to SQL Server 2008 R2

Side-by-Side Migration Pros and Cons

The biggest benefit of a side-by-side migration over an in-place upgrade is the opportunity to build out a new database infrastructure on SQL Server 2008 R2 and avoid potential migration issues with an in-place upgrade. The side-by-side migration also provides more granular control over the upgrade process because it is possible to migrate databases and components independent of one another. The legacy instance remains online during the migration process. All of these advantages result in a more powerful server. Moreover, when two instances are running in parallel, additional testing and verification can be conducted, and rollback is easy if a problem arises during the migration.

However, there are disadvantages to the side-by-side strategy. Additional hardware might need to be purchased. Applications might also need to be directed to the new SQL Server 2008 R2 instance, and it might not be a best practice for very large databases because of the duplicate amount of storage that is required during the migration process.

SQL Server 2008 R2 High-Level Side-by-Side Strategy

The high-level side-by-side migration strategy for upgrading to SQL Server 2008 R2 consists of the following steps:

  1. Ensure that the instance of SQL Server you plan to migrate to meets the hardware and software requirements for SQL Server 2008 R2.
  2. Review the deprecated and discontinued features in SQL Server 2008 R2 by referring to "SQL Server Backward Compatibility" at http://msdn.microsoft.com/en-us/library/cc707787(SQL.105).aspx.
  3. Although you will not upgrade a legacy instance to SQL Server 2008 R2, it is still beneficial to run the SQL Server 2008 R2 Upgrade Advisor to ensure that the data being migrated to the new SQL Server 2008 R2 is supported and that there is nothing suggesting that a break will occur after migration.
  4. Procure hardware and install the operating system of your choice. Windows Server 2008 R2 is recommended.
  5. Install the SQL Server 2008 R2 prerequisites and desired components.
  6. Migrate objects from the legacy SQL Server to the new SQL Server 2008 R2 database platform.
  7. Point applications to the new SQL Server 2008 R2 database platform.
  8. Decommission legacy servers after the migration is complete.
