Chapter 1: Workflow Program

Posted by Packt Publishing Free Book | WF October 15, 2010
In this chapter we will see how to create WF program with different methods.

Using Variable in a WF program

We can use Variable temporarily to store a value when a WF program is running. In this task, we will create a WF program that prints fi ve numbers to the console in a loop. We will use the NumberCounter variable as a number counter.

How to do it...

  1. Create a Workflow project:
    Create a new Workflow Console Application under the Chapter01 solution and name the project as UseVariable.

  2. Author a Workflow:

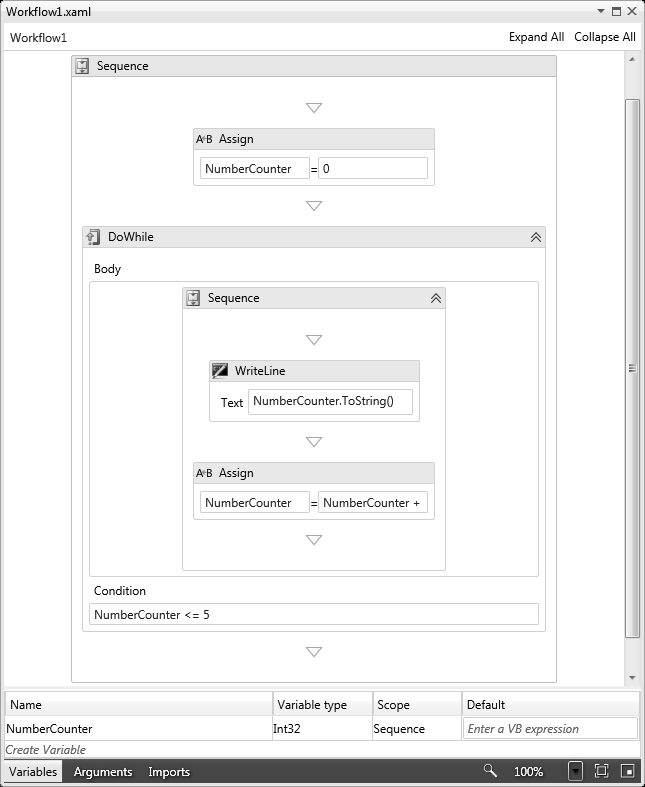

    Add a Sequence activity, click the Sequence activity, create an Int32 NumberCounter variable , and set its Scope to Sequence. Then, author the Workflow as shown in the following screenshot. In the second Assign activity type
    NumberCounter=NumberCounter+1.



  3. Run it:

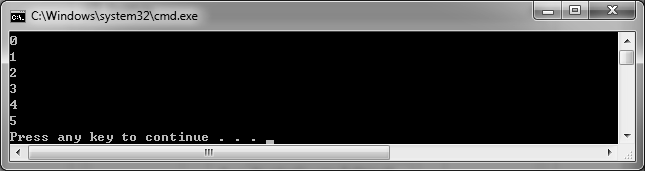

    Set UseVariable as Startup project. Press Ctrl+F5 to build and run the Workflow without debugging. The application should run in a console window and print the following message:

How it works...

To make the Workflow logic easy to understand, translate the Workflow into C# code. It will look like:

int NumberCounter = 0;

do

{

    Console.WriteLine(NumberCounter);

    NumberCounter++;

} while (NumberCounter <= 5);

While we can use arguments to flow data into and out of a Workflow, we use Variable to store data in a Workflow. Every variable has its scope, and can be accessed by activities within its scope. Variable in WF4 is pretty much like variables in imperative language such as C#.

There's more...

Please note that we cannot access to the Workflow variables from the outside host. WF4 variables are designed for sharing data inside the Workflow instance. We can use Bookmark to access the Workflow from the outside host.

See Also

  • Customizing a MyReadLine activity with Bookmark
