How to Create Dynamic GridView Using BoundField

By Gohil Jayendrasinh on March 06, 2012
In this article we create a Gridview using a BoundField and also create paging functionality using EventHandler.
  • 0
  • 0
  • 30844
Download Files:


Here I create a Gridview using a BoundField and also create a paging functionality using EventHandler.

Step1: Your .aspx page will look like:

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="DynamicGridView.aspx.cs"
Inherits="DynamicGridView" %><!DOCTYPE html PUBLIC "
//W3C//DTD XHTML 1.0 Transitional//EN"
 "http://www.w3.org/TR/xhtml1/DTD/xhtm
1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<
head runat="server">
    <title></title>
</
head>
<
body>
    <form id="form1" runat="server">
    <div>
        <asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>
    </div>
    </form>
</
body>
</
html
>

Step 2 : Your .cs page looks like:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;

public partial class DynamicGridView : System.Web.UI.Page
{

DataHelper helper = new DataHelper();

List<Employee> emplist = new List<Employee>();

protected void Page_Load(object sender, EventArgs e)
    {
        CreateGridView();
    }

private void CreateGridView()
    {

GridView gv = new GridView();
        gv.ID =
"EmployeeGridView";
        gv.AutoGenerateColumns =
false;
        gv.AllowPaging =
true;
        gv.EnableViewState =
true;
        gv.PageSize = 10;
// Default page Size


//Create EventHanfler for Paging.

        gv.PageIndexChanging +=
new GridViewPageEventHandler(this.gv_PageIndexChanging);
        helper =
new DataHelper();
        emplist = helper.GetEmployeeData();

DataTable dt = new DataTable();

if (emplist != null)
        {

if (emplist.Count > 0)
            {
                dt = ListToDataTable(emplist);

//We convert List view to DataTable because we use the
DataTable Column Name as a GridView Column Header.
                if (dt != null)
                {

if (dt.Rows.Count > 0)
                    {

for (int i = 0; i < dt.Columns.Count; i++)
                        {

BoundField boundField = new BoundField();
                            boundField.DataField = dt.Columns[i].ColumnName.ToString();
                            boundField.HeaderText = dt.Columns[i].ColumnName.ToString();
                            gv.Columns.Add(boundField);
                        }
                    }
                }
            }
        }
        PlaceHolder1.Controls.Add(gv);
        BindGridView(gv, dt);
    }

private void BindGridView(GridView gv, DataTable dt)
    {
        gv.DataSource = dt;
        gv.DataBind();
    }

void gv_PageIndexChanging(Object sender, GridViewPageEventArgs e)
    {

GridView gv = (GridView)sender;
        gv.PageIndex = e.NewPageIndex;
        helper =
new DataHelper();
        emplist = helper.GetEmployeeData();

DataTable dt = new DataTable();

if (emplist != null)
        {

if (emplist.Count > 0)
            {
                dt = ListToDataTable(emplist);

if (dt != null)
                {

if (dt.Rows.Count > 0)
                    {
                        BindGridView(gv, dt);
                    }
                }
            }
        }
    }



//Convert List To DataTable.
    static DataTable ListToDataTable<T>(IEnumerable<T> list)
    {

var dt = new DataTable();

foreach (var info in typeof(T).GetProperties())
        {
            dt.Columns.Add(
new DataColumn(info.Name, info.PropertyType));
        }

foreach (var t in list)
        {

var row = dt.NewRow();

foreach (var info in typeof(T).GetProperties())
            {
                row[info.Name] = info.GetValue(t,
null);
            }
            dt.Rows.Add(row);
        }

return dt;
    }
}

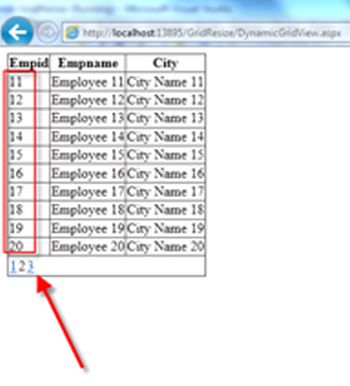

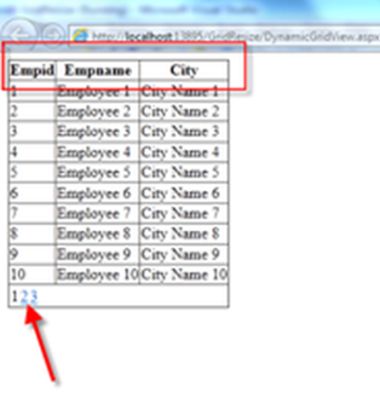

Your  output page like looks like:
