How To Get Started With Always Encrypted For Beginners - Part One

Encryption has always been intriguing to me but seemed like it could be a very complex process to set up. However, SQL Server made it very simple when they introduced Always Encrypted (AE) into SQL Server 2016 and Azure SQL Database. Unlike Transparent Data Encryption (TDE) which only encrypts data files and backups at rest, AE is configured on a column level and not at the database level. Additionally, Always Encrypted is available in Standard (and Express) Edition, starting with SQL Server 2016 SP1. You can easily encrypt a social security number (SSN) which is considered very sensitive within the United States, or a Salary column in a table with just a few clicks. In past versions of SQL Server, you could use cell-level encryption (CLE) to perform this, but it required code changes the keys were stored in the database, and the data was sent to the application unencrypted. This brings us to the other benefit of AE, which is that DBAs can no longer see the unencrypted values of the data, as they could with CLE because the column encryption key is stored outside of SQL Server.

Let's see how you do it and walk through what each of these options means.

Using Adventure Work 2016 CTP3 HumanResources.Employee Table we are going to encrypt the Birthdate column.

Start by Right Clicking on the Table > Choose Encrypt Columns

It brings up a Wizard, one of the two recommended ways to configure AE. The other option is to use PowerShell.

Click Next on the Intro Screen

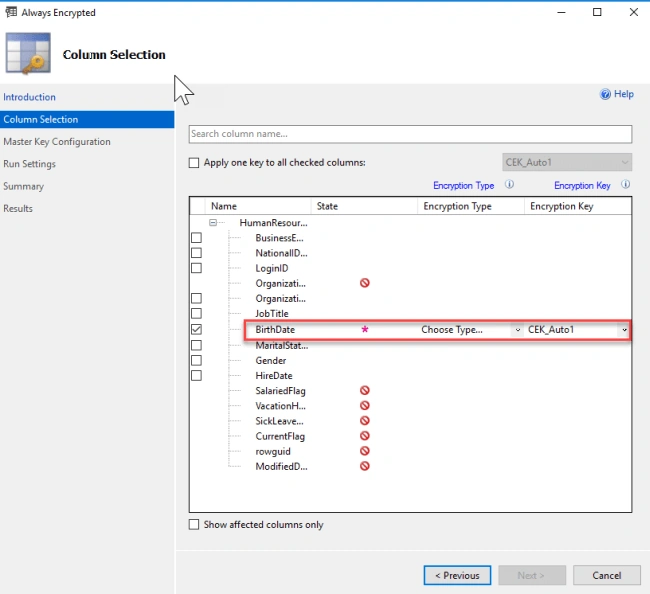

You will note in the example below, that it lists the columns and then shows the encryption STATE, which indicates if the column is eligible for encryption. There are several unsupported column characteristics that may make it so a column cannot be encrypted. This link to MSDN describes this in further detail. The items on this list are unsupported because they have a default constraint or a check constraint defined.

ALTER TABLE [HumanResources].[Employee]
ADD CONSTRAINT [DF_Employee_VacationHours]
DEFAULT ((0)) FOR [VacationHours]

ALTER TABLE [HumanResources].[Employee]
WITH CHECK ADD CONSTRAINT [CK_Employee_BirthDate]
CHECK (([BirthDate] >= '1930-01-01' AND [BirthDate] <= DATEADD(year, (-18), GETDATE())))
GO

SQL

This is just an example of one of the roadblocks you may encounter. So, let’s take a step back and set an example we can easily use.

The Setup

Run the below to create a copy of the Employee table. We are doing this to make a table without any constraints.

SELECT * INTO [HumanResources].[Employee_AE] FROM [HumanResources].[Employee]

Now again, Right Click on the Table > Choose Encrypt Columns

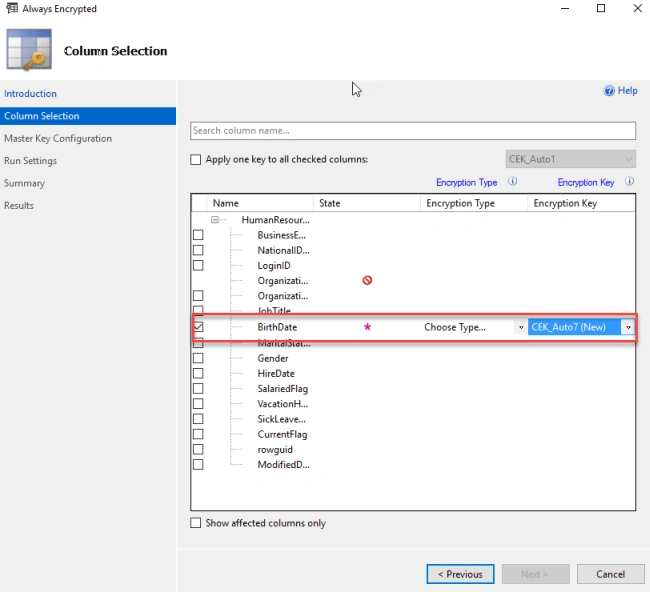

In this case, the column we want is BirthDate, so I place a check next to it. To continue I need to Choose a Type of Encryption.

Column Selection

There are two possibilitiesDeterministic and Randomized.

MSDN defines Deterministic encryption as always generating the same encrypted value for any given plain text value. This means that if you have a birthdate of 01/03/1958 it will always be encrypted with the same value each time such as ABCACBACB. This allows you to index it, and use it in WHERE clauses, GROUP BY, and JOINS.

Randomized encryption per MSDN- uses a method that encrypts data in a less predictable manner. This makes Randomized encryption more secure because using the example above each encrypted value of 01/03/1958 will be different. It could be ABCACBACB, BBBCCAA, or CCCAAABBB. All three encrypted values are subsequently decrypted to the same value. Since the encrypted value is random you cannot perform search operations etc. as you can with Deterministic.

In most cases, you will want to use deterministic encryption. The places where random encryption makes sense is where you have a low range of distinct values. An attacker might be able to determine what the encrypted value was by brute force attack using a variety of parameters. Some examples of this data include birth date, blood type, or credit card verification numbers (CVV).

So, going back to our example, select deterministic from the drop-down.

The next step is to choose an Encryption Key. Let’s choose CEKAUTO (NEW). This stands for Column Encryption Key. You can use the same Key for every column or choose a new one for each.

Then click NEXT

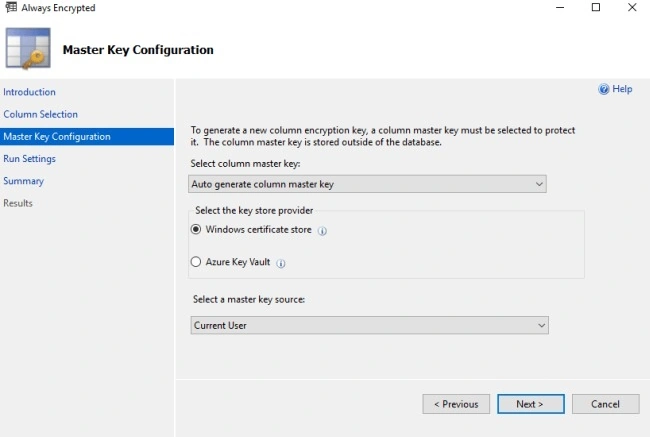

Every Encryption Key must have a MASTER KEY. This is the value that is used to protect the other column keys. In the below, we are going to just go with the defaults. If you have already generated a master key in your SQL Server instance, you can choose to reuse it for any new column you add.

Master key

One of the most complex parts of encryption is determining where to store these keys and who will have access to them. You can store these keys on a client machine using a Windows Certificate store or in the Azure Key store.

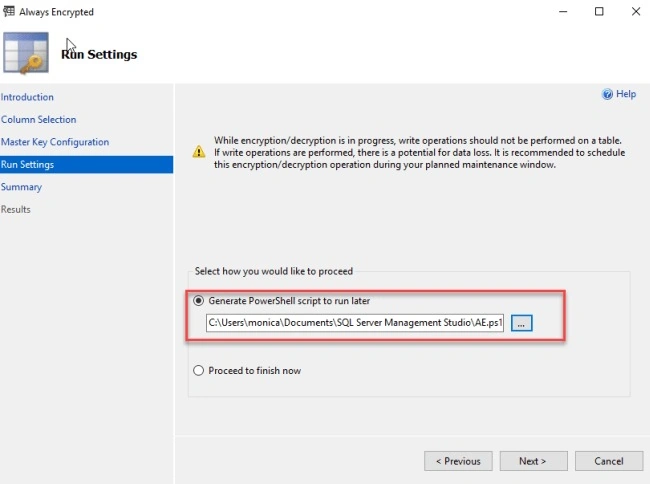

The next screen has a great feature and kudos to Microsoft for this add-in. You can choose to generate a PowerShell Script, so you can rerun this again, or store it in your source control.

Run Settings

After clicking NEXT, you're done. The wizard will create all the keys, and encrypt the selected columns.

Results

Now if you SELECT from the table you will see the values in Birthdate are now encrypted.

SELECT * FROM [AdventureWorks2016CTP3].[HumanResources].[Employee_AE]

HumanResources

Key Management in Windows certificate store

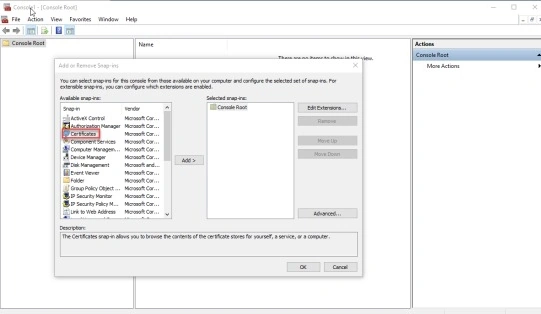

If you would like to see where the keys are stored within Windows, you can do so by doing the below. Go to Microsoft Management Console (type MMC your run barWin+R). Then go toFile,thenAdd/RemoveSnap In. Certificates will be the third one down, clickAdd.

Microsoft Management Console

If you scroll back up you will note that when we created our Master Key it did so under CURRENT USERso choose user account.

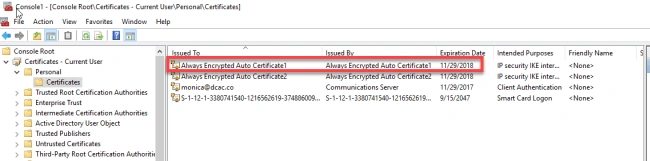

Expand personal and click certificates (Key)

Key

So, there you have it. Encryption made easy. This is only the tip of the iceberg. You need to understand how your environment will access and decrypt the data, encrypting is only part of the puzzle. I will cover how to get SSMS to decrypt the data in Part 2, in the meantime play around with it.
