Xamarin.Forms - Video Player App

Introduction

In this article, we are going to play a video and an audio in Xamarin.Forms application.There is no default function available for playing the video or audio. So, we need to add a plugin for this.

Nuget Packages

Xamarin.Forms = search "Plugin.MediaManager.Forms".
Xamarin.Android = search"Plugin.MediaMager".

MediaMager Cross-platform media plugin features
  •  Designed to be simple and easy to play
  •  Stand alone for easy integration with existing projects and frameworks
  •  Native playback of media files from remote and local sources
  •  Native media notifications and remote controls
  •  Playback status(Playing, Buffering, Loading, Paused, Progress)


Step 1

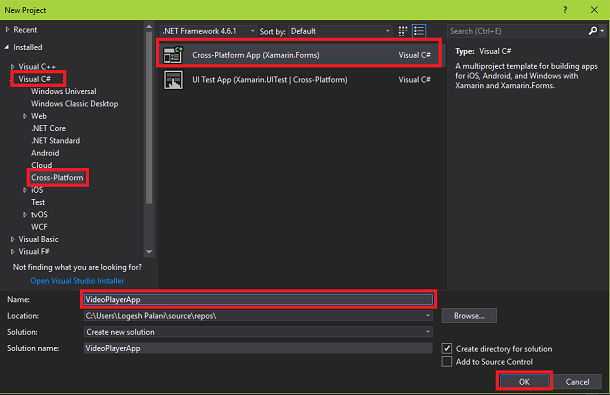

You can create Xamarin.Forms app by going to File >> New >> Visual C# >>Cross platform >>> Cross-platform App (Xamarin.Native or Xamarin.Forms), give the application name, and press OK.

(Project Name : VideoPlayerApp)



Step 2

After the project creation, add the following NuGet Packages to your project.
  • Plugin.MediaManager
  • Plugin.MediaManager.Forms

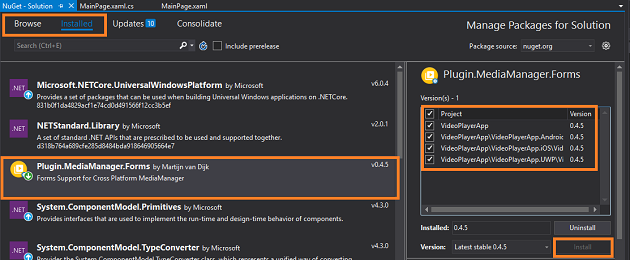

For that, go to Solution Explorer and select your solution. Right-click and select "Manage NuGet Packages for the Solution". Now, select the following NuGet Package and select your project to install it.

  • Plugin.MediaManager.Forms

Step 3

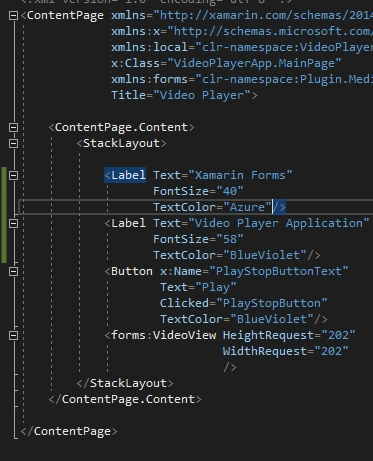

In this step, add a VideoView control to your project. For that, go to Solution Explorer >> VideoPlayerApp (PCL) >> double click on MainPage.Xaml. After opening this, you can add VideoView assembly and XAML code to your project.

Write the code as given below.

Assembly
  1. xmlns:forms="clr-namespace:Plugin.MediaManager.Forms;assembly=Plugin.MediaManager.Forms"
XAML code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:local="clr-namespace:VideoPlayerApp"
  5.              x:Class="VideoPlayerApp.MainPage"
  6.              xmlns:forms="clr-namespace:Plugin.MediaManager.Forms;assembly=Plugin.MediaManager.Forms"
  7.              Title="Video Player">
  8.
  9.     <ContentPage.Content>
  10.         <StackLayout>
  11.
  12.             <Label Text="Xamarin Forms"
  13.                    FontSize="40"
  14.                    TextColor="Azure"/>
  15.             <Label Text="Video Player Application"
  16.                    FontSize="58"
  17.                    TextColor="BlueViolet"/>
  18.             <Button x:Name="PlayStopButtonText"
  19.                     Text="Play"
  20.                     Clicked="PlayStopButton"
  21.                     TextColor="BlueViolet"/>
  22.             <forms:VideoView HeightRequest="202"
  23.                              WidthRequest="202"
  24.                              />
  25.         </StackLayout>
  26.     </ContentPage.Content>
  27.
  28. </ContentPage>


Step 4

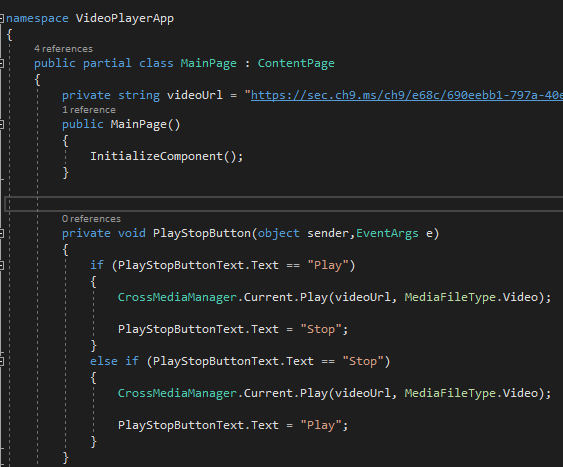

Next, open Solution Explorer >> VideoPlayerApp(PCL) >> MainPage.xaml.cs page and double-click to open its design view. The code is given below.

cs code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  7. using Plugin.MediaManager.Forms;
  8. using Plugin.MediaManager;
  9. using Plugin.MediaManager.Abstractions.Enums;
  10.
  11. namespace VideoPlayerApp
  12. {
  13.     public partial class MainPage : ContentPage
  14.     {
  15.         private string videoUrl = "https://sec.ch9.ms/ch9/e68c/690eebb1-797a-40ef-a841-c63dded4e68c/Cognitive-Services-Emotion_high.mp4";
  16.         public MainPage()
  17.         {
  18.             InitializeComponent();
  19.         }
  20.
  21.
  22.         private void PlayStopButton(object sender,EventArgs e)
  23.         {
  24.             if (PlayStopButtonText.Text == "Play")
  25.             {
  26.                 CrossMediaManager.Current.Play(videoUrl, MediaFileType.Video);
  27.
  28.                 PlayStopButtonText.Text = "Stop";
  29.             }
  30.             else if (PlayStopButtonText.Text == "Stop")
  31.             {
  32.                 CrossMediaManager.Current.Play(videoUrl, MediaFileType.Video);
  33.
  34.                 PlayStopButtonText.Text = "Play";
  35.             }
  36.         }
  37.     }
  38. }


Step 5

Make sure to call " VideoViewRenderer.Init(); " from your platform code before starting playback, otherwise the video View will not be prepared to display the video.

Android Project

Add Android project by going to Solution Explorer >> VideoPlayerApp.Droid >>MainActivity.cs and double-click to open its design View. Here is the code.

MainActivity.cs  page code
  1. using System;
  2.
  3. using Android.App;
  4. using Android.Content.PM;
  5. using Android.Runtime;
  6. using Android.Views;
  7. using Android.Widget;
  8. using Android.OS;
  9. using Plugin.MediaManager.Forms.Android;
  10.
  11. namespace VideoPlayerApp.Droid
  12. {
  13.     [Activity(Label = "VideoPlayerApp", Icon = "@drawable/icon", Theme = "@style/MainTheme", MainLauncher = true, ConfigurationChanges = ConfigChanges.ScreenSize | ConfigChanges.Orientation)]
  14.     public class MainActivity : global::Xamarin.Forms.Platform.Android.FormsAppCompatActivity
  15.     {
  16.         protected override void OnCreate(Bundle bundle)
  17.         {
  18.             TabLayoutResource = Resource.Layout.Tabbar;
  19.             ToolbarResource = Resource.Layout.Toolbar;
  20.
  21.             base.OnCreate(bundle);
  22.
  23.             VideoViewRenderer.Init();//Nuget Packages oncreate mathod
  24.
  25.             global::Xamarin.Forms.Forms.Init(this, bundle);
  26.             LoadApplication(new App());
  27.         }
  28.     }
  29. }
IOS Project

Add iOS project. For that, go to Solution Explorer >> VideoPlayerApp.IOS >>AppDelegate.cs and click open AppDelegate.cs. Here is the code for this page.

AppDelegate.cs page code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4.
  5. using Foundation;
  6. using Plugin.MediaManager.Forms.iOS;
  7. using UIKit;
  8.
  9. namespace VideoPlayerApp.iOS
  10. {
  11.     // The UIApplicationDelegate for the application. This class is responsible for launching the
  12.     // User Interface of the application, as well as listening (and optionally responding) to
  13.     // application events from iOS.
  14.     [Register("AppDelegate")]
  15.     public partial class AppDelegate : global::Xamarin.Forms.Platform.iOS.FormsApplicationDelegate
  16.     {
  17.         //
  18.         // This method is invoked when the application has loaded and is ready to run. In this
  19.         // method you should instantiate the window, load the UI into it and then make the window
  20.         // visible.
  21.         //
  22.         // You have 17 seconds to return from this method, or iOS will terminate your application.
  23.         //
  24.         public override bool FinishedLaunching(UIApplication app, NSDictionary options)
  25.         {
  26.             global::Xamarin.Forms.Forms.Init();
  27.             LoadApplication(new App());
  28.
  29.             VideoViewRenderer.Init();// nuget packages oncreate mathod
  30.
  31.
  32.             return base.FinishedLaunching(app, options);
  33.         }
  34.     }
  35. }
Universal Windows Project

Add Universal Windows project. For that, open Solution Explorer >> VideoPlayerApp.UWP >> MainPage.xaml.cs and click open MainPage.xaml.cs.

Add the below given code to this page.

MainActivity.xaml.cs page code
  1. using Plugin.MediaManager.Forms.UWP;
  2. using System;
  3. using System.Collections.Generic;
  4. using System.IO;
  5. using System.Linq;
  6. using System.Runtime.InteropServices.WindowsRuntime;
  7. using Windows.Foundation;
  8. using Windows.Foundation.Collections;
  9. using Windows.UI.Xaml;
  10. using Windows.UI.Xaml.Controls;
  11. using Windows.UI.Xaml.Controls.Primitives;
  12. using Windows.UI.Xaml.Data;
  13. using Windows.UI.Xaml.Input;
  14. using Windows.UI.Xaml.Media;
  15. using Windows.UI.Xaml.Navigation;
  16.
  17. namespace VideoPlayerApp.UWP
  18. {
  19.     public sealed partial class MainPage
  20.     {
  21.         public MainPage()
  22.         {
  23.             this.InitializeComponent();
  24.
  25.             VideoViewRenderer.Init();
  26.
  27.             LoadApplication(new VideoPlayerApp.App());
  28.         }
  29.     }
  30. }
Step 6

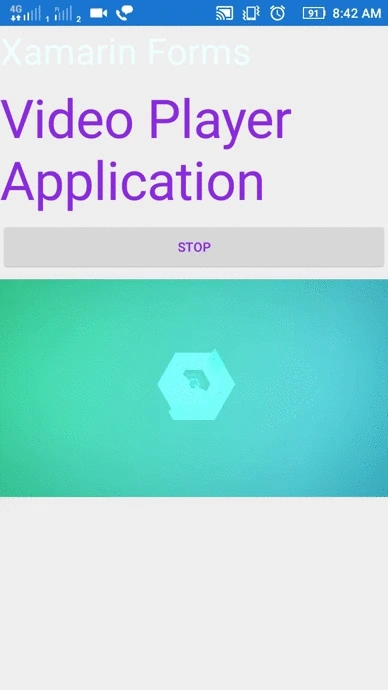

Click ' F5 ' or "Build " to run your projects. Running this project, you will have the result like below.



Finally, we have successfully created a Xamarin.Forms VideoPlayerApp Application.
