Windows Azure - Local Storage Feature

By Jean Paul on October 20, 2011
In this article, we are trying to experiment the local storage feature of Windows Azure. From the previous article we found that local storage is one of the primitive storage mechanisms in Windows Azure.
  • 0
  • 0
  • 8964
Download Files:


In this article, we are trying to experiment the local storage feature of Windows Azure. From the previous article we found that local storage is one of the primitive storage mechanisms in Windows Azure.

The core features of Local Storage are:

  • Temporary Storage
  • Feature provided by the Operating System
  • Similar to Hard Drive
  • Exposed as logical file system
  • .Net Directory/File IO Framework used to access it
  • Can be used for storing Cache items

Creating a Local Storage

Here we are creating a local resource through the step by step activities.

Step 1: Create new Web Role project

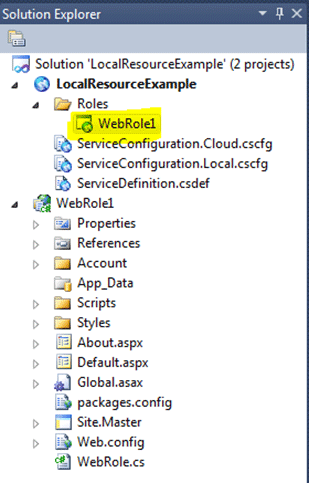

You will be familiar with web role creation and you can repeat the same. After the solution is created, the Solution Explorer will be looking like below:


Step 2: Open the local storage pane

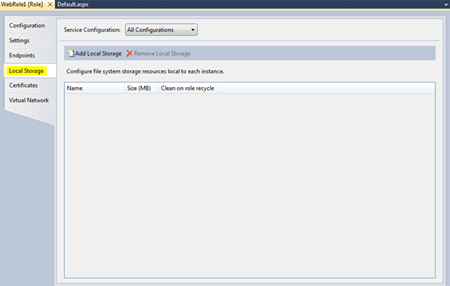

Now double click on the WebRole1 item shown above to open the project configuration, Form there click the Local Storage pane item.


Step 3: Add a new Local Storage item

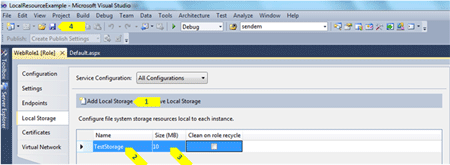

Add a new local storage items by clicking the Add Local Storage button. Rename it to TestStorage Change the Size to 10 MB as shown in the figure and save the configuration.


The above change will modify the configuration file of the application.

Step 4: Show Information about the Local Resource

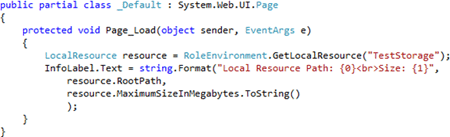

Now we can place a label on the page, rename it to InfoLabel. Then on the page load event we can access the local resource and show the properties it has.


The RootPath property gives the current path of the resource in machine.
The MaximumSizeInMegabytes property returns the size allocated to it.

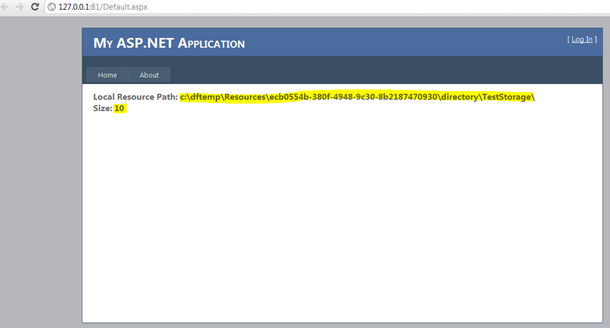

On executing the application we can see the following output.


Step 5: Start using the folder

Now we can use the above folder for our storage purpose. We can create folder, files inside it.

Create a new button on the page and name it as CreateFolderAndFileButton. On click of the button place the code to create a directory and file.

protected void CreateFolderAndFileButton_Click(object sender, EventArgs e)
{

LocalResource resource = RoleEnvironment.GetLocalResource("TestStorage");

Directory.CreateDirectory(resource.RootPath + "\\NewFolder");

File.Create(resource.RootPath + "\\NewFile.txt");

  ShowContents(resource.RootPath);
}

private void ShowContents(string path)
{
    InfoLabel.Text =
"Directories inside it: <br>";

foreach (string dir in Directory.GetDirectories(path))
    {
        InfoLabel.Text += dir +
"<br>";
    }

    InfoLabel.Text += "<br>Files inside it";

foreach (string file in Directory.GetFiles(path))
    {
        InfoLabel.Text += file +
"<br>";
    }
}

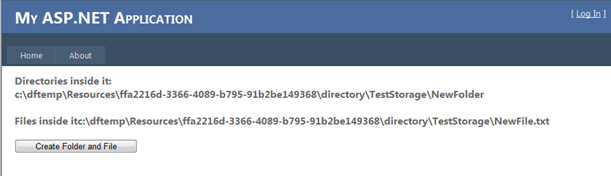

Execute the application and on clicking the button we can see the following output.


Summary

In this article we have found how to use the local storage feature of Windows Azure and creating folder and file inside it.
