Toast Notification in Windows Phone 8.1 API

This article implements a small demonstration over the Notification Bar.

Introduction

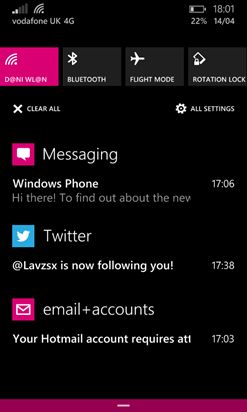

So, we have moved to Windows Phone 8.1 and with this new version the API has introduced a Notification Bar. In the early API, the major features were Toast Notification and Push Notification.

For now, in this article we will implement a small demonstration over the Notification Bar.




Procedures

Step 1

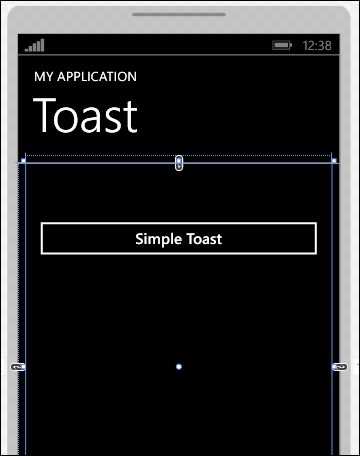

Create a Blank Windows Phone Project with Windows Phone 8.1 API.



And add a Button that will show the notification.

Step 2

Now, raise the Click event of the button and add the following code in the event handler.

<code>

  1. <code>
  2. private void simpleToast_Click(object sender, RoutedEventArgs e)
  3.         {
  4.             ToastTemplateType toastType = ToastTemplateType.ToastText02;
  5.
  6.             XmlDocument toastXml = ToastNotificationManager.GetTemplateContent(toastType);
  7.
  8.             XmlNodeList toastTextElement = toastXml.GetElementsByTagName("text");
  9.             toastTextElement[0].AppendChild(toastXml.CreateTextNode("Hello C# Corner"));
  10.             toastTextElement[1].AppendChild(toastXml.CreateTextNode("I am poping you from a Winmdows Phone App"));
  11.
  12.             IXmlNode toastNode= toastXml.SelectSingleNode("/toast");
  13.             ((XmlElement)toastNode).SetAttribute("duration","long");
  14.
  15.             ToastNotification toast = new ToastNotification(toastXml);
  16.             ToastNotificationManager.CreateToastNotifier().Show(toast);
  17.
  18.
  19.         }
  20. </code>

Before you start, ensure you have the following namespace in your project:

  1. using Windows.UI.Notifications;
  2. using Windows.Data.Xml.Dom;

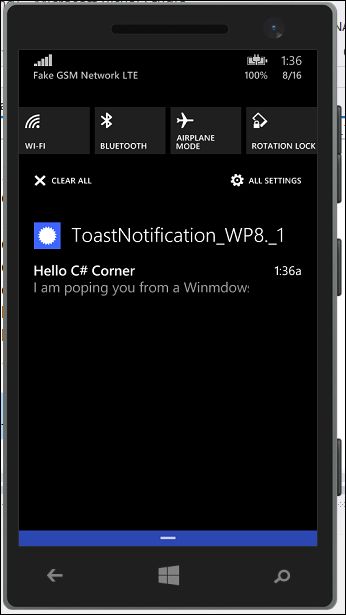

Output:



Conclusion

It's a small demonstration of Toast Notification that we have implemented with the help of the Windows Phone 8.1 API.

Note: You must have Visual Studio 2013 Update 2 at least with the Windows Phone 8.1 Emulator or any supported device to run this demo app.
