Chapter 1: SQL Query Performance Tuning

Posted by Apress Free Book | SQL Server 2005/2008 January 26, 2010
Query performance tuning is an important part of today's database applications. Often you can achieve large savings in both time and money with proper query performance tuning

Where to Focus Efforts

When you tune a particular system, pay special attention to the application layer (the database queries and stored procedures executed by Visual Basic/ADO or otherwise that are used to access the database). You will usually find that you can positively affect performance in the application layer far more than if you spend an equal amount of time figuring out how to tune the hardware, operating system, or SQL Server configuration. Although a proper configuration of hardware, operating system, and SQL Server is essential for the best performance of a database application, these fields have standardized so much that you usually need to spend only a limited amount of time configuring them properly for performance. Application design issues such as query design and indexing strategies, on the other hand, are application dependent. Consequently, there is usually more to optimize in the application layer than in the hardware, operating system, or SQL Server configuration. Thus, for a unit of time spent in each area, work in the application layer usually yields the maximum performance benefit, as
illustrated in Figure 1-3.

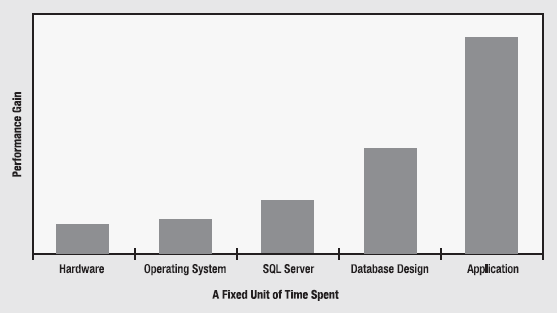

Figure 1-3. Time spent vs. performance gain

In my experience, you can obtain the greatest improvement in database application performance by looking first at the area of application design, including logical/physical database design, query design, and index design.

Sure, if you concentrate on hardware configuration and upgrades, you may obtain a satisfactory performance gain. However, a bad SQL query sent by the application can consume all the hardware resources available, no matter how much you have. Therefore, a poor application design can make the hardware upgrade requirements very high, even beyond your limits. In the presence of a heavy SQL workload, concentrating on hardware configurations and upgrades usually produces a poor return on investment.

You should analyze the stress created by an application on a SQL Server database at two levels:

  • High level: Analyze how much stress the database application is creating on individual hardware resources and what the overall behavior of the SQL Server installation is. The best measures for this are the various wait states. This information can help you in two ways. First, it helps you identify the area to concentrate on within a SQL Server application where there is poor performance. Second, it helps you identify any lack of proper configuration at the higher levels. You can then decide which hardware resource may be upgraded if you are not able to tune the application using the Performance Monitor tool, as explained in Chapter 2.
  • Low level: Identify the exact culprits within the application-in other words, the SQL queries that are creating most of the pressure visible at the overall higher level. This can be done using the SQL Profiler tool and various dynamic management views, as explained in Chapter 3.
