Use HTML and CSS File in Windows Phone Apps

In this article you will learn how to use a HTML and CSS file in Windows Phone Apps.

First create a project in Visual Studio.

Go to File => New => Project and select Blank App (Windows Phone).

blank app

Then make a HTML file and CSS file. Then write the code that you want to display in the Windows Phone App.

The following is the HTML page code:

  1. <html>
  2.     <link href="design.css" rel="stylesheet" type="text/css" />
  3.     <body>
  4.         <p class="first">This is demo for HTML page in Windows Phone App</p>
  5.         <p class="second">My Name is : NeErAj KuMaR</p>
  6.         <p class="third">My Image :
  7.             <img src="neeraj.jpg" class="img" />
  8.         </p>
  9.         <p class="fourth">
  10.             <a href="http://www.twitter.com/sainipray" >Follow On Twitter </a>
  11.         </p>
  12.         <p>
  13.             <a href="https://plus.google.com/u/0/+NeErAjKuMaR1234" >See my Profile on Google+ </a>
  14.         </p>
  15.     </body>
  16. <html>
The following is the CSS file code:
  1. .first {
  2.   background-color: Black;
  3.   font-size20px;
  4.   color: White;
  5. }
  6.
  7. .second {
  8.   background-color: White;
  9.   font-size30px;
  10.   color: Black;
  11. }
  12.
  13. .third {
  14.   background-color: GREEN;
  15.   font-size20px;
  16.   color: Yellow;
  17. }
  18.
  19. .fourth {
  20.   background-color: Gray;
  21.   font-size30px;
  22.   color: RED;
  23. }
  24.
  25. .img {
  26.   width100px;
  27.   height100px;
  28. }

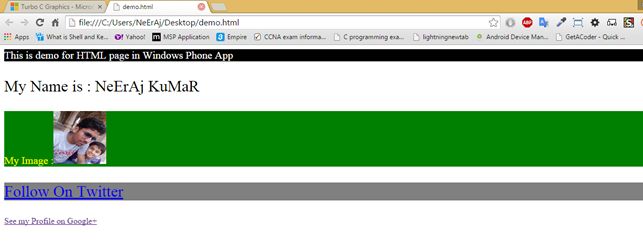

The following is the HTML page design in a browser:

HTML page design

Create a folder in the Asset folder in Solution Explorer and copy the HTML and CSS files and one image to the new folder.

HTML

Then open the MainPage.xaml file and drag a ”WebView” element from the Toolbox to the Windwos Phone App GUI.

The following is the MainPage.xaml file code:
  1. <Page
  2.     x:Class="HTMLAPP.MainPage"
  3.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  4.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  5.     xmlns:local="using:HTMLAPP"
  6.     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  7.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  8.     mc:Ignorable="d"
  9.     Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
  10.     <Grid>
  11.         <WebView HorizontalAlignment="Left" Height="620" Margin="10,10,0,0"             VerticalAlignment="Top" Width="380"/>
  12.     </Grid>
  13. </Page>

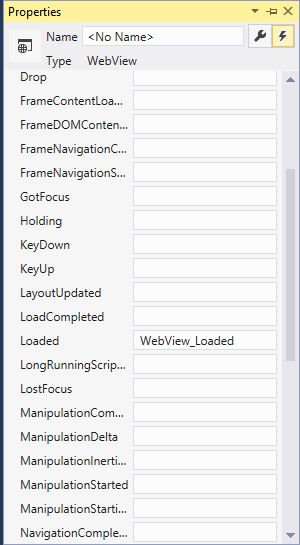

Create a Loaded Event on “WebView” as in the following:

properties

Add code to the WebView event:
  1. private void WebView_Loaded(object sender, RoutedEventArgs e)
  2. {
  3.    Web.Source = new Uri("ms-appx-web:///assets/HTML/demo.html"); ;
  4. }
Debug this project and the output is:

output
