Step By Step SSRS in 11 Hours: Hour 7

This article shows how to create a sub-report in SQL Server Reporting Services (SSRS). SSRS is a part of Microsoft SQL Server services, including SSAS (SQL Server Analysis Services) and SSIS (SQL Server Integration Services).

Introduction


First, we create the first report with a country list then create another one for the state list based on the parameter passed, in other words, country row id and then display the state report as a sub-report.

Contents

Sub Report in SSRS


Step 1

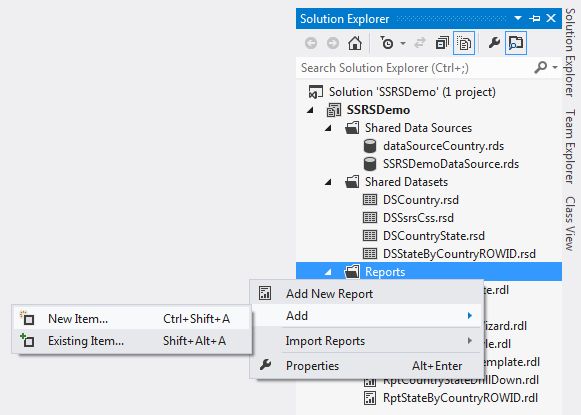

To add the report, right-click on "Reports", select "Add" and click on "New Item".

New Item

Step 2

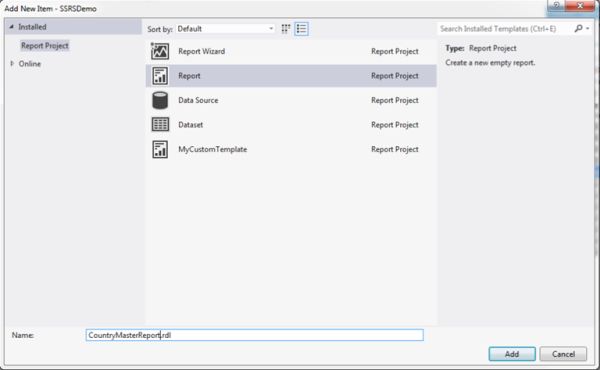

Select "Report" and provide the report name.

Report

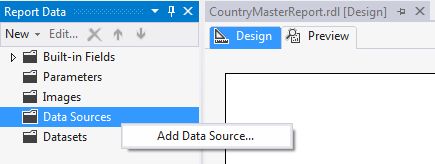

Step 3

Add a data source to the report data, right-click on "Data Sources" and click on "Add Data Source".

Data Sources

Step 4

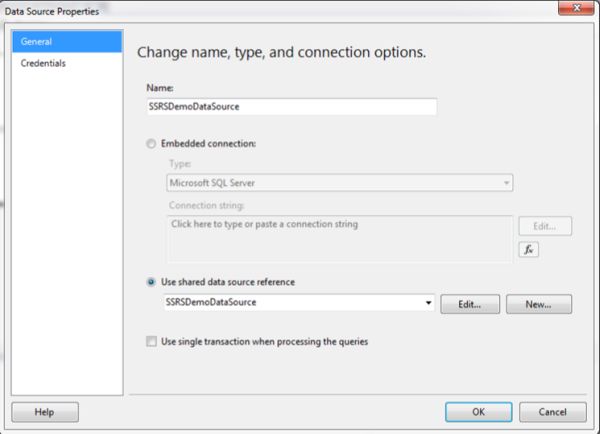

Provide a data source name and select shared data source reference.

source reference

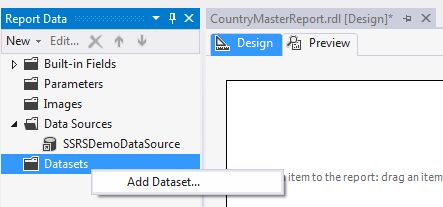

Step 5

Add a dataset in the report data, right-click on "Datasets" and click on "Add Dataset".

Add Dataset

Step 6

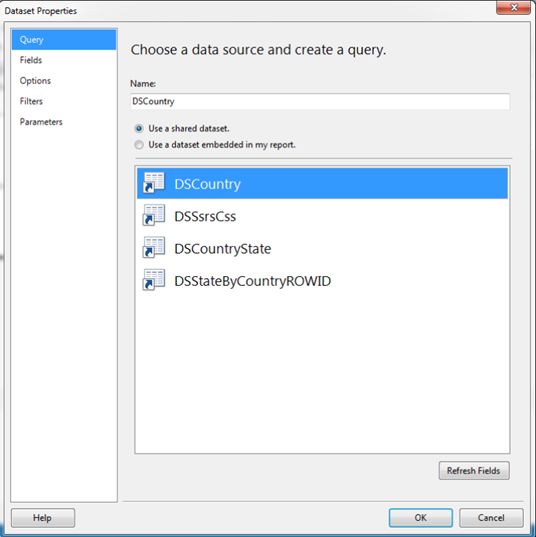

Provide a dataset name and select shared dataset.

select shared dataset

Step 7

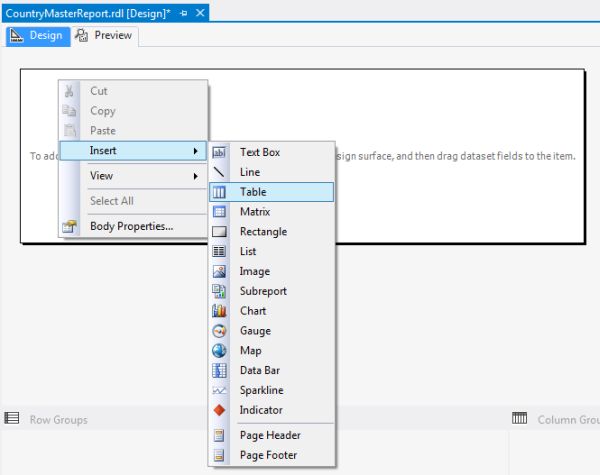

Right-click on the design surface, select "Insert" and click on "Table".

Table

Step 8

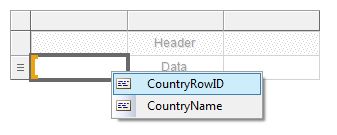

Set "Country Row ID" as the column header and map the "CountryRowID" field for that column.

CountryRowID

Step 9

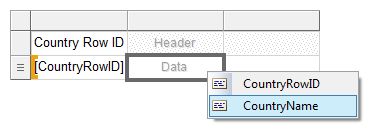

Set "Country Name" as the column header and map the "CountryName" field for that column.

Country Name

Step 10

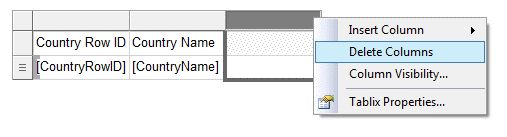

Select and delete the third column.

column

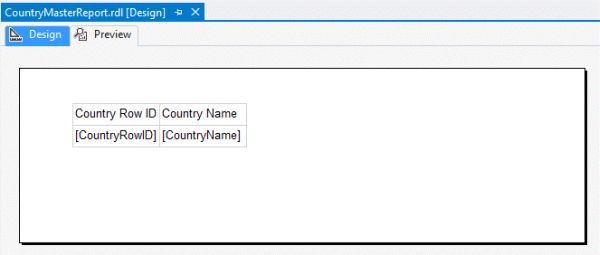

Step 11

Now the design of the main report is ready with the columns "Country Row ID" and "Country Name".

main report

Step 12

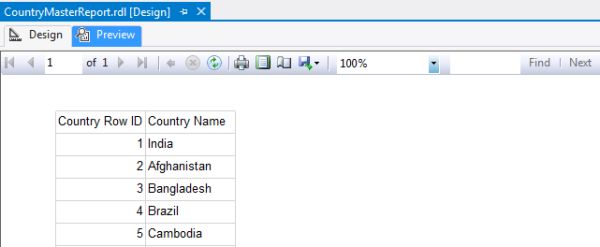

To check the report click on the "Preview" tab and we will have a country list.

review

Step 13
  • Now let's create a state report with the parameter CountryRowID.

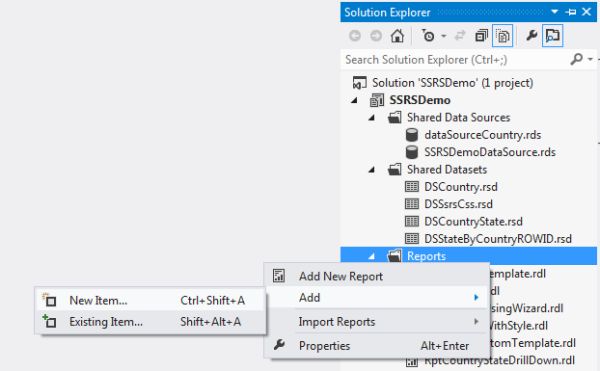

  • To add a report, right-click on "Reports", select "Add" and click on "New Item".

    Add
Step 14

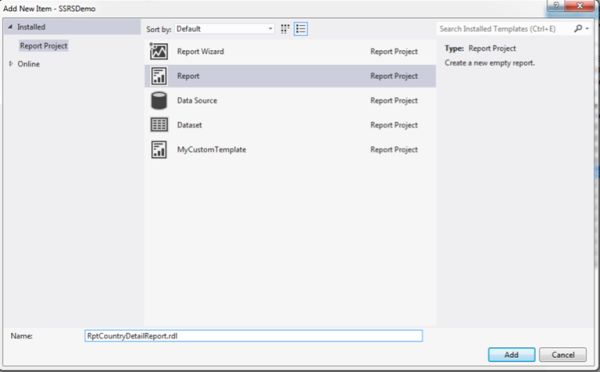

Select "Report" and provide the report a name.

provide report

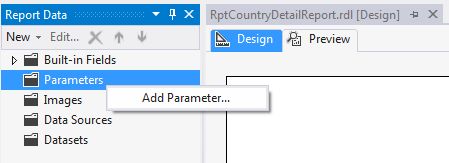

Step 15

To add a parameter, right-click on "Parameters" in Report Data and click on "Add Parameter".

Add Parameter

Step 16

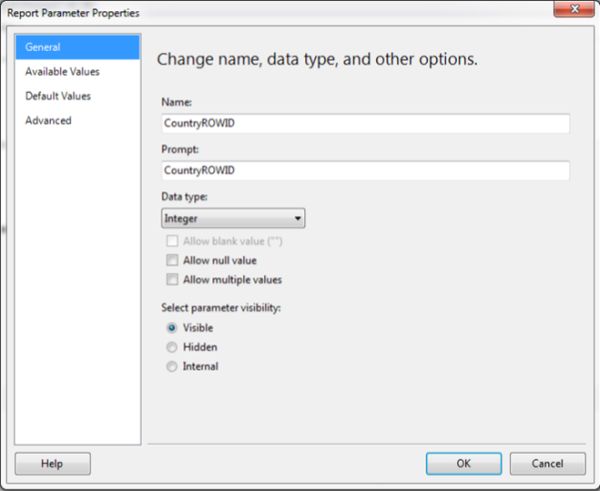

Provide a parameter name and select its visibility as visible.

visible

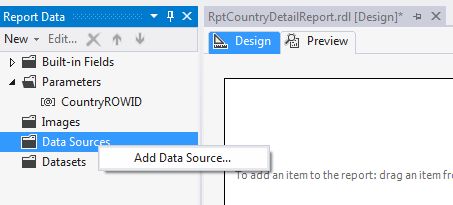

Step 17
  • Add a data source in report data.
  • Right-click on "Data Sources" and click on "Add Data Source".

    Add Data Source

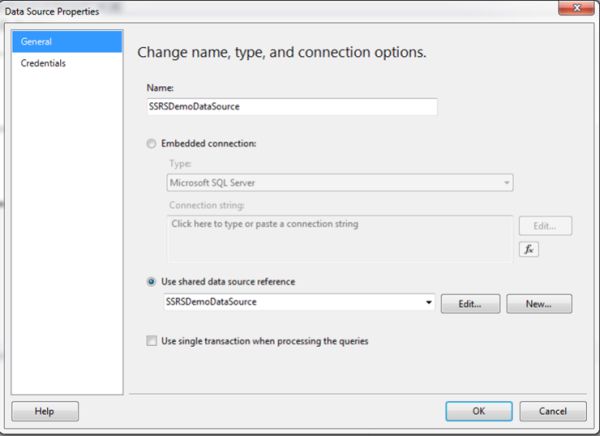

Step 18

Provide the data source a name and select data source reference.

select data source reference

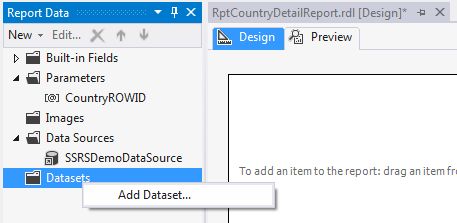

Step 19
  • Add a data set in the report data.
  • Right-click on "Datasets" and click on "Add Dataset".

    Datasets
Step 20

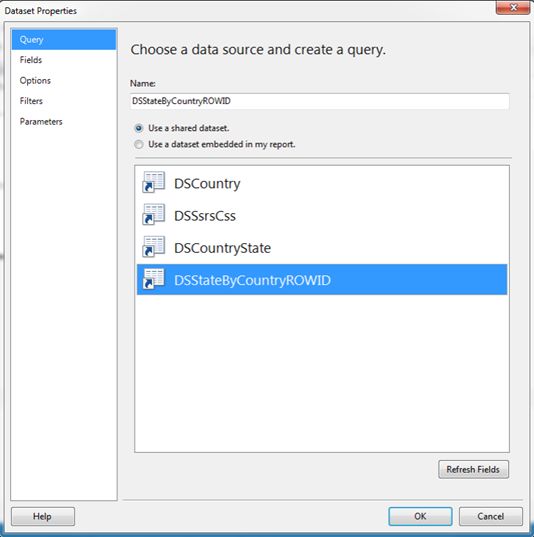

Provide a data set name and select shared data set.

select shared data set

Step 21

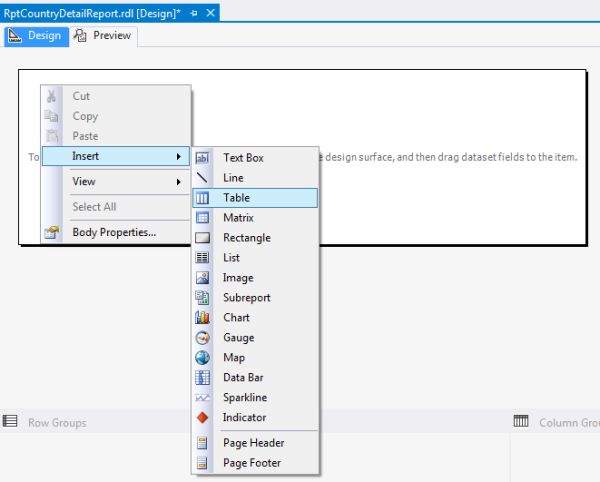

  • Open the report file.
  • Right-click on the design surface, select "Insert" and click on "Table".

    Insert
Step 22
  • It will add a table on the report design surface.

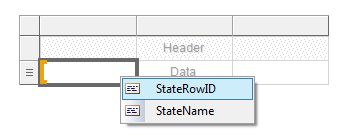

  • Set "State Row ID" and "State Name" in two separate column headers.
  • Map "StateRowID" in the first column.

    State Name

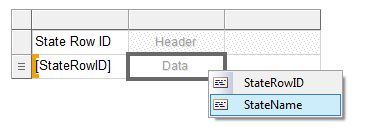

Step 23

Map "StateName" in the second column.

second column

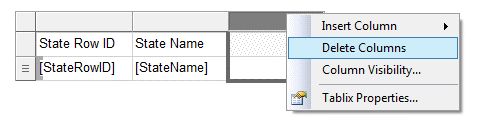

Step 24

Select and delete the third column.

delete the column

Step 25

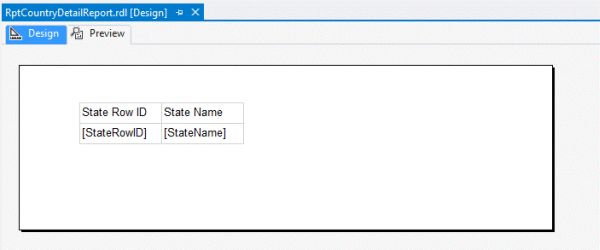

Now the report design is ready.

Now report design

Step 26
  • Click on preview to check the report.
  • Pass some parameter value.

    check report
Step 27

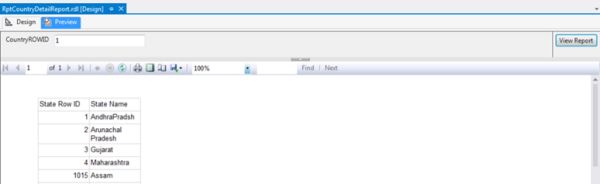

You can see the list of states for the country you passed in the parameter.

states for the country

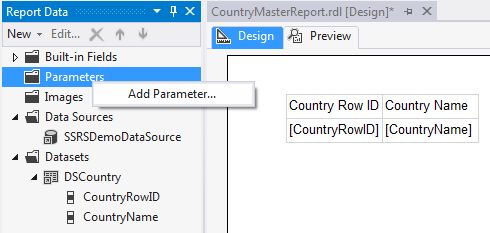

Step 28
  • Add one more parameter in Report Data.
  • Right-click on "Parameters" and click on "Add Parameter".

    Add one more parameter
Step 29

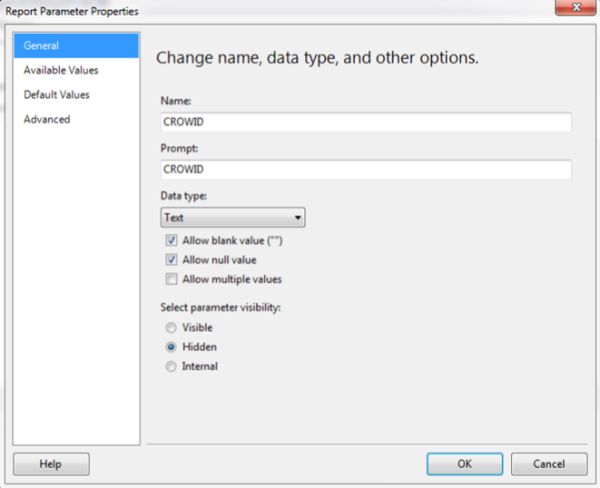

Select "General", provide a parameter name and select its visibility to "Hidden".

Specify values

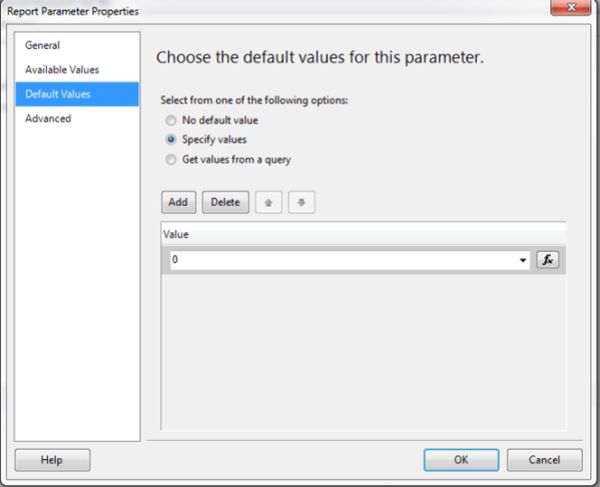

Step 30
  • Select "Default Values".
  • Select the "Specify values" option and specify "0" as the value.

    CountryMasterReport
Step 31

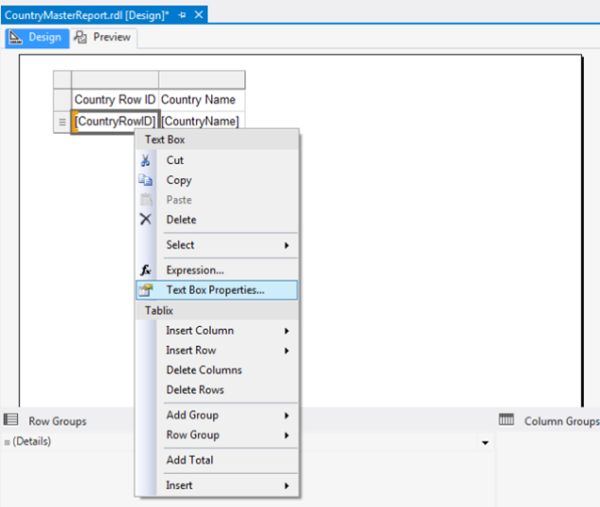

Open "CountryMasterReport.rdl", right-click on "CountryRowID" and click on "Text Box Properties".

Map the parameter

Step 32

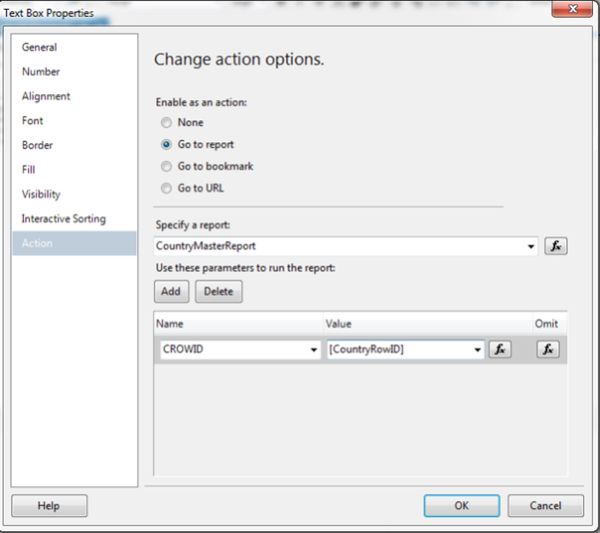

  • In the text box properties select "Action".
  • Select "Go to report" in Enable as an action.
  • Specify "CountryMasterReport".
  • Map the parameter with "CountryRowID".

    Action

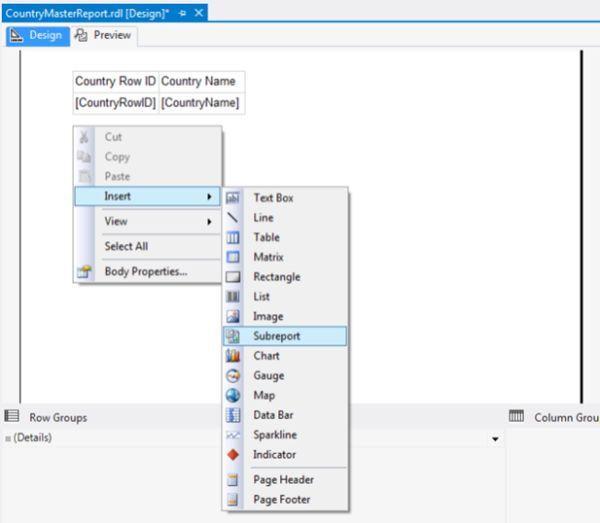

Step 33

Right-click on the report design surface, select "Insert" and click on "Subreport".

Subreport

Step 34

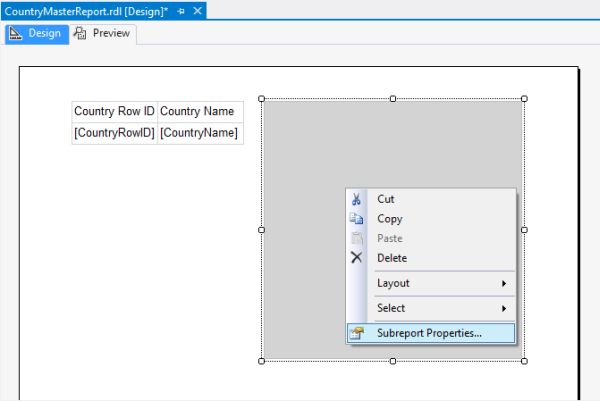

Right-click on the subreport area and select "Subreport Properties".

Subreport Properties

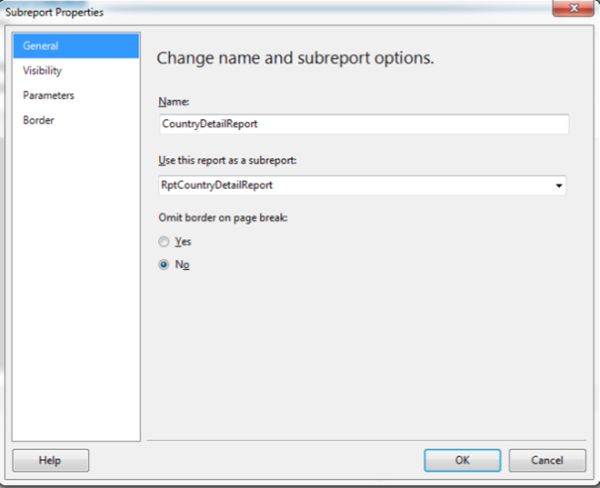

Step 35

Select "General", provide the appropriate name.

Select the report that we want to display as a subreport, in other words "RptCountryDetailReport".

RptCountryDetailReport

Step 36

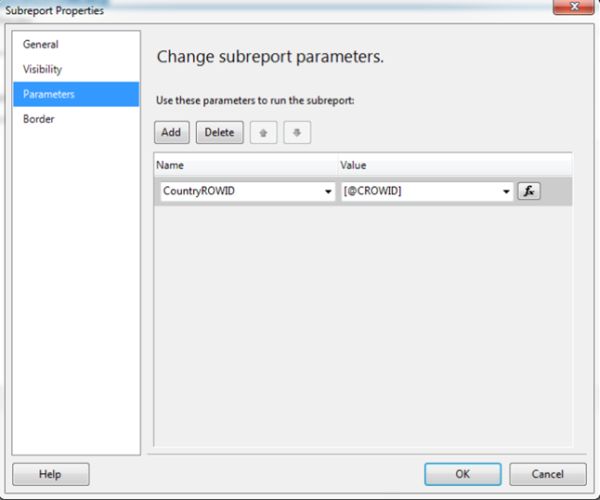

Select "Parameters" and map the parameter for CountryRowID.

map the parameter for CountryRowID

Step 37

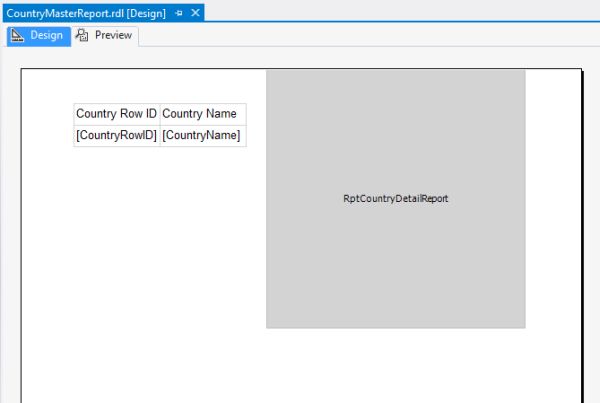

Now our complete report design is ready.

design is ready

Step 38

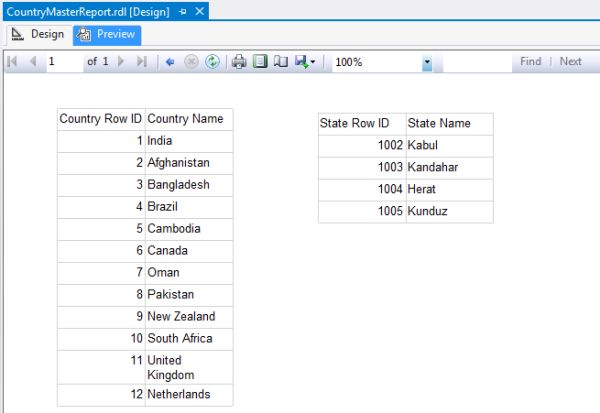

  • Click on the "Preview" tab and you can see the country list.
  • Now click on any of the country row ids and the state list is shown as a sub report.

    Preview
