Introduction
In this article, we will see how to integrate an RDL file in ASP.Net using ReportViewer.
Contents
RDL file to ASP.Net

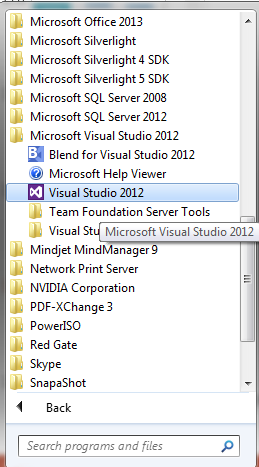

Step 1
- Click on the "Start" button
- Go to "All Programs"
- Expand "Visual Studio 2012"
- Click on "Visual Studio 2012"
![Visual Studio 2012]()

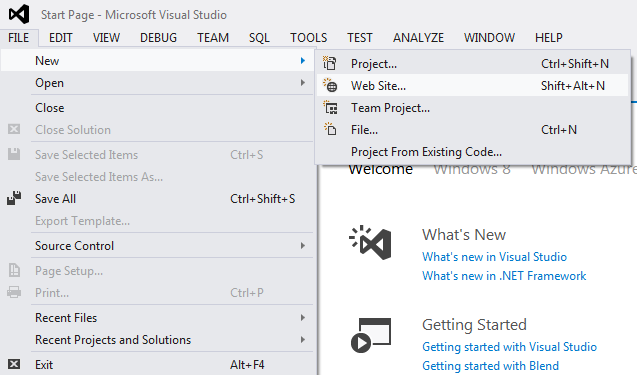

Step 2. Click on "File", expand "New" and click on "Web Site…".
![Web Site]()

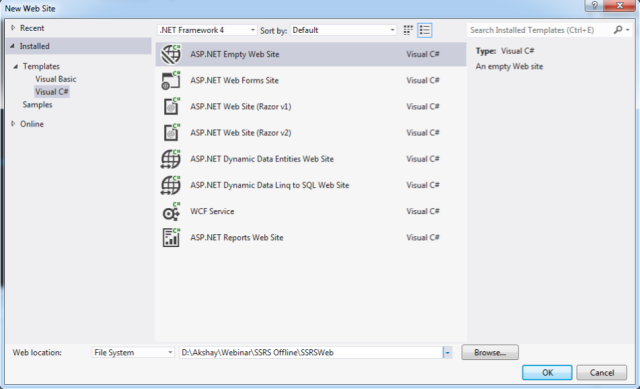

Step 3. Select "ASP.NET Empty Web Site" in Visual C#.
Provide a good name for the website.
![ASP.NET Empty Web Site]()

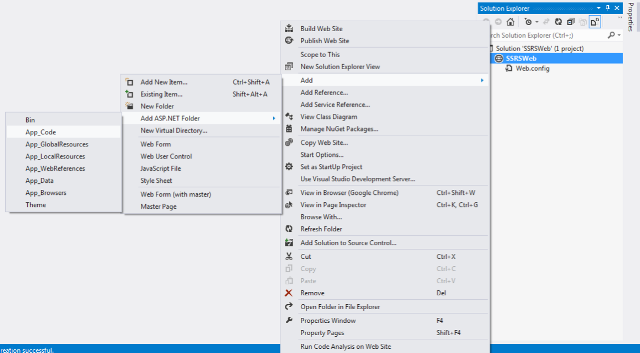

Step 4. Right-click on "SSRSWeb", select Add >> Add ASP.NET Folder >> App_Code.
![SSRSWeb]()

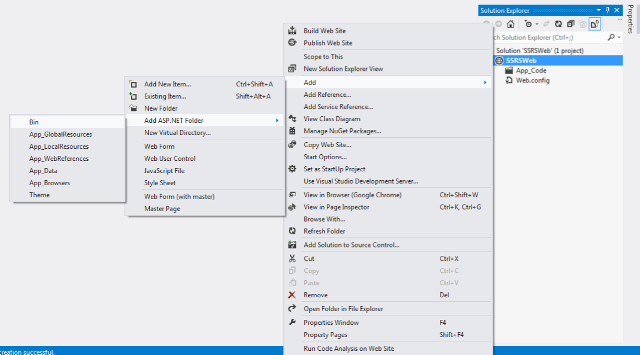

Step 5. Right-click on "SSRSWeb", and select Add >> Add ASP.NET Folder >> Bin.
![Add ASP.NET Folder]()

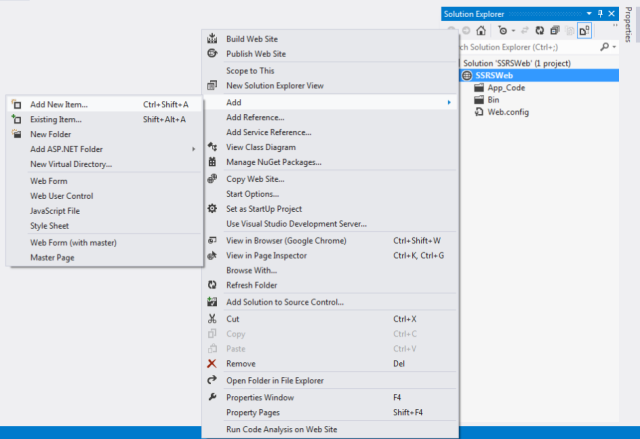

Step 6. Right-click on "SSRSWeb", and select Add >> Add New Item.
![Add New Item]()

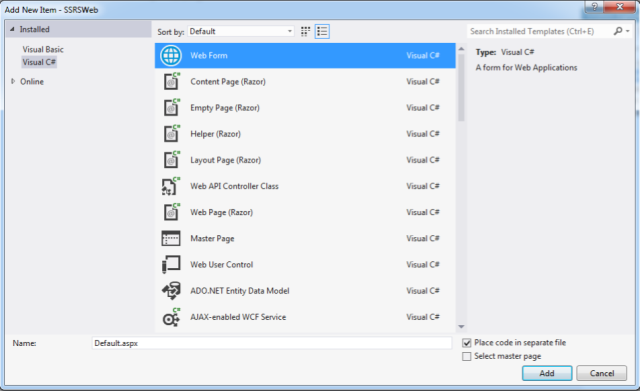

Step 7. Select "Web Form" and provide a name for it.
![Web Form]()

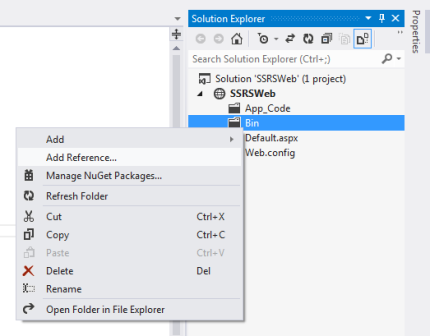

Step 8. Now right-click on "Bin" and click on "Add Reference".
![Add Reference]()

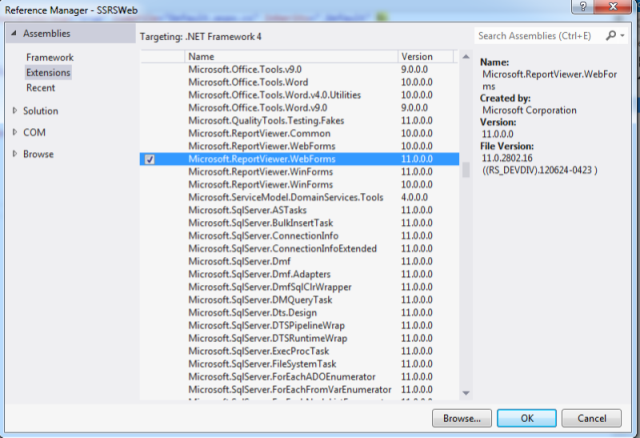

Step 9. In Extensions, select "Microsoft.ReportViewer.WebForms" and press the "OK" button.
![Microsoft.ReportViewer]()

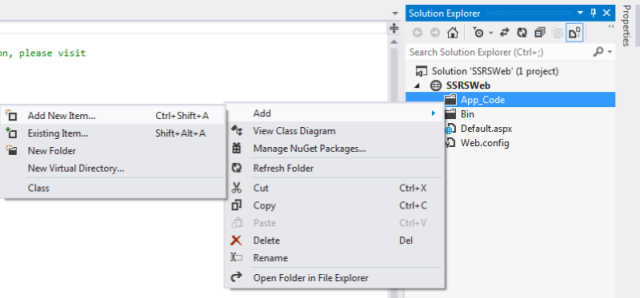

Step 10. Add a class inside App_Code, right-click on "App_Code" and select "Add" >> "Add New Item…".
![Add New Item]()

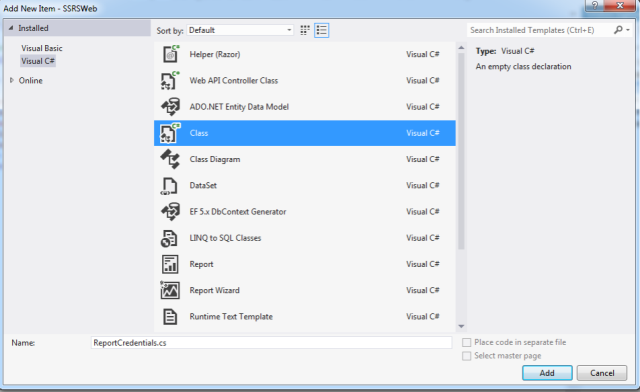

Step 11. Select "Class" and provide it the name "ReportCredentials".
![ReportCredentials]()

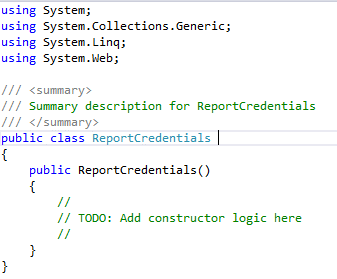

Step 12. This class is used to get and set the report credentials.
![Csharp]()
Step 13. Inherit "IReportServerCredentials" using the namespace "Microsoft.Reporting.WebForms".
![IReportServerCredentials]()

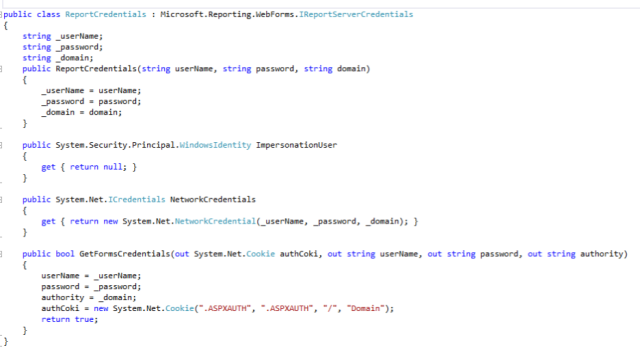

Step 14. Create a parameterized constructor to set the credentials and also create a method to get those details.
![Parameterized constructor]()

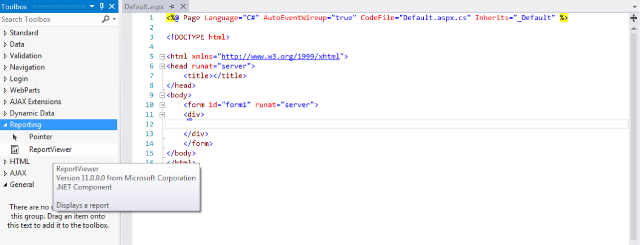

Step 15. Open "Default.aspx", and drag and drop a "ReportViewer" from the toolbox under "Reporting".
![Default.aspx]()

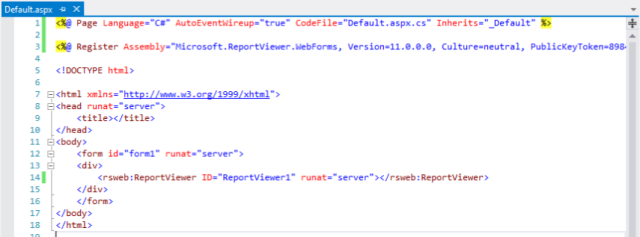

Step 16. It will add a ReportViewer control to the aspx page and also register an assembly on the top of the page.
![ReportViewer control]()

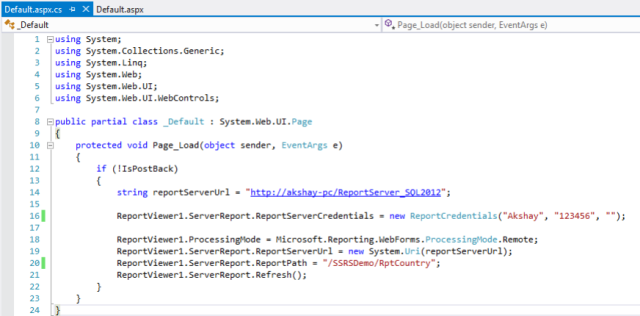

Step 17. Jump to "Default.aspx.cs" and implement the following code snippet.
Here we set the credentials, ProcessingMode, ReportServerUrl, and ReportPath.
![ProcessingMode]()

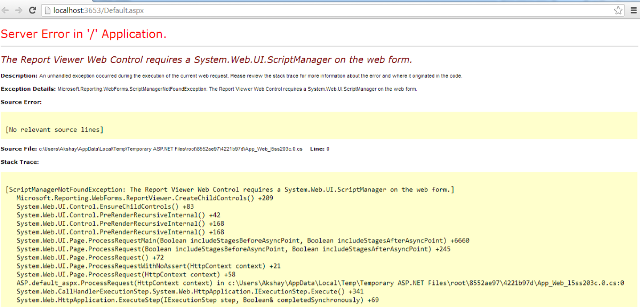

Step 18. Now run the website and it asks for the ScriptManager.
![ScriptManager]()

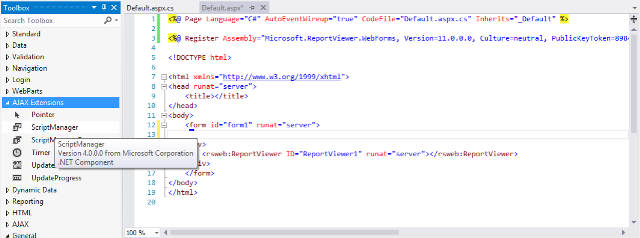

Step 19. Add the ScriptManager from the toolbox under "AJAX Extensions" inside the form element in Default.aspx.
![AJAX Extensions]()

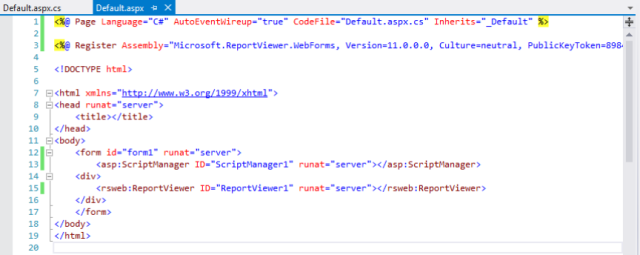

Step 20. Now run the website again.
![Website again]()

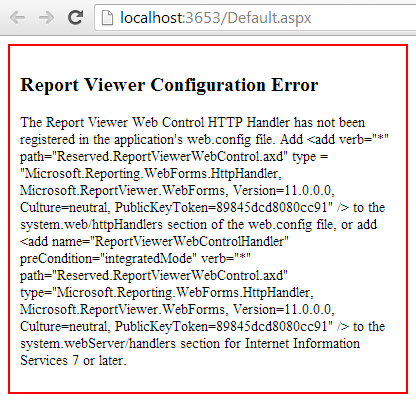

Step 21. It asks us to register the web control inside the web. config under HTTP Handler.
![HTTP Handler]()

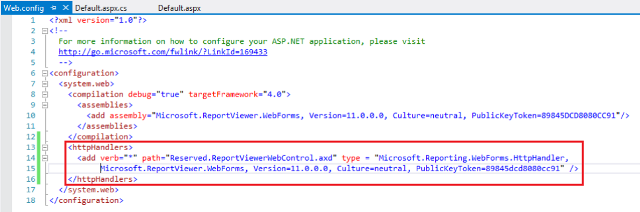

Step 22. Copy the details from the preceding error and paste them under HttpHandler inside the web. config.
![Preceding error]()

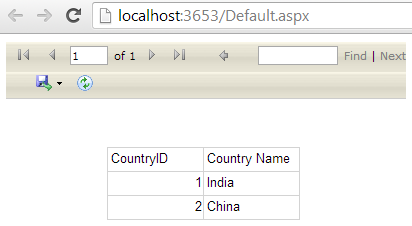

Step 23. Now run the website and we can see the report in Default.aspx using the Report Viewer.
![Report Viewer]()
