What Case Expressions in SQL Are

This article explains Case Expressions in the SQL language with examples.

The Case Statement has functionality similar to the IF-THEN-ELSE Statement. CASE Statements evaluate a list of conditions and returns one of the multiple possible result expressions. Sometimes there is a need to fetch or modify the records based on some conditions. In this case we can use CASE Expressions. Case can be used in any statement or clause that allows a valid expression. For example, you can use Case in statements such as SELECT, UPDATE, DELETE and SET and in clauses such as IN, WHERE, ORDER BY and HAVING.

Syntax of CASE Expression

Syntax 1 (Simple CASE Expression)

This CASE Expression is known as a simple CASE Expression. The simple CASE Expression compares an expression to a set of simple expressions to determine the result. It compares the expression with each expression in each WHEN clause. If the expression within the WHEN clause matches, it returns the expression of the THEN clause.

The following are some important points of Simple CASE Expressions:

  • Allows only an equality check.
  • Evaluates input_expression and then in the order specified, evaluates input_expression = when_expression for each WHEN clause.
  • Returns the result_expression of the first input_expression = when_expression that evaluates to TRUE.
  • If no input_expression = when_expression evaluates to TRUE, the SQL Server Database Engine returns the else_result_expression if an ELSE clause is specified, or a NULL value if no ELSE clause is specified.
  1. CASE expression
  2.
  3.    WHEN value_1 THEN result_1
  4.    WHEN value_2 THEN result_2
  5.    ...
  6.    WHEN value_n THEN result_n
  7.
  8.    ELSE result
  9.
  10. END
Syntax 2 (Searched CASE Expression)

This CASE Expression is known as a Searched CASE Expression. The searched CASE Expression evaluates a set of Boolean expressions to determine the result. In this CASE Expression we can use boolean, logical and comparison operators.

Some important points about Searched CASE Expression:
  • Evaluates in the order specified, Boolean_expression for each WHEN clause.
  • Returns result_expression of the first Boolean_expression that evaluates to TRUE.
  • If no Boolean_expression evaluates to TRUE, the Database Engine returns the else_result_expression if an ELSE clause is specified, or a NULL value if no ELSE clause is specified.
  1. CASE
  2.
  3.    WHEN condition_1 THEN result_1
  4.    WHEN condition_2 THEN result_2
  5.    ...
  6.    WHEN condition_n THEN result_n
  7.
  8.    ELSE result
  9.
  10. END
Now we will do some exercises on CASE Expressions.

First we will create a table and insert some value in that table.
  1. CREATE TABLE tblEmployee (
  2.     EMP_IID INT NOT NULL,
  3.     EMP_NAME VARCHAR(MAXNOT NULL,
  4.     EMP_AGE INT NOT NULL,
  5.     EMP_SALARY INT NOT NULL,
  6.     EMP_CITY VARCHAR(MAXNOT NULL,
  7.     EMP_GENDER CHAR(1) NOT NULL
  8. )
  9.
  10.
  11. INSERT INTO tblEmployee
  12. SELECT 1,'PANKAJ',20, 25000, 'ALWAR''1' UNION ALL
  13. SELECT 2,'RAHUL',19, 22000, 'JAIPUR''1' UNION ALL
  14. SELECT 3,'PRIYA',21, 28000, 'ALWAR''0' UNION ALL
  15. SELECT 4,'SANDEEP',20, 23000, 'JAIPUR''1' UNION ALL
  16. SELECT 5,'SONAL',22, 32000, 'ALWAR''0' UNION ALL
  17. SELECT 6,'SANJEEV',21, 50000, 'ALWAR''1' UNION ALL
  18. SELECT 7,'KOMAL',23, 47000, 'JAIPUR''0'
Now tblEmployee will look as the following:
  1. SELECT * FROM tblEmployee e;

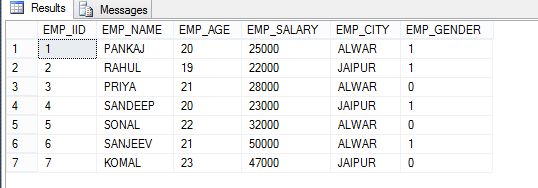

tblEmployee look

Now we will see some examples.

Example 1

This example shows a general use of a CASE expression.

    Syntax 1

    1. DECLARE @MYCOUNT INT;
    2. SET @MYCOUNT = 3
    3. SELECT
    4.     CASE (@MYCOUNT)
    5.         WHEN 1 THEN 'ONE'
    6.         WHEN 2 THEN 'TWO'
    7.         WHEN 3 THEN 'THREE'
    8.         ELSE 'WRONG CHOICE'
    9.     END AS [MESSAGE]
    Output

    CASE expression

    Syntax 2
    1. DECLARE @MYCOUNT INT;
    2. SET @MYCOUNT = 9
    3. SELECT
    4.     CASE
    5.         WHEN @MYCOUNT < 5 THEN 'VALUE IS LESS THAN 5'
    6.         WHEN @MYCOUNT >= 5 AND
    7.             @MYCOUNT < 10 THEN 'VALUE IS LESS THAN 10 BUT GREATER THAN 5'
    8.
    9.         ELSE 'VALUE GREATER THAN 10'
    10.     END AS [MESSAGE]

    Output

    MESSAGE
Example 2 (SELECT Statements)

    Syntax 1

    1. SELECT
    2.     e.EMP_IID,
    3.     e.EMP_NAME,
    4.     e.EMP_AGE,
    5.     e.EMP_SALARY,
    6.     e.EMP_CITY,
    7.     EMP_GENDER=
    8.     (CASE e.EMP_GENDER
    9.     WHEN '0' THEN 'FEMALE'
    10.     WHEN '1' THEN 'MALE'
    11.     ELSE NULL
    12.     END
    13.     )
    14. FROM tblEmployee e

    Syntax 2
    1. SELECT
    2.     e.EMP_IID,
    3.     e.EMP_NAME,
    4.     e.EMP_AGE,
    5.     e.EMP_SALARY,
    6.     e.EMP_CITY,
    7.     EMP_GENDER=
    8.     ( CASE
    9.     WHEN  e.EMP_GENDER ='0' THEN 'FEMALE'
    10.     WHEN e.EMP_GENDER ='1' THEN 'MALE'
    11.     ELSE NULL
    12.     END
    13.     )
    14. FROM tblEmployee e

    Output

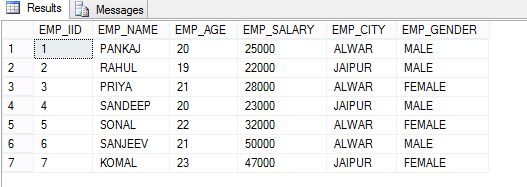

    SELECT Statements
Example 3 (UPDATE Statement)

    Syntax 1

    1. UPDATE tblEmployee
    2. SET EMP_SALARY = (CASE EMP_CITY
    3.     WHEN 'ALWAR' THEN 35000
    4.     WHEN 'JAIPUR' THEN 40000
    5.     ELSE 38000
    6. END)

    Syntax 2
    1. UPDATE tblEmployee
    2. SET EMP_SALARY = (CASE
    3.     WHEN EMP_CITY='ALWAR' THEN 35000
    4.     WHEN EMP_CITY='JAIPUR' THEN 40000
    5.     ELSE 38000
    6. END)

    Output

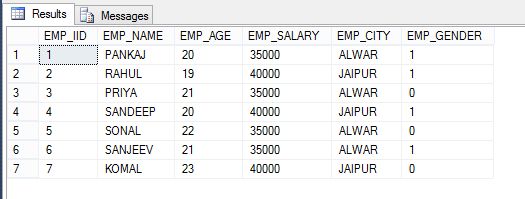

    UPDATE Statement

Example 4 (DELETE Statement)

    1. DELETE FROM tblEmployee
    2. WHERE EMP_CITY = (CASE
    3.         WHEN EMP_SALARY <= 25000 THEN 'ALWAR'
    4.         WHEN EMP_SALARY > 25000 AND
    5.             EMP_SALARY < 30000 THEN 'JAIPUR'
    6.         ELSE NULL
    7.     END)

    Output

    tblEmployee

Example 5 (DELETE Statement)

    1. DELETE FROM tblEmployee
    2. WHERE EMP_CITY = (CASE EMP_SALARY
    3.         WHEN  22000 THEN 'ALWAR'
    4.         WHEN  47000  THEN 'JAIPUR'
    5.         ELSE NULL
    6.     END)

    Output

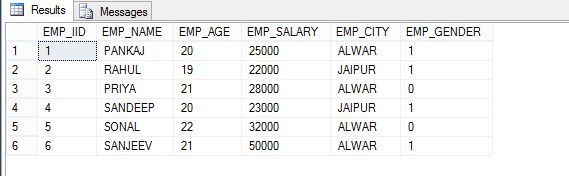

    DELETE Statement

Example 6 (ORDER BY)

    Syntax 1

    1. SELECT
    2.     *
    3. FROM tblEmployee e
    4. ORDER BY CASE e.EMP_GENDER
    5.     WHEN '0' THEN e.EMP_NAME
    6. END DESC,
    7. CASE e.EMP_GENDER
    8.     WHEN '1' THEN e.EMP_IID
    9. END DESC

    Syntax 2
    1. SELECT
    2.     *
    3. FROM tblEmployee e
    4. ORDER BY CASE
    5.     WHEN e.EMP_GENDER = '0' THEN e.EMP_NAME
    6. END DESC,
    7. CASE
    8.     WHEN e.EMP_GENDER = '1' THEN e.EMP_IID
    9. END DESC

    Output

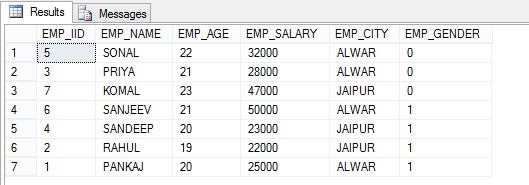

    ORDER BY

Example 7 (HAVING)

    Syntax 1

    1. SELECT
    2.     e.EMP_NAME,
    3.     e.EMP_AGE,
    4.     e.EMP_SALARY,
    5.     MAX(e.EMP_SALARY) AS MAXSALARY
    6. FROM tblEmployee e
    7.
    8. GROUP BY    e.EMP_NAME,
    9.             e.EMP_AGE,
    10.             e.EMP_SALARY
    11. HAVING (MAX(CASE e.EMP_GENDER
    12.     WHEN '0' THEN e.EMP_SALARY
    13.     ELSE NULL
    14. END)) > 30000
    15. OR (MAX(CASE e.EMP_GENDER
    16.     WHEN '1' THEN e.EMP_SALARY
    17.     ELSE NULL
    18. END)) < 30000

    Syntax 2
    1. SELECT
    2.     e.EMP_NAME,
    3.     e.EMP_AGE,
    4.     e.EMP_SALARY,
    5.     MAX(e.EMP_SALARY) AS MAXSALARY
    6. FROM tblEmployee e
    7.
    8. GROUP BY    e.EMP_NAME,
    9.             e.EMP_AGE,
    10.             e.EMP_SALARY
    11. HAVING (MAX(CASE
    12.     WHEN e.EMP_GENDER= '0' THEN e.EMP_SALARY
    13.     ELSE NULL
    14. END)) > 30000
    15. OR (MAX(CASE
    16.     WHEN e.EMP_GENDER= '1' THEN e.EMP_SALARY
    17.     ELSE NULL
    18. END)) < 30000

    Output

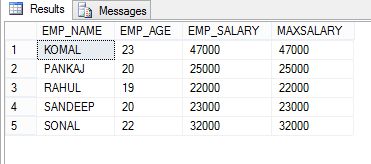

    HAVING

Example 8 (STORED PROCEDURE)

This example illustrates how to use CASE Statements in a Stored Procedure.

    1. CREATE PROC MY_PROC (@EMP_SALARY INT)
    2. AS
    3. BEGIN
    4.
    5.     DELETE FROM tblEmployee
    6.     WHERE EMP_CITY = (CASE
    7.             WHEN @EMP_SALARY <= 25000 THEN 'ALWAR'
    8.             WHEN @EMP_SALARY > 25000 AND
    9.                 @EMP_SALARY < 30000 THEN 'JAIPUR'
    10.             ELSE NULL
    11.         END)
    12.
    13. END
Example 9 (VIEW)

This example illustrates how to use CASE Statements with views.
    1. CREATE VIEW MY_VIEW
    2. AS
    3. SELECT
    4.     e.EMP_IID,
    5.     e.EMP_NAME,
    6.     e.EMP_AGE,
    7.     e.EMP_SALARY,
    8.     e.EMP_CITY,
    9.     EMP_GENDER=
    10.     ( CASE
    11.     WHEN  e.EMP_GENDER ='0' THEN 'FEMALE'
    12.     WHEN e.EMP_GENDER ='1' THEN 'MALE'
    13.     ELSE NULL
    14.     END
    15.     )
    16. FROM tblEmployee e

    Now select values from the view:
    1. SELECT * FROM MY_VIEW mv

    Output

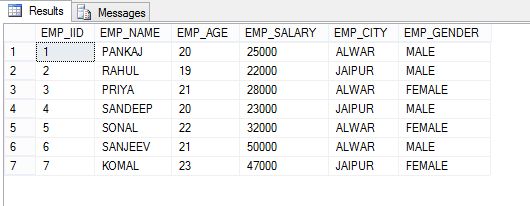

    VIEW
I hope this article helps you in understanding Case Expressions in SQL.
