class PersonMapper: MapperBase<Person>
{
protected override Person Map(IDataRecord record)
{
try
{
Person p = new Person();
p.Id = (DBNull.Value == record["PersonID"]) ?
0 : (int)record["PersonID"];
p.FirstName = (DBNull.Value == record["FirstName"]) ?
string.Empty : (string)record["FirstName"];
p.LastName = (DBNull.Value == record["LastName"]) ?
string.Empty : (string)record["LastName"];
p.Email = (DBNull.Value == record["Email"]) ?
string.Empty : (string)record["Email"];
return p;
}
catch
{
throw;
// NOTE:
// consider handling exeption here instead of re-throwing
// if graceful recovery can be accomplished
}
}
}

Can you see how easy it would be to create a new mapper for any class we have defined that pulls data from a table? If you see the possibilities, I imagine you are getting a bit excited right about now. Hold on though, we aren't even to the good part yet.

Template Pattern + Generics = DataAccess Synergy

The other thing we have to do is actually hit the database with a request and get the IDataReader back.

Here is what changes for each table we are hitting and each object we are creating:

Getting the connection.
Getting the Sql Command
Getting the Sql Command Type
Getting the mapper (from part II)

IDbConnection GetConnection();
string CommandText { get; }
CommandType CommandType { get; }
Collection<IDataParameter> GetParameters(IDbCommand command);
MapperBase<T> GetMapper();

Here is what stays the same which we'll encapsulate in an Execute() method that will return a collection of our objects.

public Collection<T> Execute()
{
Collection<T> collection = new Collection<T>();
using (IDbConnection connection = GetConnection())
{
IDbCommand command = connection.CreateCommand();
command.Connection = connection;
command.CommandText = this.CommandText;
command.CommandType = this.CommandType;
foreach(IDataParameter param in this.GetParameters(command))
command.Parameters.Add(param);
try
{
connection.Open();
using (IDataReader reader = command.ExecuteReader())
{
try
{
MapperBase<T> mapper = GetMapper();
collection = mapper.MapAll(reader);
return collection;
}
catch
{
throw;
// NOTE:
// consider handling exeption here
// instead of re-throwing
// if graceful recovery can be accomplished
}
finally
{
reader.Close();
}
}
}
catch
{
throw;
// NOTE:
// consider handling exeption here instead of re-throwing
// if graceful recovery can be accomplished
}
finally
{
connection.Close();
}
}
}

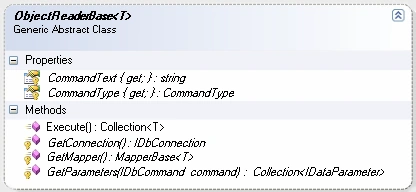

So, here is the class we end up with:

One of the things that will be the same for all of the objects inheriting from ObjectReaderBase is getting the connection: "GetConnection()". We'll put this in an abstract object implementing the ObjectReaderBase<T>.

abstract class ObjectReaderWithConnection<T> : ObjectReaderBase<T>
{
private static string m_connectionString =
@"Data Source=DATA_SOURCE_NAME;Initial Catalog=Test;Integrated Security=True";
protected override System.Data.IDbConnection GetConnection()
{
// update to get your connection here
IDbConnection connection = new SqlConnection(m_connectionString);
return connection;
}
}

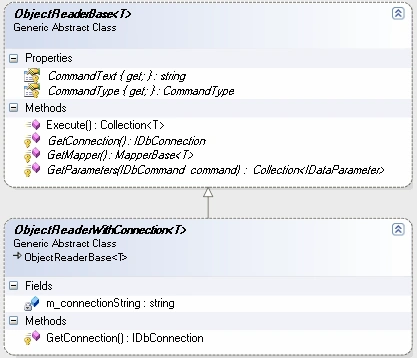

So we have:

Here is the implementation of a PersonReader which handles things specific to reading a person from the database and building a collection of Person objects.

class PersonReader: ObjectReaderWithConnection<Person>
{
protected override string CommandText
{
get { return "SELECT PersonID, FirstName, LastName, Email FROM tblPerson"; }
}
protected override CommandType CommandType
{
get { return System.Data.CommandType.Text; }
}
protected override Collection<IDataParameter> GetParameters(IDbCommand command)
{
Collection<IDataParameter> collection = new Collection<IDataParameter>();
return collection;
//// USE THIS IF YOU ACTUALLY HAVE PARAMETERS
//IDataParameter param1 = command.CreateParameter();
//param1.ParameterName = "paramName 1"; // put parameter name here
//param1.Value = 5; // put value here;
//collection.Add(param1);
//return collection;
}
protected override MapperBase<Person> GetMapper()
{
MapperBase<Person> mapper = new PersonMapper();
return mapper;
}
}

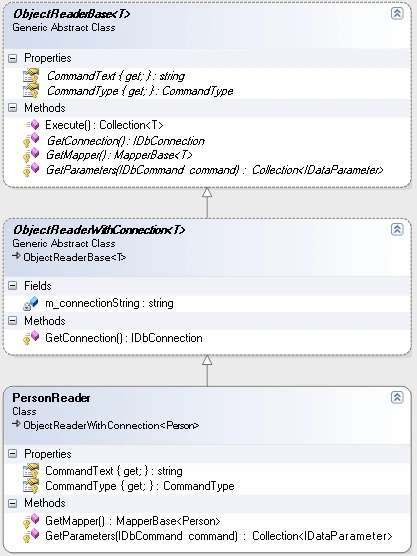

So now we have:

Once you have the general concept, you will probably have many ideas on how you can tweak this base reader object for improvements or to fit your specific projects needs.

Also, you will have to create a different base object for each "type" of data access you'll be performing. For example you may need other abstract base classes for when you will be executing IDbCommand.ExecuteNonQuery() or IDbCommand.ExecuteScalar() requests against the database.

Mapping Synergy + DataAccess Synergy = Elegant Code

The important thing to realize is that we have completely separated out normally repetitive code which will make for much easier maintenance because of a smaller code base. For each new table-class relationship you have in your project you only have to specify the things that are different. So, while this approach may look like more classes and complexity upfront, once you understand and implement this approach you'll actually save a lot of time as the number of "data holding" classes in your project grows and you'll have fewer places to look when debugging because of all the shared-code-synergy.

This is how we'll use our framework to retrieve everyone from the database and print them to the console:

static voidMain(string[] args)
{
PersonReader reader = new PersonReader();
Collection<Person> people = reader.Execute();
foreach (Person p in people)
Console.WriteLine(string.Format("{0}, {1}: {2}",
p.LastName, p.FirstName, p.Email));
Console.ReadLine();
}

Conclusion

So now you have the general idea you can use it as a base to build a DAL. There are many places to improve upon this approach such as using an identity map (yet another awesome Fowler pattern) to avoid unnecessary database hits or a better way to get the IDbConnection, such as using the strategy pattern and maybe using a factory, or how about a facade pattern to expose all of this functionality through one object.... anyways the possibilities are (almost) endless depending on your project.

You will most likely have to make changes to have this approach work for any specific project, but as you can see, it is possible to have less code to debug... less code to break... less code to maintain... what could be better? We can synergize our code by combining the Template Pattern with generics.
