Arithmetic Operation Using WCF Service Hosted on Windows Phone with Silverlight

Today, in this article let's play around by performing arithmetic operation on windows phone using Silverlight with base as WCF Service.

So, we are here only to do practical implementation rather than much studying theory concepts.

So, I think we all are now good to go and implement this interesting concept.

Let's get started it off now!!!

Let's Now Create New WCF Service Application in .NET 4.0 and carryon with further operations like this:

The Complete Code of IService1.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace WcfService1
{
// NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
[ServiceContract]
public interface IService1
{
[OperationContract]
double Add(double a, double b);
[OperationContract]
double Sub(double a, double b);
[OperationContract]
double Mul(double a, double b);
[OperationContract]
double Div(double a, double b);
}
}

The Complete Code of Service1.svc looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WcfService1
{
// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
public class Service1 : IService1
{
public double Add(double a, double b)
{
return a + b;
}

public double Sub(double a, double b)
{
return a - b;
}

public double Mul(double a, double b)
{
return a * b;
}

public double Div(double a, double b)
{
return a / b;
}
}
}

The Complete Code of Web.Config looks like this:

<?xml version="1.0"?>
<configuration>

<system.web>
<compilation debug="true" targetFramework="4.0" />
</system.web>
<system.serviceModel>
<behaviors>
<serviceBehaviors>
<behavior name="Application">

<serviceMetadata httpGetEnabled="true"/>

<serviceDebug includeExceptionDetailInFaults="false"/>
</behavior>
</serviceBehaviors>
</behaviors>
<serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
<services>
<service name="WcfService1.Service1" behaviorConfiguration="Application">
<endpoint address="/Simple" binding="basicHttpBinding" contract="WcfService1.IService1">

</endpoint>
<host>
<baseAddresses>
<add baseAddress="http://localhost:51779/Service1.svc"/>

</baseAddresses>
</host>
</service>
</services>
</system.serviceModel>

<system.webServer>
<modules runAllManagedModulesForAllRequests="true"/>
</system.webServer>

</configuration>

Now we're all done with WCF Part, now it's time for us to go and create new Windows Phone Application and we will add it to existing solution folder.

The Complete Code of MainPage.xaml looks like this

<phone:PhoneApplicationPage
x:Class="ArthimeticPhoneApp.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
FontFamily="{StaticResource PhoneFontFamilyNormal}"
FontSize="{StaticResource PhoneFontSizeNormal}"
Foreground="{StaticResource PhoneForegroundBrush}"
SupportedOrientations="Portrait" Orientation="Portrait"
shell:SystemTray.IsVisible="True" Loaded="PhoneApplicationPage_Loaded">

<Grid x:Name="LayoutRoot" Background="Transparent">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>

<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
<TextBlock x:Name="ApplicationTitle" Text="Vijay's Arthimetic using WCF" Style="{StaticResource PhoneTextNormalStyle}"/>
<TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
</StackPanel>

<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="234*" />
<ColumnDefinition Width="222*" />
</Grid.ColumnDefinitions>
<TextBlock x:Name="Textblock1" FontSize="25" Text="Please Enter First Number" Margin="-1,18,1,0" Grid.ColumnSpan="2" />
<TextBox Margin="0,0,6,541" HorizontalAlignment="Right" Width="115" Name="textbox1" Grid.Column="1" />
<TextBlock x:Name="Textblock2" FontSize="25" Text="Please Enter Second Number " Margin="6,84,127,-72" Grid.ColumnSpan="2" />
<TextBox Height="72" HorizontalAlignment="Left" Margin="101,72,0,0" Name="textBox2" VerticalAlignment="Top" Width="115" Grid.Column="1" />
<Button Content="Addition" Margin="35,140,-22,381" Grid.Column="1" Click="Button1_Click" Name="Button1" />
<Button Content="Substraction" Margin="35,211,-21,321" Grid.Column="1" Name="Button2" Click="Button2_Click" />
<Button Content="Multiplication" Margin="30,273,-22,257" Grid.Column="1" Name="Button3" Click="Button3_Click" />
<Button Content="Division" Height="72" VerticalAlignment="Top" Margin="35,339,-22,0" Grid.Column="1" Name="Button4" Click="Button4_Click" />
<TextBlock x:Name="Textblock3" Margin="12,417,6,96" Grid.ColumnSpan="2" FontSize="26" FontWeight="Bold" HorizontalAlignment="Center" Visibility="Collapsed" />
</Grid>
</Grid>

</phone:PhoneApplicationPage>

The Complete Code of MainPage.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using ArthimeticPhoneApp.ServiceReference1;
using System.ServiceModel;
namespace ArthimeticPhoneApp
{
public partial class MainPage : PhoneApplicationPage
{
// Constructor
public MainPage()
{
InitializeComponent();

}

private void PhoneApplicationPage_Loaded(object sender, RoutedEventArgs e)
{

}

static void AddCall(object sender, AddCompletedEventArgs e)
{
MessageBox.Show("The Addition Result is: " + e.Result);
}

private void Button1_Click(object sender, RoutedEventArgs e)
{

if (textbox1.Text == "" || textBox2.Text == "")
{
Textblock3.Text = "Please Enter Some Values";
Textblock3.Visibility = Visibility.Visible;

}
else
{
Textblock3.Text = "";
Service1Client obj = new Service1Client();
obj.AddCompleted += new EventHandler<AddCompletedEventArgs>(AddCall);
obj.AddAsync(Convert.ToDouble(textbox1.Text), Convert.ToDouble(textBox2.Text));
textbox1.Text = "";
textBox2.Text = "";

}

static void SubCall(object sender, SubCompletedEventArgs e)
{
MessageBox.Show("The Substraction Result is: " + e.Result);
}

private void Button2_Click(object sender, RoutedEventArgs e)
{
if (textbox1.Text == "" || textBox2.Text == "")
{
Textblock3.Text = "Please Enter Some Values";
Textblock3.Visibility = Visibility.Visible;

}
else
{
Textblock3.Text = "";
Service1Client obj = new Service1Client();
obj.SubCompleted += new EventHandler<SubCompletedEventArgs>(SubCall);
obj.SubAsync(Convert.ToDouble(textbox1.Text), Convert.ToDouble(textBox2.Text));
textbox1.Text = "";
textBox2.Text = "";

}

}
static void MulCall(object sender, MulCompletedEventArgs e)
{
MessageBox.Show("The Multiplication Result is: " + e.Result);
}

private void Button3_Click(object sender, RoutedEventArgs e)
{

if (textbox1.Text == "" || textBox2.Text == "")
{
Textblock3.Text = "Please Enter Some Values";
Textblock3.Visibility = Visibility.Visible;

}
else
{
Textblock3.Text = "";
Service1Client obj = new Service1Client();
obj.MulCompleted += new EventHandler<MulCompletedEventArgs>(MulCall);
obj.MulAsync(Convert.ToDouble(textbox1.Text), Convert.ToDouble(textBox2.Text));
textbox1.Text = "";
textBox2.Text = "";

}
}

static void DivCall(object sender, DivCompletedEventArgs e)
{
MessageBox.Show("The Division Result is: " + e.Result);
}

private void Button4_Click(object sender, RoutedEventArgs e)
{

if (textbox1.Text == "" || textBox2.Text == "")
{
Textblock3.Text = "Please Enter Some Values";
Textblock3.Visibility = Visibility.Visible;

}
else
{
Textblock3.Text = "";
Service1Client obj = new Service1Client();
obj.DivCompleted += new EventHandler<DivCompletedEventArgs>(DivCall);
obj.DivAsync(Convert.ToDouble(textbox1.Text), Convert.ToDouble(textBox2.Text));
textbox1.Text = "";
textBox2.Text = "";
}
}

}
}

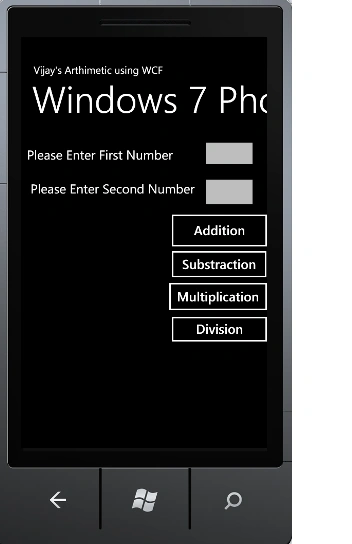

The Output of the Application looks like this:

The Addition Operation Output of the Application looks like this:

The Invalid Output Operation Application looks like this:

I hope this article is useful for you.
