In this article, I will discuss how to create an ArrayList of objects and bind it to a DataGrid control using DataSource property.
Step 1. Creating a Class
First step is to create a class. I call my class Developer, which is listed in Listing 1. It's properties are FirstName, LastName, Age, Skills, and Experience.
public class Developer
{
private string firstName;
private string lastName;
private int age;
private string skills;
private int experience;
public Developer(string firstName, string lastName, int age, string skills, int experience )
{
this.firstName = firstName;
this.lastName = lastName;
this.age = age;
this.skills = skills;
this.experience = experience;
}
/// <summary>
/// First Name
/// </summary>
public string FirstName
{
get { return this.firstName ; }
}
/// <summary>
/// Last Name
/// </summary>
public string LastName
{
get { return this.lastName ; }
}
/// <summary>
/// Age
/// </summary>
public int Age
{
get { return this.age ; }
}
/// <summary>
/// Skill set
/// </summary>
public string Skills
{
get { return this.skills ; }
}
/// <summary>
/// Number of year experience
/// </summary>
public int Experience
{
get { return this.experience ; }
}
}
Listing 1. Developer class
Step 2. Creating an ArrayList of Objects
Now next step is to create an ArrayList object of Developer class. Listing 2 adds 6 items to the ArrayList.
private ArrayList GetList()
{
ArrayList list = new ArrayList();
list.Add(new Developer("Mahesh", "Chand", 30, "C#,ASP.NET,Windows Forms", 10)) ;
list.Add(new Developer("Michael", "Gold", 35, "GDI+, ASP.NET", 15)) ;
list.Add(new Developer("Bhasker", "Das", 26, "VB.NET, Web Applications", 4)) ;
list.Add(new Developer("Ashish", "Singhal", 24, "ADO.NET, GDI+", 4)) ;
list.Add(new Developer("Neel", "Beniwal", 3, "C#,ASP.NET,Windows Forms", 0)) ;
list.Add(new Developer("Melanie", "Talmadge", 25, "Java", 2)) ;
return list;
}
Listing 2. ArrayList of Developer
Step 3. Binding with DataGrid
Now we can bind our ArrayList using DataGrid.DataSource property and DataGrid would understand what to display in its columns. The following code binds the ArrayList to DataGrid.
ArrayList list = GetList();
dataGrid1.DataSource = list;
Step 4. The Result

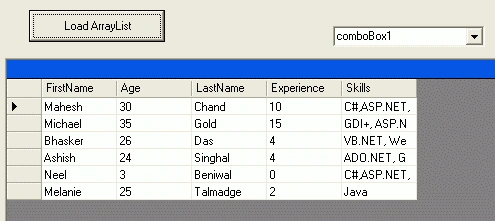

Now if I run my application, the output in DataGrid looks like Figure 1.
Figure 1. Developers in a DataGrid
Step 5. Formatting DataGrid Columns
As you can see from Figure 1, the column names of the DataGrid are same as property names of the Developer class. Now many developers asked me questions, how to change the column header and the size of headers.
To do this, we need to take helo of DataGridTableStyle and DataGridColumnStyles. A DataGridTableStyle object represents the style of the entire DataGrid. In Listing 3, I create a new DataGridTableStyle and later I create ColumnStyles and add ColumnStyles to the TableStyles. In the end of the code, I remove the current TableStyle of the DataGrid and add new style.
// Create a Custom TableStyle
DataGridTableStyle tableStyle = new DataGridTableStyle();
tableStyle.MappingName = "ArrayList";
tableStyle.HeaderFont = new Font("Verdana", 9, FontStyle.Bold);
tableStyle.HeaderForeColor = Color.OrangeRed;
int colwidth = (dataGrid1.ClientSize.Width - tableStyle.RowHeaderWidth
- SystemInformation.VerticalScrollBarWidth) / 6;
// Create a DataGridColumn, set its header text and other properties
DataGridTextBoxColumn cs = new DataGridTextBoxColumn();
cs.MappingName = "FirstName";
cs.HeaderText = "First Name";
cs.Width = colwidth;
// Add Column to GridColumnStyles
tableStyle.GridColumnStyles.Add(cs);
// Create a DataGridColumn, set its header text and other properties
cs = new DataGridTextBoxColumn();
cs.MappingName = "LastName";
cs.HeaderText = "Last Name";
cs.Width = colwidth;
// Add Column to GridColumnStyles
tableStyle.GridColumnStyles.Add(cs);
// Create a DataGridColumn, set its header text and other properties
cs = new DataGridTextBoxColumn();
cs.MappingName = "Age";
cs.HeaderText = "Age";
cs.Width = colwidth;
// Add Column to GridColumnStyles
tableStyle.GridColumnStyles.Add(cs);
// Create a DataGridColumn, set its header text and other properties
cs = new DataGridTextBoxColumn();
cs.MappingName = "Experience";
cs.HeaderText = "Exp (Years)";
cs.Width = colwidth;
// Add Column to GridColumnStyles
tableStyle.GridColumnStyles.Add(cs);
// Create a DataGridColumn, set its header text and other properties
cs = new DataGridTextBoxColumn();
cs.MappingName = "Skills";
cs.HeaderText = "Skills";
cs.Width = colwidth + colwidth;
// Add Column to GridColumnStyles
tableStyle.GridColumnStyles.Add(cs);
// Get rid of current table style
dataGrid1.TableStyles.Clear();
// Add new table style to the Grid
dataGrid1.TableStyles.Add(tableStyle);
Listing 3. Formatting a DataGrid
As you can see from Listing 3, I create a DataGridTextBoxColumn, set its MappingName to name of the property of Developer class, Header Text to the text I want to display on the header, and Width to the width of the column. After that I add DataGridTextBoxColumn to TableStyle.

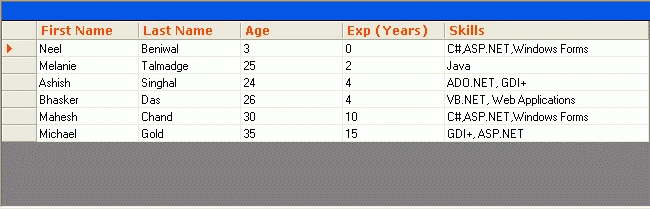

Now new formatted DataGrid looks like Figure 2.
Figure 2. Formatted Developers in a DataGrid
Summary
In this step by step tutorial, I discussed how to create an ArrayList of objects and bind it to a DataGrid control. After that I also discussed how to format the DataGrid columns to suite the style of the data. Download the attached source code and run it. You will find some other good stuff in the source code ;-).
