Configure Search Service As A Mini Role In SharePoint Server 2016

In this article, you will learn how to configure Search Service as a Mini Role in SharePoint Server 2016.

SharePoint 2016 general availability was announced in the Future Of SharePoint conference, in May 2016. It is the latest iteration of SharePoint and is said to be the most scalable and stable product in the SharePoint line up.

Lot of improvements have been made over its predecessor, SharePoint 2013. Notable improvements have happened in the Search Department with the introduction of Mini Role Search and Cloud Hybrid Search.

Search as a Mini Role

Mini Role is a feature newly introduced in SharePoint 2016 which offloads the SharePoint load by hosting the features like search as a separate server.Below image shows the available Mini Role options we can configure.

Role

Thus, we can configure the Search Service in a server that is optimized for handling search and crawl operations.

SharePoint Search Mini Role Server Configuration

This article assumes that you have already created a SharePoint 2016 Farm. If you have created a Single Server Installation, adding of Search Mini Role to the Server will not be possible. You can refer to my Free E-Book that gives a detailed step by step guide to set up a SharePoint 2016 Farm.

In order to set up SharePoint Server Mini Role Server dedicated for search we have to set up SharePoint Server 2016 in that server. You can get the SharePoint 2016 executable from here. Download the exe to the VM/Server. You can also get to know the installation process of SharePoint Server 2016 from here.

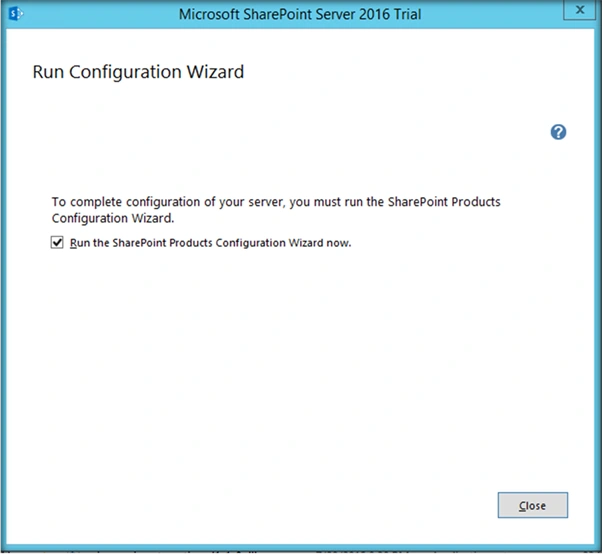

Once the installation completes you will get the message to run the Configuration Wizard. Select the checkbox ‘Run the SharePoint Products Configuration Wizard now’ and click on ‘Close’.

Role

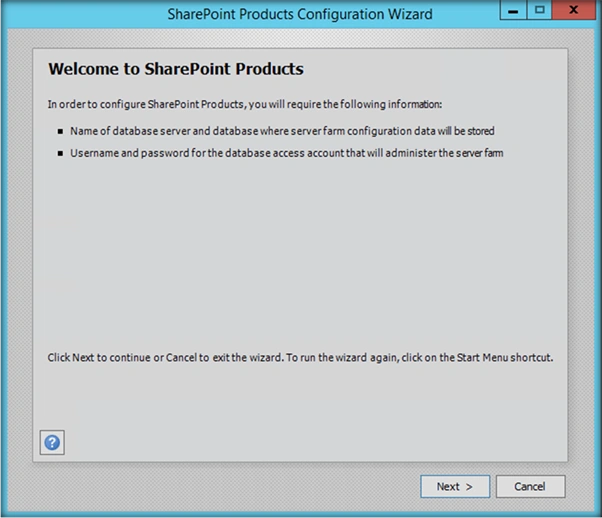

SharePoint Products Configuration Wizard, when run for the first time, will create the Configuration DB and create a new SharePoint farm. However, we have already done this while configuring the SharePoint 2016 Farm. This time, we will be using the same Config DB and will connect to the Server Farm. We will be selecting the Mini Role: ‘Search’ to configure the current server. Since we have the back-end database in a separate VM/Server, make sure that it is up and running. Click on ‘Next’.

Role

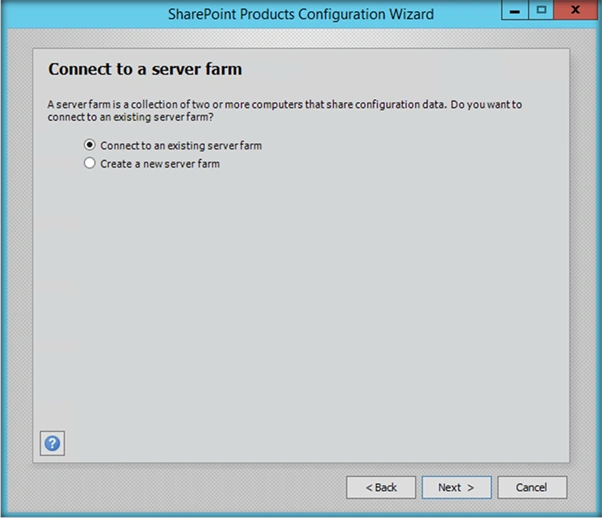

Select the radio button "Connect to an existing server farm".

Role

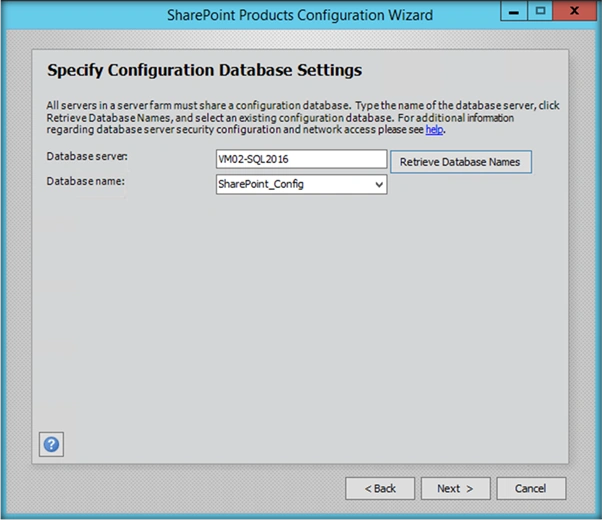

Specify the Database server name: VM02-SQL2016, in my case, and click on ‘Retrieve Database Names’ button. This will populate the ‘SharePoint_Config’ database name in the field ‘Database Name’. Click on Next.

Role

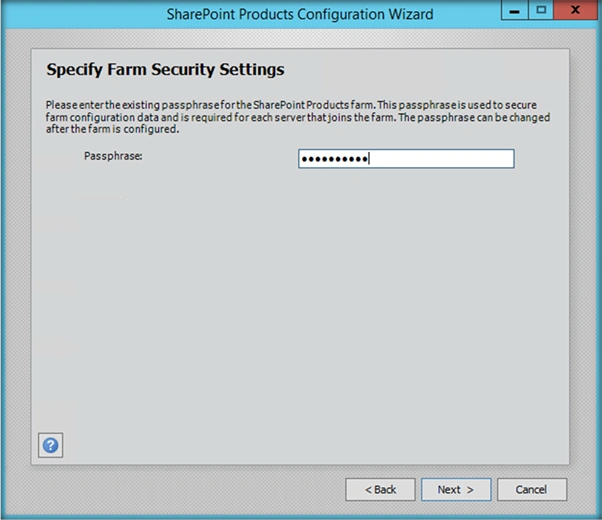

Enter the passphrase which we had configured during the creation of the SharePoint VM. This is essential to add the Mini Role VM to the SharePoint Farm. Click on ‘Next’.

Role

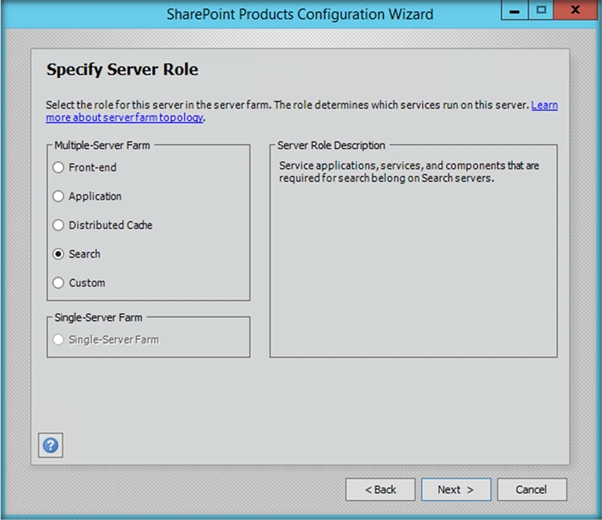

Now, we have to specify the Mini Role that will be served by this VM. Since we are configuring this VM to take the role of Search Server, we will select the ‘Search’ Mini Role. Click on ‘Next’.

Role

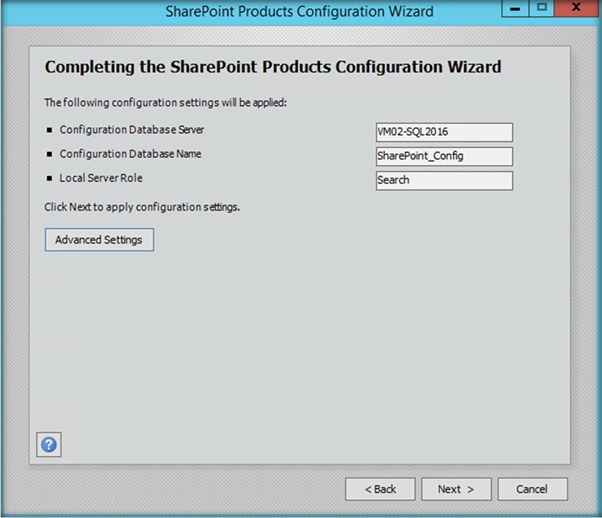

This page will show the configurations that will be applied to the SharePoint installation in the VM. You can see that the Local Server Role is shown as ‘Search’. You can click on ‘Advanced Settings’ to configure the Central Administration settings.

Role

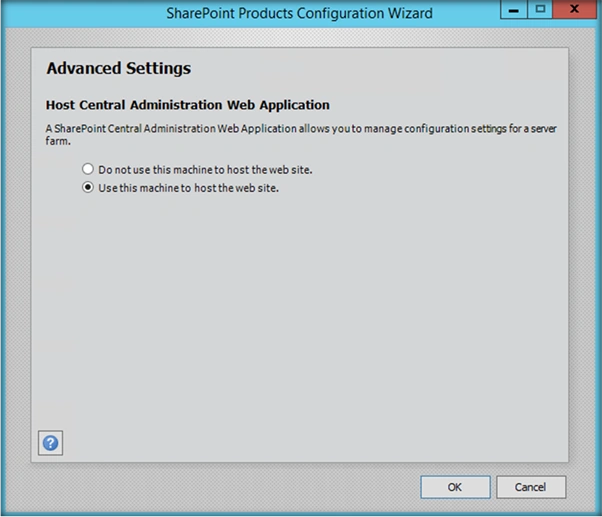

By default, it won’t be setting up Central Administration in this VM. But you can select the radio button ‘Use this machine to host Central Administration’ if you want to host CA in one more Server in the farm.

Role

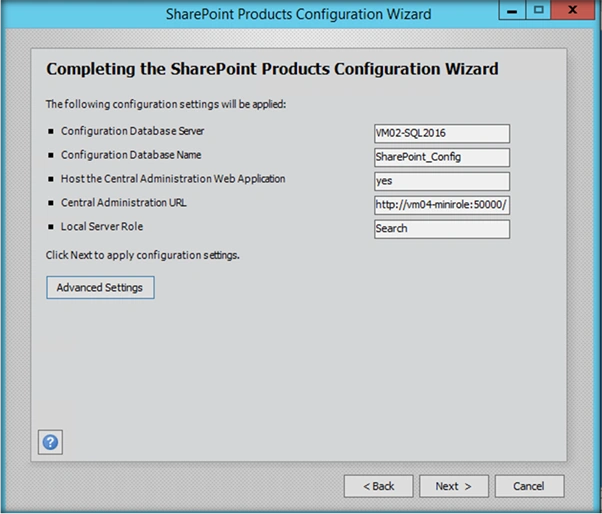

Click on OK and it will update the Configuration Page about the Central Administration hosting setting. Click on ‘Next’.

Role

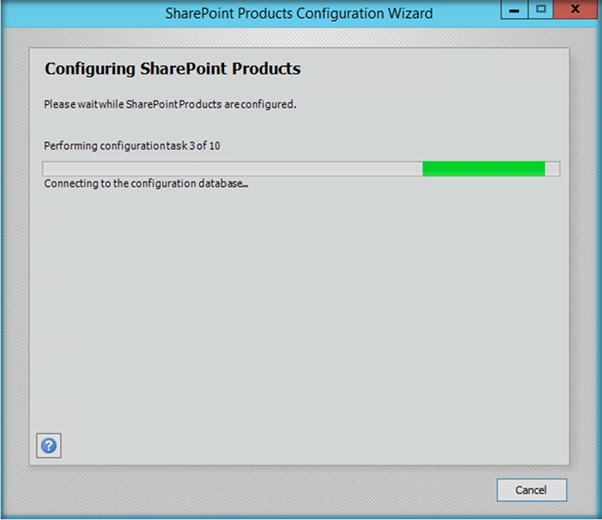

Now the Configuration Wizard has started to configure the Mini Role in the server.

Role

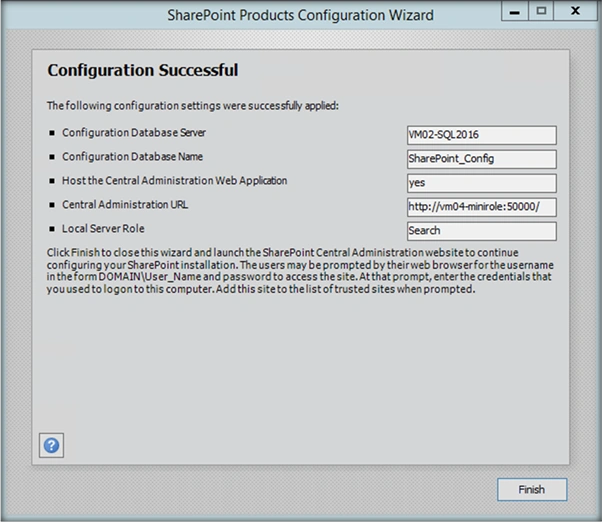

After some time the configuration is completed and shows a successful configuration message.

Role

Click on ‘Finish’. If we go to ‘Manage Servers in this farm’ we can see the servers that are in the farm.

Role

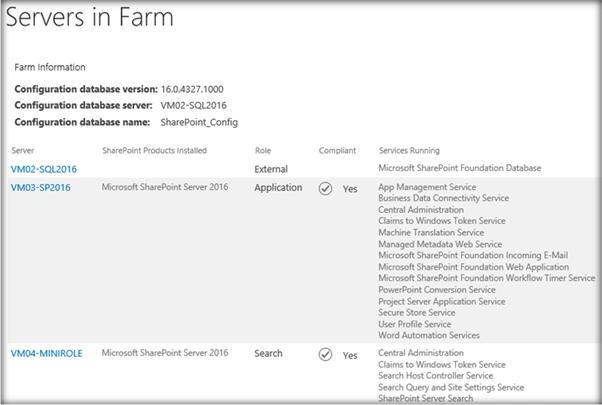

Each server in the SharePoint 2016 farm and the roles associated with it are displayed as shown below.

Role

Configure Search in Mini Role VM

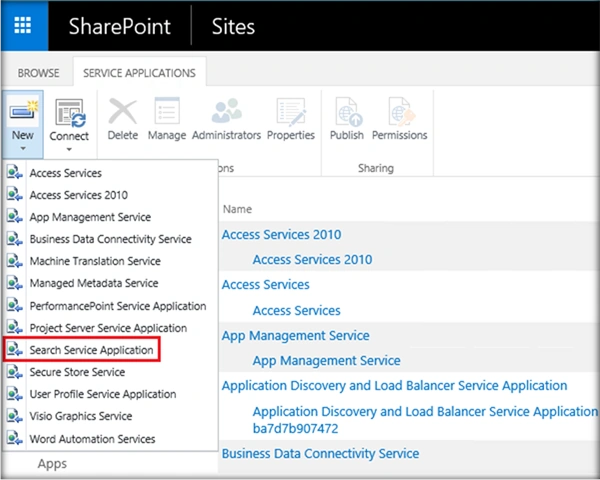

Now let’s go to the Service Application page and create a new Search Service Application which will configure search in the entire farm. Click on ‘Search Service Application’.

Role

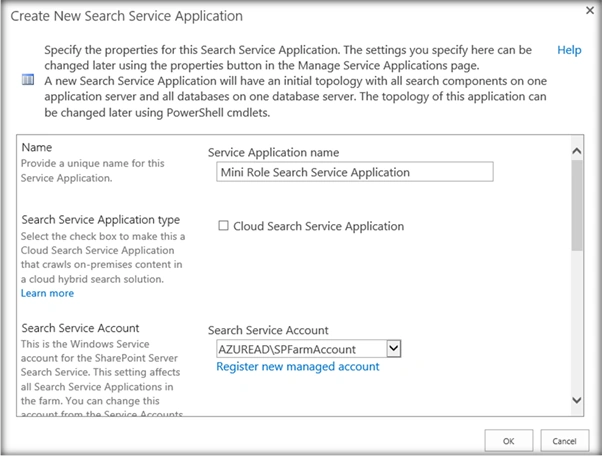

Specify the name for the Search Service Application and the Search Service Account. As a best practice you can create a new domain account in the AD and Click on Register New Managed account to add the new Domain Account as the Search Service Account. For the time being I am using the Farm Account as the Search Service Account. It is always advisable to have a separate Managed Account configured as the Search Service Account.

Role

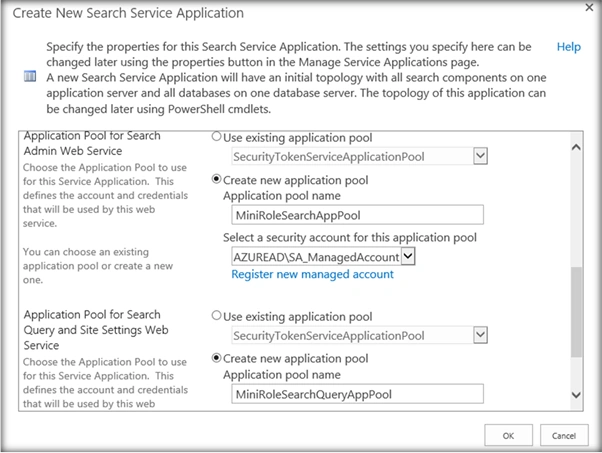

Specify the Search Admin Web Service Application Pool name and the name for the Search Query Application pool. Click on OK.

Role

This will provision the new Search Service application.

Role

It will take some time to complete the creation of the Service Application.

Role

Finally the new Search Service Application has been created.

Role

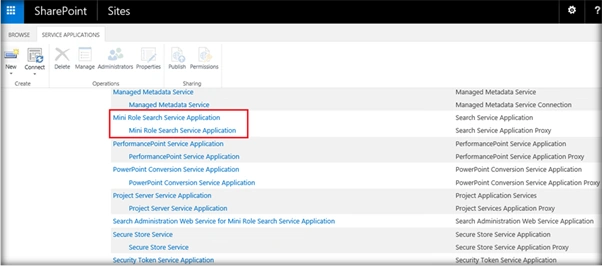

If we go to the Service Applications page we can see the Search Service Application listed out.

Role

Click on the ‘Mini Role Search Service Application’.

Role

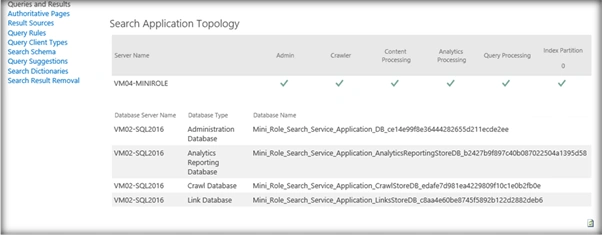

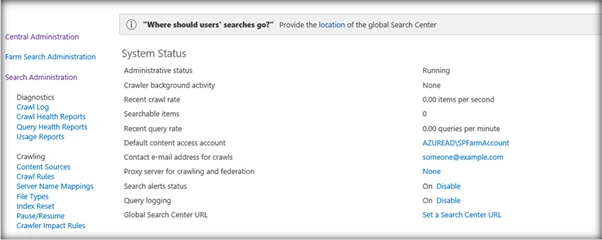

It will list out the Search Settings page. Currently there are no items in the index as crawl has not been run yet. The Search Application topology will list out the databases associated with the Search Service in the back end database.

Role

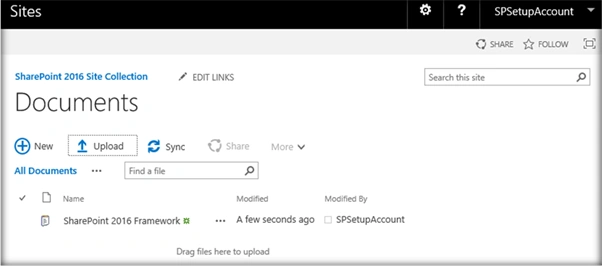

Before running the Search Crawl let's head over to the application server and try running a sample search for the below document.

Role

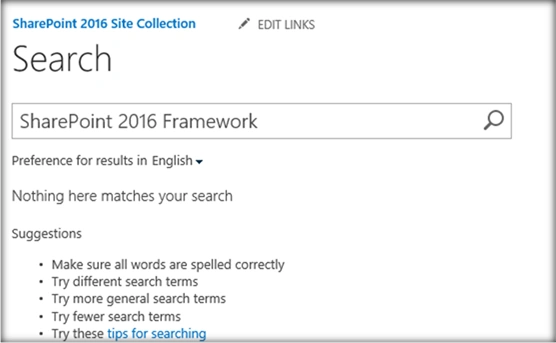

The search result page does not show up any search results.

Role

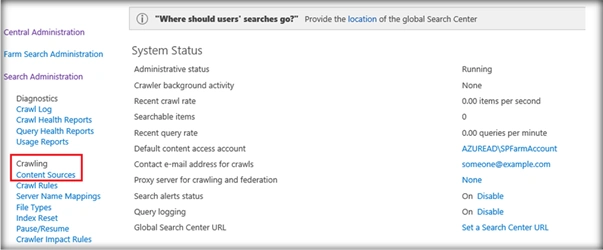

Let’s configure search. Click on Content Sources.

Role

It will list out the available content sources in the Service Application. Click on ‘Local SharePoint Sites’

Role

It will show the sites which will be crawled under this content source.

Role

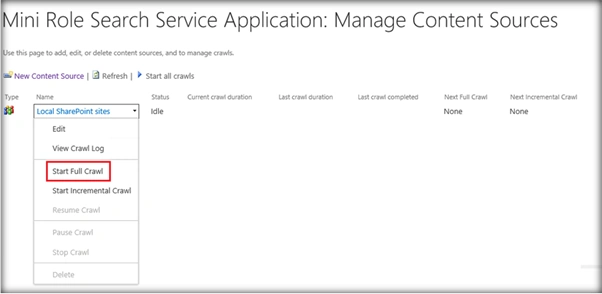

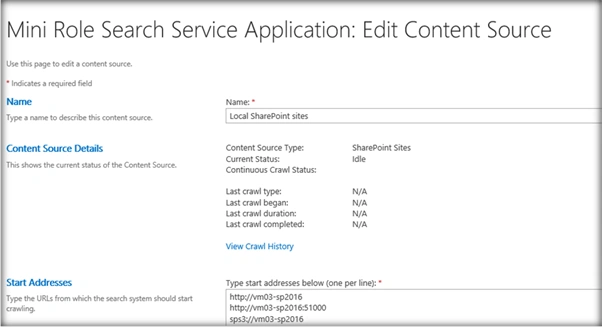

‘http://vm03-sp2016:51000’ is the site collection where we have the content. It is by default present in the Local sites. Click on ‘Start Full Crawl’ as we are running it for the first time.

Role

It will show the status as ‘Crawling Full’. Wait for some time. Since the content is much less it should ideally finish soon. Depending on the content search crawl can easily span hours.

Role

Click on ‘Refresh’.The status has changed to ‘idle’ indicating that the crawl has finished.

Role

Now let’s head back to the SharePoint Application server and try to search the document once again.

Role

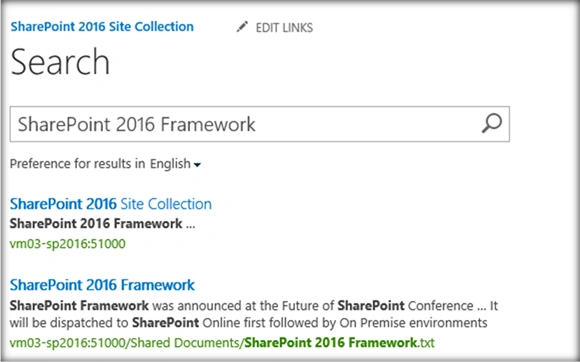

This time the search has returned back the results and we have successfully set up Search as Mini Role Server.

Summary

Thus, we have configured a Search Mini Role in different VM/Server resulting in a scalable SharePoint 2016 Farm.
