Customers.Save();

query:=  key1=value1&key2=value2&...                  //  or key1=value1;key2=value2;...

Navigate(  "/DetailsPage.xaml?selectedItem=12" )           //  Open the item #12

Navigate(  "/DetailsPage.xaml?newItem=true" )              //  Create new item\

DetailsPage reacts in  OnNavigatedTo():

System passes the query is passed through the page property NavigationContext. Its member QueryString contains key/value dictionary of the parameters passed. (This saves you from parsing rather complex query format.)

In our case we simply analyze single key/value pair, which is either [selectedItem,12] or [newItem,true].

How the AdvancedList works

Most of the list programming is done in the Xaml file. Here is the code scheme:

// MainPage.xaml

<r:AdvancedList  x:Name="MainListBox" ItemsSource="{Binding Items}" ...    NormalTemplate="normal"  SelectedTemplate="selected">

<r:AdvancedList.DataTemplates>

<DataTemplate  x:Name="normal"> ... </DataTemplate>

<DataTemplate  x:Name="selected"> ... </DataTemplate>

</r:AdvancedList.DataTemplates>

</r:AdvancedList>

// MainPage.xaml.cs

public  partial class MainPage : PhoneApplicationPage {

protected override void  OnNavigatedTo(NavigationEventArgs e) {

//...

if (DataContext  == null)

DataContext  = Customers.Instance;

}

private void  btnCall_Click(object sender, RoutedEventArgs e) {

//...

var customer =  Customers.Instance.Items[MainListBox.SelectedIndex];

}

}

Let's analyze the code:

• The name property of the AdvancedList Xml element defines the instance
  AdvancedList MainListBox ;
  This object is then used in btnCall_Click handler to get selected customer.
• The DataContext is set in the .cs file to Customers.Instance.
  If you now realize that ItemsSource for AdvancedList is bound to the DataContext property Items, it becomes clear that the list displays Customers.Items.
  Moreover, it is an ObservableCollection, i.e. the binding will be "live". What it means is that if the rest of the application adds/deletes/changes customers, the list will react automatically.
  (Note that there are other possibilities to supply ListBox items, but the described one represents the mainstream use.)
• The last question is how the list items are displayed. This is defined by the DataTemplate and will be discussed later. For the time being note that there are two templates - one for selected and another one for the unselected item.

DataTemplate

The template is used to display list items, which (in our case) means Customer objects.

Here is the template for unselected item:

<DataTemplate  x:Name="normal">

<Grid>
// Define grid 2x2
<Grid.RowDefinitions>  <RowDefinition/>  <RowDefinition/>  </Grid.RowDefinitions>
<Grid.ColumnDefinitions>  <ColumnDefinition/>  <ColumnDefinition/>  </Grid.ColumnDefinitions>// First grid row shows the value  Customer.Name
<TextBlock  Grid.ColumnSpan="2" Text="{Binding Name}"
Style="{StaticResource PhoneTextExtraLargeStyle}"/>// 2nd row displays Customer properties  EMailAddress1 and Telephone1
<TextBlock Grid.Row="1"  Grid.Column="0" Text="{Binding EMailAddress1}"
Style="{StaticResource PhoneTextSubtleStyle}"/>
<TextBlock Grid.Row="1"  Grid.Column="1" Text="{Binding Telephone1}"
Style="{StaticResource PhoneTextSubtleStyle}"/>

</Grid>

</DataTemplate>

Note also that we do not specify text properties (font, height etc.) directly, but rely instead on predefined WP7 styles. The advantage is that the application will behave consistently with the phone theme selected by the user.

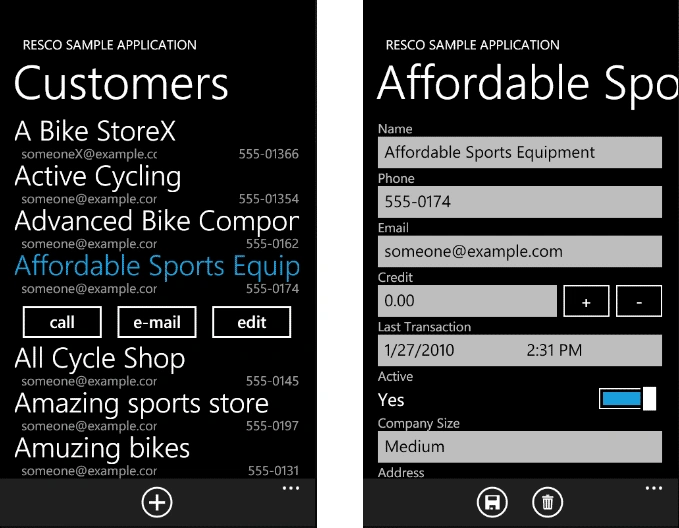

The template for selected item looks similarly - it displays the same items as above and adds 3 buttons - [call], [email] and [edit]. These buttons are processed in the .cs file by handlers such as btnCall_Click.

If you looked into the AdvancedList source code, you would find that the treatment of dynamic templates is the primary added functionality of this class. In other words, AdvancedList adds TemplateSelector - a feature present in WPF, but omitted in Silverlight.

How to implement dynamic template

SampleApplication relies on AdvancedList feature that allows using different templates for selected/unselected items. The former one contains buttons, while the latter shows only Customer properties.

The logical question is if we could do it by using a single dynamic template that would show/hide buttons depending on the selection. In other words we need a way to bind button visibility to the IsSelected property.

Unfortunately Silverlight (unlike WPF) can't bind to ListBoxItem. (IsSelected is a property of ListBoxItem!)

However, AdvancedList has a solution:

Customer object has suitable property that by chance uses the same name - IsSelected. If you set AdvancedList ItemIsSelectedPath property to "IsSelected", then the list selection will be bound to Customer.IsSelected property.

Now we can make the dynamic template:

<r:AdvancedList ItemsSource="{Binding  Items}"  ...  ItemIsSelectedPath="IsSelected">


<r:AdvancedList.Resources>
<r:BooleanToVisibilityConverter  x:Key="MyConverter"/>
</r:AdvancedList.Resources>
...
<DataTemplate>
<Button ... Visibility="{Binding  IsSelected, Converter={StaticResource MyConverter}}"/>
...
</DataTemplate>

</r:AdvancedList>

The binding relies on a converter. This is because there is a type conversion between IsSelected and Visibility properties.

Remark:

You can similarly bind ListBoxItem.IsEnabled property to suitable Customer property.

How DetailView works

DetailsPage serves as a viewer/editor of a Customer object.

We already know that this form is launched through navigation. If you look into OnNavigatedTo() code, you will see that its purpose is to set the DataContext to suitable Customer object (m_customer).

There's not much else what the .cs file takes care of - it just performs the final action, i.e. saves or discards the changes.

Most of the work is done in the Xaml file, but even that one is conceptually simple:

• It's just definitions of individual controls that are properly bound to the DataContext (i.e. Customer object) properties.
• On top of that we have also the title and the ApplicationBar with two buttons - [Save] and [Delete].

The most important part of the code is the DetailView element containing a list of various DetailViewItems.

Number of items is unlimited; the DetailView will scroll if necessary.

Typical item definition looks as follows:

<r:DetailItemTextBox  Label="Name" DataMember="Name" />

As you probably guessed, it is a (labeled) text box with that edits the property Customer.Name.

The text box takes the whole screen width with the label displayed right above it. (This all can be overridden.)

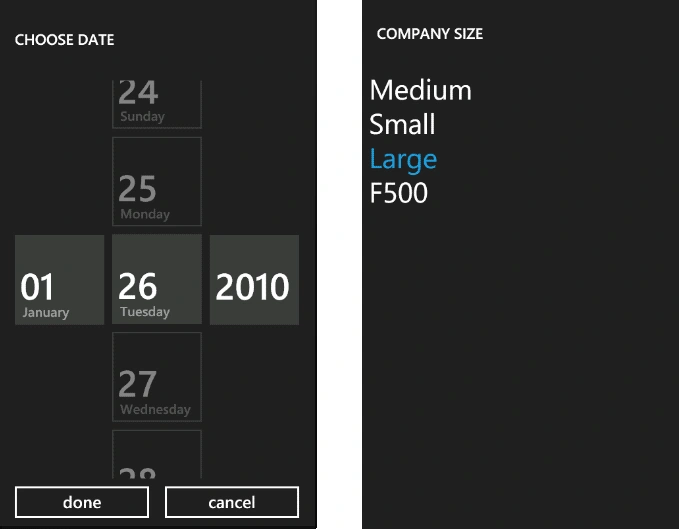

There's just one more complex item - the combo box:

<r:DetailItemComboBox  Label="Company Size" DataMember="Size"

ItemsSource="{Binding  Source={StaticResource CustomerSizesKey}}"

ValueMemberPath="Id"   DisplayMemberPath="Label"/>

The first two attributes (Label, DataMember) are standard, i.e. combo box edits the property

 int  Customer.Size;

Remaining attributes define the content of the list shown when the combo box is opened:

• ItemsSource supplies the item list. In this case it is the CustomerSizes object defined through static resources, i.e. a list of CustomerSize objects. Look to the xaml code for the implementation details.
• DisplayMemberPath attribute tells the list to display the item property CustomerSize.Label.
• ValueMemberPath attribute tells the list to return the item property CustomerSize.Id.
• DetailItemComboBox binds the returned value to the Customer.Size property.

As you'll become familiar with WP7 programming, you will discover other ways how to set up the DetailView.

See for example DetailView.xaml comments that discuss other ways how to setup the combo box.

Note also that you are not limited to placing DetailViewItem's into the DetailView.

You can use any other control as well - just take care about proper binding.

What happens to data

Customers.xml contains the default data that is used when the app is launched for the first time.

Once you edit the data, it gets saved into WP7 isolated storage. Unfortunately, it means the data cannot be used by any other application.

If you - as a programmer - want to see raw saved data, do the trick described in the source code of the Customers.Instance() method.

The format of the saved data relies on the old good XmlSerializer. It covers most common scenarios, although one could expect problems with more complex types as Silverlight does not support custom serializing (ISerializable interface, Serializable attribute).

As an alternative you could use DataContractSerializer (DCS) that is natively used by Silverlight messaging.

Although DCS is newer, it is not clearly superior to XmlSerializer. (DCS is slightly faster, but produces larger payload.)

Our recommendation is to start with XmlSerializer and switch to DCS only if the former does not support all data formats.

As of now, the only meaningful way of data sharing on WP7 presents the web services. However, this topic goes well beyond the purpose of the current document and won't be discussed here.

What's Next

Resco is a company with a long tradition of mobile programming covering both end-user applications and developer tools. The Toolkit - as it is published now - is just the first version. In the near future existing controls will be enhanced and new ones added. We also plan to publish a series of tutorials that should help to jump-start Windows Phone 7 programming.

Any feedback is welcome - either here or directly at Resco forums.
