This is the aspx code in DataGrid

From Here we can design our web form. We use a DataGrid on webForm. Here we set all the property as we have to perform the operation with in DataGrid.

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="DataGrid.aspx.cs" Inherits="sapnamalik_DataGrid" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title>Untitled Page</title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:DataGrid ID="Grid" runat="server" PageSize="5" AllowPaging="True" DataKeyField="EmpId" AutoGenerateColumns="False" CellPadding="4" ForeColor="#333333" GridLines="None" OnPageIndexChanged="Grid_PageIndexChanged" OnCancelCommand="Grid_CancelCommand" OnDeleteCommand="Grid_DeleteCommand" OnEditCommand="Grid_EditCommand" OnUpdateCommand="Grid_UpdateCommand">
<Columns>
<asp:BoundColumn HeaderText="EmpId" DataField="EmpId"> </asp:BoundColumn>
<asp:BoundColumn HeaderText="F_Name" DataField="F_Name"> </asp:BoundColumn>
<asp:BoundColumn HeaderText="L_Name" DataField="L_Name"> </asp:BoundColumn>
<asp:BoundColumn DataField="City" HeaderText="City"> </asp:BoundColumn>
<asp:BoundColumn DataField="EmailId" HeaderText="EmailId"> </asp:BoundColumn>
<asp:BoundColumn DataField="EmpJoining" HeaderText="EmpJoining"> </asp:BoundColumn>
<asp:EditCommandColumn EditText="Edit" CancelText="Cancel" UpdateText="Update" HeaderText="Edit"> </asp:EditCommandColumn>
<asp:ButtonColumn CommandName="Delete" HeaderText="Delete" Text="Delete"> </asp:ButtonColumn>
</Columns>
<FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<SelectedItemStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
<PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" Mode="NumericPages" />
<AlternatingItemStyle BackColor="White" />
<ItemStyle BackColor="#FFFBD6" ForeColor="#333333" />
<HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" /> </asp:DataGrid> <br /> <br />
<table>
<tr>
<td>
<asp:Label ID="lblEmpId" runat="server" Text="EmpId"></asp:Label>
<asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
</td>
<td>
<asp:Label ID="lblfname" runat="server" Text="F_Name"></asp:Label>
<asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
</td>
<td>
<asp:Label ID="lblLname" runat="server" Text="L_Name"></asp:Label>
<asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
</td>
<td>
<asp:Label ID="lblCity" runat="server" Text="City"></asp:Label>
<asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
</td>
<td>
<asp:Label ID="lblEmailId" runat="server" Text="EmailId"></asp:Label>
<asp:TextBox ID="TextBox5" runat="server"></asp:TextBox> Q </td>
<td>
<asp:Label ID="lblEmpJoining" runat="server" Text="EmpJoining"></asp:Label>
<asp:TextBox ID="TextBox6" runat="server"></asp:TextBox>
</td>
</tr>
</table>
<asp:Button ID="btnsubmit" runat="server" Text="Submit" OnClick="btnsubmit_Click" />
<asp:Button ID="btnReset" runat="server" Text="Reset" OnClick="btnReset_Click" />
<asp:Button ID="btnOk" runat="server" Text="OK" OnClick="btnOk_Click" /> </div>
<div>
<asp:DataGrid ID="Grid1" runat="server" PageSize="5" AllowPaging="True" AutoGenerateColumns="False" CellPadding="4" ForeColor="#333333" GridLines="None">
<Columns>
<asp:BoundColumn HeaderText="EmpId" DataField="EmpId"></asp:BoundColumn>
<asp:BoundColumn HeaderText="F_Name" DataField="F_Name"></asp:BoundColumn>
<asp:BoundColumn HeaderText="L_Name" DataField="L_Name"></asp:BoundColumn>
<asp:BoundColumn DataField="City" HeaderText="City"></asp:BoundColumn>
<asp:BoundColumn DataField="EmailId" HeaderText="EmailId"></asp:BoundColumn>
<asp:BoundColumn DataField="EmpJoining" HeaderText="EmpJoining"> </asp:BoundColumn>
</Columns>
<FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<SelectedItemStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
<PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" Mode="NumericPages" />
<AlternatingItemStyle BackColor="White" />
<ItemStyle BackColor="#FFFBD6" ForeColor="#333333" />
<HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" /> </asp:DataGrid>
</div>
</form>
</body>
</html>

This is .cs code in DataGrid,

using System;
using System.Data;
using System.Configuration;
using System.Collections;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Web.UI.HtmlControls;
using System.Data.SqlClient;
public partial class sapnamalik_DataGrid: System.Web.UI.Page {
SqlDataAdapter da;
DataSet ds = new DataSet();
SqlCommand cmd = new SqlCommand();
SqlConnection con;
protected void Page_Load(object sender, EventArgs e) {
if (!Page.IsPostBack) {
BindData();
}
}
public void BindData() {
con = new SqlConnection(ConfigurationManager.AppSettings["connect"]);
cmd.CommandText = "Select * from Employee";
cmd.Connection = con;
da = new SqlDataAdapter(cmd);
da.Fill(ds);
con.Open();
cmd.ExecuteNonQuery();
Grid.DataSource = ds;
Grid.DataBind();
con.Close();
}
protected void Grid_PageIndexChanged(object source, DataGridPageChangedEventArgs e) {
Grid.CurrentPageIndex = e.NewPageIndex;
BindData();
}
protected void Grid_EditCommand(object source, DataGridCommandEventArgs e) {
Grid.EditItemIndex = e.Item.ItemIndex;
BindData();
}
protected void Grid_CancelCommand(object source, DataGridCommandEventArgs e) {
Grid.EditItemIndex = -1;
BindData();
}
protected void Grid_DeleteCommand(object source, DataGridCommandEventArgs e) {
con = new SqlConnection(ConfigurationManager.AppSettings["connect"]);
cmd.Connection = con;
int EmpId = (int) Grid.DataKeys[(int) e.Item.ItemIndex];
cmd.CommandText = "Delete from Employee where EmpId=" + EmpId;
cmd.Connection.Open();
cmd.ExecuteNonQuery();
cmd.Connection.Close();
Grid.EditItemIndex = -1;
BindData();
}
protected void Grid_UpdateCommand(object source, DataGridCommandEventArgs e) {
con = new SqlConnection(ConfigurationManager.AppSettings["connect"]);
cmd.Parameters.Add("@EmpId", SqlDbType.Int).Value = ((TextBox) e.Item.Cells[0].Controls[0]).Text;
cmd.Parameters.Add("@F_Name", SqlDbType.Char).Value = ((TextBox) e.Item.Cells[1].Controls[0]).Text;
cmd.Parameters.Add("@L_Name", SqlDbType.Char).Value = ((TextBox) e.Item.Cells[2].Controls[0]).Text;
cmd.Parameters.Add("@City", SqlDbType.Char).Value = ((TextBox) e.Item.Cells[3].Controls[0]).Text;
cmd.Parameters.Add("@EmailId", SqlDbType.Char).Value = ((TextBox) e.Item.Cells[4].Controls[0]).Text;
cmd.Parameters.Add("@EmpJoining", SqlDbType.DateTime).Value = DateTime.Now.ToString();
cmd.CommandText = "Update Employee set F_Name=@F_Name,L_Name=@L_Name,City=@City,EmailId=@EmailId,EmpJoining=@EmpJoining where EmpId=@EmpId";
cmd.Connection = con;
cmd.Connection.Open();
cmd.ExecuteNonQuery();
cmd.Connection.Close();
Grid.EditItemIndex = -1;
BindData();
}
protected void btnsubmit_Click(object sender, EventArgs e) {
SqlConnection con;
con = new SqlConnection(ConfigurationManager.AppSettings["connect"]);
con.Open();
SqlCommand cmd;
cmd = new SqlCommand("Insert into Employee (EmpId,F_Name,L_Name,City,EmailId,EmpJoining) values('" + TextBox1.Text + "','" + TextBox2.Text + "','" + TextBox3.Text + "','" + TextBox4.Text + "','" + TextBox5.Text + "','" + TextBox6.Text + "')", con);
cmd.ExecuteNonQuery();
con.Close();
}
protected void btnReset_Click(object sender, EventArgs e) {
TextBox1.Text = "";
TextBox2.Text = "";
TextBox3.Text = "";
TextBox4.Text = "";
TextBox5.Text = "";
TextBox6.Text = "";
}
protected void btnOk_Click(object sender, EventArgs e) {
BindData1();
}
public void BindData1() {
con = new SqlConnection(ConfigurationManager.AppSettings["connect"]);
cmd.CommandText = "Select * from Employee";
cmd.Connection = con;
da = new SqlDataAdapter(cmd);
da.Fill(ds);
con.Open();
cmd.ExecuteNonQuery();
Grid1.DataSource = ds;
Grid1.DataBind();
con.Close();
}
}

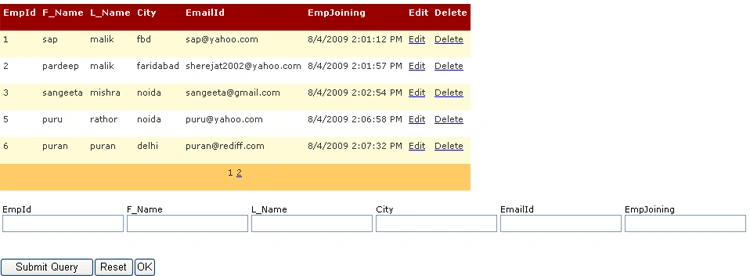

Now when User will run the project then the window will look like as,

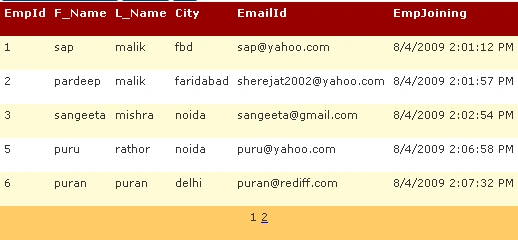

Click the ok button and we can show the data at the same page.
