Extract The Key Phrases From The Specific Tweet And Store It In Blob Storage Using Azure Logic App

Azure Logic Apps

Logic App is a cloud-based service that allows us to react to an event in one service (such as SharePoint online) and do something with the data from that event into another service (such as Twitter). It makes it practical and simple for business processes. The users build workflows that automatically perform some business tasks and processes across applications and services. We can connect our business-critical apps and services with Azure Logic Apps, automating our workflows without writing a single line of code.

Before reading this article, please go through some important article links mentioned below,

Prerequisites

  • Microsoft Azure Account

Follow the below steps to build a Workflow using a template.

Step 1

  • Log into https://portal.azure.com/.

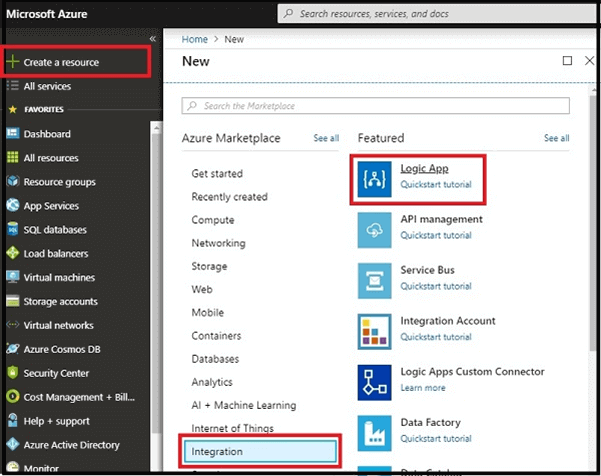

  • In the dashboard, choose to create a resource and click on Integration. Now, select "Logic App".

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Step 2

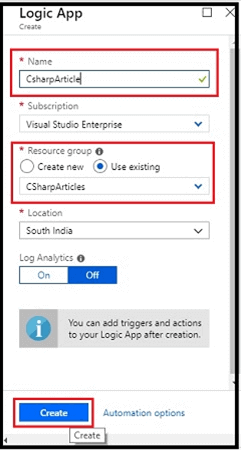

Enter the name you want to assign to the logic. Select the subscription and resource group where you organize the related resources and location where your logic app is stored. Then, click on "Create".

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Here is the dashboard. Click "Logic App Designer".

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Step 3 - Choosing the template

Now, choose the template "Blank Logic App".

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Step 4 - Mapping the Twitter account

  • Search for Twitter and choose the triggers

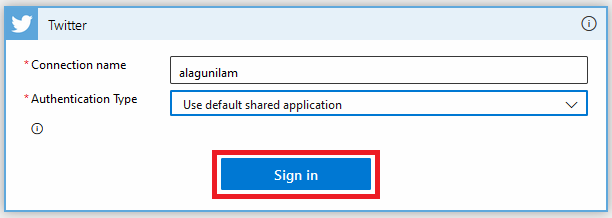

  • Next, we sign in.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

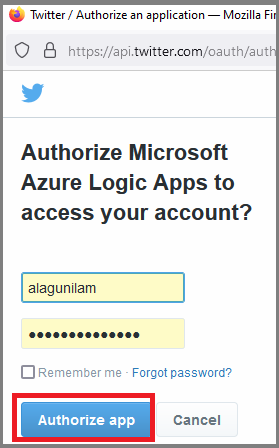

  • We give permission to access our accounts.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

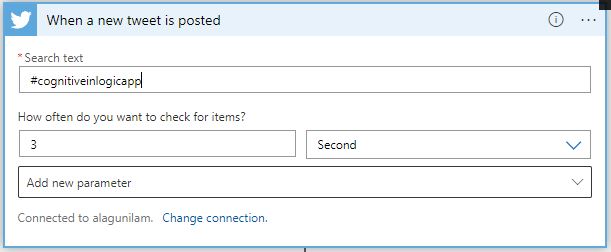

  • Next, set the Specific Keyword ( Eg. #cognitiveinlogicapp) which you want to store that specific tweet to Blob. And then, give the time interval and frequency for checking the workflow as three seconds.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Step 5

Configure the Text Analytics for detecting the key phrases of the tweet.

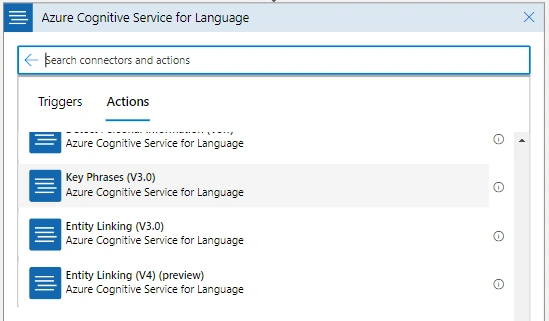

  • Search for Azure Cognitive service for Language.
  • Choose the Action.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

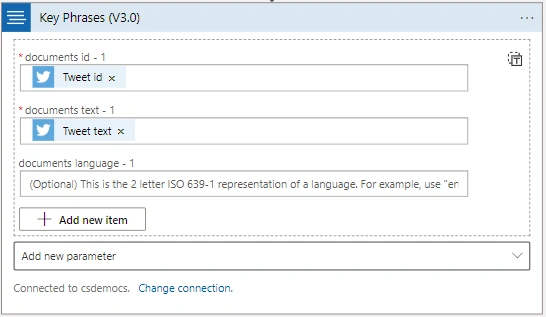

  • After that, Configure with Azure Cognitive service for Language – Account Key & URL.

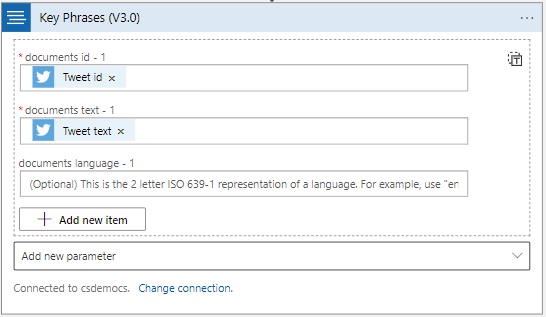

  • Configure the conditions like document id as Tweet id and document text as Tweet text.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Step 6 - Configure the Blob.

  • Next, we want to save that Key phrase of tweet into the blob, so search for Blob Storage
  • Choose the action as “create blob”

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

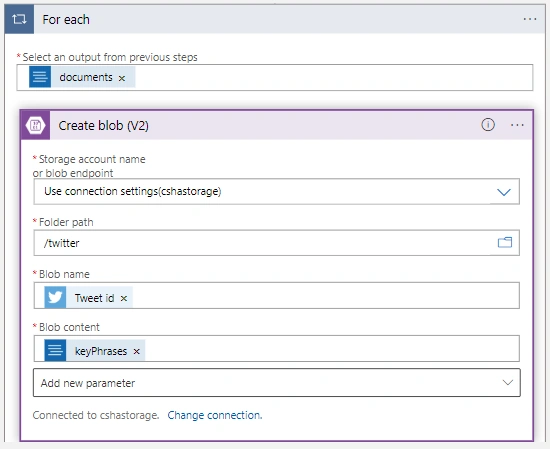

  • Choose Folder path, blob name, and Blob content.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

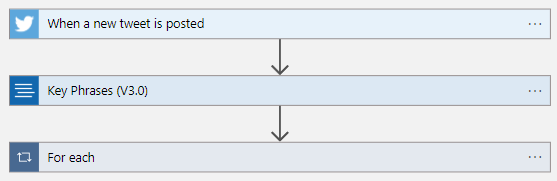

The final workflow will be like this.

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Now, let us save and run the workflow.

Output

Run the Logic App

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

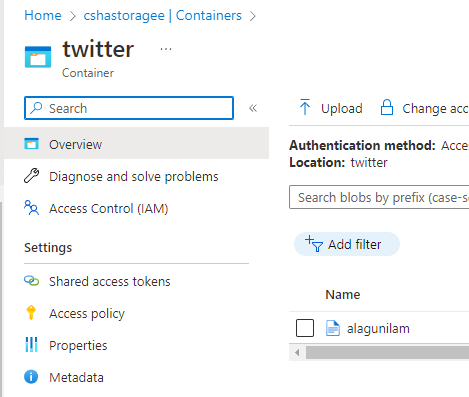

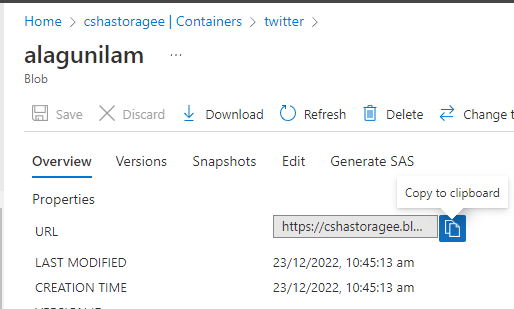

Extract the key phrases and Just refresh the blob storage to see the result. Now, copy the link

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic Appa

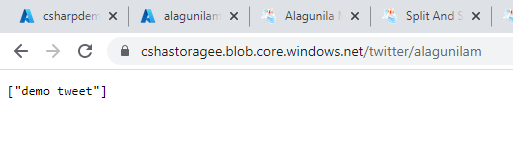

We can able to see the tweet key phrases

Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App

Summary

I hope you understood how to Extract the Key phrases from the specific tweet and store it in blob storage Using Azure Logic App. Stay tuned for more Logic App articles.
