Set Auto Tier Azure Blobs Using Azure Logic App

Azure Logic Apps

Logic App is a cloud-based service that allows us to react to an event in one service (such as SharePoint online) and do something with the data from that event in another service (such as Twitter). It makes it practical and simple for business processes. The users build workflows that automatically perform some business tasks and processes across applications and services. We can connect our business-critical apps and services with Azure Logic Apps, automating our workflows without writing a single line of code.

Before reading this article, please go through some important article links mentioned below.

• Deep Dive Into Azure Logic Apps
• Connect OneDrive To Google Drive With Azure Logic Apps
• Connect Facebook To Twitter With Azure Logic App
• Connect Outlook Mail To Excel Sheets With Azure Logic App
• Save Email Attachment From Outlook To Dropbox With Microsoft Azure Logic
• Save Specific Twitter Tweet To Excel Spreadsheet With Azure Logic App
• Connect Box To OneDrive Using Azure Logic Apps
• Save Only A Positive Tweet To Excel Spreadsheet Using Microsoft Cognitive
• Using Cognitive Service Face API with Azure Logic App
• Convert Tweet Into Audio File Using Cognitive Service With Azure Logic App
• Using Cognitive Service Computer Vision API, Text Analytics API With Azure
• Get Daily Weather Reports Delivered To Your Phone Using Azure Logic Apps
• How To Retweet A Specific Tweet With An Approval Email In Azure Logic App

Prerequisites

• Microsoft Azure Account

Follow the below steps to build a Workflow using a template.

Step 1

• Log into https://portal.azure.com/.

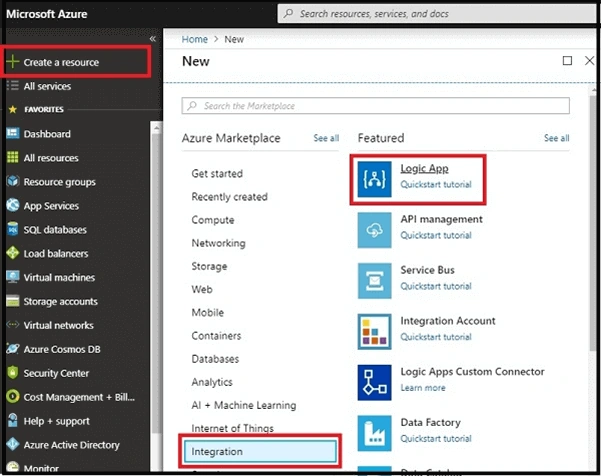

• In the dashboard, choose to create a resource and click on Integration. Now, select "Logic App".


Step 2

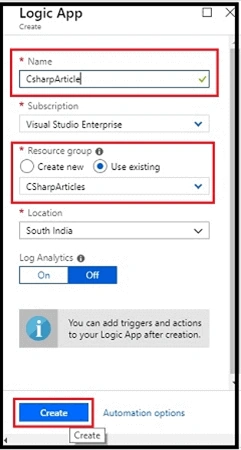

• Enter the name you want to assign to the logic. Select the subscription and resource group where you organize the related resources and the location where your logic app is stored. Then, click on "Create".

• Here is the dashboard. Click "Logic App Designer".


Step 3. Choosing the template

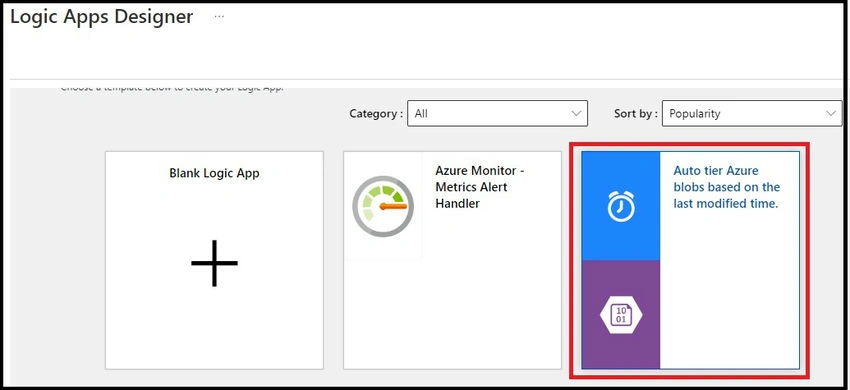

• Now, choose the template "Auto tier Azure blobs based on the last modified time".

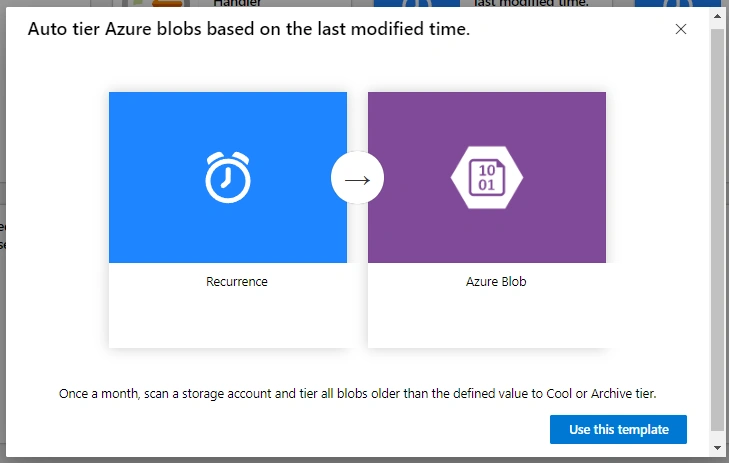

• Click on “Use this template”


Step 4. Mapping the storage account.

• Sign into Azure Blob Storage

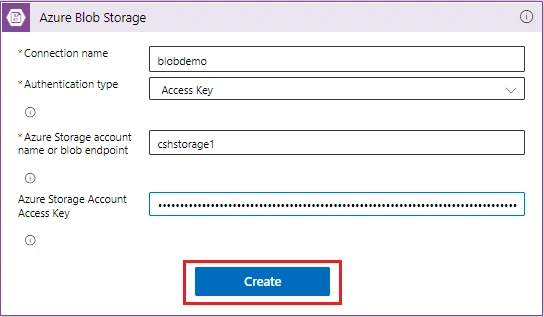

• Mapping your storage account with storage name and Access Key. Then click on Create

• Click on Create

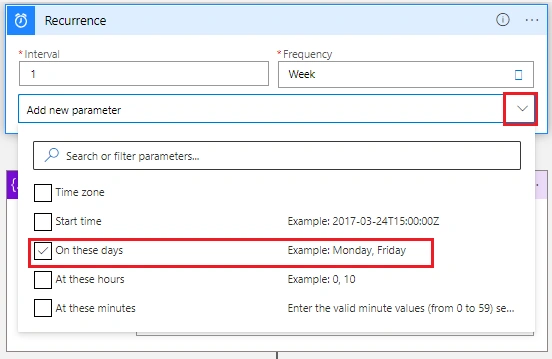

Step 5. Configure the Recurrence.

• Choose the interval (Here, you can change it according to your needs), Frequency, Time Zone and Start time.

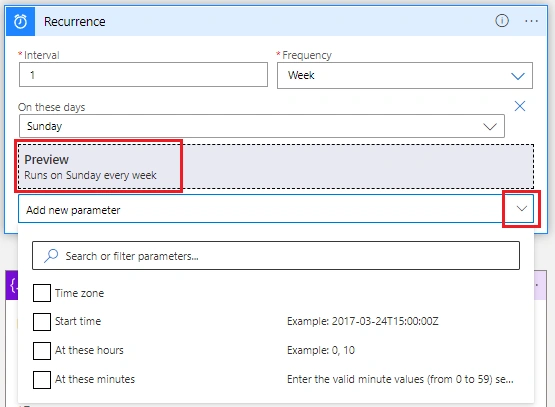

• Then, choose every Sunday as a new parameter.

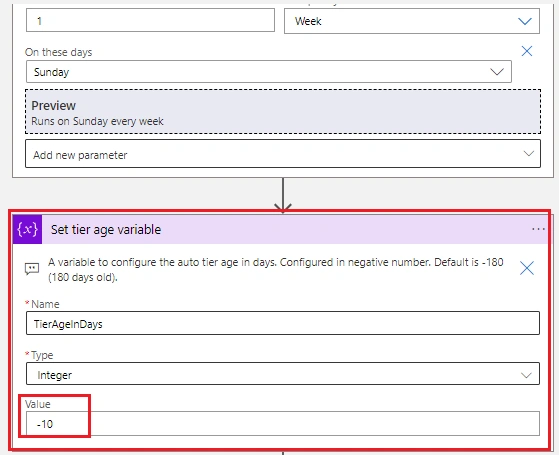

Step 6. Set tier age

Next, choose a set tier age for the blob. Here, we need to give the value as 10(we need to change the tier for 10 days old blobs).

Step 7. Mapping the blobs

Choose the folder of the blob

Step 8. Mapping the conditions

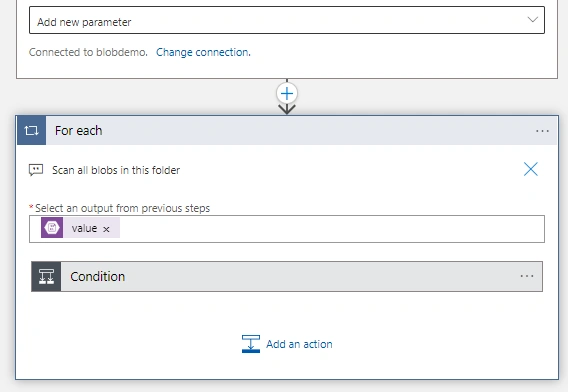

• Connecting the conditions

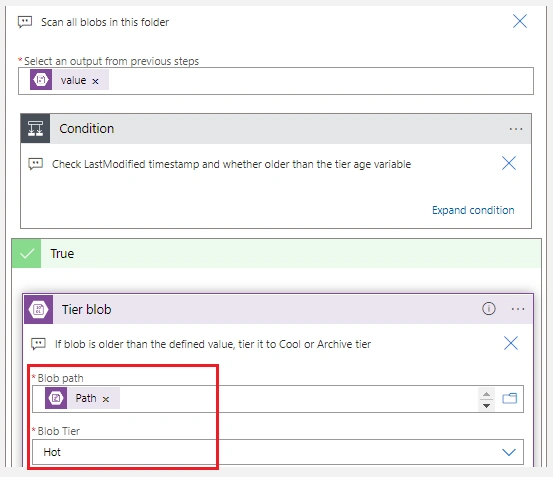

• If the condition is true, then choose the tier blob as “Hot”

• The final workflow will be like this.


Now, let us save and run the workflow.

Output

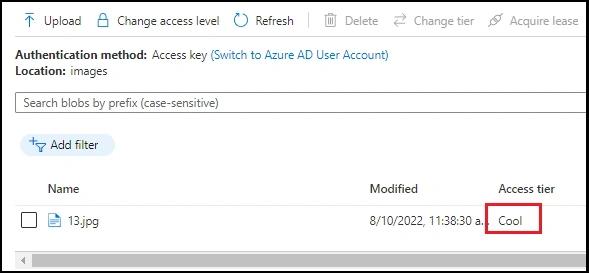

First, check the tier for the blob

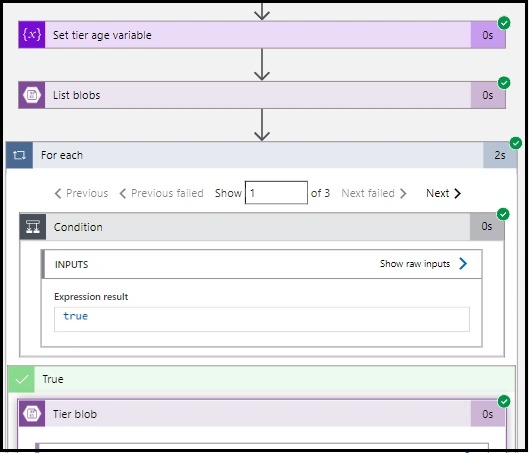

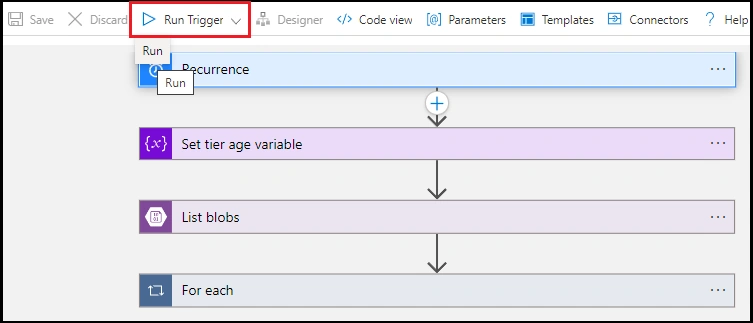

Run the Logic App

Its successfully run.

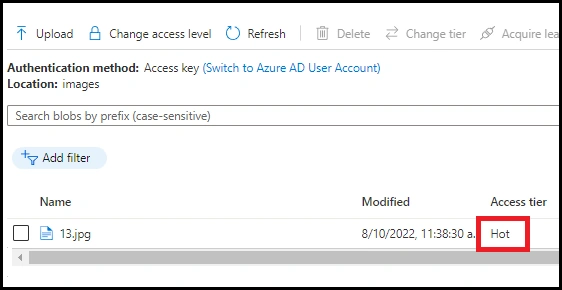

Now, it successfully turns the blob tier from cool to hot tier.

Summary

I hope you understood how to set the Auto tier Azure blobs based on the last modified time using the Azure Logic App. Stay tuned for more Logic App articles.
