Introduction and Goal
LINQ has been criticized by many early adopters for its performance issues. Well if you are just going to drag and drop using DBML code generator I am sure you will land up in to mess. Try doing this make a simple LINQ to SQL project using DBML and see your SQL profiler, I am sure you will never like to touch DBML code generator again.

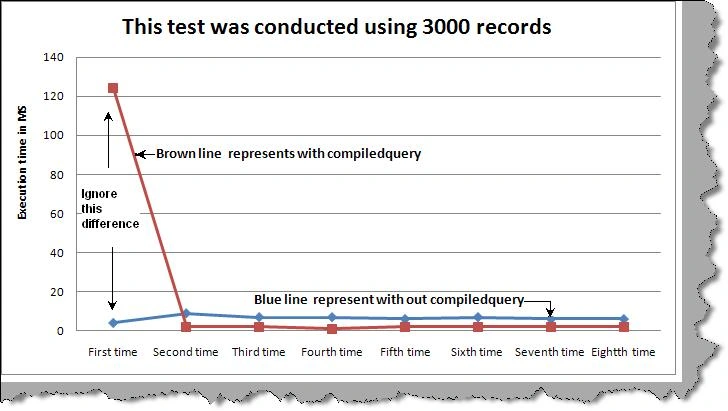

In this article we will first look in to how LINQ queries are executed, and then we will touch base on how compiled LINQ queries can help us improve our application performance at least 5 times. My numbers can be 10% up and down as I had come to that figure using my environmental situations.
Watch my 500 videos on WCF, WPF, LINQ, Design patterns, WWF, Silverlight, UML @ http://www.questpond.com
Still new to LINQ below are some real quick starters
This article requires some pre-requisites, in case you are new to LINQ I would suggest you to go through the below links.
Are you a complete newbie :- http://www.c-sharpcorner.com/UploadFile/shivprasadk/654654607132009040318AM/6546546.aspx?ArticleID=e51427a9-7f26-4db9-8b84-f6a3a6a698a6
LINQ FAQ part II :- http://www.c-sharpcorner.com/UploadFile/shivprasadk/34325423507132009082912AM/343254235.aspx?ArticleID=2903108e-539b-46aa-843e-4a7b354cb136
Want to define 1-* and *-1 using LINQ :- http://www.c-sharpcorner.com/UploadFile/shivprasadk/789789707022009112548AM/7897897.aspx?ArticleID=98ced0b9-c379-4ce2-92af-1a8b381876c4
Do not know how to call stored procedures using LINQ :- http://www.c-sharpcorner.com/UploadFile/shivprasadk/534534507082009003835AM/5345345.aspx?ArticleID=e55e7af4-0e79-420c-aa7b-71b9e630285d
Deep dive in to how LINQ query works
Before we get in to how we can improve LINQ query performance, let's first try to understand what are the various steps involved in a LINQ query execution. All LINQ queries are first converted to SQL statements. This conversion also involves checking of LINQ query syntaxes and translating this query to SQL.

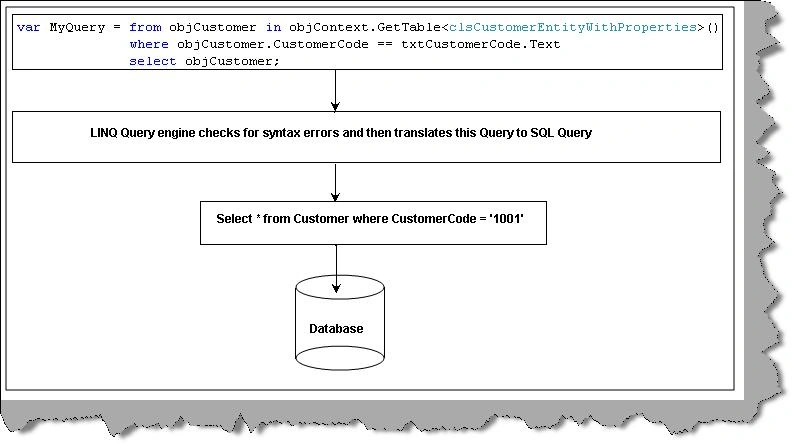

Below is a simple LINQ query which selects data from a customer table. This LINQ query is then transformed in to necessary SQL statements by the LINQ engine.
The checking of syntaxes and generating SQL query accordingly is a bit of tedious job. This task is performed every time we fire LINQ query. So if we can cache the LINQ query plan we can execute much faster.
LINQ has provided something called as compiled LINQ queries. In compiled LINQ queries the plan is cached in a static class. As we all know that static class is global cache. So LINQ uses the query plan from the static class object rather than building the preparing the query plan from scratch.

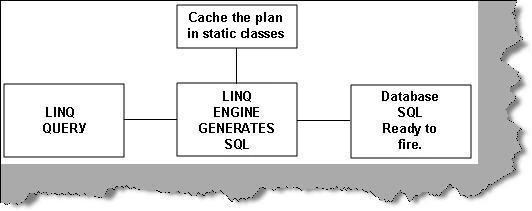

Figure: - LINQ Query Caching
In all there are 4 steps which need to be performed right from the time LINQ queries are built till they are fired. By using compiled LINQ queries the 4 steps are reduced to 2 steps.

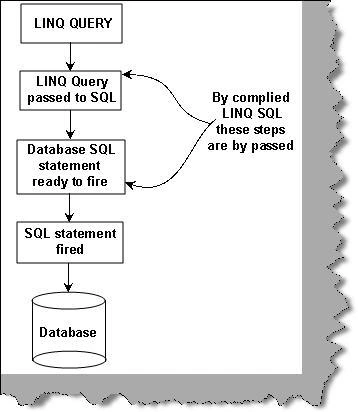

Figure: - Query plan bypasses many steps
Steps involved to write compiled LINQ queries
The first thing is to import Data.Linq namespace.
Import namespace using System.Data.Linq; The syntax to write compiled queries is a bit cryptic. So let us break those syntaxes in small pieces and then we will try to see how the complete syntax looks like. To execute a compiled function we need to write function to pointer. This function should be static so that LINQ engine can use the query plan stored in those static class objects. Below is how we define the function it starts with 'public static' stating that this function is static. Then we use the 'Func' keyword to define the nput parameters and output parameters. Below is how the parameter sequence needs to be defined:-
- The first parameter should be a data context. So we have defined the data type as 'DataContext'.
- Followed by 1 or many input parameters currently we have only one i.e. customer code so we have defined the second parameter data type as string.
- Once we are done with all input parameters we need to define the data type of the output. Currently we have defined the output data type as 'IQueryable'.
We have given a name to this delegate function as 'getCustomers'.
public static Func<DataContext, string, IQueryable<clsCustomerEntity>> getCustomers
We need to call method 'Compiled' of static class 'CompiledQuery' with the datacontext object and necessary define input parameters followed by the LINQ query. For the below snippet we have not specified the LINQ query to minimize complications.
CompiledQuery.Compile((DataContext db, string strCustCode)=> Your LINQ Query );
So now uniting the above two code snippets below is how the complete code snippet looks like.
public static Func<DataContext, string, IQueryable<clsCustomerEntity>>
getCustomers= CompiledQuery.Compile((DataContext db, string strCustCode)=> Your LINQ Query );
We then need to wrap this static function in a static class. So we have taken the above defined function and wrapped that function in a static class 'clsCompiledQuery'.
