Introduction
These days we are creating many WCF services in our project. The main purpose of WCF is to provide network-distributed services. It can access the outside world, anybody can use our service.
Online identity theft, fraud and privacy concerns are rising. So we need to make our WCF service secure. Let's explain some security components in WCF before we implement.
Security modes in a WCF service
In security mode WCF makes a secure communication channel, encrypting messages when communicating with clients. The following are the security modes.
Message security mode: In this mode the message will be encrypted and pass over a non-secure channel so that nobody can read the message.
Transport security mode: In this mode the communication channel will be encrypted and also provide integrity, privacy and so on.
Mixed transfer security mode: This mode provides transport security for message privacy and it uses message security for secure credentials.
Both security mode: This mode uses both transport and message security. So the message will be encrypted using message security and will pass over a secure channel using transport security. It provides more security than others but it degrades performance.
Authentications in WCF service: In authentication process WCF verifies the caller (who calls the services) and checks whether they are authorized or not to get the service.
Windows authentication: In this mode the caller must provide his/her Windows credential for authentication.
Username/Password: In this mode the caller must provide username and password for authentication.
X509 certificates: In this mode the caller must send certificate information and the service will check whether the certificate is valid.
Custom mechanism: In this mode the user must use their own protocol and credentials type instead of built-in authentication.
Issue token: In this mode both the caller and the service rely on a secure token service to issue the client a token for the service identity. It uses a Windows card space.
No authentication: WCF service doesn't implement any authentication in this mode.
This article explains username/password authentication with mixed security mode. Please use the following procedure.
Step 1

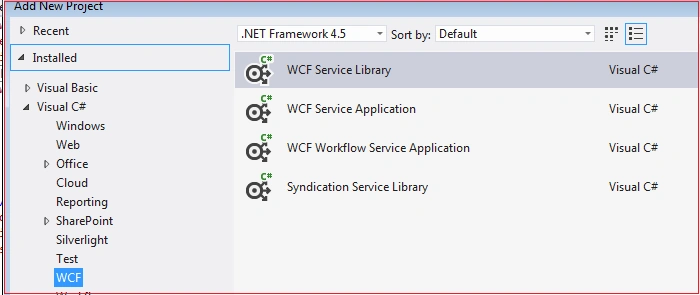

First create a WCF service library in Visual Studio.
Figure 1: Create a WCF Service

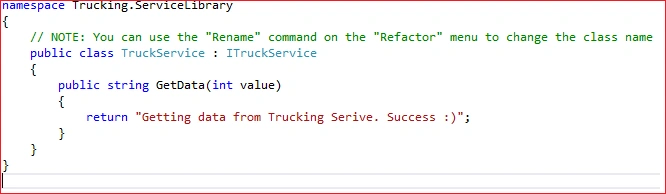

Add two class files, one for interface (ITruckService.cs) and another one (TruckService.cs) for implementing the interface. See the following image.

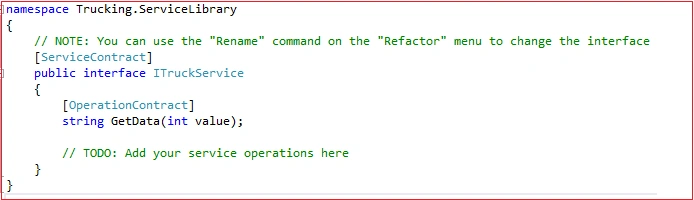

Code for Interface
