Introduction

This article explains how to implement a login form using ASP.NET C# in a three-tier architecture. I have described it in details. You will also get many new and known concepts to learn in this article whether on the SQL Server Stored Procedure side or C# code side.

The following are the features of the Login Forms:

Developed in a three-tier architecture
Determines whether username and password exists
Maintains a count of incorrect login attempts
Locks the password after 4 unsuccessful attempts

I have already explained how to create a registration form in ASP.NET C#. You can check this link.

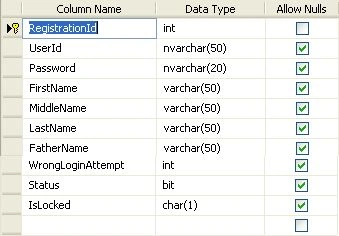

Database design

Stored Procedure

Create PROCEDURE [dbo].[usp_LoginVerification]
@UserId nvarchar(50),
@Password nvarchar(20),
@ERROR VARCHAR(100) OUT
AS
Begin
If exists (select 1 from MemberRegistration where UserId=@UserId and Password=@Password and IsLocked='0')
Begin
--declare
update MemberRegistration set WrongLoginAttempt=0,IsLocked='0' Where UserId=@UserId
set @ERROR=1
select UserId,FirstName,MiddleName,LastName from MemberRegistration Where UserId=@UserId
End
Else
Begin
declare @LoginAttempt int;
SET @LoginAttempt= (select WrongLoginAttempt from MemberRegistration where UserId=@UserId )
update MemberRegistration set WrongLoginAttempt=@LoginAttempt+1 Where UserId=@UserId
Set @ERROR='Your have entered wrong password'
if @LoginAttempt>=4
Begin
update MemberRegistration set IsLocked='1' Where UserId=@UserId
set @ERROR='Your Password is locked'
End
End
Select @ERROR
End

The following is the step-by-step procedure for development of the feature-enriched login form in a 3-tier architecture.

Step 1

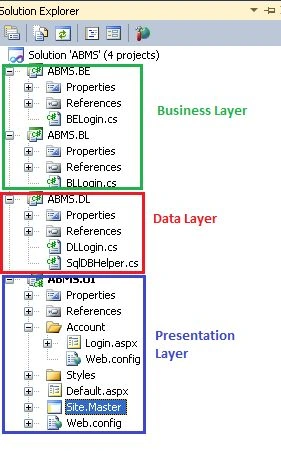

Design your layered solution as below.

layered

Step 2

Open BELogin.cs and modify the code as below.

namespace ABMS.BE
{
public class BELogin
{
private string userId;
private string password;
private string firstName;
public string FirstName
{
get { return firstName; }
set { firstName = value; }
}
private string middleName;
public string MiddleName
{
get { return middleName; }
set { middleName = value; }
}
private string lastName;
public string LastName
{
get { return lastName; }
set { lastName = value; }
}
public string Password
{
get { return password; }
set { password = value; }
}
public string UserId
{
get { return userId; }
set { userId = value; }
}
}
}

Step 3

Modify the BL layer BLLogin.cs as below:

using System.Data;
namespace ABMS.BL
{
public class BLLogin
{
ABMS.DL.DLLogin objdal = new ABMS.DL.DLLogin();
BE.BELogin objbeLogin = new BE.BELogin();
public DataSet UserLogin(BE.BELogin objbeLogin)
{
try
{
return objdal.LoginCredential(objbeLogin);
}
catch
{
throw;
}
}
}
}

Step 4

Modify the DL Layer DLLogin.cs code as below:

using System.Data.SqlClient;
using System.Data;
namespace ABMS.DL
{
public class DLLogin
{
SqlDBHelper sql = new SqlDBHelper();
public DataSet LoginCredential(BE.BELogin belogin)
{
string connectionString = sql.ConnectionString();
SqlConnection con = new SqlConnection();
con.ConnectionString = connectionString;
con.Open();
SqlCommand cmd = new SqlCommand("usp_LoginVerification", con);
cmd.CommandType = CommandType.StoredProcedure;
cmd.Parameters.AddWithValue("@UserId", belogin.UserId);
cmd.Parameters.AddWithValue("@Password", belogin.Password);
cmd.Parameters.Add("@ERROR", SqlDbType.Char, 500);
cmd.Parameters["@ERROR"].Direction = ParameterDirection.Output;
SqlDataAdapter da = new SqlDataAdapter();
DataSet ds = new DataSet();
da = new SqlDataAdapter(cmd);
da.Fill(ds);
con.Close();
return ds;
}
}
}

Step 5

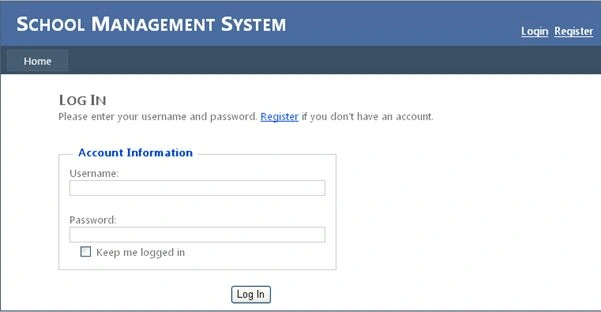

Design the UI as below:

Step 6

Modify the code of the UI Login.aspx.cs as below:

using System;
using System.Data;
namespace ABMS.UI.Account
{
public partial class Login : System.Web.UI.Page
{
ABMS.BL.BLLogin objBL = new ABMS.BL.BLLogin();
protected void Page_Load(object sender, EventArgs e)
{
}
protected void btnLogin_Click(object sender, EventArgs e)
{
ABMS.BE.BELogin obJBE = new BE.BELogin();
obJBE.UserId = UserName.Text.Trim();
obJBE.Password = Password.Text.Trim();
DataSet ds = new DataSet();
ds = objBL.UserLogin(obJBE);
if (ds.Tables.Count == 1)
{
lblErrorMsg.Text = ds.Tables[0].Rows[0][0].ToString();
}
else if (ds.Tables[1].Rows[0][0].ToString() == "1")
{
lblErrorMsg.Text = string.Empty;
Session["UserId"] = ds.Tables[0].Rows[0][0].ToString();
String name=null;
if (!string.IsNullOrEmpty( ds.Tables[0].Rows[0][1].ToString()))
{
name = name + ds.Tables[0].Rows[0][1].ToString();
}
if (!string.IsNullOrEmpty(ds.Tables[0].Rows[0][2].ToString()))
{
name = name +" "+ ds.Tables[0].Rows[0][2].ToString();
}
if (!string.IsNullOrEmpty(ds.Tables[0].Rows[0][3].ToString()))
{
name = name + " "+ds.Tables[0].Rows[0][3].ToString();
}
Session["Name"] = name;
Response.Redirect("~/Default.aspx");
}
}
}
}

Step 7

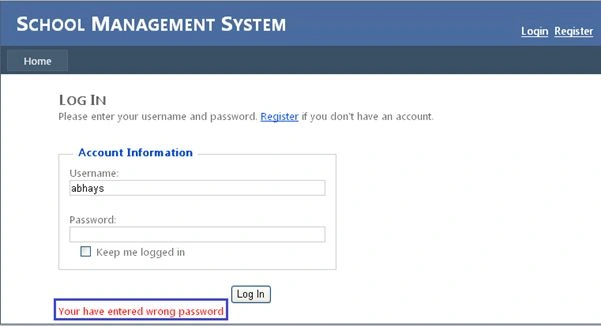

Run the application and enter the wrong password for multiple times. You will prompt the message as below:

message

Step 8

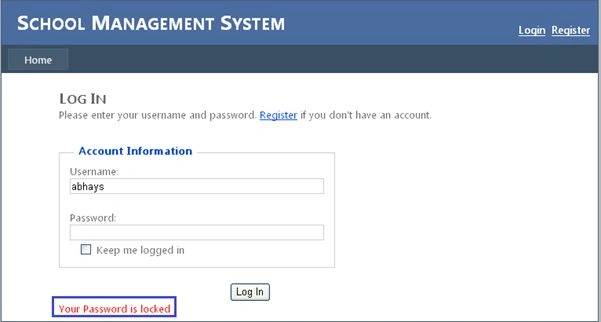

After attempting 4 times your password will be locked.

Password locked

Conclusion

In this article I have explained how to develop a feature-enriched Login form in a 3-tier architecture in ASP.NET C#.
