Pick Single Folder in Windows Store Apps Using XAML

This article explain how to pick a folder from the computer local drive in a Windows Store Application using XAML.

In this article I will show how to use a FolderPicker contract to obtain the complete folder, so that its contents can be accessed later.

I have built an application to pick a folder and show it's necessary information such as Name, Created Date and Path of the selected folder.

So, let's start to create a Windows Store Application.

Step 1

Select the Windows Store template using XAML and C#.

Step 2

Create the XAML markup for the UI in the MainPage.XAML page.

<Page

x:Class="PickAFolder.MainPage"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:local="using:PickAFolder"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

mc:Ignorable="d">

<Grid Background="Black">

<Grid.RowDefinitions>

<RowDefinition Height="Auto"/>

<RowDefinition Height="*"/>

</Grid.RowDefinitions>

<Grid x:Name="Input" Grid.Row="0">

<Button Grid.Row="1" x:Name="PickFolderButton" Content="Pick folder" Margin="40,50,10,0"Click="PickFolderButton_Click"/>

</Grid>

<Grid x:Name="Output" Grid.Row="1" HorizontalAlignment="Left" VerticalAlignment="Top">

<StackPanel Orientation="Vertical">

<TextBlock x:Name="Name" Style="{StaticResource BasicTextStyle}" TextWrapping="Wrap" />

<TextBlock x:Name="Path" Style="{StaticResource BasicTextStyle}" TextWrapping="Wrap" />

<TextBlock x:Name="Date" Style="{StaticResource BasicTextStyle}" TextWrapping="Wrap" />

</StackPanel>

</Grid>

</Grid>

</Page>

Step 3

The code of the MainPage.XAML.cs file:

using System;

using Windows.Storage;

using Windows.Storage.AccessCache;

using Windows.Storage.Pickers;

using Windows.UI.Xaml;

using Windows.UI.Xaml.Controls;

using Windows.UI.Xaml.Controls.Primitives;

using Windows.UI.Xaml.Input;

using Windows.UI.Xaml.Media;

using Windows.UI.Xaml.Navigation;

namespace PickAFolder

{

public sealed partial class MainPage : Page

{

public MainPage()

{

this.InitializeComponent();

}

private async void PickFolderButton_Click(object sender, RoutedEventArgs e)

{

FolderPicker folderPicker = new FolderPicker();

folderPicker.SuggestedStartLocation = PickerLocationId.Desktop;

folderPicker.FileTypeFilter.Add(".docx");

folderPicker.FileTypeFilter.Add(".xlsx");

folderPicker.FileTypeFilter.Add(".pptx");

StorageFolder folder = await folderPicker.PickSingleFolderAsync();

if (folder != null)

{

// Application now has read/write access to all contents in the picked folder (including other sub-folder contents)

StorageApplicationPermissions.FutureAccessList.AddOrReplace("PickedFolderToken", folder);

Name.Text = folder.Name + " folder is picked.";

Path.Text = "Path of Folder is : " + folder.Path;

Date.Text = "Created Date is : " + folder.DateCreated;

}

else

{

}

}

}

}

Now to explain the above code step-by-step:

1. Add the following namespaces to the .cs file:


   using Windows.Storage;

   using Windows.Storage.AccessCache;

   using Windows.Storage.Pickers;


2. First of all create an object of FolderPikcer to access the folder.

   FolderPicker folderPicker = newFolderPicker();

3. We can also set the default location from where the folder will be picked. Add a filter to the folder properties, as in:


   folderPicker.SuggestedStartLocation =PickerLocationId.Desktop;

   folderPicker.FileTypeFilter.Add(".docx");

   folderPicker.FileTypeFilter.Add(".xlsx");

   folderPicker.FileTypeFilter.Add(".pptx");


4. Now, pick the folder using the PickSingleFolderAsync() method. This method allows the user to pick only the single folder from the drives.

   StorageFolder folder = await folderPicker.PickSingleFolderAsync();

5. Then, set read/write access to all contents in the chosen folder (including other sub-folder contents); see:

   if (folder != null)

   {

   // Application now has read/write access to all contents in the picked folder (including other sub-folder contents)

   StorageApplicationPermissions.FutureAccessList.AddOrReplace("PickedFolderToken", folder);

   Name.Text = folder.Name + " folder is picked.";

   Path.Text = "Path of Folder is : " + folder.Path;

   Date.Text = "Created Date is : " + folder.DateCreated;

   }

Step 4

Now, run the application and click on the button display in the UI.

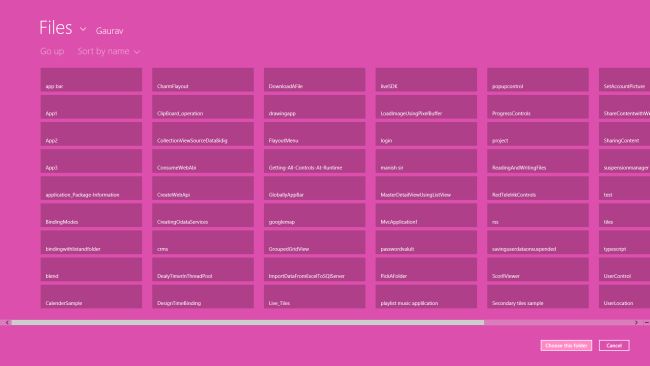

Pick a folder.



You will see the necessary properties of the chosen folder.
