This article explains how to import and read XML documents using VBScript and HTML 5.

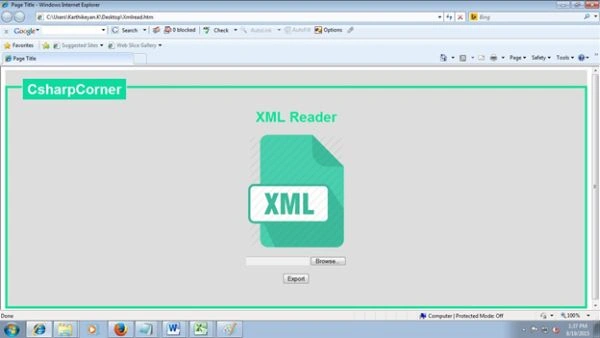

XML reader Home page
Figure 1: XML reader home page

Step 1

  1. Open Notepad.

  2. Add the following XML code.
    1. <SERVER>
    2. <INTERFACE>
    3. <PORT>1</PORT>
    4. <IPADDRESS>10.100.4.9</IPADDRESS>
    5. <NETMASK>255.255.224.0</NETMASK>
    6. </INTERFACE>
    7. <INTERFACE>
    8. <PORT>2</PORT>
    9. <IPADDRESS>10.100.4.10</IPADDRESS>
    10. <NETMASK>255.255.224.0</NETMASK>
    11. </INTERFACE>
    12. </SERVER>
  3. Save the file with the extension “.xml”.

Step 2

  1. Open Notepad.

  2. Add the following HTML code:
    1. <! DOCTYPE html>
    2. <html>
    3. <head>
    4. <title>Page Title</title>
    5. <style>
    6. h1
    7. {
    8. color: #05E395;
    9. }
    10. fieldset {
    11. font-family: sans-serif;
    12. border: 5px solid #05E395;
    13. background: #ddd;
    14. border-radius: 5px;
    15. padding: 15px;
    16. }
    17. fieldset legend {
    18. background: #0BDB9D;
    20. color: #fff;
    21. padding: 5px 10px ;
    22. font-size: 32px;
    23. border-radius: 5px;
    24. box-shadow: 0 0 0 5px #ddd;
    25. margin-left: 20px;
    26. }
    27. </style>
    28. <script language="vbscript" type="text/vbscript">
    29. Sub Handlechange()
    30. MsgBox "File Imported Sucessfully”, vbInformation
    31. End Sub
    32. Sub ExportXML
    33. Dim ObjXML
    34. Dim fileinput
    35. Dim Root
    36. Dim NodeList
    37. Dim Msg
    38. Dim port
    39. Dim ip
    40. Dim nextmask
    41. Set ObjXML = CreateObject ("Microsoft.XMLDOM")
    42. ObjXML.async = False
    43. fileinput = Document.getElementById ("browse").Value
    44. ObjXML.load(fileinput)
    45. Set Root = ObjXML.documentElement
    46. Set NodeList = Root.getElementsByTagName("INTERFACE")
    47. For Each Elem In NodeList
    48. Set port = Elem.getElementsByTagName ("PORT") (0)
    49. Set ip = Elem.getElementsByTagName ("IPADDRESS") (0)
    50. Set netmask= Elem.getElementsByTagName ("NETMASK") (0)
    51. Msg ="[PORT :]" & port.Text & vbNewLine
    52. Msg = Msg & "[IP ADDRESS :]" & ip.Text & vbNewLine
    53. Msg = Msg & "[NETMASK :]" & netmask.Text
    54. MsgBox Msg
    55. Next
    56. MsgBox "Data Read Sucessfully”, vbInformation
    57. End Sub
    58. </script>
    59. </head>
    60. <body>
    61. <form>
    62. <section style="margin: 10px ;">
    63. <fieldset style="min-height:100px;">
    64. <legend><b>CsharpCorner </b> </legend>
    65. <center>
    66. <h1>XML Reader</h1>
    68. <img src="C:\Users\Karthikeyan.K\Desktop\File_type_Extension_22-256.png" alt="View" style="width:218px;height:256px;">
    69. <br>
    70. <br>
    71. <input type="file" id="browse" name="fileupload" onChange="Handlechange()"/>
    72. <br>
    73. <br>
    74. <input type="button" value="Export" id="Export" onclick="ExportXML()"/>
    75. </center>
    76. <label> <br/> </label>
    77. <label> <br/> </label>
    78. </fieldset>
    79. </form>
    80. </body>
    81. </html>
  3. Save the file with extension the “.html”.

Output

  1. Open the HTML document.

  2. Click the browse button.

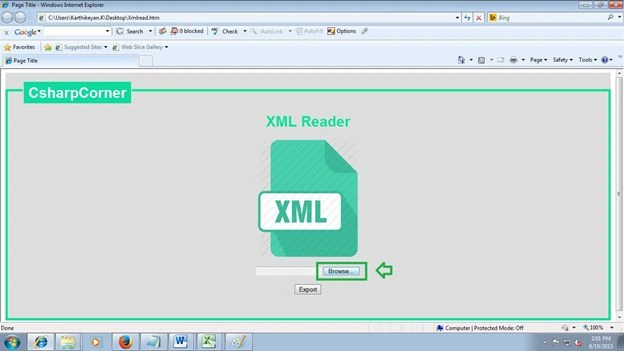

    Browse the XML document
    Figure 2: Browse the XML document

  3. Choose the XML document.

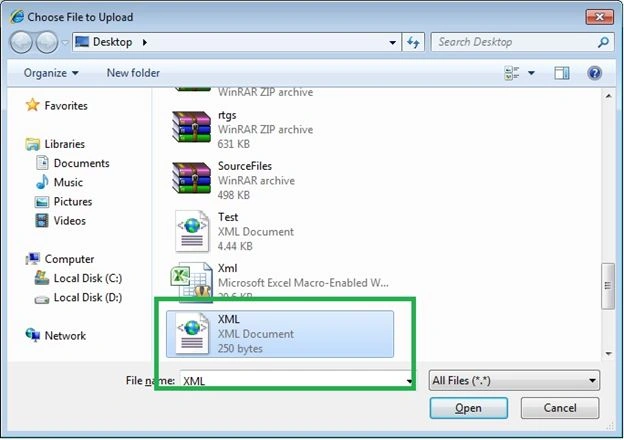

    Select the XML document
    Figure 3: Select the XML document

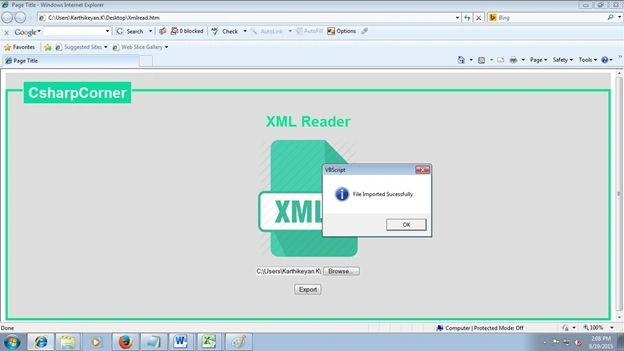

    File Imported Successfully
    Figure 4: File Imported Successfully

  4. Press the Export button.

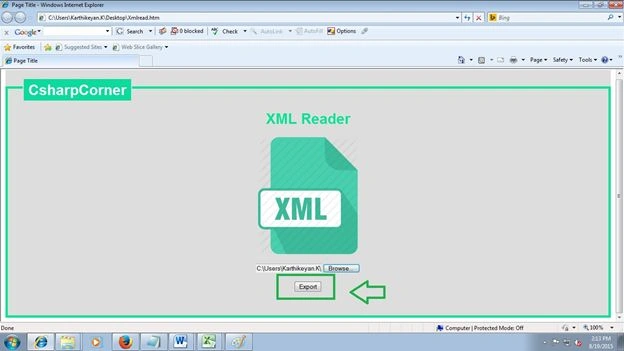

    XML document Export
    Figure 5: XML document Export

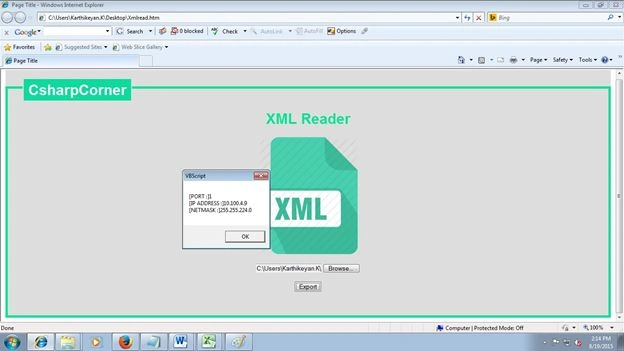

    XML data Output 1
    Figure 6: XML data Output 1

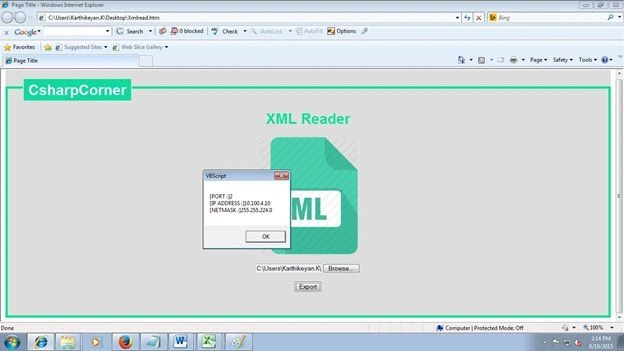

    XML data Output 2
    Figure 7: XML data Output 2

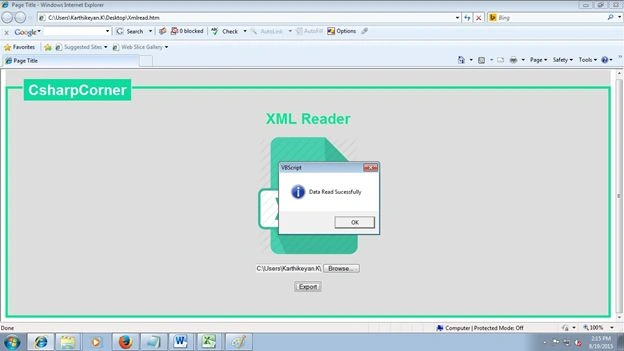

    Data Read Successfully
    Figure 8: Data Read Successfully

Conclusion

Thanks for reading. I hope you liked this article. Please provide your valuable suggestions.
