Task-Based Async Pattern in WCF 4.5

new EmployeeInfo() {EmpNo=7,EmpName="H"},

new EmployeeInfo() {EmpNo=8,EmpName="I"},

new EmployeeInfo() {EmpNo=9,EmpName="J"}

};

}

public List<EmployeeInfo> GetEmployees()

{

return lstEmployee;

}

}

Step 4: Build the service and publish it in IIS (optional).

Step 5: In the same solution, add a new WPF Project targeted to .NET 4.5 and name it "WPF_Client". Design the MainWindow.xaml as below:

<Grid>

<Grid>

<DataGrid x:Name="dgEmp" HorizontalAlignment="Left" Margin="74,26,0,0" VerticalAlignment="Top"

Height="338" Width="650"/>

<Button x:Name="btnGetEmployees" Content="Get Employees" HorizontalAlignment="Left"

Margin="74,389,0,0" VerticalAlignment="Top" Width="650" Height="76"

Click="btnGetEmployees_Click"/>

<TextBlock x:Name="txtInfo" HorizontalAlignment="Left" Margin="74,470,0,0" TextWrapping="Wrap"

Text="TextBlock" VerticalAlignment="Top" Height="38" Width="650"/>

</Grid>

</Grid>

Step 6: Add the WCF Service Reference to the project:

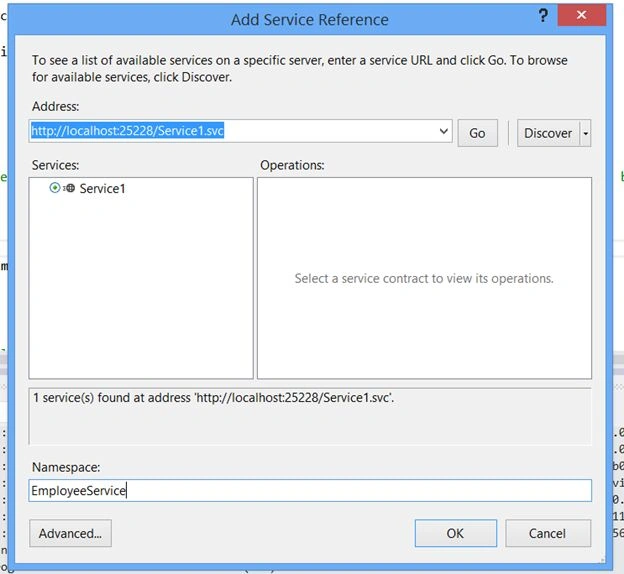

• In the "Add Service" window, enter an address of the WCF Service.

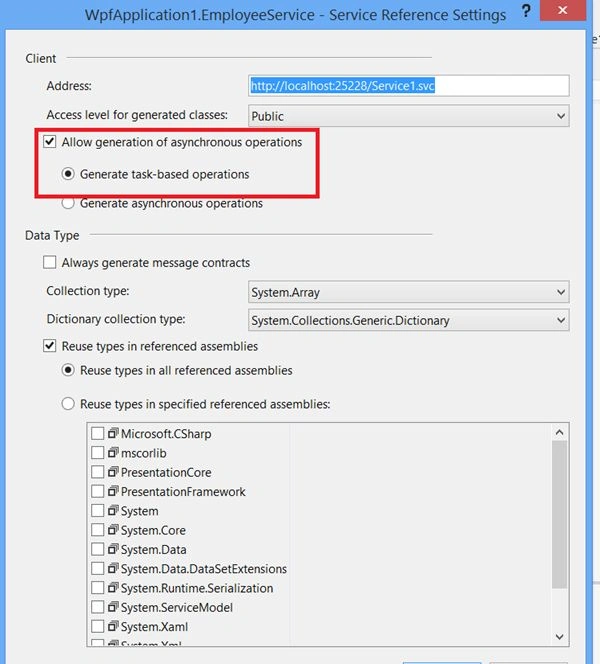

• Click on Go and click on the Radio Button "Generate Task-based" as below:

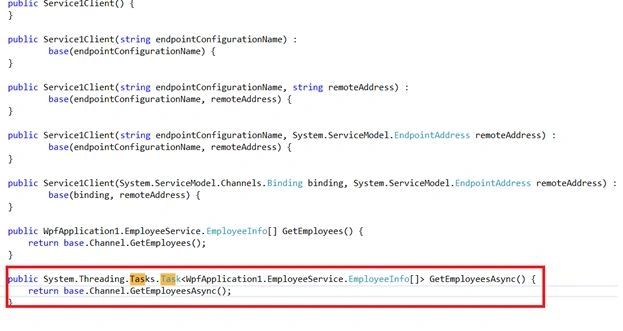

This adds the proxy in the WPF application. If you open the proxy class then the method "GetEmployeeAsync" is generated as follows:



Step 7: Now the preceding method can be called in the WPF application on the Click event of the button:

private async void btnGetEmployees_Click(object sender, RoutedEventArgs e)

{

txtInfo.Text = "Data is Not Received Yet....";

EmployeeService.Service1Client Proxy = new EmployeeService.Service1Client();

var Result = await Proxy.GetEmployeesAsync();

dgEmp.ItemsSource = Result;

txtInfo.Text = "Data Received....";
}

If you look carefully at the code above, you will find that the Click event method is decorated with the "async" keyword. This indicates that the method contains an Async call. The method "GetEmployeeAsync" is called with the "await" keyword, this means that the asynchronous call will be completed and then the data will be displayed in the DataGrid.

Step 8: Run the application and click on the Button. The result will be as shown below:

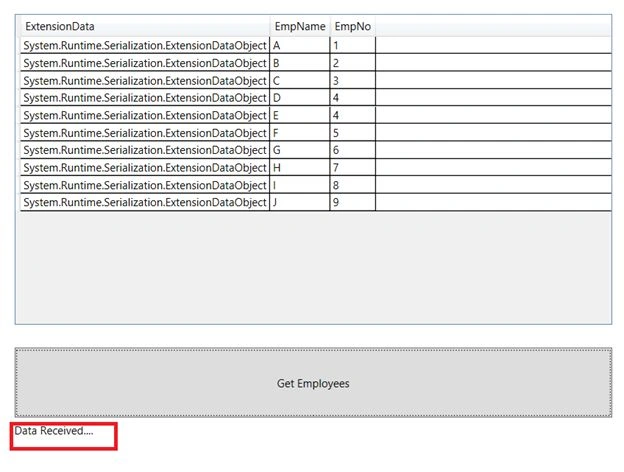

The Text shows that the call is in progress. Wait for 10 seconds and the result will be as follows:


Conclusion

Using the Task-Based Async Pattern, we can program in a more linear fashion that is easy to read compared to the Event Based Async Pattern (EAP), where you have one method initiating the call and another method handling the callback after the task is completed. Thus by exposing task-based operations to the client, the client-side code can be made less complex.

Download the source code for reference. Happy Coding.
