Telerik RadUniformGrid in Windows Phone 7 Via WCF Service

Introduction

Today, in this article let's learn another new and wonderful concept related to Windows Phone 7, whereby communicating with WCF Service to perform some operation.

The Telerik Rad Controls for Windows Phone 7 can be downloaded from http://www.telerik.com/products/windows-phone.aspx.

The Rad Message Box is used to display the output in a nice and enhanced UI.

Question: What is RadUniformGrid?

In simple terms "The RadUniformGrid panel is a layout panel that allows for ordering items in rows and columns. You can specify the amount of rows and columns by using the NumberOfRows and NumberOfColumns properties. The RadUniformGrid also implies that each row and each column will have the same height/width."

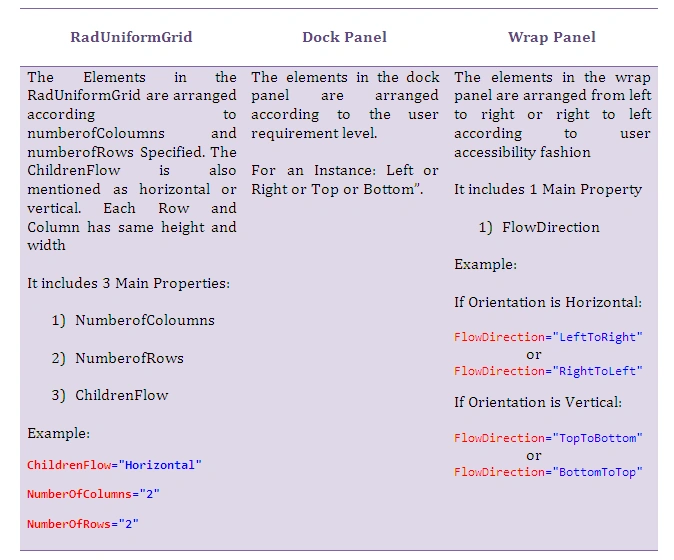

Question: What is the difference between RadUniformGrid, Dock Panel and Wrap Panel?

Let's get this implemented practically for a better idea of this!!!

Step 1: The complete code of the IService1.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WCF_Uniform_Grid
{
// NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
[ServiceContract]
public interface IService1
{

[OperationContract]
double add(double a, double b);

[OperationContract]
double sub(double a, double b);

[OperationContract]
double mul(double a, double b);

[OperationContract]
double div(double a, double b);
}
}

Step 2: The complete code of the Service1.svc.cs looks like this:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

namespace WCF_Uniform_Grid
{
// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
public class Service1 : IService1
{
public double add(double a, double b)
{
return a + b;
}

public double sub(double a, double b)
{
return a - b;
}

public double mul(double a, double b)
{
return a * b;
}

public double div(double a, double b)
{
return a / b;
}
}
}

Step 3: The complete code of the Web.Config looks like this:

<?xml version="1.0"?>
<configuration>

<system.web>
<compilation debug="true" targetFramework="4.0" />
</system.web>
<system.serviceModel>
<behaviors>
<serviceBehaviors>
<behavior>

<serviceMetadata httpGetEnabled="true"/>

<serviceDebug includeExceptionDetailInFaults="false"/>
</behavior>
</serviceBehaviors>
</behaviors>
<serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
</system.serviceModel>
<system.webServer>
<modules runAllManagedModulesForAllRequests="true"/>
</system.webServer>

</configuration>

Step 4: The complete code of the MainPage.xaml looks like this:

<phone:PhoneApplicationPage

x:Class="RadUniform_Grid_Application_WP7.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
xmlns:telerik="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Primitives"
xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
FontFamily="{StaticResource PhoneFontFamilyNormal}"
FontSize="{StaticResource PhoneFontSizeNormal}"
Foreground="{StaticResource PhoneForegroundBrush}"
SupportedOrientations="Portrait" Orientation="Portrait"
shell:SystemTray.IsVisible="True" >

<Grid x:Name="LayoutRoot" Background="Transparent">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>

<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
<TextBlock x:Name="ApplicationTitle" Text="Rad Uniform Grid - WCF Service App" FontFamily="Verdana" FontSize="22" Style="{StaticResource PhoneTextNormalStyle}"/>
<TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
</StackPanel>

<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
<TextBlock x:Name="txtBlock1"
FontFamily="Verdana"
FontSize="22"
Height="30"
HorizontalAlignment="Left"
Margin="9,19,0,0"
Text="Please Enter First Number: "
VerticalAlignment="Top" />

</telerik:RadUniformGrid>
</Grid>

</phone:PhoneApplicationPage>

Step 5: The complete code of the MainPage.xaml.cs looks like this:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Microsoft.Phone.Controls;

using Telerik.Windows.Controls.Primitives;

using RadUniform_Grid_Application_WP7.ServiceReference1;

using Telerik.Windows.Controls;

namespace RadUniform_Grid_Application_WP7
{
public partial class MainPage : PhoneApplicationPage
{
// Constructor
public MainPage()
{
InitializeComponent();

}

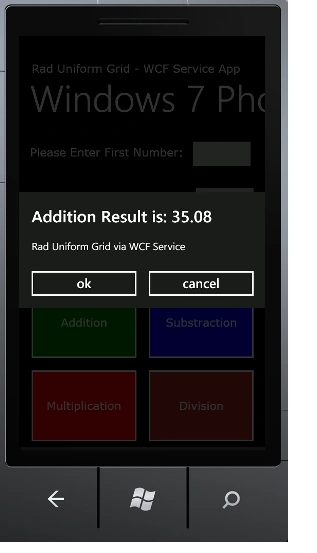

private void add_Call(object sender, addCompletedEventArgs e)
{
RadMessageBox.Show("Addition Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
}

private void btnAdd_Click(object sender, RoutedEventArgs e)
{
txtBlockError.Text = "";
if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
{
txtBlockError.Text = "Please Enter Some Values";
}
else
{
objClient.addCompleted += new EventHandler<addCompletedEventArgs>(add_Call);
objClient.addAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
txtFirstNumber.Text = "";
txtSecondNumber.Text = "";
}

}

private void sub_Call(object sender, subCompletedEventArgs e)
{
RadMessageBox.Show("Subtraction Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
}

private void btnSub_Click(object sender, RoutedEventArgs e)
{
txtBlockError.Text = "";
if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
{
txtBlockError.Text = "Please Enter Some Values";
}
else
{
objClient.subCompleted += new EventHandler<subCompletedEventArgs>(sub_Call);
objClient.subAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
txtFirstNumber.Text = "";
txtSecondNumber.Text = "";
}

}

private void mul_Call(object sender, mulCompletedEventArgs e)
{
RadMessageBox.Show("Multiplication Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
}

private void btnMul_Click(object sender, RoutedEventArgs e)
{
txtBlockError.Text = "";
if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
{
txtBlockError.Text = "Please Enter Some Values";
}
else
{
objClient.mulCompleted += new EventHandler<mulCompletedEventArgs>(mul_Call);
objClient.mulAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
txtFirstNumber.Text = "";
txtSecondNumber.Text = "";
}

}

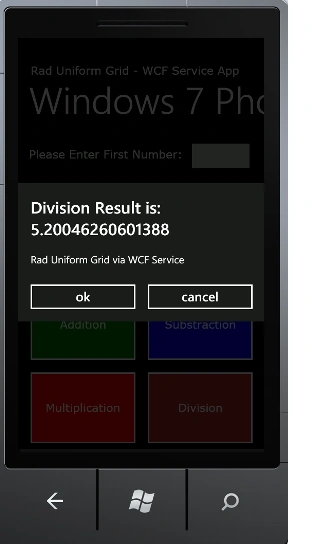

private void div_Call(object sender, divCompletedEventArgs e)
{
RadMessageBox.Show("Division Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
}

private void btnDiv_Click(object sender, RoutedEventArgs e)
{
txtBlockError.Text = "";
if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
{
txtBlockError.Text = "Please Enter Some Values";
}
else
{
objClient.divCompleted += new EventHandler<divCompletedEventArgs>(div_Call);
objClient.divAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
txtFirstNumber.Text = "";
txtSecondNumber.Text = "";
}
}

#region Instance Variables
Service1Client objClient = new Service1Client();
#endregion
}
}
