Understanding Windows Workflow Foundation - Leave Management

Hey all. It's been a couple of years since I have contributed to a technical group since I have been busy growing up myself as a professional. Today I thought of contributing something that can be useful for beginners, trying to work with the Window Workflow Foundation.

Windows Workflow Foundation for .Net (in short “WWF”) was released by Microsoft in the year 2006-2007 timeframe (code named workflow) that basically provides Application Programming Interfaces (APIs) to a work flow engine.

I often hear from my teams and colleagues that everything is “automatic” in the field of software but personally I would say “Nothing is Automatic, we need to write a code snippet to make it automatic”.

The Windows Workflow Foundation is a very classic example of code that can be auto-generated though :) with the visual elements. For example if I were to do a parallel activity in my application, I would generally prefer to use Asynchronous Delegates. But with the use of the workflow foundation you can just drag and drop the parallel activity (available in the toolbox where you can create a workflow project) that can save a lot of code for the development team. Thanks to Microsoft for giving us such an interactive and high-performance framework and making our life easier than ever.

You can also download the source code from here.

Before I jump into a code sample, let me talk about a couple of important components in the workflow process. Nevertheless to say, as for every project type in .Net framework, the workflow foundation also has the capability to be developed as:

• Activity Library that is a component with .DLL as output.


• WCF Workflow Service Application that behaves like a WCF service.


• Activity Designer Library that is a GUI based application with Windows Presentation Foundation (WPF).


• Workflow Console Application that will be a console-based application.

Let me use a very simple use-case of leave management that everyone is completely aware of.

Two steps must be covered in the given use-case as: Leave Apply and Leave Approve. In the following given example, I have adopted an Activity Library to implement the workflow mechanism for Leave Apply.

To start a new activity library project, navigate to the File menu of the Visual Studio Integrated Development Environment (IDE) , select “New” and then “Project” (refer to the following screenshot).

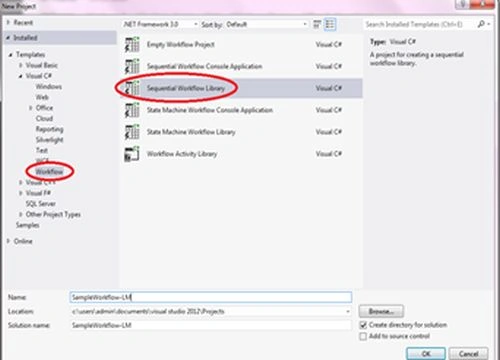

Once you see the listing of templates, select “workflow” from Visual C# and then select “Sequential Workflow Library” (refer to the following screenshot). Please observe that the name of the project is SampleWorkflow-LM.

Don't worry, Sequential is really not sequential in workflow. We can make it s parallel activity that I will explain in the later steps.

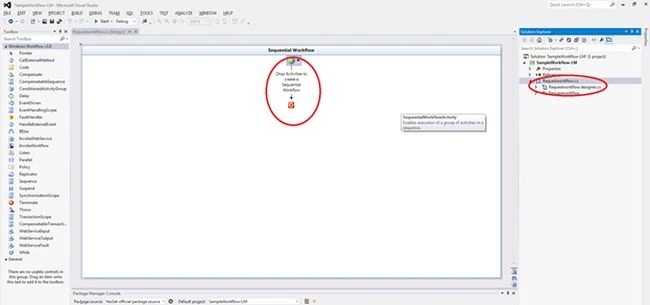

There you go, you now are all set to design a new workflow. As I was selecting sequential workflow, you can see that the visual design screen prompts you to add a new workflow. Rename the workflow1.cs file to Requestworkflow.cs.


 

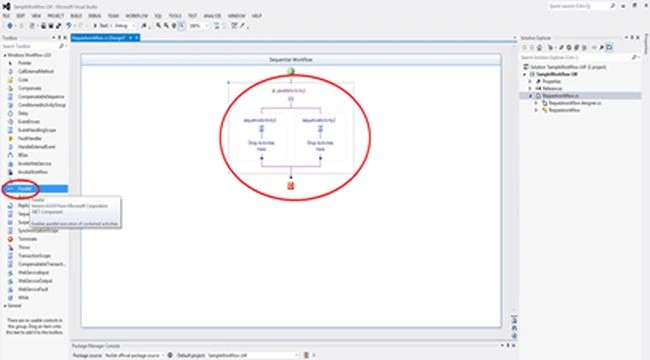

Now, as I said you earlier, sequential workflow is not really sequential and we can make it parallel. Select “Parallel” from the toolbox and drag and drop it to just below the sequential workflow activity on the designer. (Refer to screenshot below.)



Let's pause for a while here to understand what we actually did by doing a drag and drop of a parallel activity onto the designer. As you can see, a new parallel activity is created with again two branches of sequential activities and finally terminating the workflow activity.

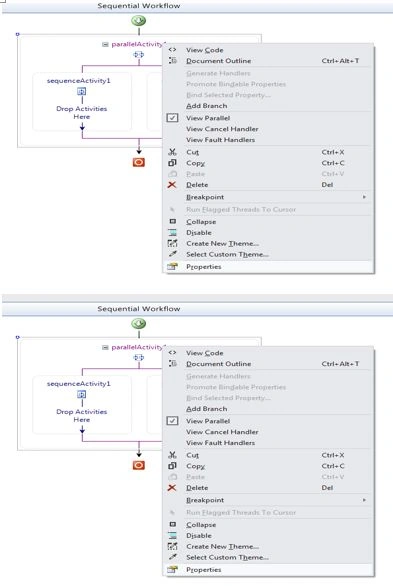

The quick use-case I can think of here is to send email notifications to the leave application and to the leave approver in parallel. If you want to change the properties/name of the activities, do a right-click on the activity for a menu and then select “Properties” (refer to the screen shot below), that I am not doing in my sample.

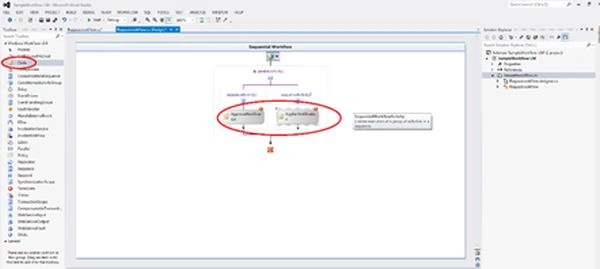

Let's define the actual activity now. The next step is to get the workflow to understand the type of activity to be done. A workflow has many possible options, like event driven, code, if-else, while fault handling and so on. That you can see in your tool box. Let us pick “code” as our activity to send the e-mail notifications. Drag and drop the code activity from the toolbox onto the designer window just below the sequence activity1. Do the same for sequence activity 2. Rename the code activities to “Approver Notification” and “Applier Notification” by selecting the properties. Now, your screen should be such as in the following screenshot.



Always remember that when we are developing a component of (. DLL) output, there should either be a wrapper to invoke the component or there should be a direct invocation by reference adding the component in your project. As you are aware we need an object to hold the data for email notifications.

Public Hash tables

The Hash table is declared public to invoke the component by sending data. I prefer to use a Hash table to send the email notifications, but it can be a string/class/XML and so on (no restriction on serialization).

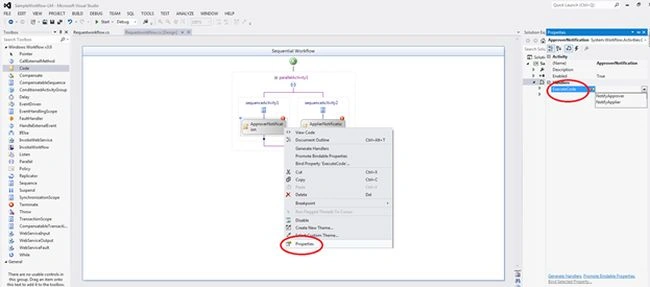

Two more methods are required now to complete the assignment.
