XML In SQL Server

Introduction

• XML stands for Extensible Markup Language.
• XML was designed to store and transport data.
• XML was designed to be both human and machine readable.

Use For XML in SQL Server

• You can retrieve result as XML and then use the XML clause in the query.
• The "FOR XML" uses top-level queries and sub-queries.
• "FOR XML" is also used with a DML command.

There are four Models:

1. Raw
2. Explicit
3. Path
4. Auto

Description for Models

• Raw

  It generates a single <row> element as per row in the rowset that is returned by a select statement. It also uses nested "FOR XML" queries.


• Explicit

  You can mix attributes and elements in deciding the shape of XML. It requires a specific format for resulting format. This rowset format is then mapped into XML shape.


• Path

  The nested "FOR XML" query capability provides the flexibility. These models are for the execution of the query for which they are set. They do not affect the results of any subsequent query.


• Auto

  It generates a nested result, the Minimal control over the shape of XML data.

( Ref: MSDN).

All Models Examples

Firstly, create a table and insert data in the table

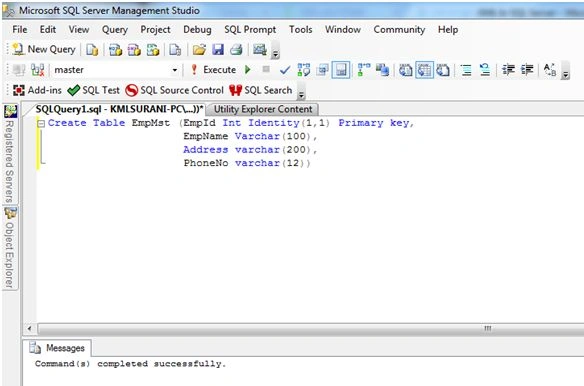

Step 1: Create a table.

You can create a table or use your existing table.


Figure 1.1

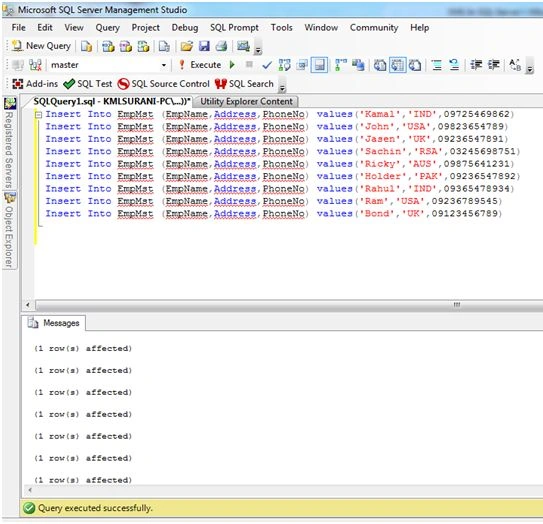

Step 2: Insert data in table.

Insert data of created table structure.


Figure 1.2

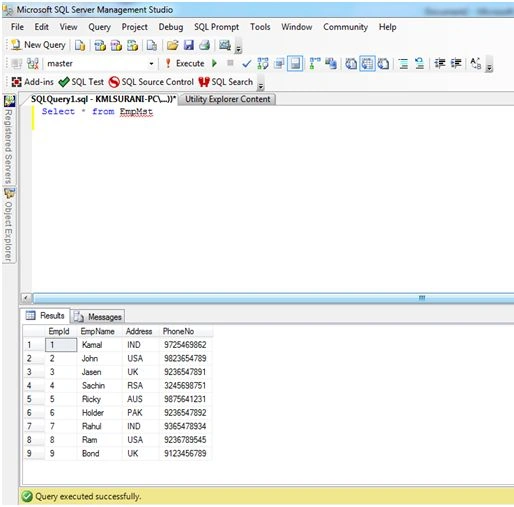

Step 3: Retrieve data in table.

You can see data is inserted from the table:


Figure 1.3

RAW

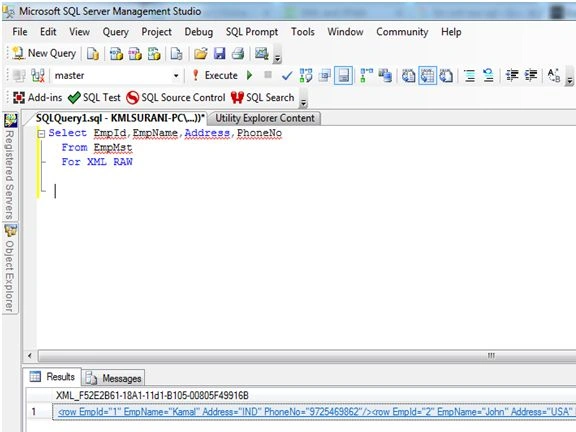

Figure 1.4

Simple used RAW

Output

Figure 1.5

Figure 1.5 - Used RAW with Elements.

Output
EXPLICIT

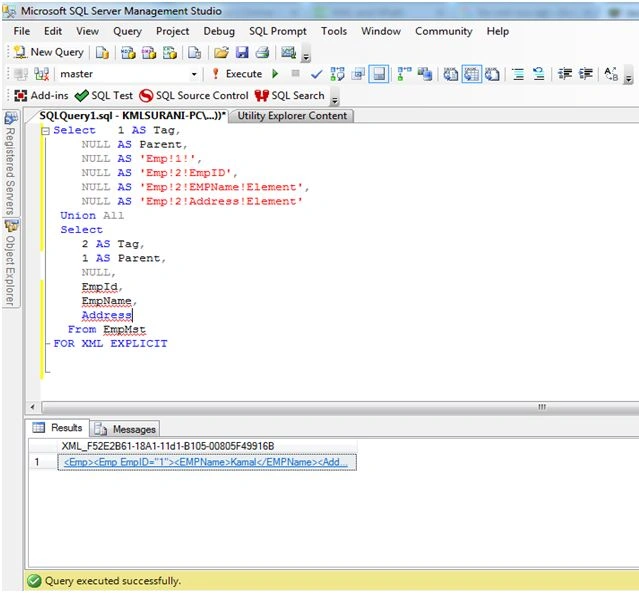

Figure 1.6

Figure 1.6 - Used Explicit Model

Output

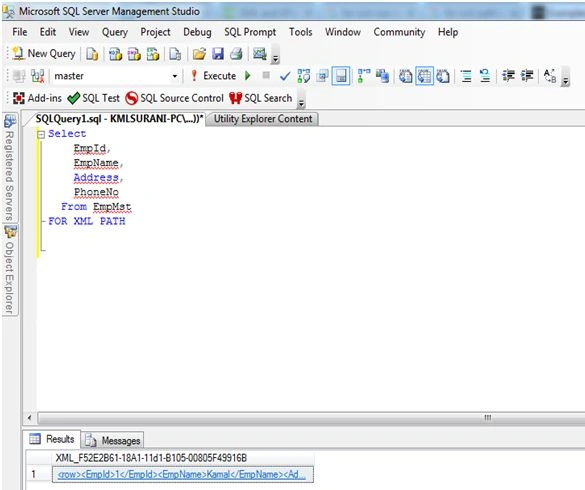

PATH

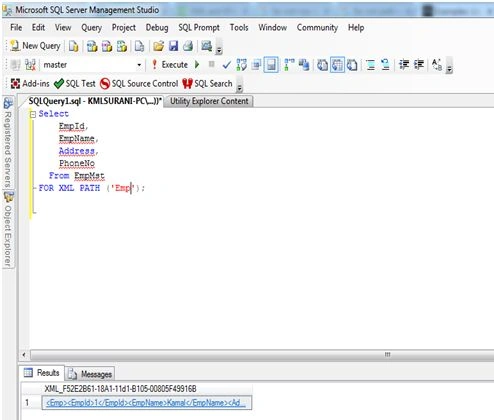

Figure 1.7

Output

Figure 1.8

Figure 1.8 - Another way to use path.


Figure 1.9

Figure 1.9 - Example: used path as root element.

Auto

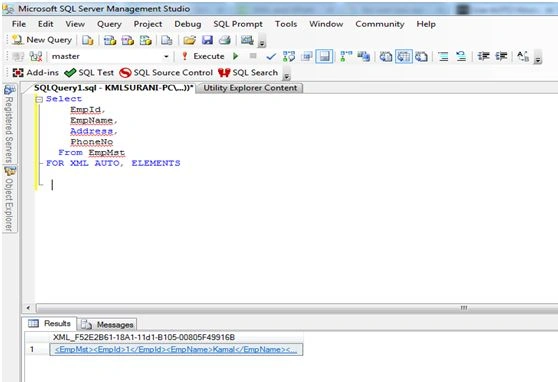

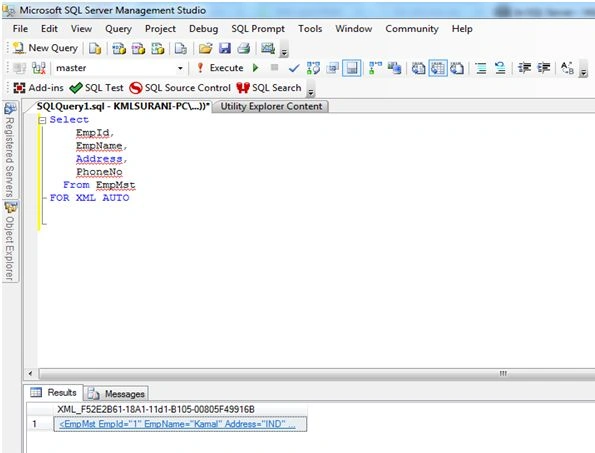

Figure 1.10

Figure 1.10 - Used as AUTO models.

Output

Figure 1.11

Note: Please find the attachment for code.
