Manage Web Applications In SharePoint 2013 Central Administration - Part Two

Welcome to an article on how to manage web applications on Central Administration of SharePoint 2013. Here, we will see how the Central Admin controls manages the Web Application.

Let’s open Central Admin of SharePoint in your machine. On your Windows desktop screen, click Start >> Administrative Tools >> SharePoint 2013 Central Administration.

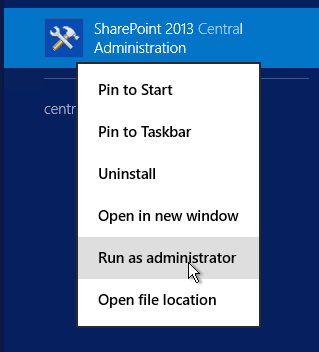

  • Run it as an administrator to have elevated privileges.

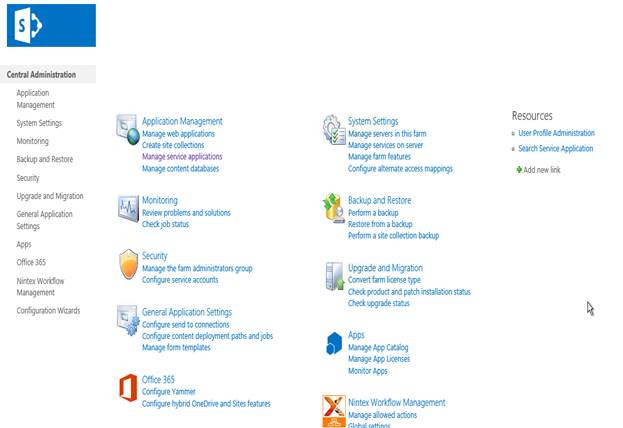

  • You will see the screenshot given below.



  • Central Admin is configured under the categories given below.
  • Click on Application Management.

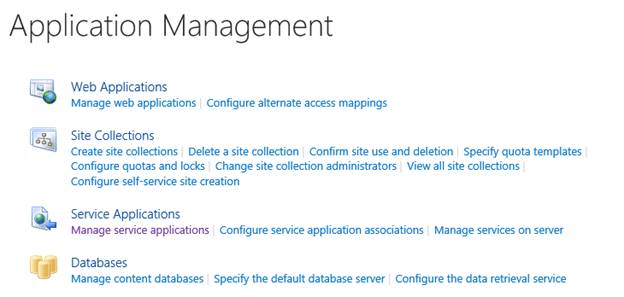

  • You will see Web Applications.
  • Click on "Manage Web Applications".

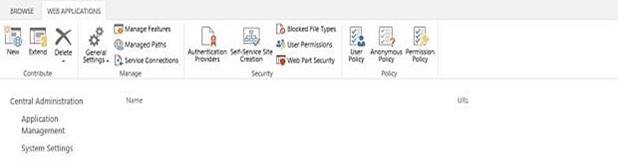

  • You will see the screen given below.



  • Here, we can see various options to work with the Web Applications.
  • Let’s see them from left to right in different parts of the article.

We have four categories, where the events have been categorized.

  1. Contribute
  2. Manage
  3. Security
  4. Policy

In part 1, we completed “New” Under "Contribute". In this article, we will see the other functions available to us.

Let’ see how we can extend the Web Application.

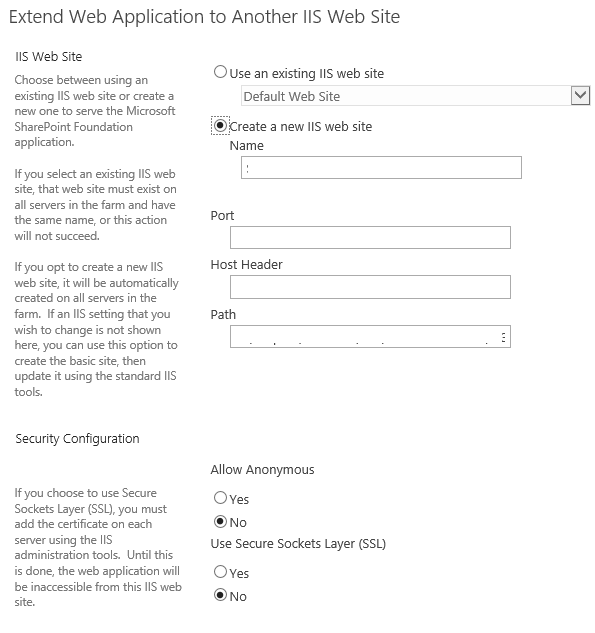

  • Extend


  • IIS Web Site

    You can either,choose an existing IIS Website or create a new one.

    If you choose the default one, just select it from the dropdown above or create a new one by adding the name, port number, host header and path to the IIS Website.

  • Security Configuration

    • Allow Anonymous- You can allow or disallow access to the anonymous users.

    • User SSL- You can use SSL, as per your requirement, but if you use SSL, you need to provide an adequate certificate, else the Web will not be accessible.

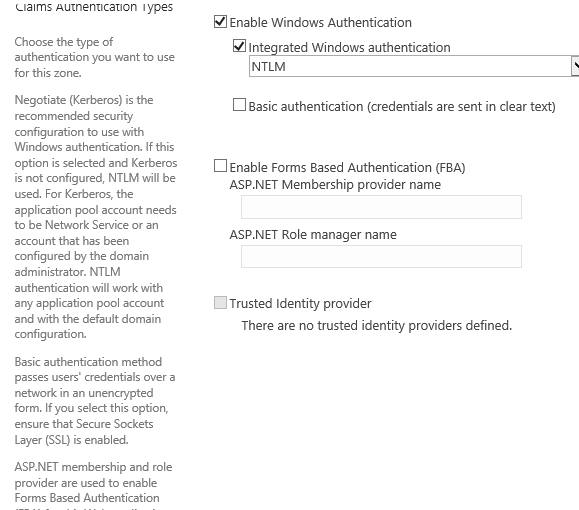

  • Claims Authentication Types

    You can use three types of authentication.

    • Windows Authentication

      • Integrate
        You can integrate Windows authentication with NTLM or Negotiate/Kerberos, depending on your organization's structure. If you choose Kerberos, the Application pool needs to be on the Network Service, whereas NTLM will work on any Application pool.

      • Basic
        Basic authentication will use the credentials in an unencrypted manner to provide you access.

      • Form Based
        You can also use form-based authentication, which will allow the users to enter the credentials on a form and validate accordingly.

        .

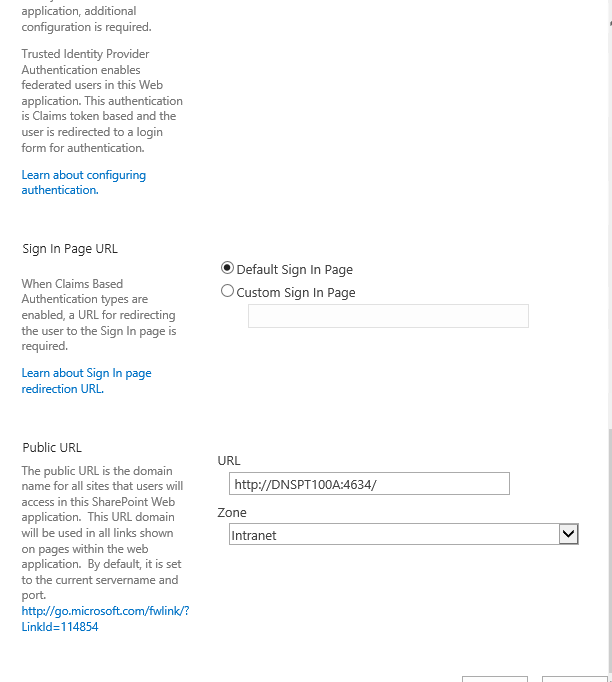

  • Sign-in Page URL
    You can choose if you want to have a sign-in page as default or custom. If custom, you have to provide a URL for the same.

  • Public URL
    The public URL is the domain URL, which will act as a front-end link for all SharePoint Applications, using the Web.

  • Once you complete the configuration, click "OK". The Web Application will be extended.

In this part of managing the Web Application, we saw how to create a Web Application. There are more features under managing the Web Applications, which we will see in the next article.

Until then, keep reading and keep learning.
