Move Textbox Values to GridView in ASP.Net

This article shows how to move textbox values to a GridView at run time using ASP.NET C#.

This article shows how to move textbox values to a GridView at run time using ASP.NET C#.

We are using two Textboxes, a button and a GridView, so when we fill the Textbox and hit the button the values are saved in the GridView.

Initial chamber

Step 1

Open your Visual Studio 2010 and create an empty website. Name it gridview_demo.

Step 2

In Solution Explorer you will see your empty website, add a web form and a SQL Server database as in the following.

For Web Form:

gridview_demo (your empty website) then right-click then select Add New Item -> Web Form. Name it gridview_demo.aspx.

For SQL Server Database

gridview_demo (your empty website) then right-click then select Add New Item -> SQL Server Database. Add the database inside the App_Data_folder.

DATABASE CHAMBER

Step 3

Go to your database (Database.mdf) and create a table tbl_Data. Go to the database.mdf, then Table and Add New table. Design your table like the following:

Table tbl_data (don't forget to make ID as IS Identity -- True)


table

Design chamber

Step 4

Open your gridview_demo.aspx file, where we create our design.

Gridview_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.     <style type="text/css">
  9.         .style1
  10.         {
  11.             width: 550px;
  12.         }
  13.         .style2
  14.         {
  15.             font-size: large;
  16.             text-decoration: underline;
  17.             color: #990000;
  18.         }
  19.     </style>
  20. </head>
  21. <body>
  22.     <form id="form1" runat="server">
  23.     <div class="style2">
  24.
  25.         <strong>Move Data of Textbox to Gridview</strong></div>
  26.     <table style="width:100%;">
  27.         <tr>
  28.             <td>
  29.                 Name:</td>
  30.             <td class="style1">
  31.
  32.         <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  33.
  34.             </td>
  35.             <td>
  36.                  </td>
  37.         </tr>
  38.         <tr>
  39.             <td>
  40.                 City:</td>
  41.             <td class="style1">
  42.     <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
  43.             </td>
  44.             <td>
  45.                  </td>
  46.         </tr>
  47.         <tr>
  48.             <td>
  49.                  </td>
  50.             <td class="style1">
  51.     <asp:LinkButton ID="LinkButton1" runat="server" onclick="LinkButton1_Click">Save to Gridview</asp:LinkButton>
  52.             </td>
  53.             <td>
  54.                  </td>
  55.         </tr>
  56.     </table>
  57.     <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
  58.         DataKeyNames="id" BackColor="LightGoldenrodYellow" BorderColor="Tan"
  59.         BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
  60.         <AlternatingRowStyle BackColor="PaleGoldenrod" />
  61.         <Columns>
  62.             <asp:TemplateField HeaderText="Name">
  63.                 <EditItemTemplate>
  64.                     <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("name") %>'></asp:TextBox>
  65.                 </EditItemTemplate>
  66.                 <ItemTemplate>
  67.                     <asp:Label ID="Label1" runat="server" Text='<%# Bind("name") %>'></asp:Label>
  68.                 </ItemTemplate>
  69.             </asp:TemplateField>
  70.             <asp:TemplateField HeaderText="City">
  71.                 <EditItemTemplate>
  72.                     <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("city") %>'></asp:TextBox>
  73.                 </EditItemTemplate>
  74.                 <ItemTemplate>
  75.                     <asp:Label ID="Label2" runat="server" Text='<%# Bind("city") %>'></asp:Label>
  76.                 </ItemTemplate>
  77.             </asp:TemplateField>
  78.         </Columns>
  79.         <FooterStyle BackColor="Tan" />
  80.         <HeaderStyle BackColor="Tan" Font-Bold="True" />
  81.         <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue"
  82.             HorizontalAlign="Center" />
  83.         <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
  84.         <SortedAscendingCellStyle BackColor="#FAFAE7" />
  85.         <SortedAscendingHeaderStyle BackColor="#DAC09E" />
  86.         <SortedDescendingCellStyle BackColor="#E1DB9C" />
  87.         <SortedDescendingHeaderStyle BackColor="#C2A47B" />
  88.     </asp:GridView>
  89.     </form>
  90. </body>
  91. </html>

Your design will look like the following:

design

Code chamber

Step 6

Open gridview_demo.aspx.cs and write some code so that our application works.

Gridview_demo.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9.
  10. public partial class _Default : System.Web.UI.Page
  11. {
  12.     protected void Page_Load(object sender, EventArgs e)
  13.     {
  14.         if (!Page.IsPostBack)
  15.         {
  16.             refreshdata();
  17.         }
  18.     }
  19.
  20.     public void refreshdata()
  21.     {
  22.
  23.
  24.         SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  25.         SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  26.         SqlDataAdapter sda = new SqlDataAdapter(cmd);
  27.         DataTable dt = new DataTable();
  28.         sda.Fill(dt);
  29.         GridView1.DataSource = dt;
  30.         GridView1.DataBind();
  31.
  32.
  33.     }
  34.     protected void LinkButton1_Click(object sender, EventArgs e)
  35.     {
  36.
  37.         SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  38.         SqlCommand cmd = new SqlCommand("sp_insert", con);
  39.         cmd.CommandType = CommandType.StoredProcedure;
  40.         cmd.Parameters.AddWithValue("name", TextBox3.Text);
  41.         cmd.Parameters.AddWithValue("city", TextBox4.Text);
  42.         con.Open();
  43.         int i = cmd.ExecuteNonQuery();
  44.         con.Close();
  45.         refreshdata();
  46.
  47.     }
  48. }
Output chamber

Output

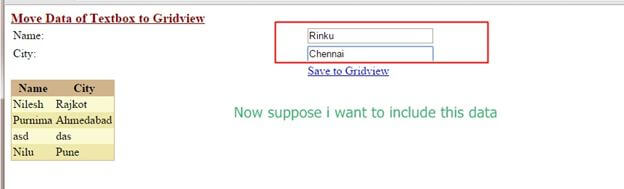

Enter detail

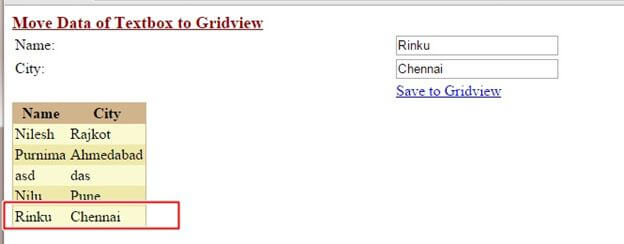

move data

I hope you liked it. Thank you for reading, Have a good day.
