Save Records Using jQuery, Web Services, and JSON Objects

In this Article we will Learn how to save employee records in SQL database using Client Side technologies and webservices.

Introduction

Before going in detail of this article I would like to introduce you the technologies used in the example.

Jquery: JQuery is a JavaScript Library, it greatly simplifies JavaScript programming.

Web Services:
A web service is the communication platform between two different platform applications that allows using their web method.

JSON:

  • JSON stands for JavaScript Object Notation
  • JSON is a lightweight data-interchange format
  • JSON is language independent *
  • JSON is "self-describing" and easy to understand

Note: For better understanding of jQuery you must have the knowledge of CSS and JavaScripts.

Descriptions

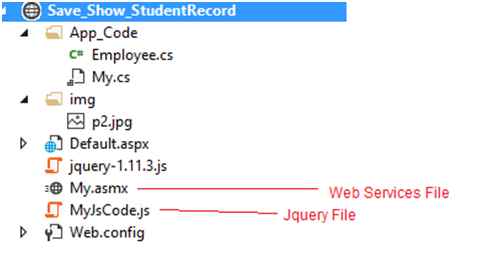

Here are the files we have to create:

Files

Step 1: Create an HTML Page Design Page:

  1. <!DOCTYPE html>
  2. <html xmlns="http://www.w3.org/1999/xhtml">
  3. <head>
  4.     <title></title>
  5.     <script src="jquery-1.11.3.js"></script>
  6.     <script src="MyJsCode.js"></script>
  7.     <style type="text/css">
  8.         .auto-style1 {
  9.             width: 72px;
  10.         }
  11.         .auto-style2 {
  12.             width: 53px;
  13.         }
  14.     </style>
  15. </head>
  16. <body style="background-color:ActiveBorder">
  17.     <form id="form1" style="height: 500px; width: 500px;background-image:url('img/p2.jpg'); border:solid;
  18.  border-collapse:collapse;margin-top:120px; margin-left:400px;">
  19.         <div id="div1" style="height: 170px; width: 500px;">
  20.             <p style="margin-left:100px; font-family:Algerian;">Enter Name and Salary Below !</p>
  21.             <table id="tbl1" border="1" style="margin-left: 130px; margin-top: 30px">
  22.                 <tr>
  23.                     <td>Name</td>
  24.                     <td>
  25.                         <input id="txtname" type="text" /></td>
  26.                 </tr>
  27.                 <tr>
  28.                     <td>Salary</td>
  29.                     <td>
  30.                         <input id="txtsalary" type="text" /></td>
  31.                 </tr>
  32.                 <tr>
  33.                     <td colspan="2">
  34.                         <input id="btnSave" type="button" value="Save" style="margin-left: 10px; width: 150px" />
  35.                     </td>
  36.                 </tr>
  37.             </table>
  38.             <br />
  39.         </div>
  40.         <div id="div2" style="height: 250px; width: 500px">
  41.             <p style="margin-left:150px; font-family:Algerian;">Employee Records</p>
  42.             <table id="tbl2" border="1" style="border-collapse: collapse; margin-left: 135px; width: 200px;">
  43.                 <thead>
  44.                     <tr>
  45.                         <th class="auto-style2">ID</th>
  46.                         <th>Name</th>
  47.                         <th class="auto-style1">Salary</th>
  48.                     </tr>
  49.                 </thead>
  50.                 <tbody>
  51.                 </tbody>
  52.             </table>
  53.         </div>
  54.     </form>
  55. </body>
  56. </html>

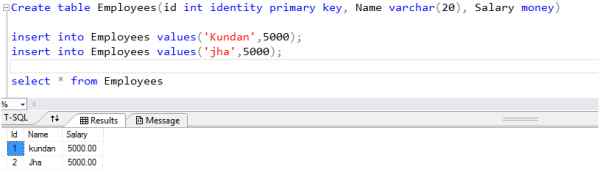

Step 2: After designing the Web Page, let's create a table in SQL Server to save data.

result

Step 3: Create a user defined type (or class) to accept the user value:

  1. public class Employee
  2. {
  3.    public int ID { getset; }
  4.    public string Name { getset; }
  5.
  6.    public int Salary { getset; }
  7.

Step 4: We have created a web service having two Web Methods with ADO.NET class to communicate with SQL Server from HTML Page.

  1. public class My : System.Web.Services.WebService
  2. {
  3.     string CS = ConfigurationManager.ConnectionStrings["MyCon"].ConnectionString;
  4.     //Below method will accept employee type object and save it DB.
  5.     [WebMethod]
  6.     public void saveData(Employee emp1)
  7.     {
  8.         SqlConnection _con = new SqlConnection(CS);
  9.         SqlCommand _cmd = new SqlCommand("insert into Employees values(@name,@salary)", _con);
  10.         _cmd.Parameters.AddWithValue("@name", emp1.Name);
  11.         _cmd.Parameters.AddWithValue("@salary", emp1.Salary);
  12.         _con.Open();
  13.         int i = _cmd.ExecuteNonQuery();
  14.         _con.Close();
  15.     }
  16.     //This method has used to select the employee record and store in collection.
  17.     [WebMethod]
  18.     public void GetEmployeeRecord()
  19.     {
  20.         List<Employee> _li = new List<Employee>();
  21.         SqlConnection _con = new SqlConnection(CS);
  22.         SqlCommand _cmd = new SqlCommand("select * from Employees", _con);
  23.         _con.Open();
  24.         SqlDataReader dr = _cmd.ExecuteReader();
  25.         while (dr.Read())
  26.         {
  27.             Employee emp = new Employee();
  28.             emp.ID = Convert.ToInt32(dr[0]);
  29.             emp.Name = dr[1].ToString();
  30.             emp.Salary = Convert.ToInt32(dr[2]);
  31.
  32.             _li.Add(emp);
  33.         }
  34.         _con.Close();
  35. //JavaScriptSerializer class has used to convert list collection to JSON array.
  36.         JavaScriptSerializer js = new JavaScriptSerializer();
  37.         Context.Response.Write(js.Serialize(_li));
  38.     }
  39.
  40. }

Web Services will look like.

Step 5: Finally, create a javascript file for jQuery functions.

Here we have created two functions like webservices:

  1. //TO Save the User Data
  2. $(document).ready(function () {
  3.     $("#btnSave").click(function () {
  4.         var employee = {};
  5.         employee.Name = $("#txtname").val();
  6.         employee.Salary = $("#txtsalary").val();
  7.
  8.         $.ajax({
  9.             url: 'My.asmx/saveData',
  10.             method: 'post',
  11.             contentType: 'application/json;Charset=utf-8',
  12.             data: '{emp1:' + JSON.stringify(employee) + '}',
  13.             success: function () {
  14.                 show();
  15.                 $("#txtname").val("");
  16.                 $("#txtsalary").val("");
  17.             },
  18.             error: function (err) {
  19.                 alert("Please Enter Name and Salary");
  20.
  21.             }
  22.         });
  23.     });
  24. });
  25. //TO Display the Records
  26. function show() {
  27.     $.ajax({
  28.         url: 'My.asmx/GetEmployeeRecord',
  29.         dataType: "json",
  30.         method: 'post',
  31.         success: function (data) {
  32.             var employee = $("#tbl2 tbody");
  33.             employee.empty();
  34.             $(data).each(function (index, emp) {
  35.                 employee.append('<tr><td>' + emp.ID + '</td><td>' + emp.Name + '</td><td>' + emp.Salary + '</td></tr>');
  36.             });
  37.         },
  38.         error: function (err) {
  39.             alert(err);
  40.         }
  41.     });
  42. }

To successfully execution of jQuery codes, please download the latest jQuery script file form jquery.com.

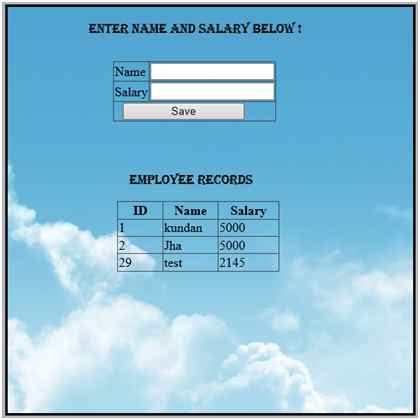

Output:

Output

Hope you liked this article.
