Grid View CRUD Operations Using N-Tier Architecture

Here I am explaining GridView CRUD Operations using N-Tier Architecture.
First here I am explaining databases, table parameters, and Stored Procedures to Create, Read, Update and Delete Operations.
  1. Use [GridData]
  2.
  3. CREATE TABLE [dbo].[OperatingSystem](
  4. [OSId] [int] IDENTITY(1,1) NOT NULL,
  5. [OSName] [varchar](100) NULL,
  6. [CreateDate] [datetime] NULL,
  7. [Status] [smallintNULL,
  8. CONSTRAINT [PK_OperatingSystem] PRIMARY KEY CLUSTERED
  9. (
  10. [OSId] ASC
  11. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  12. ON [PRIMARY]
  13.
  14. GO
  15.
  16. SET ANSI_PADDING OFF
  17. GO
  18.
  19. ALTER TABLE [dbo].[OperatingSystem] ADD DEFAULT (getdate()) FOR [CreateDate]
  20. GO
  21.
  22. ALTER TABLE [dbo].[OperatingSystem] ADD DEFAULT ('1'FOR [Status]
  23. GO
  24.
  25. Stored Procedures are,
  26.
  27. //Create Procedure
  28. Create Procedure [dbo].[InsertSystemName]
  29. (
  30. @OSName varchar(50)
  31. )
  32. AS
  33. BEGIN
  34. insert into OperatingSystem(OSName) values(@OSName)
  35. END
  36.
  37. //Get Data Procedure
  38. ALTER Procedure [dbo].[GetSystemsData]
  39. As
  40. Begin
  41. select * from OperatingSystem where Status='1'
  42. End
  43.
  44.
  45. //Update Procedure
  46. ALTER Procedure [dbo].[UpdateSystems]
  47. (
  48. @Id int,
  49. @Name varchar(100),
  50. @Status int
  51. )
  52. As
  53. BEGIN
  54. update OperatingSystem set OSName=@Name,Status=@Status where OSId=@Id
  55. END
  56.
  57. //Delete Procedure
  58. ALTER Procedure [dbo].[DeleteSystemsData]
  59. (
  60. @Id int
  61. )
  62. As
  63. Begin
  64. update OperatingSystem set Status='0' where OSId=@Id
  65.
  66. End
  • Next create the solution from Visual Studio. First create a solution add three class libraries named "DAL", "Databaselayer", "EntityLayer" and one web application named "GridViewExample" as ini the following image.
  • Next add refernces for the solution. First DAL for the DatabaseLayer and EntityLayer.
  • For the GridViewExample add "DAL", "Databaselayer" and "Entitylayer".
  • In the DatabaseLayer, add one refernce System.Configuration.
Getting to the Databaselayer, create a classs named "SqlHelper.CS" and write the following code.

Note: Here dbconnection is a connection string for SQL Server.
    1. public static string CONNECTION_STRING = ConfigurationManager.ConnectionStrings["dbconnection"].ConnectionString;
    2.
    3. public static DataSet ExecuteParamerizedSelectCommand(string CommandName, CommandType cmdType, SqlParameter[] param) {
    4.     DataSet ds = new DataSet();
    5.
    6.     using(SqlConnection con = new SqlConnection(CONNECTION_STRING)) {
    7.         using(SqlCommand cmd = con.CreateCommand()) {
    8.             cmd.CommandType = cmdType;
    9.             cmd.CommandText = CommandName;
    10.             cmd.Parameters.AddRange(param);
    11.             try {
    12.                 if (con.State != ConnectionState.Open) {
    13.                     con.Open();
    14.                 }
    15.
    16.                 using(SqlDataAdapter da = new SqlDataAdapter(cmd)) {
    17.                     da.Fill(ds);
    18.                 }
    19.             } catch {
    20.                 throw;
    21.             }
    22.         }
    23.     }
    24.     return ds;
    25. }
    26.
    27. // This function will be used to execute CUD(CRUD) operation of parameterized commands
    28. public static bool ExecuteNonQuery(string CommandName, CommandType cmdType, SqlParameter[] pars) {
    29.     int result = 0;
    30.
    31.     using(SqlConnection con = new SqlConnection(CONNECTION_STRING)) {
    32.         using(SqlCommand cmd = con.CreateCommand()) {
    33.             cmd.CommandType = cmdType;
    34.             cmd.CommandText = CommandName;
    35.             cmd.Parameters.AddRange(pars);
    36.
    37.             try {
    38.                 if (con.State != ConnectionState.Open) {
    39.                     con.Open();
    40.                 }
    41.                 result = cmd.ExecuteNonQuery();
    42.             } catch {
    43.                 throw;
    44.             }
    45.         }
    46.     }
    47.     return (result > 0);
    48. }
    49.
    50. //Getting To EntityLayer, add a class and named as GridData.CS and write following code:
    51. public class OperatingSystemEntity {
    52.     public int OSId {
    53.         get;
    54.         set;
    55.     }
    56.     public string OSName {
    57.         get;
    58.         set;
    59.     }
    60.     public DateTime CreateDate {
    61.         get;
    62.         set;
    63.     }
    64.     public int Status {
    65.         get;
    66.         set;
    67.     }
    68. }
    69.
    70. //Getting to DAL, Add a class and named as GridData.cs and write the following code:
    71. public class GridData {
    72.     public bool CreateSystem(OperatingSystemEntity SEntity) {
    73.         SqlParameter[] parameters = new SqlParameter[] {
    74.             new SqlParameter("@OSName", SEntity.OSName),
    75.
    76.         };
    77.         return SqlHelper.ExecuteNonQuery("InsertSystemName", CommandType.StoredProcedure, parameters);
    78.     }
    79.
    80.     public List < OperatingSystemEntity > GetSystemsData(OperatingSystemEntity SEntity) {
    81.         List < OperatingSystemEntity > ListEntry = null;
    82.         SqlParameter[] parameters = new SqlParameter[] {
    83.
    84.         };
    85.         using(DataSet ds = SqlHelper.ExecuteParamerizedSelectCommand("GetSystemsData", CommandType.StoredProcedure, parameters)) {
    86.             if (ds.Tables.Count > 0) {
    87.
    88.                 ListEntry = new List < OperatingSystemEntity > ();
    89.
    90.                 foreach(DataRow row2 in ds.Tables[0].Rows) {
    91.                     OperatingSystemEntity entry = new OperatingSystemEntity();
    92.                     entry.OSId = Convert.ToInt32(row2["OSId"].ToString());
    93.                     entry.OSName = row2["OSName"].ToString();
    94.                     entry.CreateDate = Convert.ToDateTime(row2["CreateDate"].ToString());
    95.                     entry.Status = Convert.ToInt32(row2["Status"].ToString());
    96.                     ListEntry.Add(entry);
    97.                 }
    98.             }
    99.         }
    100.
    101.         return ListEntry;
    102.     }
    103.
    104.     public bool UpdateSystems(OperatingSystemEntity SEntity) {
    105.         SqlParameter[] parameters = new SqlParameter[] {
    106.             new SqlParameter("@Id", SEntity.OSId),
    107.                 new SqlParameter("@Name", SEntity.OSName),
    108.                 new SqlParameter("@Status", SEntity.Status),
    109.         };
    110.
    111.         return SqlHelper.ExecuteNonQuery("UpdateSystems", CommandType.StoredProcedure, parameters);
    112.     }
    113.
    114.     public bool DeleteSystem(OperatingSystemEntity SEntity) {
    115.         SqlParameter[] parameters = new SqlParameter[] {
    116.             new SqlParameter("@Id", SEntity.OSId),
    117.         };
    118.
    119.         return SqlHelper.ExecuteNonQuery("DeleteSystemsData", CommandType.StoredProcedure, parameters);
    120.     }
    121. }

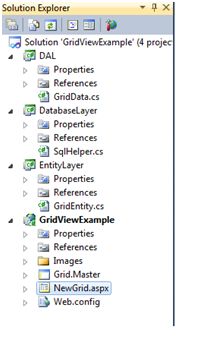

    Then the Solution Explorer will be such as follows:


    Getting to GridViewExample Web Application, add a new form named NewGrid.aspx and add the following code:
      1. <asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
      2.      <script language="javascript" type="text/javascript">
      3.      function validate() {
      4.
      5.           if (document.getElementById("<%=txtname.ClientID %>").value == "") {
      6.
      7.                alert("Please Enter Name");
      8.                document.getElementById("<%=txtname.ClientID %>").focus();
      9.                return false;
      10.           }
      11.
      12.      }
      13.      </script>
      14. </asp:Content>
      15. <asp:Content ID="Content2" ContentPlaceHolderID="Body" runat="server">
      16.      <div>
      17.           <h2 style="width: 80%">
      18.                <u>Create System</u></h2>
      19.           <table>
      20.                <tr>
      21.                     <td colspan="2">
      22.                          <asp:Label runat="server" ID="lblmsgerror" Font-Bold="true"></asp:Label>
      23.                     </td>
      24.                </tr>
      25.                <tr>
      26.                     <td>
      27.                          <asp:Label ID="lblname" runat="server" Text="SystemName"></asp:Label>
      28.                     </td>
      29.                     <td>
      30.                          <asp:TextBox ID="txtname" runat="server"></asp:TextBox>
      31.                     </td>
      32.                </tr>
      33.                <tr>
      34.                     <td>
      35.                     </td>
      36.                     <td>
      37.                          <asp:Button ID="btnsave" runat="server" Text="Save" OnClick="btnsave_Click" />
      38.                     </td>
      39.                </tr>
      40.           </table>
      41.      </div>
      42.      <h2 style="width: 80%">
      43.           <u>Total Availble Systems</u></h2>
      44.      <p>
      45.           <asp:Label runat="server" ID="lblmsg" ForeColor="Red" Font-Bold="true"></asp:Label>
      46.      </p>
      47.      <div>
      48.           <asp:GridView ID="gvSystem" runat="server" AutoGenerateColumns="false" OnRowUpdating="gvSystem_RowUpdating" OnRowEditing="gvSystem_RowEditing" OnRowDeleting="gvSystem_RowDeleting" DataKeyNames="OSId" OnRowCancelingEdit="gvSystem_RowCancelingEdit">
      49.                <Columns>
      50.                     <asp:TemplateField>
      51.                          <EditItemTemplate>
      52.                               <asp:ImageButton ID="imgbtnUpdate" CommandName="Update" runat="server" ImageUrl="~/Images/Update.jpg" ToolTip="Update" Height="20px" Width="20px" />
      53.                               <asp:ImageButton ID="imgbtnCancel" runat="server" CommandName="Cancel" ImageUrl="~/Images/Cancel.jpg" ToolTip="Cancel" Height="20px" Width="20px" />
      54.                          </EditItemTemplate>
      55.                          <ItemTemplate>
      56.                               <asp:ImageButton ID="imgbtnEdit" CommandName="Edit" runat="server" ImageUrl="~/Images/Edit.jpg" ToolTip="Edit" Height="20px" Width="20px" />
      57.                               <asp:ImageButton ID="imgbtnDelete" CommandName="Delete" OnClientClick="return confirm('Are you sure you want to delete selected record?')" Text="Edit" runat="server" ImageUrl="~/images/Delete.jpg" ToolTip="Delete" Height="20px" Width="20px" />
      58.                          </ItemTemplate>
      59.                     </asp:TemplateField>
      60.                     <asp:TemplateField HeaderText="System Name">
      61.                          <EditItemTemplate>
      62.                               <asp:TextBox ID="txtname" runat="server" Text='<%# Eval("OSName")%>'></asp:TextBox>
      63.                          </EditItemTemplate>
      64.                          <ItemTemplate>
      65.                               <asp:Label ID="lblname" runat="server" Text='<%# Eval("OSName")%>'></asp:Label>
      66.                          </ItemTemplate>
      67.                     </asp:TemplateField>
      68.                     <asp:TemplateField HeaderText="Date Of Created">
      69.                          <ItemTemplate>
      70.                               <asp:Label ID="lbldate" runat="server" Text='<%# Eval("CreateDate")%>'></asp:Label>
      71.                          </ItemTemplate>
      72.                     </asp:TemplateField>
      73.                     <asp:TemplateField HeaderText="Status">
      74.                          <EditItemTemplate>
      75.                               <asp:TextBox ID="txtstatus" runat="server" Text='<%# Eval("Status")%>'></asp:TextBox>
      76.                          </EditItemTemplate>
      77.                          <ItemTemplate>
      78.                               <asp:Label ID="lblstatus" runat="server" Text='<%# Eval("Status")%>'></asp:Label>
      79.                          </ItemTemplate>
      80.                     </asp:TemplateField>
      81.                </Columns>
      82.           </asp:GridView>
      83.      </div>
      84. </asp:Content>
      In NewGrid.aspx.cs file, write the following code:
        1. OperatingSystemEntity SEntity = new OperatingSystemEntity();
        2. GridData GData = new GridData();
        3.
        4. protected void Page_Load(object sender, EventArgs e) {
        5.     btnsave.Attributes.Add("onclick""return validate()");
        6.     if (!IsPostBack) {
        7.         BindData();
        8.     }
        9. }
        10.
        11. protected void btnsave_Click(object sender, EventArgs e) {
        12.     SEntity.OSName = txtname.Text;
        13.
        14.     if (GData.CreateSystem(SEntity) == true) {
        15.         lblmsgerror.ForeColor = Color.Green;
        16.         lblmsgerror.Text = "System Name Saved Successfully";
        17.         BindData();
        18.         txtname.Text = "";
        19.     } else {
        20.         lblmsgerror.ForeColor = Color.Red;
        21.         lblmsgerror.Text = "System Name Already Exists ";
        22.     }
        23. }
        24.
        25. private void BindData() {
        26.     List < OperatingSystemEntity > SList = GData.GetSystemsData(SEntity);
        27.
        28.     if (SList.Count != 0) {
        29.         gvSystem.DataSource = SList;
        30.         gvSystem.DataBind();
        31.     } else {
        32.         lblmsg.Text = "No Data found..";
        33.     }
        34. }
        35.
        36. private static String GetTextFromRowBox(GridViewRow row, String field) {
        37.     return ((TextBox) row.FindControl(field)).Text;
        38. }
        39.
        40. protected void gvSystem_RowUpdating(object sender, GridViewUpdateEventArgs e) {
        41.     int id = Convert.ToInt32(gvSystem.DataKeys[e.RowIndex].Values["OSId"].ToString());
        42.     GridViewRow row = gvSystem.Rows[e.RowIndex];
        43.
        44.     SEntity.OSName = GetTextFromRowBox(row, "txtname");
        45.     SEntity.Status = Convert.ToInt32(GetTextFromRowBox(row, "txtstatus").ToString());
        46.     SEntity.OSId = id;
        47.
        48.     if (GData.UpdateSystems(SEntity) == true) {
        49.         gvSystem.EditIndex = -1;
        50.         BindData();
        51.         lblmsg.Text = "Records Updated sucessfully";
        52.     } else {
        53.         lblmsg.Text = "Updation Failed";
        54.     }
        55. }
        56.
        57. protected void gvSystem_RowEditing(object sender, GridViewEditEventArgs e) {
        58.     gvSystem.EditIndex = e.NewEditIndex;
        59.     BindData();
        60. }
        61.
        62. protected void gvSystem_RowCancelingEdit(object sender, GridViewCancelEditEventArgs e) {
        63.     gvSystem.EditIndex = -1;
        64.     BindData();
        65. }
        66.
        67. protected void gvSystem_RowDeleting(object sender, GridViewDeleteEventArgs e) {
        68.     int ID = Convert.ToInt32(gvSystem.DataKeys[e.RowIndex].Values["OSId"].ToString());
        69.
        70.     deleterecords(ID);
        71. }
        72.
        73. private void deleterecords(int ID) {
        74.     SEntity.OSId = ID;
        75.
        76.     if (GData.DeleteSystem(SEntity) == true) {
        77.         lblmsg.Text = "Records deleted sucessfully...";
        78.         BindData();
        79.         lblmsg.Text = "";
        80.     } else {
        81.         lblmsg.ForeColor = Color.Red;
        82.         lblmsg.Text = "Records deleted failed...";
        83.         BindData();
        84.         lblmsg.Text = "";
        85.     }

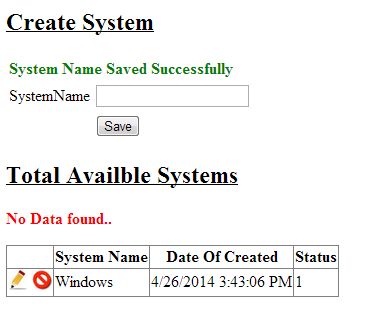

        Like that we have completed the CRUD Operations for the Gridview in the N-Tier architecture. If you have any doubts then please leave a comment. I will explain ASAP. The output will appear as in the following:


        Thanks and happy coding.

        Recommended Ebook

        Diving Into Microsoft .NET Entity Framework

        Download Now!
        Similar Articles
