Searching Multiple Parameters in LightSwitch 2012 - Part 2

In my previous article I described how to create tables, establish relationships and add screens (http://www.c-sharpcorner.com/uploadfile/18ddf7/searching-multiple-parameters-in-lightswitch-2012-part-1/)

This article describes how to add a query for a table and add a data item as well as add a button.

Step 1

Right-click on the Student Table and choose "Add Query".

add query.jpg

Step 2

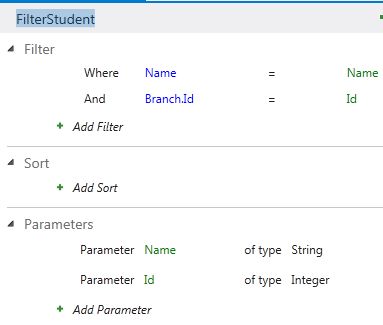

The Query designer appears. In that add the filter by providing the information and  here I have set the name to "StudentFilter".

query added.jpg

Step 3

To add the query to the editable grid screen, go to the menu bar and click on "Add Data Item".

Add data item.jpg

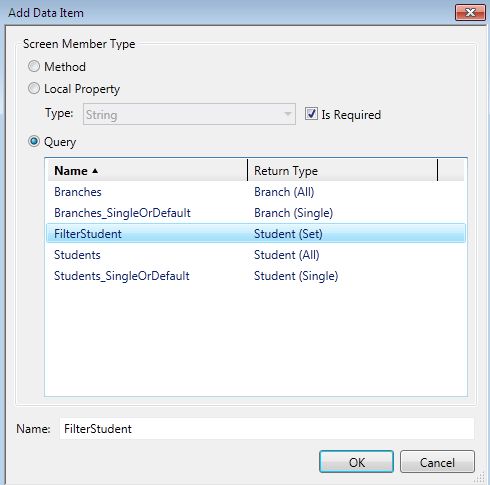

The Add Data Item dialog box appears. In that choose the "Query Radio Button" and then select the StudentFilter option and provide a name.

add data item dialog.jpg

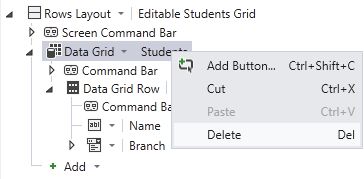

Delete the existing Grid from the screen.

data item delete.jpg

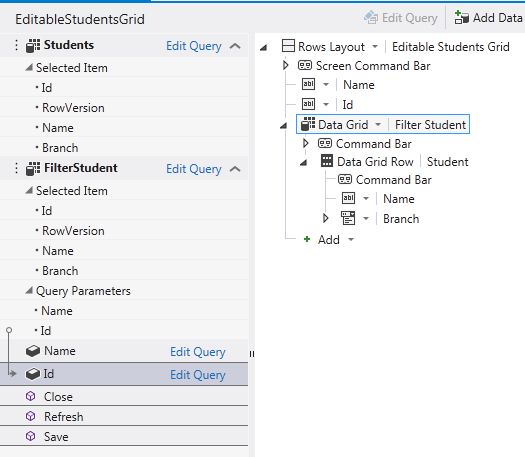

And drag the FilterStudent query to the Screen. Now the screen designer will look like:

drag filterstudent.jpg

Step 4

Now we will add two data items.

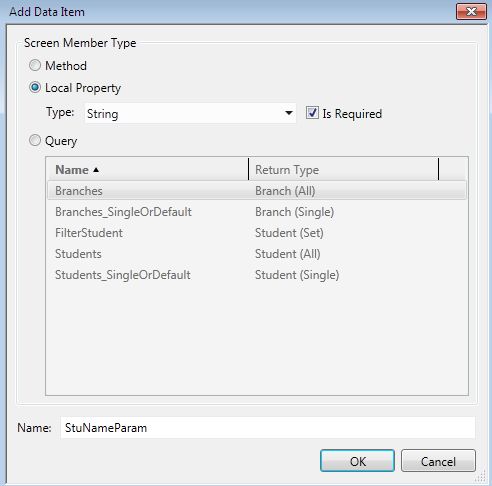

One is the StuNameParam.

stu name param.jpg

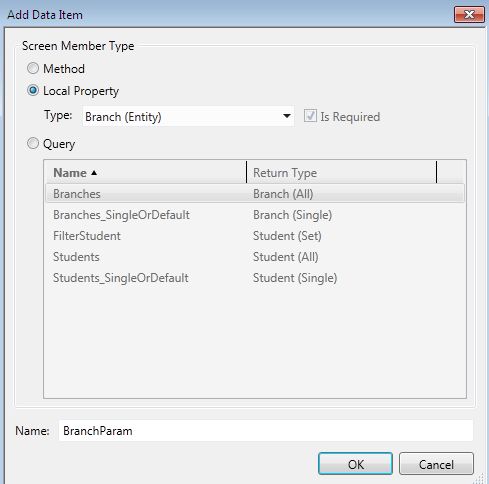

The other one is the BranchParam.

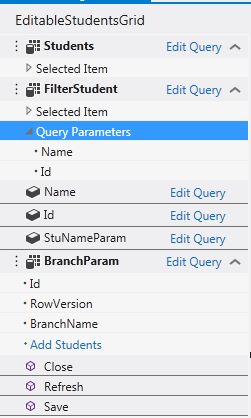

As we click OK these data items will be added to the Screen Designer.


Step 5

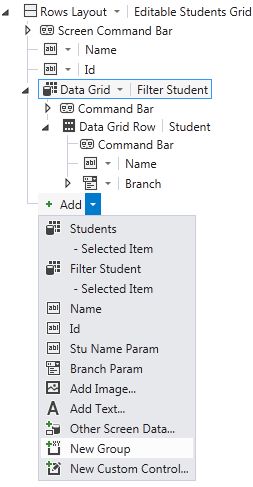

To add a Model Window, we first need to click on the "Add" and then select a new group from the drop down list.

New group.jpg

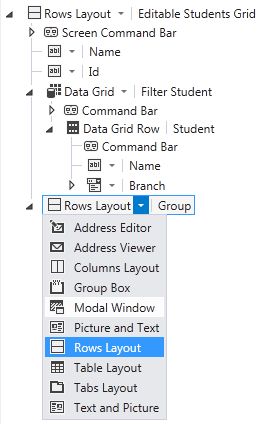

Now click on the "Row Layout" dropdown list and choose the "Modal Window" option.

modal window.jpg

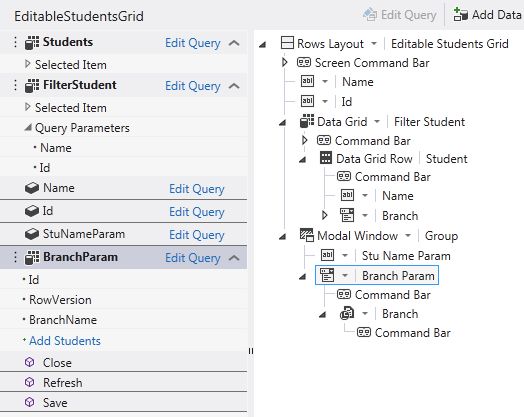

After adding the Modal Window, drag both data items (StuNameParam and BranchParam).

drag both data items.jpg

Step 6

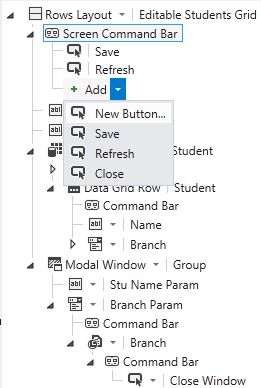

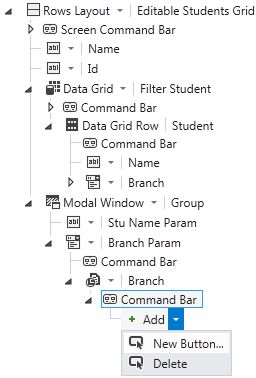

We will also add two buttons, one to open the window and the other to close the window.

new button.jpg

add button.jpg

The open window button and

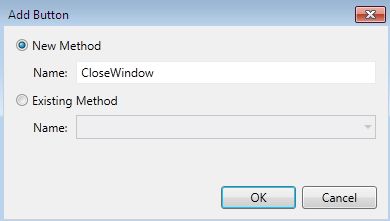

close window button will be added.

close window.jpg

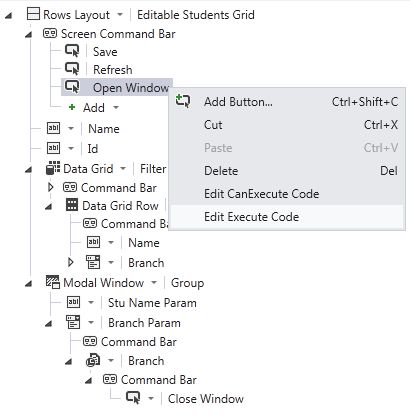

Right-click on the buttons and choose "Edit Execute Method" for both buttons.

edit execute button.jpg

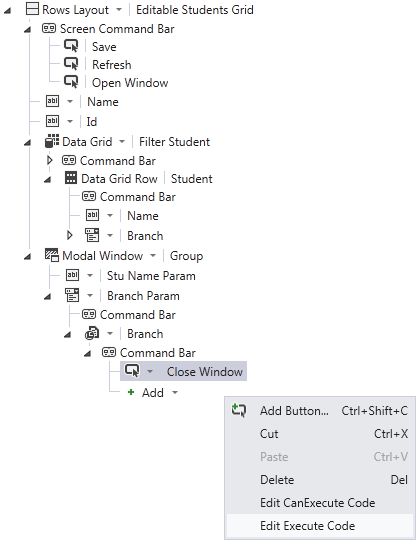

The Edit Execute Method for the close button is shown in the following figure:

edit exexute close.jpg

The code editor appears; in it provide the information for both the buttons.

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;

namespace LightSwitchApplication

{

    public partial class EditableStudentsGrid

    {

        partial void OpenWindow_Execute()

        {

            // Write your code here.

            this.OpenModalWindow("Group");

        }



        partial void CloseWindow_Execute()

        {

            // Write your code here.

            this.CloseModalWindow("Group");

        }

    }

}


Step 7

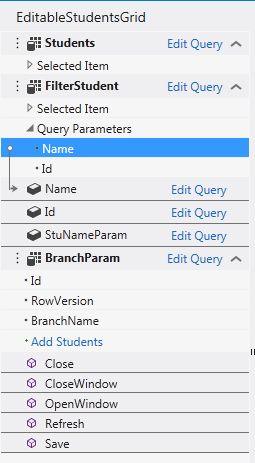

To bind the Query Parameter with the data item, first of all click on the "Name" for the "Query Parameter".

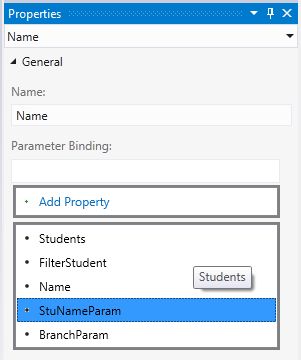

Now go to the property window, in the parameter Binding TextBox, write the parameter Name (StuNameParam).


The query parameter will be bound with the data item.

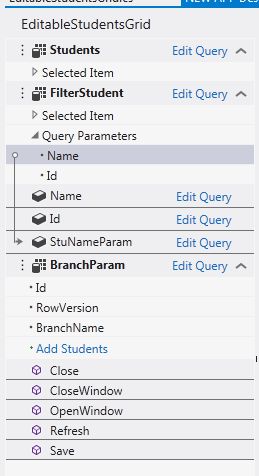

Relation shown.jpg

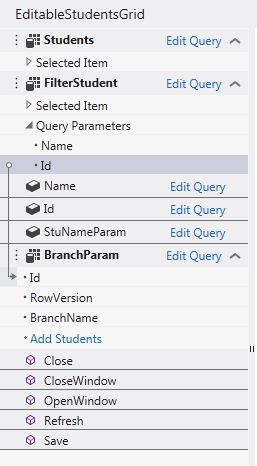

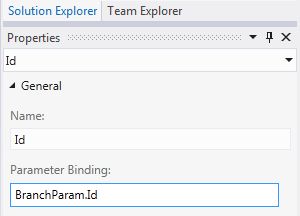

In the same way we will establish the binding between Id Query Parameter and BranchParam Id.


The binding will be a shown below.

Relation shown 1.jpg

Step 8

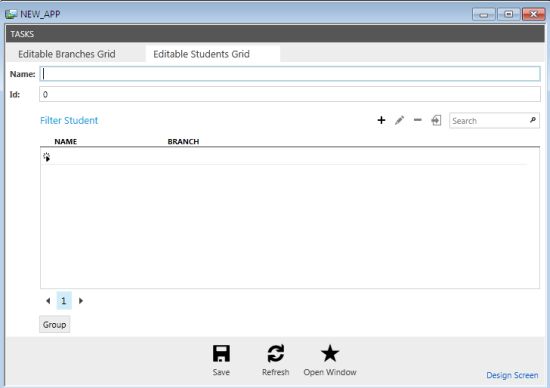

Press F5 to run the application.

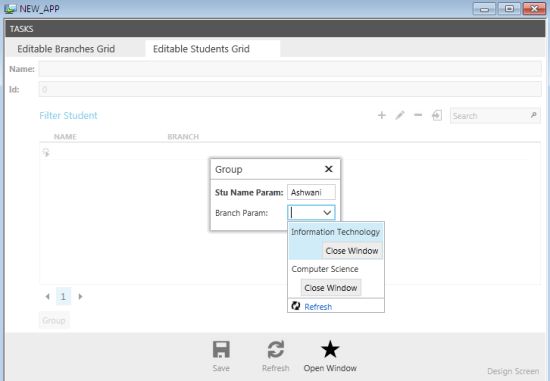

Now click on the open button and add an Employee Name. We get the output as in the following:

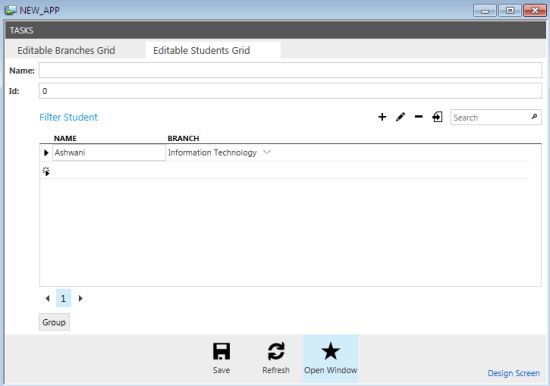

Finally we get:

final output.jpg
