CrossFading Animation in Android Using Android Studio

Introduction


This article explains cross fade animation in Android using Android Studio. In this you will first use two Textviews and a Button inside a relative layout in your XML file. On a button click you need to perform the cross_fade animation.

To perform cross fade animation you need to create two XML files inside the res folder, fade_in and fade_out.

Inside the fade_out folder you will write alpha animation because you need to fade_out one TextView as in the following:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <set xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:fillAfter="true" >
  4.     <alpha
  5.         android:duration="1000"
  6.         android:fromAlpha="1.0"
  7.         android:interpolator="@android:anim/accelerate_interpolator"
  8.         android:toAlpha="0.0" />
  9. </set>
Inside the fade_In folder you will write alpha animation because you need to fade_in one TextView as in the following:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <set xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:fillAfter="true" >
  4.     <alpha
  5.         android:duration="1000"
  6.         android:fromAlpha="0.0"
  7.         android:interpolator="@android:anim/accelerate_interpolator"
  8.         android:toAlpha="1.0" />
  9. </set>
In the Java Class file, you will first create the two Animation objects, FadeIn and FadeOut. In these objects, you will load the animations fade_in and fade_out by calling the loadAnimation() method of the AniamtionUtills class.
  1. FadeIn = AnimationUtils.loadAnimation(getApplicationContext()R.anim.fade_in);
  2. FadeOut = AnimationUtils.loadAnimation(getApplicationContext(),R.anim.fade_out);
Step 1

Create an XML file and write this:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     android:orientation="vertical"
  6.         android:background="#ff8769">
  7.
  8.     <TextView android:id="@+id/txtView1"
  9.         android:layout_width="wrap_content"
  10.         android:layout_height="wrap_content"
  11.         android:text="Fade In Text"
  12.         android:layout_centerInParent="true"
  13.         android:textSize="25dp"
  14.             android:textStyle="italic"/>
  15.
  16.     <TextView android:id="@+id/txtView2"
  17.         android:layout_width="wrap_content"
  18.         android:layout_height="wrap_content"
  19.         android:text="Fade Out Text"
  20.         android:layout_centerInParent="true"
  21.         android:textSize="25dp"
  22.         android:visibility="gone"
  23.             android:textStyle="italic"/>
  24.
  25.     <Button android:id="@+id/btnAnimation"
  26.         android:layout_width="wrap_content"
  27.         android:layout_height="wrap_content"
  28.         android:text="Start Animation"
  29.         android:layout_marginTop="30dp"
  30.         android:layout_alignParentBottom="true"
  31.         android:layout_centerHorizontal="true"
  32.         android:layout_marginBottom="20dp"/>
  33.
  34. </RelativeLayout>
Step 2

Fade_in XML file:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <set xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:fillAfter="true" >
  4.     <alpha
  5.         android:duration="1000"
  6.         android:fromAlpha="0.0"
  7.         android:interpolator="@android:anim/accelerate_interpolator"
  8.         android:toAlpha="1.0" />
  9. </set>
Step 3

Fade_out XML file:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <set xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:fillAfter="true" >
  4.  <alpha
  5.         android:duration="1000"
  6.         android:fromAlpha="1.0"
  7.         android:interpolator="@android:anim/accelerate_interpolator"
  8.         android:toAlpha="0.0" />
  9.  </set>
Step 4

Create a Java file and write this:

In the Java Class file, you will first create the two Animation objects FadeIn and FadeOut. In these objects, you will load the animations fade_in and fade_out by calling the loadAnimation() method of the AniamtionUtills class. Set the animation on its listener.
  1. import android.app.Activity;
  2. import android.os.Bundle;
  3. import android.view.View;
  4. import android.view.animation.Animation;
  5. import android.view.animation.Animation.AnimationListener;
  6. import android.view.animation.AnimationUtils;
  7. import android.widget.Button;
  8. import android.widget.TextView;
  9.
  10. public class CrossfadeActivity extends Activity implements AnimationListener {
  11.
  12.        TextView txtview1, txtview2;
  13.        Button btnAnimation;
  14.        Animation FadeIn, FadeOut;
  15.        @Override
  16.        protected void onCreate(Bundle savedInstanceState) {
  17.               // TODO Auto-generated method stub
  18.               super.onCreate(savedInstanceState);
  19.               setContentView(R.layout.activity_crossfade);
  20.               txtview1 = (TextView) findViewById(R.id.txtView1);
  21.               txtview2 = (TextView) findViewById(R.id.txtView2);
  22.               btnAnimation = (Button) findViewById(R.id.btnAnimation);
  23.                      FadeIn = AnimationUtils.loadAnimation(getApplicationContext(),
  24.                            R.anim.fade_in);
  25.               FadeOut = AnimationUtils.loadAnimation(getApplicationContext(),
  26.                            R.anim.fade_out);
  27.               FadeIn.setAnimationListener(this);
  28.               FadeOut.setAnimationListener(this);
  29.               btnAnimation.setOnClickListener(new View.OnClickListener() {
  30.
  31.                      @Override
  32.                      public void onClick(View v) {
  33.                             txtview2.setVisibility(View.VISIBLE);
  34.                            txtview2.startAnimation(FadeIn);
  35.                            txtview1.startAnimation(FadeOut);
  36.                      }
  37.               });
  38.        }
  39.
  40.        @Override
  41.        public void onAnimationEnd(Animation animation) {
  42.               if (animation == FadeOut) {
  43.                      txtview1.setVisibility(View.GONE);
  44.               }
  45.               if(animation == FadeIn){
  46.                                          txtview2.setVisibility(View.VISIBLE);
  47.               }
  48.        }
  49.        @Override
  50.        public void onAnimationRepeat(Animation animation) {
  51.        }
  52.        @Override
  53.        public void onAnimationStart(Animation animation) {
  54.                            }
  55.
Step 5

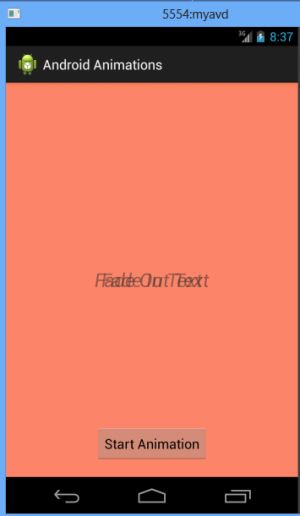

When you run your project:


Image 2


Image 3


When you run this project on your emulator or device then you will see the animation.
