Checkboxes In Android

Introduction


This article explains Checkboxes in Android. Android Studio is used to create the sample.

CheckBox

A CheckBox is a type of two-state button that can either be checked or unchecked.

In this article I used three CheckBoxes that, when clicked, display a toast that contains the id of that checkbox. If you check the first checkBox then it displays checkbox1 and if you check the second CheckBox then the toast displays checkbox2. I have also used a button so when clicking the button the state of the checkboxes display on the screen that shows which TextBox is selected. If one TextBox is selected then it shows checkbox1:true and another with false. If all the checkboxes are selected then it shows checkbox1:true, checkbox2:true, checkbox3:true.

Step 1

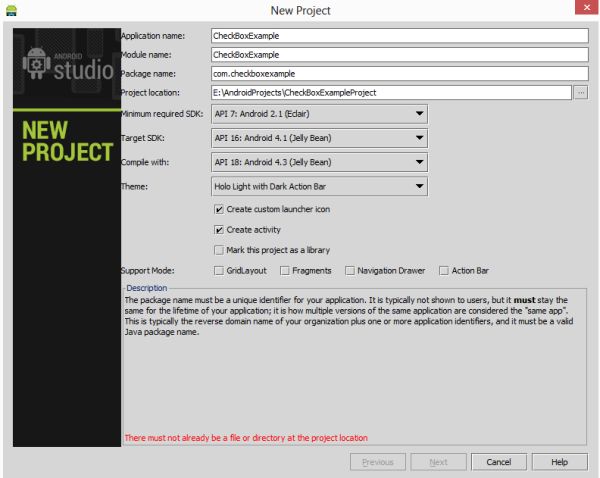

Create a project like this:


Step 2

Create an XML file and the following.

In this, I used three checkboxes and a button that show the state of all the checkboxes on a click.
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.    xmlns:tools="http://schemas.android.com/tools"
  3.    android:layout_width="match_parent"
  4.    android:layout_height="match_parent"
  5.    android:paddingLeft="@dimen/activity_horizontal_margin"
  6.    android:paddingRight="@dimen/activity_horizontal_margin"
  7.    android:paddingTop="@dimen/activity_vertical_margin"
  8.    android:paddingBottom="@dimen/activity_vertical_margin"
  9.    tools:context=".MainActivity"
  10.    android:background="#83a697">
  11.    <TextView
  12.       android:layout_width="wrap_content"
  13.       android:layout_height="wrap_content"
  14.       android:text="Check Box Example"
  15.       android:layout_centerHorizontal="true"
  16.       android:textStyle="bold"
  17.       android:textColor="#00ffff"
  18.       android:textSize="30dp" />
  19.    <CheckBox
  20.       android:id="@+id/checkbox1"
  21.       android:layout_width="wrap_content"
  22.       android:layout_height="wrap_content"
  23.       android:layout_marginTop="70dp"
  24.       android:text="Check1"
  25.       android:textStyle="bold"
  26.       android:textColor="#00ffff" />
  27.    <CheckBox
  28.       android:id="@+id/checkbox2"
  29.       android:layout_width="wrap_content"
  30.       android:layout_height="wrap_content"
  31.       android:layout_marginTop="140dp"
  32.       android:text="Check2"
  33.       android:textStyle="bold"
  34.       android:textColor="#00ffff" />
  35.    <CheckBox
  36.       android:id="@+id/checkbox3"
  37.       android:layout_width="wrap_content"
  38.       android:layout_height="wrap_content"
  39.       android:layout_marginTop="210dp"
  40.       android:text="Check3"
  41.       android:textStyle="bold"
  42.       android:textColor="#00ffff" />
  43.    <Button
  44.       android:layout_width="wrap_content"
  45.       android:id="@+id/buttonDelete"
  46.       android:layout_height="wrap_content"
  47.       android:layout_marginTop="300dp"
  48.       android:layout_centerHorizontal="true"
  49.       android:textColor="#00ffff"
  50.       android:text="Show Message" />
  51. </RelativeLayout>
Step 3

Create a Java class file and write the following.

First I created the layout, the id of the checkboxes and button. Now set checkbox1 on its clickListener() and oncheck get the state of the checkbox.  I also used the button to show the state of the checkboxes.
  1. package com.checkboxexample;
  2.
  3. import android.os.Bundle;
  4. import android.app.Activity;
  5. import android.view.Gravity;
  6. import android.view.Menu;
  7. import android.view.View;
  8. import android.widget.Button;
  9. import android.widget.CheckBox;
  10. import android.widget.Toast;
  11.
  12. public class MainActivity extends Activity {
  13.
  14.     CheckBox checkBox1, checkBox2, checkBox3;
  15.     Button buttonDelete;
  16.
  17.     @Override
  18.     protected void onCreate(Bundle savedInstanceState) {
  19.         super.onCreate(savedInstanceState);
  20.         setContentView(R.layout.activity_main);
  21.
  22.         buttonDelete = (Button) findViewById(R.id.buttonDelete);
  23.         checkBox1 = (CheckBox) findViewById(R.id.checkbox1);
  24.         checkBox2 = (CheckBox) findViewById(R.id.checkbox2);
  25.         checkBox3 = (CheckBox) findViewById(R.id.checkbox3);
  26.
  27.         checkBox1.setOnClickListener(new View.OnClickListener() {
  28.             @Override
  29.             public void onClick(View v) {
  30.
  31.                 if (checkBox1.isChecked()) {
  32.                     checkBox1.getText().toString();
  33.                     Toast.makeText(getApplicationContext(), checkBox1.getText().toString(), Toast.LENGTH_LONG).show();
  34.                 }
  35.             }
  36.         });
  37.         checkBox2.setOnClickListener(new View.OnClickListener() {
  38.             @Override
  39.             public void onClick(View v) {
  40.                 checkBox2.getText().toString();
  41.                 Toast.makeText(getApplicationContext(), checkBox2.getText().toString(), Toast.LENGTH_LONG).show();
  42.
  43.             }
  44.         });
  45.
  46.         checkBox3.setOnClickListener(new View.OnClickListener() {
  47.             @Override
  48.             public void onClick(View v) {
  49.                 checkBox3.getText().toString();
  50.                 Toast.makeText(getApplicationContext(), checkBox3.getText().toString(), Toast.LENGTH_LONG).show();
  51.
  52.             }
  53.         });
  54.         buttonDelete.setOnClickListener(new View.OnClickListener() {
  55.             @Override
  56.             public void onClick(View v) {
  57.                 StringBuffer buffer = new StringBuffer();
  58.                 buffer.append("checkBox1 :").append(checkBox1.isChecked());
  59.                 buffer.append("\ncheckBox2 :").append(checkBox2.isChecked());
  60.                 buffer.append("\ncheckBox3 :").append(checkBox3.isChecked());
  61.
  62.                 Toast toast=new Toast(getApplicationContext());
  63.            toast.makeText(getApplicationContext(),buffer.toString(),Toast.LENGTH_LONG).show();
  64.             toast.setGravity(Gravity.CENTER_VERTICAL,0,30);
  65.             }
  66.         });
  67.     }
  68.     @Override
  69.     public boolean onCreateOptionsMenu(Menu menu) {
  70.         // Inflate the menu; this adds items to the action bar if it is present.
  71.         getMenuInflater().inflate(R.menu.main, menu);
  72.         return true;
  73.     }
  74.
Step 4

Output image when no checkbox is checked:


Step 5

When one checkbox ic checked:


Step 6

When two checkboxes are checked:
