Unable to See the Model Classes While Adding a New Domain Service

Ever came across a situation where you want to add a new domain service class to your RIA Service solution & you don’t see the class names from your model?

UPDATE

According to a Tweet from Colin Blair you can also add the RiaServices.EntityFramework NuGet package to your project to fix this issue.

https://twitter.com/ColinBlair/status/328927765871079426

The problem

The problem can be recreated by the following:

  1. Ensure your have a primary key defined in your table
  2. Create a new Silverlight Project, enable RIA services
  3. On the server side add a new Data Model then rebuild the solution
  4. Click on "Add" -> "New Item" -> "Domain Service class"

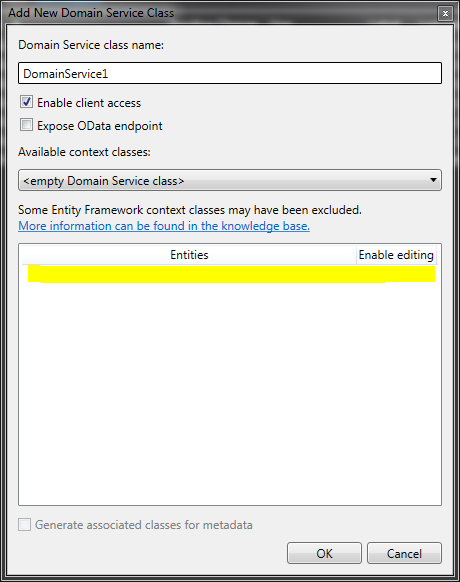

  5. You see a new "Add Domain Service Class" window but the classes from your model do not show up for use.



The Solution

The Solution is:

  1. Open your Model (.edmx file) in Model Designer (just double-click)

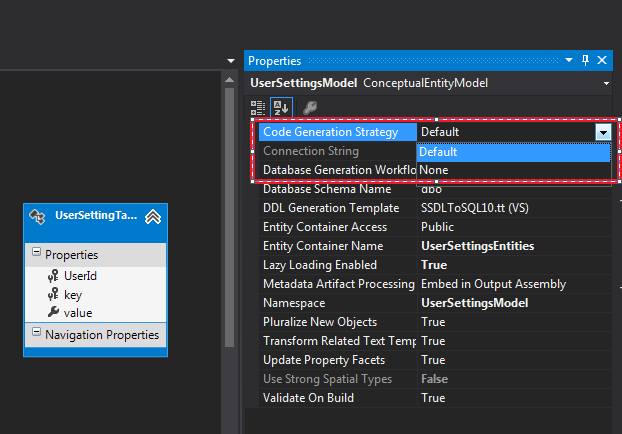

  2. Right-click in an empty space within the Model Designer & choose "Properties"
  3. Change the value of "Code generation strategy" from "None" to "Default"


  4. Select the Server Project Name (for example MyExample.Web) & click on the "Show All files" button on:

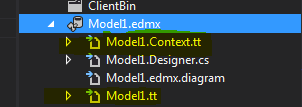

  5. Expand the "model.edmx" file & locate & delete the 2 .tt files.


  6. Rebuild the solution
  7. Now click on "Add" -> "New" -> "Domain Service"

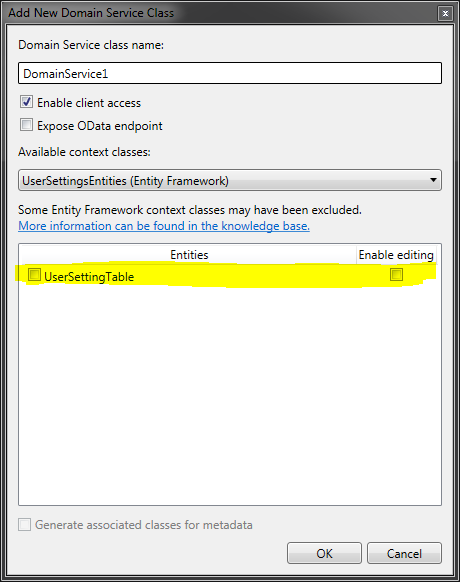

Pooff!! This time you will see the classes available in the Add Domain Service Class window.


Hope this helps some poor soul out there like me.
