Create CheckBox List in Web API

Introduction

This article shows how to create a Checkbox List. In this application we create a dropdown list of checkboxes in which we can select one or more records.

Now let's see the application

Step 1

Use the following procedure to create the sample application using the Web API:

  • Start Visual Studio 2013.
  • From the Start Window select "New Project".
  • Select "Installed" -> "Templates" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and select "ASP.NET MVC4 Web Application".

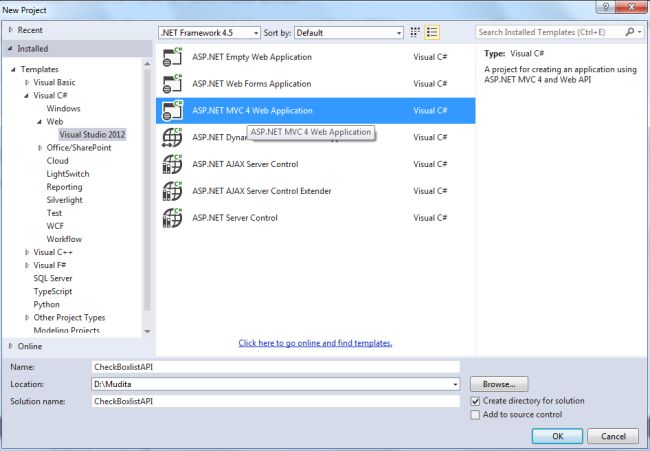

Select MVC4 Application

  • Click on the "OK" button.
  • From the MVC4 project window select "Web API".

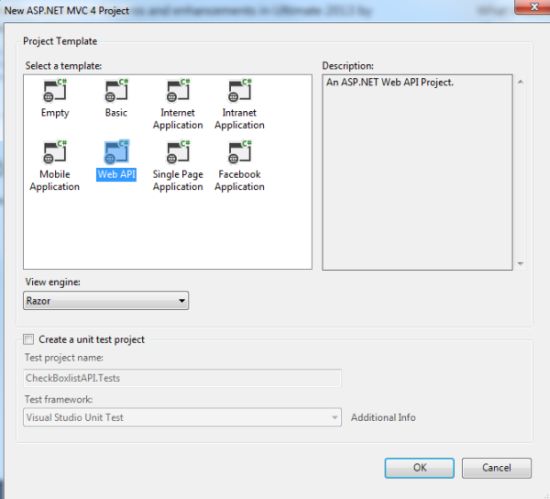

Select Web API

  • Click on the "OK" button.

Step 2

Use the following procedure to create a Model class:

  • In the "Solution Explorer".
  • Right-click on the Model Folder.
  • Select "Add" -> "Class".
  • Select "Installed" -> "Visual C#" and select "Class".

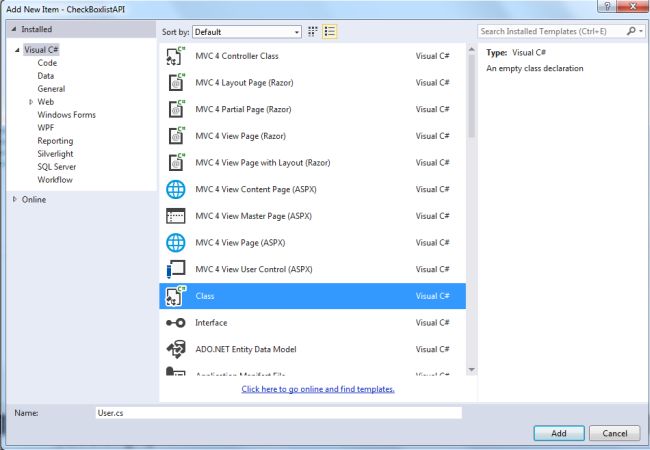

Add model class

  • Click on the "OK" button.

Add the following Code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;



namespace CheckBoxlistAPI.Models

{

    public class User

    {

        public IList<SelectListItem> User_Name { getset; }

    }

}

Step 3

Use the following procedure to create a Controller:

  • In the "Solution Explorer".
  • Right-click on the "Controller Folder".
  • Select "Add" -> "Controller".

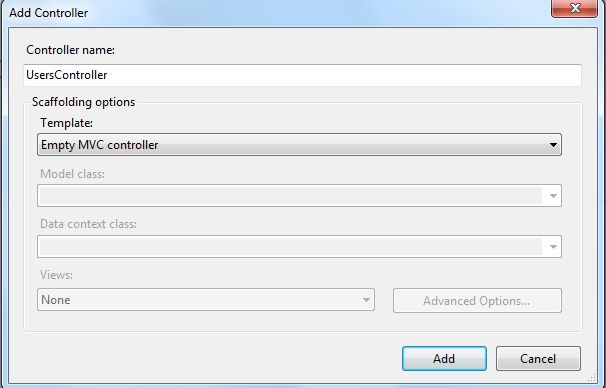

Add Controller

  • Select "MVC Controller" from the template.
  • Click on the "Add" button.

Add the following Code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;

using CheckBoxlistAPI.Models;

namespace CheckBoxlistAPI.Controllers

{

    public class UsersController : Controller

    {

        //

        // GET: /Users/

        public ActionResult Index()

        {

            return View();

        }

        public ActionResult UserView()

        {

            User obj = new User();

            List<SelectListItem> Username = new List<SelectListItem>();

            Username.Add(new SelectListItem{Text = "User1", Value="1"});

            Username.Add(new SelectListItem{Text ="User2",Value="2"});

            Username.Add(new SelectListItem { Text = "User3", Value = "3" });

            Username.Add(new SelectListItem { Text = "User4", Value = "4" });

            obj.User_Name = Username;

            return View(obj);

        }

    }

}



Step 4

Add a new View:

  • In the UsersController.
  • Right-click on the "UserView" ActionResult.

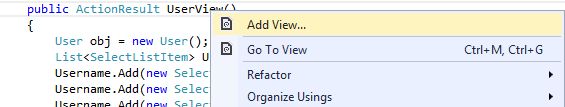

Select Add View for creating the View

  • Select "Add View".

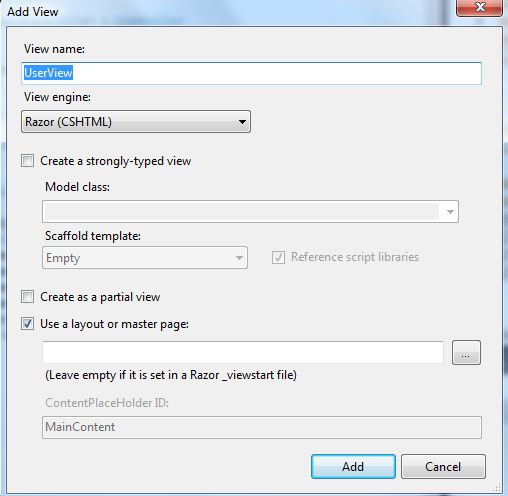

AddView

  • Click on the "Add" button.

Add the following code:

@model CheckBoxlistAPI.Models.User

@{

    ViewBag.Title = "UserView";

}



<h2>UserView</h2>

<script src="~/Scripts/jquery-1.8.2.min.js"></script>

<script>

    $(document).ready(function () {

        $('.chklst').click(function () {

            var getcid = $(this).attr('id');

            var ischk = $('#' + getcid).is(':checked');

            if ($('#' + getcid).is(':checked') == true) {

                $('#td' + $(this).val()).css("color""Green");

                $('#td' + $(this).val()).css("background-color""Pink");

            }

            else {

                $('#td' + $(this).val()).css("color""Black");

                $('#td' + $(this).val()).css("background-color""white");

            }

        });

    });

</script>

<div id=" userlist" class="elem" style="height:100pxoverflow:auto;border:solid;width:150px">

    @foreach (var Username in @Model.User_Name)

    {

        var ChkID = "chk" + Username.Value;

        var tdID = "td" + Username.Value;

        <table width="100%">

            <tr>

               <td width="20px">

                    <input type="checkbox" id="@ChkID"class="chklst" value="@Username.Value"/>

                </td>

                <td id="@tdID" width="100px">

                    @Username.Text

                </td>

            </tr>

        </table>

    }

</div>

Step 5

Execute the application:

Display checkbox List
