Get the XML Output By Using the SelfHosting URL in Web API

Introduction

In this article, you will see how to find the XML output on the self-hosting URL. Here first we self-host the application on the URL "http://localhost:8080" and then copy this URL to the browser and add the "api/items" for showing the API controller value. Here we need the "Microsoft ASP. Net Web API Self Host" package.

Use the following procedure to create the sample application.

Step 1

First we create the console application.

  • Start Visual Studio 2012.
  • Select "New Project" from the Start page.
  • In the Templates, select "Installed templates" -> "Visual C#".
  • Select "Console application" and change the name to "Hosting".

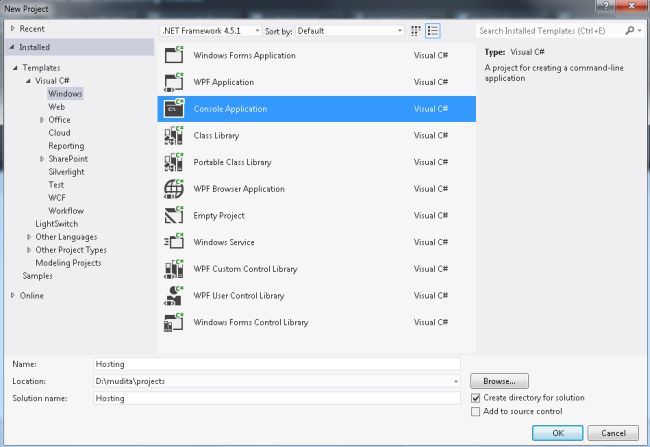

    Create Coonsole Application

  • Click on the "OK" button.
Step 2

Set the ".Net Framework 4".

  • In the "Solution Explorer" right-click on the  project.
  • Select "Properties".
  • In the "Properties windows" select the ".Net Framework 4" from the Drop Down List of Target Folder.

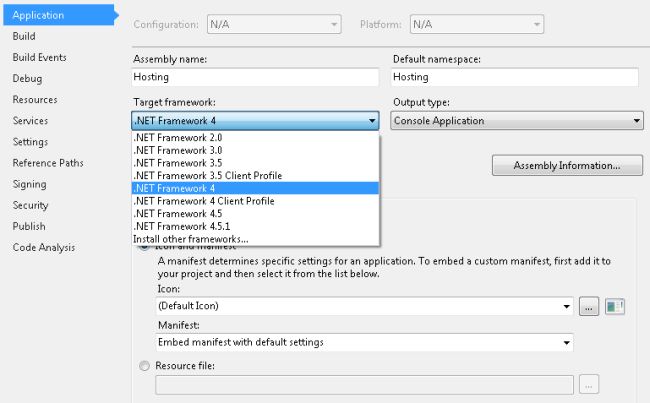

    Select Framework

  • For applying the change open a prompt and click on "Yes".

Step 3

We check that the Nuget Package Manager is installed or not.

  • Go to the "Tools" menu.
  • If there is a "Library Package Manager" visible then the "Nuget Package Manager" is installed.
  • If "Library Package Manager" is not visible then it is not installed.

For installation of "Nuget Package Manager":

  • Go to the "Tools" menu then select "Extension and Updates".
  • In the "Extension and Updates" dialog box select "Online".
  • In the search box type "nuget package manager".
  • Select the "Nuget Package Manager" and Install it.

Step 4

Now we install the Web API Self-Host Package.

  • Go to the "Tools" menu then select "Library Package Manager" -> "Manages Nuget Packages For Solution".
  • In the "Nuget Package Manager" dialog box type "Microsoft.AspNet.WebApi.SelfHost".
  • Select the ASP.NET Web API Self Host and click "Install".

Step 5

Create the Model class:

  • In the "Solution Explorer".
  • Right-click on the project then select "Hosting" -> "Add" -> "Class".
  • Change the name of the class to "Item".

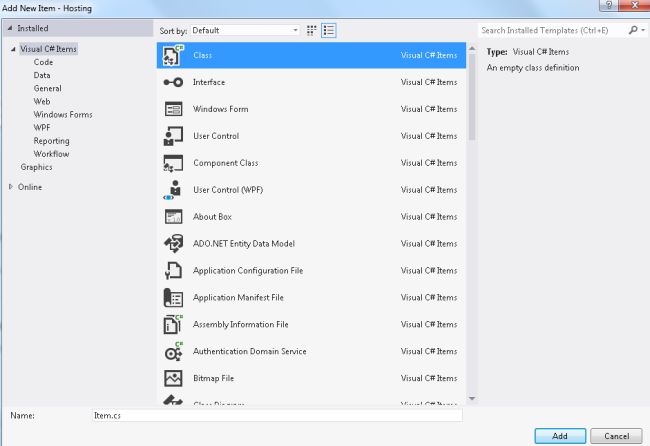

    Add Model Class

  • Click on the "OK" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. namespace Hosting
  7. {
  8.     public class Item
  9.     {
  10.         public int Id { getset; }
  11.         public string Name { getset; }
  12.         public string Category { getset; }
  13.     }
  14. }

Step 6

To add a Controller class:

  • In the "Solution Explorer".
  • Right-click on the project then select "Hosting" -> "Add" -> "Class".
  • Change the name of the class to "ItemsController".
  • Click on the "OK" button.

Add the Following Code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Text;
  6. using System.Web.Http;
  7. namespace Hosting
  8. {
  9.     public class ItemsController : ApiController
  10.     {
  11.         Item[] items = new Item[]
  12.         {
  13.             new Item { Id = 1, Name = "Apple", Category = "Fruit" },
  14.             new Item{ Id = 2, Name = "Tomato", Category = "vasitable" },
  15.             new Item{ Id = 3, Name = "T-Shirt", Category = "cloths" }
  16.         };
  17.         public IEnumerable<Item> GetAllItems()
  18.         {
  19.             return items;
  20.         }
  21.         public Item GetItemById(int id)
  22.         {
  23.             var item = items.FirstOrDefault((i) => i.Id == id);
  24.             if (item == null)
  25.             {
  26.                 throw new HttpResponseException(HttpStatusCode.NotFound);
  27.             }
  28.             return item;
  29.         }
  30.         public IEnumerable<Item> GetItemsByCategory(string category)
  31.         {
  32.             return items.Where(i => string.Equals(i.Category, category,
  33.                     StringComparison.OrdinalIgnoreCase));
  34.         }
  35.     }
  36. }

Step 7

Now we host our Web API.

Open the "Program.cs" file and add the following code into this file:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Web.Http;
  7. using System.Web.Http.SelfHost;
  8. namespace Hosting
  9. {
  10.     class Program
  11.     {
  12.         static void Main(string[] args)
  13.         {
  14.             var config = new HttpSelfHostConfiguration("http://localhost:8080");
  15.             config.Routes.MapHttpRoute(
  16.                 "API Default""api/{controller}/{id}",
  17.                 new { id = RouteParameter.Optional });
  18.             using (HttpSelfHostServer server = new HttpSelfHostServer(config))
  19.             {
  20.                 server.OpenAsync().Wait();
  21.                  Console.WriteLine("Host The Application on Given URL");
  22.                 Console.ReadLine();
  23.             }
  24.         }
  25.     }
  26. }

Step 8

Execute the application. It will show a Console output screen for displaying a message.

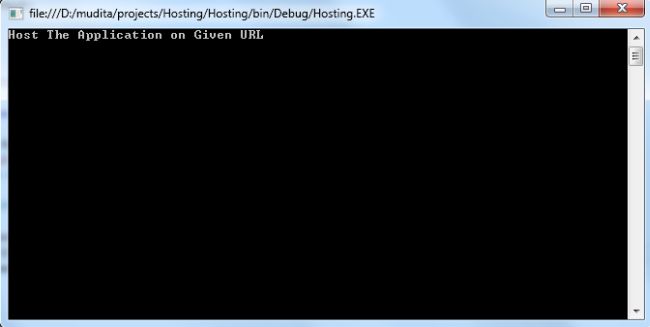

Confermation Message of Hosting

Now copy the URL and paste it into the browser and change it to "http://localhost:8080/api/items".

The output will be as:

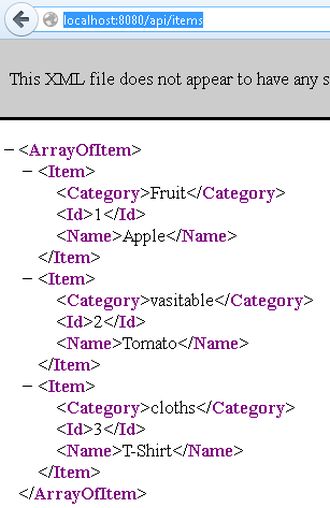

XML Output
