How to Display Multiple Models in Single View In Web API

Introduction

This article explains how to display multiple model data in a single view in Web API. Here we use a collection of data from multiple models.

Procedure for create the application.

Step 1

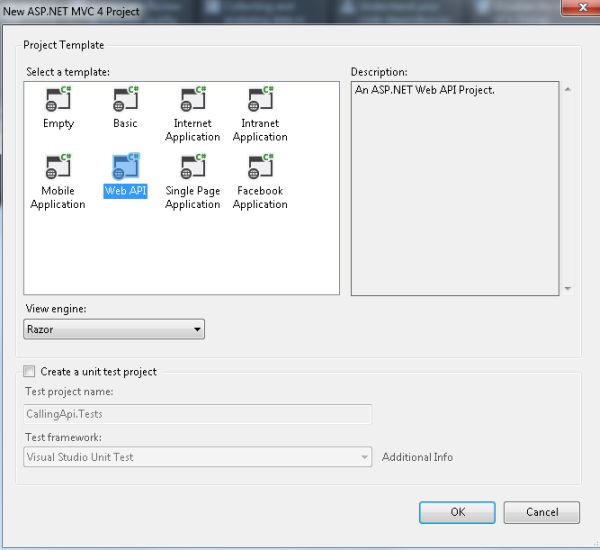

Create a Web API application as in the following:

  • Start Visual Studio 2012.
  • From the start window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 Web Application" and click on the "OK" button.


  • From the "MVC4 Project" window select "Web API".


  • Click on the "OK" button.

Step 2

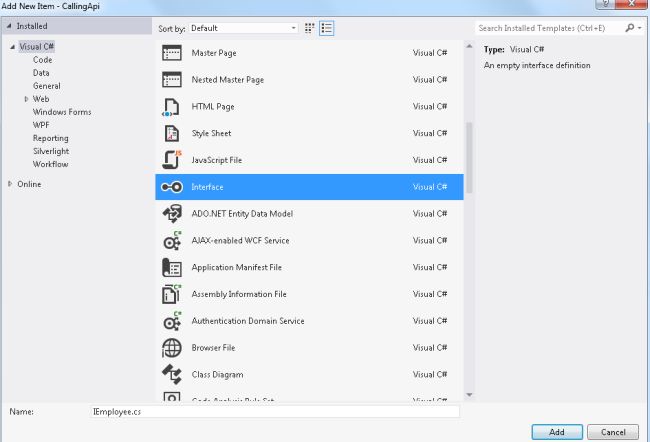

Create an Interface in Model folder as in the following:

  • In the "Solution Explorer".
  • Right-click on the Model Folder select "Add" -> "New Item"
  • Select "Installed" -> "Visual C#" and select "Interface".


  • Click on the "Add" button.

Step 3

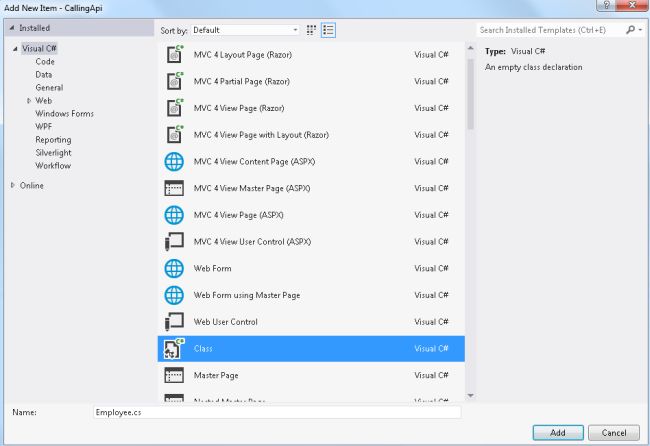

Create two model classes, one is named "Employee" and the second is "EmpAddress" and inherit with the interface.

  • In the "Solution Explorer".
  • Right-click on the Model folder.
  • Select "Add" -> "Class".
  • Select "Installed" -> "Visual C#" and select class.


  • Click on the "Add" button.

Add the following code in the "EmpAddress.cs" class:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace CallingApi.Models
  6. {
  7.     public class EmpAddress:IEmployee
  8.     {
  9.         public int EID { get; set; }
  10.         public string Address { get; set; }
  11.     }
  12. }

Add the following code in the "Employee.cs" class:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace CallingApi.Models
  6. {
  7.     public class Employee:IEmployee
  8.     {
  9.         public int EID { get; set; }
  10.         public string Emp_Name { get; set; }
  11.     }
  12. }

Step 4

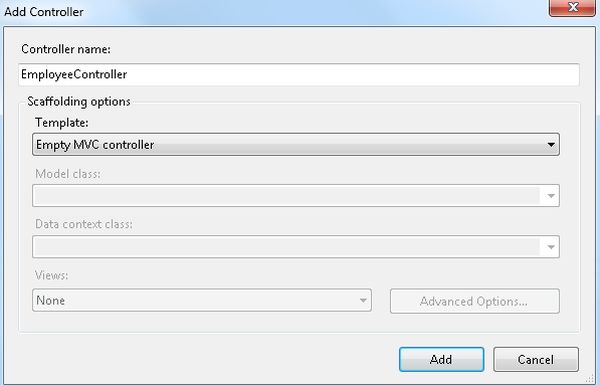

Create a Controller as in the following:

  • In the "Solution Explorer".
  • Right-click on the Controller folder.
  • Select "Add" -> "Controller" and change the name.


  • Click on the "OK" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using CallingApi.Models;
  7. namespace CallingApi.Controllers
  8. {
  9.     public class EmployeeController : Controller
  10.     {
  11.         //
  12.         // GET: /Employee/
  13.         public ActionResult Display()
  14.         {
  15.             Employee emp = new Employee();
  16.             EmpAddress empad = new EmpAddress();
  17.             emp.EID = 1;
  18.             emp.Emp_Name = "Tanya";
  19.             empad.EID = emp.EID;
  20.             empad.Address = "Kanpur";
  21.             List<IEmployee> List = new List<IEmployee>();
  22.             List.Add(emp);
  23.             List.Add(empad);
  24.             ViewBag.Employees = List;
  25.             return View("Detail");
  26.         }
  27.     }
  28. }

Step 6

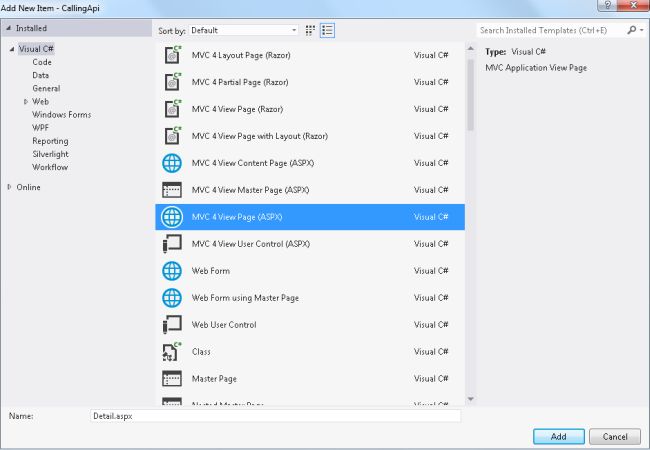

Now add a MVC4 View Page (aspx) in the Shared folder using the following:

  • In the "Solution Explorer".

  • Right-click on the "Shared" folder then select "Add" -> "New Item".

  • Select "Installed" -> "Visual C#" -> "Web" and select  MVC4 View Page (aspx).


  • Click on the "Add" button.

Add the following code:

  1. <%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage<CallingApi.Models.Employee>" %>
  2. <!DOCTYPE html>
  3. <html>
  4. <head runat="server">
  5.     <meta name="viewport" content="width=device-width" />
  6.     <title></title>
  7. </head>
  8. <body>
  9.     <div>
  10.      <% var Value= (List<CallingApi.Models.IEmployee>) ViewBag.Employees; %>
  11.         <% var Emp_Info =Value[0] as CallingApi.Models.Employee; %>
  12.         <% var Emp_Add = Value[1] as CallingApi.Models.EmpAddress; %>
  13.       Employee ID:- <%= Emp_Info.EID %> <br />
  14.       Employee Name:- <%= Emp_Info.Emp_Name %><br />
  15.        Employee Address :- <%= Emp_Add.Address %>
  16.     </div>
  17. </body>
  18. </html>

Step 7

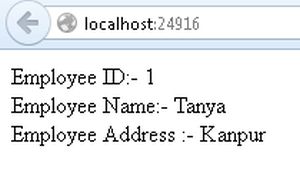

Execute the application.
