Simple Login Form in Web API

Introduction

This article shows how to create a simple login form in the ASP.NET Web API.

The following is the procedure for creating a login form in the Web API.

Step 1

First create a Web API application as in the following:

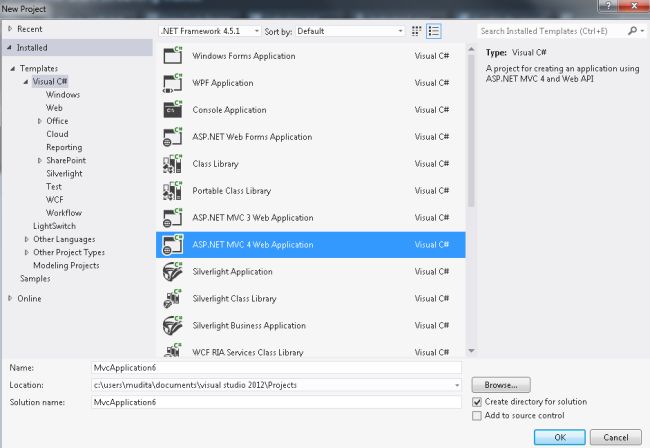

  • Start Visual Studio 2012.
  • From the start window select "New Project".
  • From the new project window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 Web Application" and click the "Ok" button.

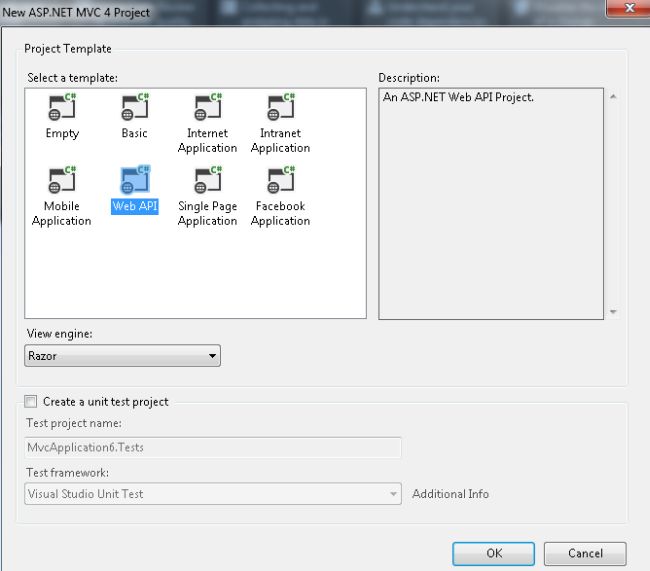

  • From the "MVC4 Project" window select "Web API".

  • Click the "OK" button.

Step 2

Add a Model class.

  • In the "Solution Explorer".
  • Right-click on the "Model" folder.
  • Select "Add" -> "class".

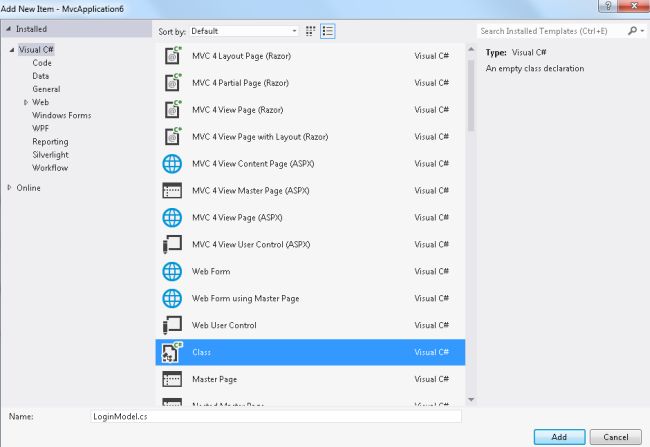

  • From the Add new item window select "Installed" -> "Visual C#".

  • Select "Class" and click on the "Add" button.

Now add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace MvcApplication6.Models
  6. {
  7.     public class LoginModel
  8.     {
  9.         public string UserName { getset; }
  10.         public string UserPassword { getset; }
  11.     }
  12. }

Step 3

Now in the controller we add the following code:

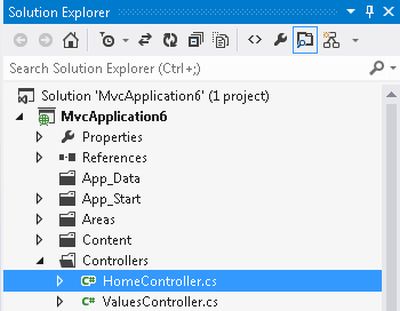

  • In the "Solution Explorer".
  • Expand "Controller" folder.
  • Select the "HomeController".


Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using MvcApplication6.Models;
  7. namespace MvcApplication6.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         public ActionResult Index()
  12.         {
  13.             LoginModel obj = new LoginModel();
  14.             return View(obj);
  15.         }
  16.         [HttpPost]
  17.         public ActionResult Index(LoginModel objuserlogin)
  18.         {
  19.             var display = Userloginvalues().Where(m => m.UserName == objuserlogin.UserName && m.UserPassword == objuserlogin.UserPassword).FirstOrDefault();
  20.             if (display != null)
  21.             {
  22.                 ViewBag.Status = "CORRECT UserNAme and Password";
  23.             }
  24.             else
  25.             {
  26.                 ViewBag.Status = "INCORRECT UserName or Password";
  27.             }
  28.             return View(objuserlogin);
  29.         }
  30.         public List<LoginModel> Userloginvalues()
  31.         {
  32.             List<LoginModel> objModel = new List<LoginModel>();
  33.             objModel.Add(new LoginModel { UserName="user1",UserPassword="password1"});
  34.             objModel.Add(new LoginModel { UserName = "user2", UserPassword = "password2" });
  35.             objModel.Add(new LoginModel { UserName = "user3", UserPassword = "password3" });
  36.             objModel.Add(new LoginModel { UserName = "user4", UserPassword = "password4" });
  37.             objModel.Add(new LoginModel { UserName = "user5", UserPassword = "password5" });
  38.             return objModel;
  39.         }
  40.     }
  41. }

In the code above is the list of UserNames and Passwords. These are validated for the login.

Step 4

In  the View write the following code:

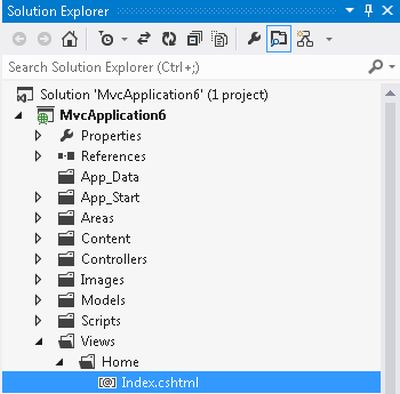

  • In the "Solution Explorer".
  • Expand the "Views" folder.
  • Select "Home" -> "Index.cshtml".


Add the following code:

  1. @model MvcApplication6.Models.LoginModel
  2. @{
  3.     ViewBag.Title = "Index";
  4. }
  5. <script language="javascript">
  6.     function display() {
  7.         if ($("#txtusername").attr("value") == "")
  8.         {
  9.             alert("Please Enter your UserName.");
  10.             return false;
  11.         } else if ($("#txtuserpassword").attr("value") == "") {
  12.             alert("Please enter UserPassword.");
  13.             return false;
  14.         }
  15.         alert("Login Successfully");
  16.         return true;
  17.     }
  18. </script>
  19. <h3>Simple We API Login Form </h3>
  20. @using (Html.BeginForm("Index""Home"))
  21. {
  22. <table width="40%" cellpadding="1" cellspacing="5">
  23. <tr>
  24. <td colspan="2" style="color:#f00;font-size:larger">@ViewBag.Status</td>
  25. </tr>
  26.     <tr>
  27.          <td align="right">User Name :</td>
  28.          <td>@Html.TextBoxFor(m => m.UserName, new {@style="width:200px",@id="txtusername" })</td>
  29.     </tr>
  30.     <tr>
  31.  <td align="right">User Password :</td>
  32.          <td>@Html.PasswordFor(m => m.UserPassword, new {@style="width:200px",@id="txtuserpassword" })</td>
  33.     </tr>
  34.     <tr>
  35.         <td colspan="2">
  36.           <input type="submit" value="Login" title="login" onclick=" display();"/>
  37.         </td>
  38.     </tr>
  39.  </table>
  40. }

Step 5

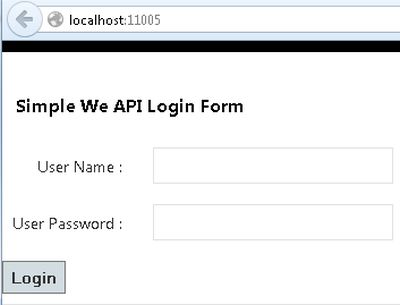

Execute the application. The output will be:

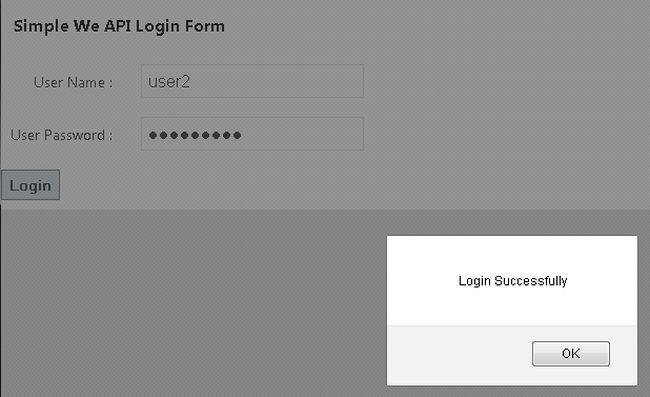

Enter the UserName and UserPassword declared in the controller. The output will be:


Now leavt the UserName TextBox empty; then its output looks as:
