Here are the steps,
- Create an Empty Web Form Application with C#.
- Switch ON server explorer: By default Its ON and Visible at toolbox side on, if not then CTRL+W, L.
![Config]()
- Select Add connection to database or create a new SQL Server database from Server Explorer.

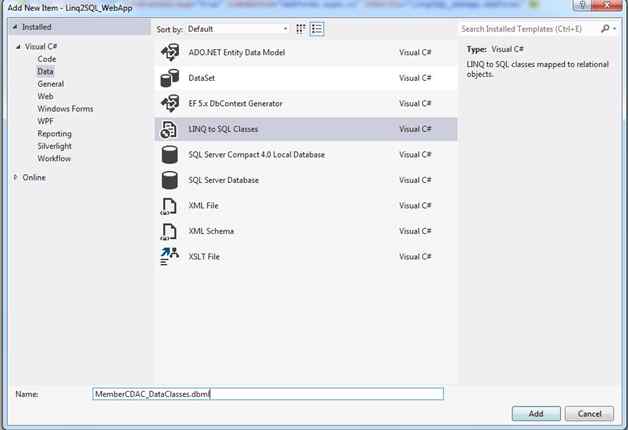

- Create a DBML file that is LINQ to SQL File.
![LINQ to SQL File]()
- Double click on DBML. I have given the following file name: MemberCDAC_DataClasses.DBML
![DBML]()
- Drag and Drop tblMembers on MemberCDAC_Database.DBML from Server Explorer
![Properties]()
- Click on MemberID column of tblMember and check property window for detail.
Access: Public and Auto Generated Value : True.
You can set setting in property window. If any changes in table, then again drag n drop or update manually. Personally, I suggest delete table link from DBML and again drag and drop.
![Table]()
- When you configure server connection, drag and drop table into DBML canvas then system will automatically add connection string in WEB.CONFIG file.

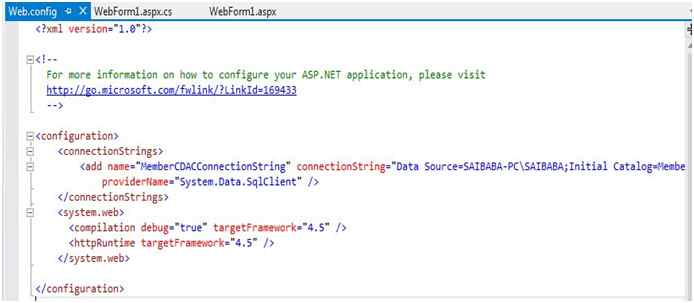

- Web.Config file contains the following: I have used WINDOWS authentication connectionstrings.
<configuration>
<connectionStrings>
<add name="MemberCDACConnectionString" connectionString="Data Source=SAIBABA-PC\SAIBABA;Initial Catalog=MemberCDAC;Integrated Security=True" providerName="System.Data.SqlClient" /> </connectionStrings>
<system.web>
<compilation debug="true" targetFramework="4.5" />
<httpRuntime targetFramework="4.5" /> </system.web>
</configuration>
![Code]()
- For explaining LINQ 2 SQL, I have used a webform with the following controls as in the following:
Here's the aspx page.
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Linq2SQL_WebApp.WebForm1" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title>Member Entry</title>
<style type="text/css">
.auto-style1 {}
.auto-style2 {
width: 141px;
height: 23px;
}
.auto-style3 {
height: 23px;
}
</style>
</head>
<body>
<form id="form1" runat="server">
<div>
<table style="width: 100%;">
<tr>
<td class="auto-style1">Member ID</td>
<td>
<asp:Label ID="lblMemberID" runat="server" Text="[MemberID]"></asp:Label>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Name</td>
<td>
<asp:TextBox ID="txtName" runat="server" Width="265px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Address</td>
<td>
<asp:TextBox ID="txtAddress" runat="server" Height="167px" TextMode="MultiLine" Width="265px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Place</td>
<td>
<asp:TextBox ID="txtPlace" runat="server"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Join Date</td>
<td>
<asp:TextBox ID="txtJoinDate" runat="server"></asp:TextBox> [Format : dd/mm/yyyy] </td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"></td>
<td class="auto-style3"></td>
<td class="auto-style3"></td>
</tr>
<tr>
<td class="auto-style1" colspan="3" style="text-align: left; padding-left: 150px">
<asp:Button ID="btnSave" runat="server" Text="Save" OnClick="btnSave_Click" Width="150px" /> </td>
</tr>
<tr>
<td class="auto-style1"> </td>
<td> </td>
<td> </td>
</tr>
<tr>
<td class="auto-style1"> </td>
<td> </td>
<td> </td>
</tr>
<tr>
<td class="auto-style1" colspan="3">
<asp:GridView ID="GridView1" runat="server" Width="100%" AutoGenerateSelectButton="False" BackColor="#DEBA84" BorderColor="#DEBA84" BorderStyle="None" BorderWidth="1px" CellPadding="3" CellSpacing="2" AutoGenerateColumns="False" OnRowCommand="GridView1_RowCommand" OnRowDataBound="GridView1_RowDataBound" OnSelectedIndexChanged="GridView1_SelectedIndexChanged">
<FooterStyle BackColor="#F7DFB5" ForeColor="#8C4510" />
<HeaderStyle BackColor="#A55129" Font-Bold="True" ForeColor="White" />
<PagerStyle ForeColor="#8C4510" HorizontalAlign="Center" />
<RowStyle BackColor="#FFF7E7" ForeColor="#8C4510" />
<SelectedRowStyle BackColor="#738A9C" Font-Bold="True" ForeColor="White" />
<SortedAscendingCellStyle BackColor="#FFF1D4" />
<SortedAscendingHeaderStyle BackColor="#B95C30" />
<SortedDescendingCellStyle BackColor="#F1E5CE" />
<SortedDescendingHeaderStyle BackColor="#93451F" />
<Columns>
<asp:TemplateField ShowHeader="False" ItemStyle-Width="50px">
<ItemTemplate>
<asp:LinkButton ID="btnSelect" runat="server" CausesValidation="false" CommandName="Select" Text="Select" /> </ItemTemplate>
</asp:TemplateField>
<asp:BoundField DataField="MemberID" HeaderText="Member ID" ItemStyle-Width="20px">
<ItemStyle Width="20px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="Name" HeaderText="Member Name" ItemStyle-Width="300px">
<ItemStyle Width="200px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="Address" HeaderText="Address" ItemStyle-Width="500px">
<ItemStyle Width="350px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="Place" HeaderText="Place" ItemStyle-Width="100px">
<ItemStyle Width="100px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="JoinDate" DataFormatString="{0:dd/MM/yyyy}" HeaderText="Join Date" ItemStyle-Width="100px">
<ItemStyle Width="100px"></ItemStyle>
</asp:BoundField>
<asp:TemplateField ShowHeader="False" ItemStyle-Width="50px">
<ItemTemplate>
<asp:LinkButton ID="btnNew" runat="server" CausesValidation="false" CommandName="NewMember" Text="New" /> </ItemTemplate>
</asp:TemplateField>
<asp:TemplateField ShowHeader="False" ItemStyle-Width="50px">
<ItemTemplate>
<asp:LinkButton ID="btnDelete" runat="server" CausesValidation="false" CommandName="DeleteMember" Text="Delete" CommandArgument='<%# Container.DataItemIndex %>' /> </ItemTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
</td>
</tr>
</table>
</div>
</form>
</body>
</html>
Controls I have used:
| Control Type |
Control Used |
Description |
| Label |
lblMemberID |
Member ID display from table. |
| TextBox |
txtName |
Get and Set Member Name. |
| TextBox |
txtAddress |
Get and Set Member Address.
Change Following Property:
TextMode : MultiLine |
| TextBox |
txtPlace |
Get and Set Member Place. |
| TextBox |
txtJoinDate |
Get and Set Member Join Date. |
| Button |
btnSave |
Dynamically used and rename this button for
Save : An new entry saved in table.
Update : For update existing entry. |
| GridView |
GridView1 |
GridView to display records and functional button for Select, New and Delete activities. |
- The following LINQ 2 SQL queries used:
var db = new MemberCDAC_DataClassesDataContext();
db is instance created of MemberCDAC_DataClassesDataContext.
db take care of Select, Insert and Update and Delete activities.
| TYPE OF QUERY |
Query Text |
USED IN EVENT |
DESCRIPTION |
| Select Query – Style 1 |
from a in db.tblMembers select a).ToList(); |
( Created a BindGridView()
method, which used for loand and refresh data from table. |
GridView1.DataSource = (from a in db.tblMembers select a).ToList();
GridView1.DataBind();
GridView used this query directly as datasource. |
| Select Query – Style 2 |
db.tblMembers.ToList(); |
Created a BindGridView()
method, which used for loand and refresh data from table. |
GridView1.DataSource = db.tblMembers.ToList();
GridView1.DataBind(); |
| Save Query |
//Insert new record in tblmembers
db.tblMembers.InsertOnSubmit(NewMember);
//Update table
db.SubmitChanges(); |
btnSave_Click |
Syntax:
db.TableName.InsertOnSubmit(Class Object)
Example:
db.tblMembers.InsertOnSubmit(NewMember);
above command insert a new row in table.
db.SubmitChanges();
This will save and update table. |
| Update Query |
int SelectMemberID = Convert.ToInt16(lblMemberID.Text);
var NewMember = (from a in db.tblMembers where a.MemberID == Convert.ToInt16(lblMemberID.Text) select a ).FirstOrDefault();
NewMember.Name = txtName.Text;
NewMember.address =txtAddress.Text;
NewMember.place = txtPlace.Text;
NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);
//Update table
db.SubmitChanges(); |
btnSave_Click |
Syntax:
For update command , first we have to create filled instance of Member object , then update current value from control like TextBox etc...
var NewMember = (from a in db.tblMembers where a.MemberID == Convert.ToInt16(lblMemberID.Text) select a ).FirstOrDefault();
NewMember.Name = txtName.Text;
db.SubmitChanges();
This will delete record from table. |
| Delete Query |
db.tblMembers.DeleteOnSubmit(MemberDetail);
db.SubmitChanges(); |
GridView1_RowCommand |
Syntax:
db.TableName.DeleteOnSubmit(Class Object)
Example:
db.tblMembers.DeleteOnSubmit(NewMember);
above command will mark a delete row in table.
db.SubmitChanges();
This will delete record from table. |
db.SubmitChanges(): This command required to execute on after activity like Insert, Update, Delete.
Recap Linq To SQL queries:
- Fetching All Members Records
(from a in db.tblMembers select a).ToList();
- Fetching a Particular Member Record
(from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();
- Insert Query
//Insert Blank Row in Table
db.tblMembers.InsertOnSubmit(NewMember);
//Update table
db.SubmitChanges();
Note: NewMember : Filled Class object with Datas.
- Update Query
Firstly, you have to create object of member.
Var NewMember =(from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();
NewMember.Name = txtName.Text;
NewMember.address = txtAddress.Text;
NewMember.place = txtPlace.Text;
NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);
//Update table
db.SubmitChanges();
- Delete Query
db.tblMembers.DeleteOnSubmit(MemberDetail);
db.SubmitChanges();
Code Behind File for Your Reference
using System;
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace Linq2SQL_WebApp
{
public partial class WebForm1: System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
BindGridView();
}
protected void BindGridView()
{
var db = new MemberCDAC_DataClassesDataContext();
//Using Linq query
GridView1.DataSource = (from a in db.tblMembers select a).ToList();
GridView1.DataBind();
// OR
//Direct Using ToList
GridView1.DataSource = db.tblMembers.ToList();
GridView1.DataBind();
}
protected void btnSave_Click(object sender, EventArgs e)
{
var db = new MemberCDAC_DataClassesDataContext();
//Save for add new member record in table.
if (btnSave.Text == "Save")
{
//create tblmember instance.
tblMember NewMember = new tblMember();
NewMember.Name = txtName.Text;
NewMember.address = txtAddress.Text;
NewMember.place = txtPlace.Text;
NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);
//Insert new record in tblmembers
db.tblMembers.InsertOnSubmit(NewMember);
//Update table
db.SubmitChanges();
//empty text box value.
ClearTextBoxValue();
}
//Update for update existing member record in table.
if (btnSave.Text == "Update")
{
int SelectMemberID = Convert.ToInt16(lblMemberID.Text);
var NewMember = (from a in db.tblMembers where a.MemberID == Convert.ToInt16(lblMemberID.Text) select a).FirstOrDefault();
NewMember.Name = txtName.Text;
NewMember.address = txtAddress.Text;
NewMember.place = txtPlace.Text;
NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);
//Update table
db.SubmitChanges();
btnSave.Text = "Save";
ClearTextBoxValue();
}
//Refresh gridview after new or update member.
BindGridView();
}
private void ClearTextBoxValue()
{
lblMemberID.Text = "[MemberID]";
txtName.Text = string.Empty;
txtAddress.Text = string.Empty;
txtPlace.Text = string.Empty;
txtJoinDate.Text = string.Empty;
}
protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
{}
protected void GridView1_SelectedIndexChanged(object sender, EventArgs e)
{
btnSave.Text = "Update";
var db = new MemberCDAC_DataClassesDataContext();
//Get MemberID from gridview
int TMemberID = Convert.ToInt32(GridView1.SelectedRow.Cells[1].Text);
//Fetch particular member record from table directly with MemberID.
var MemberDetail = (from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();
lblMemberID.Text = Convert.ToString(MemberDetail.MemberID);
txtName.Text = MemberDetail.Name;
txtAddress.Text = MemberDetail.address;
txtPlace.Text = MemberDetail.place;
txtJoinDate.Text = Convert.ToDateTime(MemberDetail.joindate).ToString("dd/MM/yyyy");
}
protected void GridView1_RowCommand(object sender, GridViewCommandEventArgs e)
{
ClearTextBoxValue();
if (e.CommandName == "NewMember")
{
btnSave.Text = "Save";
ClearTextBoxValue();
txtName.Focus();
}
if (e.CommandName == "DeleteMember")
{
int CurrentRowIndex = Convert.ToInt32(e.CommandArgument);
GridViewRow gvRow = GridView1.Rows[CurrentRowIndex];
var db = new MemberCDAC_DataClassesDataContext();
//Get MemberID from gridview
int TMemberID = Convert.ToInt32(gvRow.Cells[1].Text);
//Fetch particular member record from table directly with MemberID.
var MemberDetail = (from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();
db.tblMembers.DeleteOnSubmit(MemberDetail);
db.SubmitChanges();
txtName.Focus();
BindGridView();
}
}
}
}
SQL Table Script for Your Reference
USE [MemberCDAC]
GO
/****** Object: Table [dbo].[tblMembers] Script Date: 11/29/2015 20:38:53 ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[tblMembers](
[MemberID] [int] IDENTITY(1,1) NOT NULL,
[Name] [nvarchar](50) NULL,
[address] [nvarchar](500) NULL,
[place] [nvarchar](50) NULL,
[joindate] [datetime] NULL,
CONSTRAINT [PK_tblMembers] PRIMARY KEY CLUSTERED
(
[MemberID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
WebApplication View
![Output]()
