TFS 2010– How to Set Check In Policy


This article demonstrates how to enable Source Code Check-in Policy inside TFS 2010.


Following are the default policies available with TFS.

Policy

Description

Builds

This policy requires that the last build was successful for each affected continuous integration build definition.

Code Analysis

This policy requires that Code Analysis is run before check-in.

Testing Policy

Ensures that tests from specific test lists are successfully run before checking in.

Work Items

This policy requires that one or more work items be associated with every check-in.


Step 1: Install New Policy

We can try adding a new policy that ensures Comments are associated with public methods/properties.

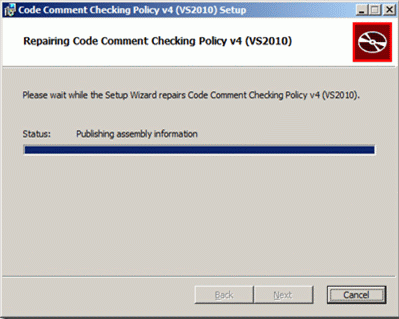

This is a third party plugin and you can download it from CodePlex using the following link: http://tfsccpolicy.codeplex.com/ Use the Download link to download and install the policy executable. You need to restart Visual Studio after the installation.

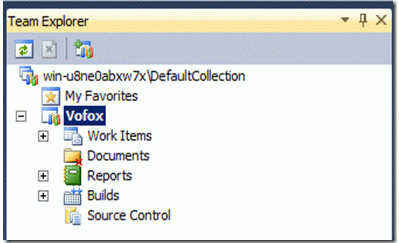

Step 2: Open Team Explorer inside Visual Studio

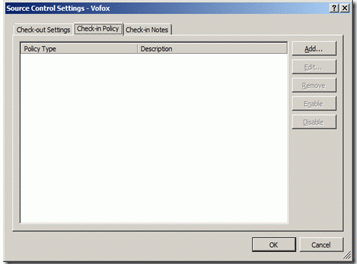

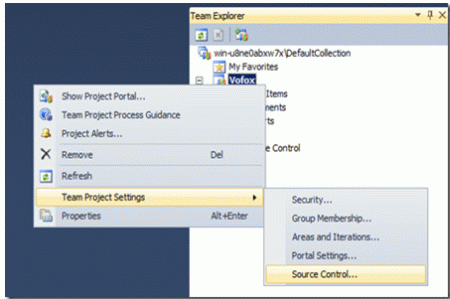

Step 3: Open Source Control Dialog

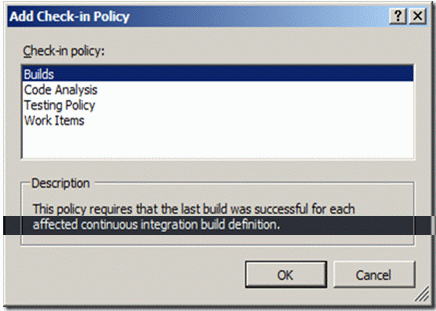

Step 4: Click add button from the Check-in Policy tab

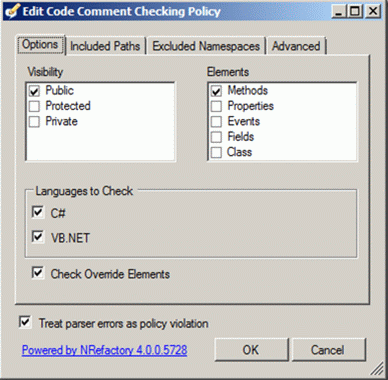

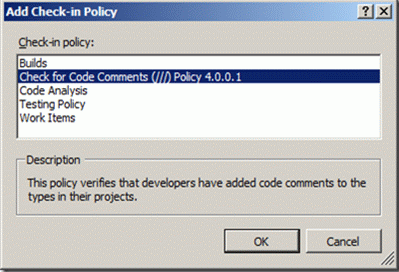

Step 5: Select Check for Comments item


Click Ok button


Please note that the above dialog says we have selected only Public Methods for comment requirement.

Step 6: Test the Check-in

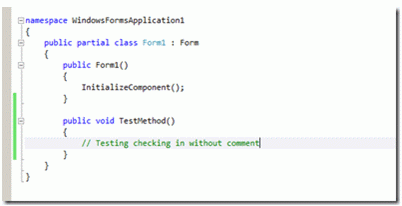

Now we can try creating a file with comment missing for a public method.

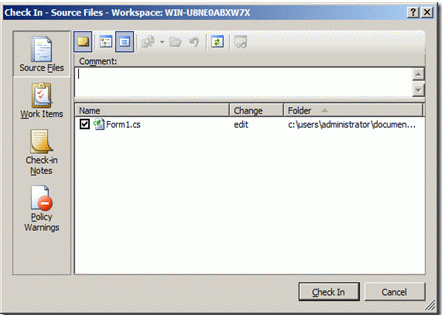

Try checking in the file:

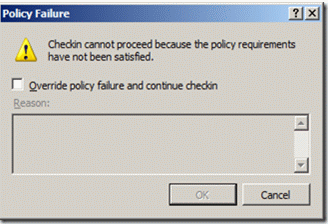

On checking in the above file we will get the following error dialog.


Summary

In this article we have explore the source code policy feature of Team Foundation Server and installing a custom Check-in policy.
