Master Pages in ASP.Net

This article explains how to create a master page in ASP.NET 4.5 and using the creating CSS and jQuery menu bar.

So, let's proceed with the following procedure:

  • Create a Master Pages Layout and ASP.NET web page
  • Create CSS and jQuery menu bar

See the following screen “Home.aspx” layout:

Master Page Layout

Create a new project using "File" -> "New" -> "Project..." then select web "ASP.NET Web Forms Application". Name it "MasterTemp".

Create a new project

Creating a Master Page

Go to Solution Explorer then right-click on your application then select "Add New Item" then select "Master Page" and name it “Site.Master”.

Master Page

The content page, that uses a Master Page is given below:

  1. <%@  MasterLanguage="C#" AutoEventWireup="true" CodeBehind="Site.master.cs" Inherits="MasterTemp.Site1" %>
  2. <!DOCTYPEhtml>
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head id="Head1" runat="server">
  5.     <title></title>
  6.     <asp:ContentPlaceHolder ID="head" runat="server">
  7.     </asp:ContentPlaceHolder>
  8. </head>
  9. <body>
  10.     <form id="form2" runat="server">
  11.     <div>
  12.         <asp:ContentPlaceHolder ID="ContentPlaceHolder1" runat="server">
  13.         </asp:ContentPlaceHolder>
  14.     </div>
  15.     </form>
  16. </body>
  17. </html>

Creating and using CSS in Master Page

Go to Solution Explorer then right-click on your application then select "Add New Item" then select "Style sheet" and name it “Site.css”.

CSS in Master Page

Implementation: Let's create an application to see the master page layout working.

In the Site.css styles are the following: body, page, header, main, footer and topnav (Menu).

Site.css

  1. body
  2. {
  3.    font-size: .80em;
  4.    height: auto;
  5.    width: 100%;
  6.    font-family: "Helvetica Neue", "Lucida Grande", "Segoe UI", Arial, Helvetica, Verdana, sans-serif;
  7.    margin: 0px;
  8.    padding: 0px;
  9.    background: #dde4e9;
  10. }
  11. a:hover
  12. {
  13.    color: Blue;
  14. }
  15. h1, h2, h3, h4, h5, h6
  16. {
  17.    font-size: 1.5em;
  18.    color: #666666;
  19.    font-variant: small-caps;
  20.    text-transform: none;
  21.    font-weight: 200;
  22.    margin-bottom: 0px;
  23. }
  24. h1
  25. {
  26.    font-size: 1.6em;
  27.    padding-bottom: 0px;
  28.    margin-bottom: 0px;
  29. }
  30. h2
  31. {
  32.    font-size: 1.5em;
  33.    font-weight: 600;
  34. }
  35. h3
  36. {
  37.    font-size: 1.2em;
  38. }
  39. h4
  40. {
  41.    font-size: 1.1em;
  42. }
  43. h5, h6
  44. {
  45.    font-size: 1em;
  46.    color: White;
  47. }
  48. .page
  49. {
  50.    min-width: 1000px;
  51.    max-width: 1024px;
  52.    background-color: #FFFFFF;
  53.    margin: 0pxauto0pxauto;
  54.    border: 0pxsolid#496077;
  55. }
  56. .header
  57. {
  58.    position: relative;
  59.    margin: 0px;
  60.    padding: 0px;
  61.    width: 100%;
  62.    height: 100px;
  63.    top: 0px;
  64.    left: 0px;
  65.    border-top:5pxsolid#FF4500;
  66.    border-top-style:outset;
  67.    background-image: -ms-linear-gradient(bottom,#FFFFFF0%,#F0EDED100%);
  68.    background-image: -moz-linear-gradient(bottom,#FFFFFF0%,#F0EDED100%);
  69.    background-image: -o-linear-gradient(bottom,#FFFFFF0%,#F0EDED100%);
  70.    background-image: -webkit-gradient(linear,leftbottom,lefttop,color-stop(0,#FFFFFF),color-stop(1,#F0EDED));
  71.    background-image: -webkit-linear-gradient(bottom,#FFFFFF0%,#F0EDED100%);
  72.    background-image: linear-gradient(totop,#FFFFFF0%,#F0EDED100%);
  73. }
  74. .headerh1
  75. {
  76.    border-style: none;
  77.    border-color: inherit;
  78.    border-width: medium;
  79.    font-weight:200;
  80.    margin: 25px;
  81.    padding: 0px0px0px20px;
  82.    color:#007fff;
  83.    line-height: 2em;
  84.    font-size: 2em;
  85. }
  86. .title
  87. {
  88.    display: block;
  89.    float: left;
  90.    text-align: left;
  91.    width: auto;
  92. }
  93. .main
  94. {
  95.    padding: 0px12px;
  96.    margin: 8px8px8px8px;
  97.    min-height: 500px;
  98.    background-color: White;
  99. }
  100. .footer
  101. {
  102.    color: #EEE;
  103.    padding: 0px0px0px0px;
  104.    margin: 0pxauto;
  105.    margin-top: 10px;
  106.    height: 50px;
  107.    text-align: center;
  108.    line-height: normal;
  109.    background-color: #007fff;
  110.    background: #000000;
  111. }
  112. .clear
  113. {
  114.    clear: both;
  115.    height: 1px;
  116. }
  117. .button
  118. {
  119.    display: inline-block;
  120.    width: 100px;
  121.    font-family: TimesNewRoman;
  122.    font-weight: bold;
  123.    font-size: 14px;
  124.    text-align: center;
  125.    padding: 5px;
  126.    border: 0px#D7D7D7solid;
  127.    text-align: center;
  128.    text-decoration: none;
  129.    color: White;
  130.    margin: 5px;
  131.    background-color: #001940;
  132.    cursor: pointer;
  133. }
  134. .button:hover
  135. {
  136.    background: #000;
  137.    text-decoration: none;
  138. }
  139. .button:active
  140. {
  141.    background: #001940;
  142. }
  143. .txt, .textarea
  144. {
  145.    padding: 8px;
  146.    border: solid1px#E5E5E5;
  147.    font: normal12pxVerdana, Tahoma, sans-serif;
  148.    width: 200px;
  149.    margin: 5px;
  150. }
  151. .left
  152. {
  153.    border-left: 0pxsolidred;
  154.    border-right: 0pxsolidred;
  155.    border-top: 0pxsolidred;
  156.    float: left;
  157.    width: 32%;
  158.    margin-left: 10px;
  159.    background-color: #F2F5F9;
  160.    margin-bottom: 10px;
  161. }
  162. .font
  163. {
  164.    font-size: 11px;
  165.    font-family: Verdana;
  166.    color: #800000;
  167. }
  168. .text
  169. {
  170.    font-family: Verdana;
  171.    font-size: 13px;
  172.    font-variant: inherit;
  173.    font-weight: normal;
  174.    margin-bottom: 5px;
  175.    color: #000000;
  176. }
  177. .accordion_headings
  178. {
  179.    padding: 5px;
  180.    background: #33CCCC;
  181.    color: #000000;
  182.    -moz-box-shadow: 3px3px5px#535353;
  183.    -webkit-box-shadow: 3px3px5px#535353;
  184.    box-shadow: 3px3px5px#535353;
  185.    -moz-border-radius: 6px6px6px6px;
  186.    -webkit-border-radius: 6px;
  187.    border-radius: 6px6px6px6px;
  188.    border: 1pxsolid#3a2d00;
  189.    cursor: pointer;
  190.    font-weight: normal;
  191.    height: 23px;
  192.    margin-top: 1px;
  193.    font-family: 'Copperplate Gothic Bold';
  194.    font-size: 20px;
  195.    font-style: normal;
  196. }
  197. p
  198. {
  199.    margin-top: -5px;
  200.    margin-left: 25px;
  201.    color: Yellow;
  202.    font-size: 20px;
  203. }
  204. ul#topnav
  205. {
  206.    margin: 0;
  207.    padding: 0;
  208.    float: left;
  209.    min-width: 1024px;
  210.    max-width: 1024px;
  211.    list-style: none;
  212.    position: relative;
  213.    font-size: 1.2em;
  214.    background-color: #9fd2e5;
  215.    background: #f0f0f0;
  216.    font-family:'Times New Roman';
  217.    font-variant:small-caps;
  218.    text-transform: none;
  219.    font-weight:900;
  220.    margin-bottom: 0px;
  221. }
  222. ul#topnavli
  223. {
  224.    float: left;
  225.    margin: 0;
  226.    padding: 0;
  227. }
  228. ul#topnavlia
  229. {
  230.    padding: 10px15px;
  231.    display: block;
  232.    color:Blue;
  233.    background: #f0f0f0;
  234.    text-decoration: none;
  235. }
  236. ul#topnavlia:hover
  237. {
  238.    background: #f0f0f0;
  239. }
  240. ul#topnavli:hover
  241. {
  242.    background: #1376c9repeat-x;  background: #f0f0f0;
  243. }
  244. ul#topnavlispan
  245. {
  246.    float: left;
  247.    padding: 15px;
  248.    margin-top: 5px;
  249.    position: absolute;
  250.    left: 0;
  251.    top: 35px;
  252.    display: none;
  253.    width: 994px;
  254.    color:black;
  255.    background: #DDE4E9;
  256.    -moz-border-radius-bottomright: 5px;
  257.    -khtml-border-radius-bottomright: 5px;
  258.    -webkit-border-bottom-right-radius: 5px;
  259.    -moz-border-radius-bottomleft: 5px;
  260.    -khtml-border-radius-bottomleft: 5px;
  261.    -webkit-border-bottom-left-radius: 5px;
  262. }
  263. ul#topnavli:hoverspan
  264. {
  265.   display: block;  background: #DDE4E9;
  266. }
  267. ul#topnavlispana
  268. {
  269.    display: inline;color:black;  background: #DDE4E9;
  270. }
  271. ul#topnavlispana:hover
  272. {
  273.    text-decoration: none;   color:red; background: #DDE4E9;
  274. }

Now, the code behind file "Site.Master" uses the following code. I have also used the jQuery Menu bar and Content Placeholder used.

Site.Master

  1. <%@ MasterLanguage="C#" AutoEventWireup="true" CodeBehind="Site.master.cs" Inherits="MasterTemp.Site"%>
  2. <!DOCTYPE html>
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head runat="server">
  5. <title>
  6. <asp:ContentPlaceHolder ID="titleContent" runat="server"/>
  7. </title>
  8. <script src="Scripts/jquery.js"></script>
  9. <link href="Styles/Site.css"rel="stylesheet"/>
  10. <asp:ContentPlaceHolderID="head" runat="server">
  11. </asp:ContentPlaceHolder>
  12. <script type="text/javascript">
  13.         $(document).ready(function () {
  14.             $("ul#topnav li").hover(function () {
  15.                 $(this).css({ 'background': '#f0f0f0'});
  16.                 $(this).find("span").show();
  17.             }, function () {
  18.                 $(this).css({'background': 'none' });
  19.                 $(this).find("span").hide();
  20.             });
  21.         });
  22. </script>
  23. </head>
  24. <body>
  25. <form id="form1" runat="server">
  26. <div class="page">
  27. <div class="header">
  28. <div class="title">
  29. <h1>C# Sharp Corner</h1>
  30. </div>
  31. </div>
  32. <ul id="topnav">
  33. <li><a id="A1" href="#" runat="server">Home</a></li>
  34. <li>
  35. <a id="A2" href="#" runat="server">About</a>
  36. <span>
  37. <a id="A3" href="#" runat="server">Sub Menu 1</a> |
  38. <a id="A4" href="#" runat="server">Sub Menu 2</a> |
  39. <a id="A5" href="#" runat="server">Sub Menu 3</a>
  40. </span>
  41. </li>
  42. <li>
  43. <a id="A6" href="#" runat="server">Services</a>
  44. <span>
  45. <a id="A7" href="#" runat="server">Sub Menu 1</a> |
  46. <a id="A8" href="#" runat="server">Sub Menu 2</a> |
  47. <a id="A9" href="#" runat="server">Sub Menu 3</a>
  48. </span>
  49. </li>
  50. <li>
  51. <a id="A10" href="#" runat="server">Portfolio</a>
  52. <span>
  53. <a id="A11" href="#" runat="server">Sub Menu 1</a> |
  54. <a id="A12" href="#" runat="server">Sub Menu 2</a> |
  55. <a id="A13" href="#" runat="server">Sub Menu 3</a> |
  56. <a id="A14" href="#" runat="server">Sub Menu 1</a> |
  57. <a id="A15" href="#" runat="server">Sub Menu 2</a> |
  58. <a id="A17" href="#" runat="server">Sub Menu 3</a>
  59. </span>
  60. </li>
  61. <li><a id="A16" href="#" runat="server">Contact</a></li>
  62. </ul>
  63. <div class="main">
  64. <asp:ContentPlaceHolderID="MainContent" runat="server">
  65. </asp:ContentPlaceHolder>
  66. </div>
  67. <div class="clear">
  68. </div>
  69. <div class="footer">
  70. <br/>
  71.                 Copyright @ 2014
  72. <asp:HyperLinkID="HyperLink1" runat="server"NavigateUrl="http://www.c-sharpcorner.com/"
  73. Target="_blank" ForeColor="Orange" Style="text-decoration: none"> C# Corner </asp:HyperLink>
  74.                 All Rights Reserved.
  75. </div>
  76. </div>
  77. </form>
  78. </body>
  79. </html>

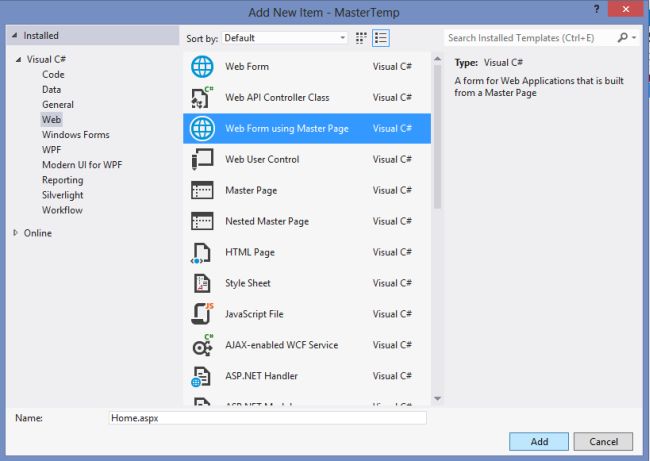

Now, go to Solution Explorer then right-click on your application then select "Add New Item" then select "Web form using Master Page" and name it “Home.aspx”. Next add click.

Web from using Master Page

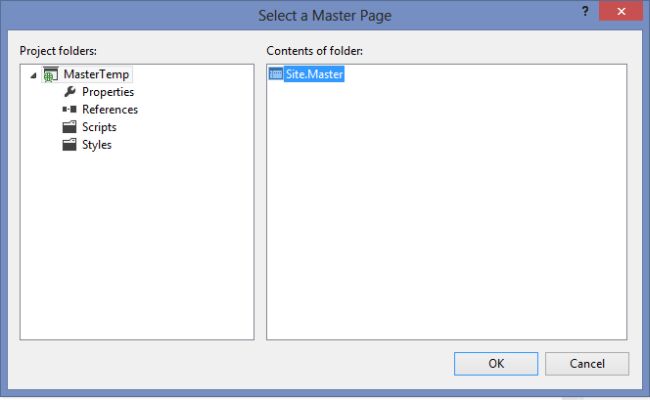

Now, select a Master Page; just click "OK".

Select a Master Page

Now, in the code behind file "Home.aspx.cs" use the following code.

  1. <%@ PageTitle="" Language="C#" MasterPageFile="~/Site.Master" AutoEventWireup="true" CodeBehind="Home.aspx.cs" Inherits="MasterTemp.Home"%>
  2. <asp:Content ID="Content1" ContentPlaceHolderID="titleContent" runat="server">Home
  3. </asp:Content>
  4. <asp:Content ID="Content2" ContentPlaceHolderID="head" runat="server">
  5. </asp:Content>
  6. <asp:Content ID="Content3" ContentPlaceHolderID="MainContent" runat="server">
  7. </asp:Content>

Now run the page, it will look like this:

run the page

Design a master page in ASP.NET 4.5 using CSS and jQuery Menu bar menu/submenu. I hope you enjoyed this article. If you have any other questions then please provide your comments below.


Similar Articles
