How to Delete Data Using Entity Framework in WPF

Introduction

This article shows how to delete data using Entity Framework in WPF applications.

Create a WPF Application as in Figure 1.


Figure 1: Create WPF application

Add an ADO.NET entity data model to the project as in Figures 2 and 3.

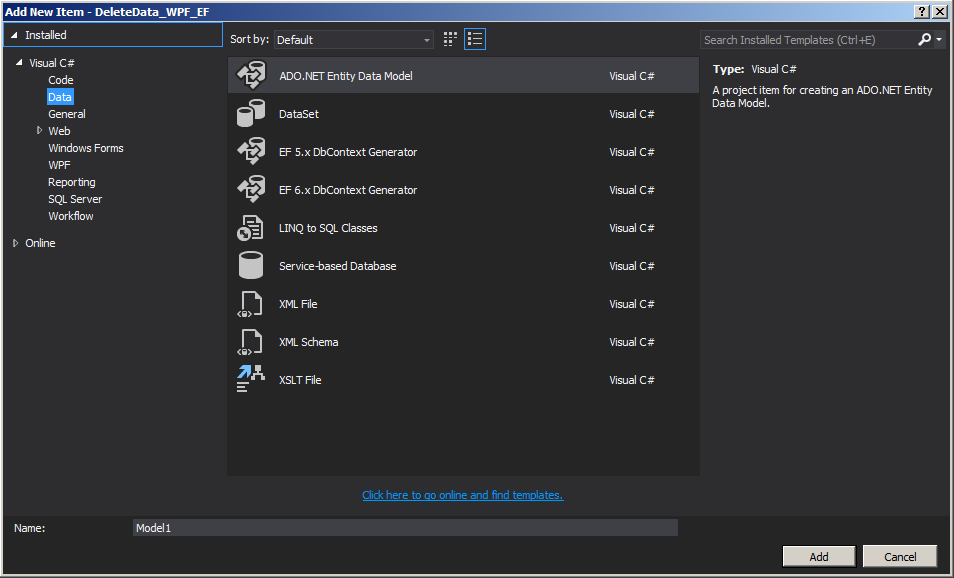

Figure 2: Add Entity Framework

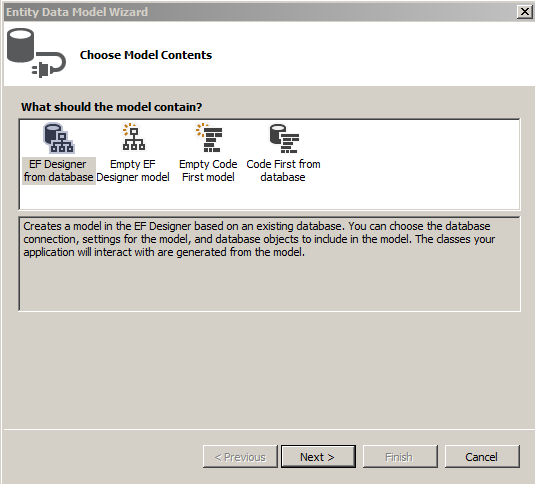

Figure 3: Wizard

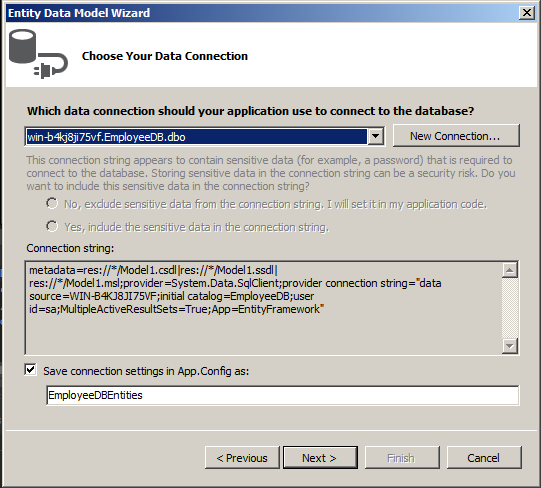

Figure 4: Configure connection

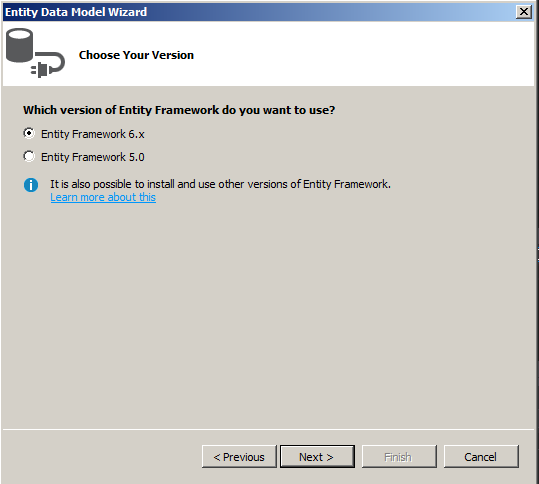

Figure 5: Choose version

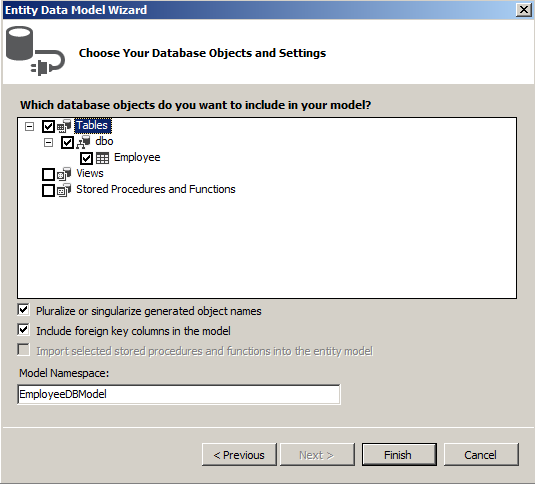

Figure 6: Select database objects

MainWindow.xaml

  1. <Window x:Class="DeleteData_WPF_EF.MainWindow"
  2.         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3.         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.         Title="MainWindow"
  5.         Width="525"
  6.         Height="350"
  7.         Loaded="Window_Loaded">
  8.     <Grid>
  9.         <DataGrid x:Name="dgEmployee"
  10.                   Width="267"
  11.                   Margin="118,47,0,0"
  12.                   HorizontalAlignment="Left"
  13.                   VerticalAlignment="Top"
  14.                   AutoGenerateColumns="False"
  15.                   CanUserAddRows="False"
  16.                   CanUserDeleteRows="True"
  17.                   ColumnWidth="*">
  18.             <DataGrid.Columns>
  19.                 <DataGridTextColumn x:Name="dgrEmpId"
  20.                                     Binding="{Binding EmpId}"
  21.                                     Header="EmpId"
  22.                                     IsReadOnly="True" />
  23.                 <DataGridTextColumn x:Name="dgrFirstName"
  24.                                     Binding="{Binding FirstName}"
  25.                                     Header="FirstName"
  26.                                     IsReadOnly="True" />
  27.                 <DataGridTextColumn x:Name="dgrLastName"
  28.                                     Binding="{Binding LastName}"
  29.                                     Header="LastName"
  30.                                     IsReadOnly="True" />
  31.                 <DataGridTemplateColumn>
  32.                     <DataGridTemplateColumn.CellTemplate>
  33.                         <DataTemplate>
  34.                             <Button x:Name="btnDelete"
  35.                                     Click="btnDelete_Click"
  36.                                     Content="Delete" />
  37.                         </DataTemplate>
  38.                     </DataGridTemplateColumn.CellTemplate>
  39.                 </DataGridTemplateColumn>
  40.             </DataGrid.Columns>
  41.         </DataGrid>
  42.     </Grid>
  43. </Window>
MainWindow.xaml.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Windows;
  7. using System.Windows.Controls;
  8. using System.Windows.Data;
  9. using System.Windows.Documents;
  10. using System.Windows.Input;
  11. using System.Windows.Media;
  12. using System.Windows.Media.Imaging;
  13. using System.Windows.Navigation;
  14. using System.Windows.Shapes;
  15. namespace DeleteData_WPF_EF
  16. {
  17.     /// <summary>
  18.     /// Interaction logic for MainWindow.xaml
  19.     /// </summary>
  20.     public partial class MainWindow : Window
  21.     {
  22.         EmployeeDBEntities objEntities = new EmployeeDBEntities();
  23.         public MainWindow()
  24.         {
  25.             InitializeComponent();
  26.         }
  27.         private void Window_Loaded(object sender, RoutedEventArgs e)
  28.         {
  29.             dgEmployee.ItemsSource = objEntities.Employees.ToList();
  30.         }
  31.
  32.         private void btnDelete_Click(object sender, RoutedEventArgs e)
  33.         {
  34.             int empId = (dgEmployee.SelectedItem as Employee).EmpId;
  35.             Employee employee = (from r in objEntities.Employees where r.EmpId == empId select r).SingleOrDefault();
  36.             objEntities.Employees.Remove(employee);
  37.             objEntities.SaveChanges();
  38.             dgEmployee.ItemsSource = objEntities.Employees.ToList();
  39.         }
  40.     }
  41. }

The output of the application is as in Figures 7 and 8.

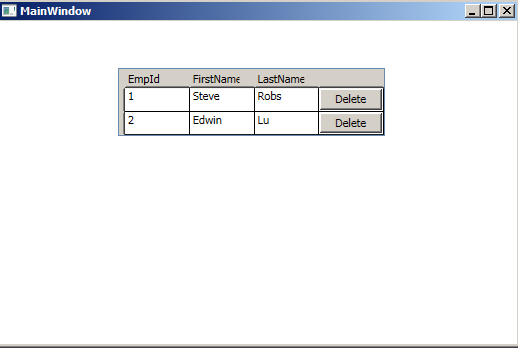

Figure 7: Output of the application before delete

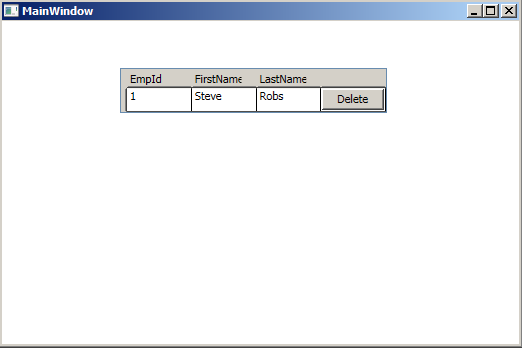

Figure 8: Output of the application after delete

Summary

In this article we saw how to delete data using Entity Framework in WPF applications.
