Entity Splitting Select Data Using Code First Approach

Introduction

This article shows how to perform Entity Splitting and later we will also look at how to perform a select data operation using the Code First Approach.

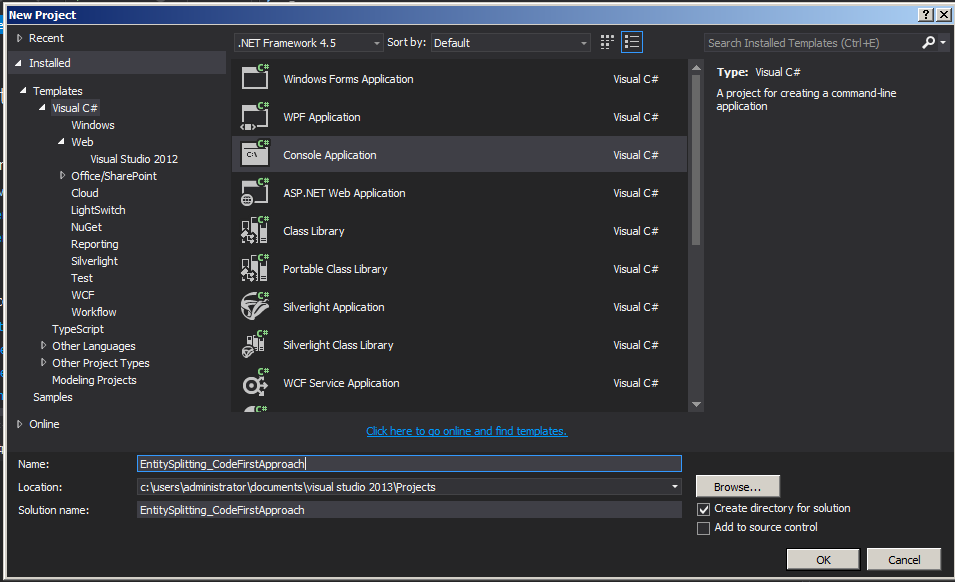

Create console application



Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8.
  9. namespace EntitySplitting_CodeFirstApproach
  10. {
  11.     public class Employee
  12.     {
  13.         public Employee()
  14.         {
  15.         }
  16.
  17.         [Key]
  18.         [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  19.         public int Id { getset; }
  20.         public string FirstName { getset; }
  21.         public string LastName { getset; }
  22.         public int Phone { getset; }
  23.         public string Email { getset; }
  24.
  25.     }
  26. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  7.
  8. namespace EntitySplitting_CodeFirstApproach
  9. {
  10.     public class EmployeeContext : DbContext
  11.     {
  12.         public EmployeeContext()
  13.             : base("EmployeeConn")
  14.         {
  15.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  16.         }
  17.
  18.         public DbSet<Employee> Employees { getset; }
  19.
  20.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  21.         {
  22.             modelBuilder.Entity<Employee>()
  23.                 .Map(map =>
  24.                 {
  25.                     map.Properties(r => new
  26.                     {
  27.                         r.Id,
  28.                         r.FirstName,
  29.                         r.LastName
  30.                     }); map.ToTable("Employee");
  31.                 })
  32.                 .Map(map =>
  33.                 {
  34.                     map.Properties(r => new
  35.                     {
  36.                         r.Phone,
  37.                         r.Email
  38.                     }); map.ToTable("EmployeeDetails");
  39.                 });
  40.
  41.             base.OnModelCreating(modelBuilder);
  42.         }
  43.     }
  44. }

Web.config

  1. <connectionStrings>
  2.     <add name="EmployeeConn"
  3.     connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.     providerName="System.Data.SqlClient"/>
  5.   </connectionStrings>

Program.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace EntitySplitting_CodeFirstApproach
  8. {
  9.     class Program
  10.     {
  11.         static void Main(string[] args)
  12.         {
  13.             EmployeeContext empContext = new EmployeeContext();
  14.             var query = from r in empContext.Employees select r;
  15.
  16.             foreach (var r in query)
  17.             {
  18.                 Console.WriteLine("FirstName: " + r.FirstName + " LastName: " + r.LastName + " Phone: " + r.Phone + " Email: " + r.Email);
  19.             }
  20.             Console.ReadKey();
  21.
  22.         }
  23.     }
  24. }

The output of the application looks as in the following:



Summary

In this article we saw how to perform Entity Splitting and how to perform a select data operation using the Code First Approach. Happy coding!
