Table Splitting Delete Data Using Code First Apporach

Introduction

This article shows how to do table splitting and delete data operations using Code First Approach.

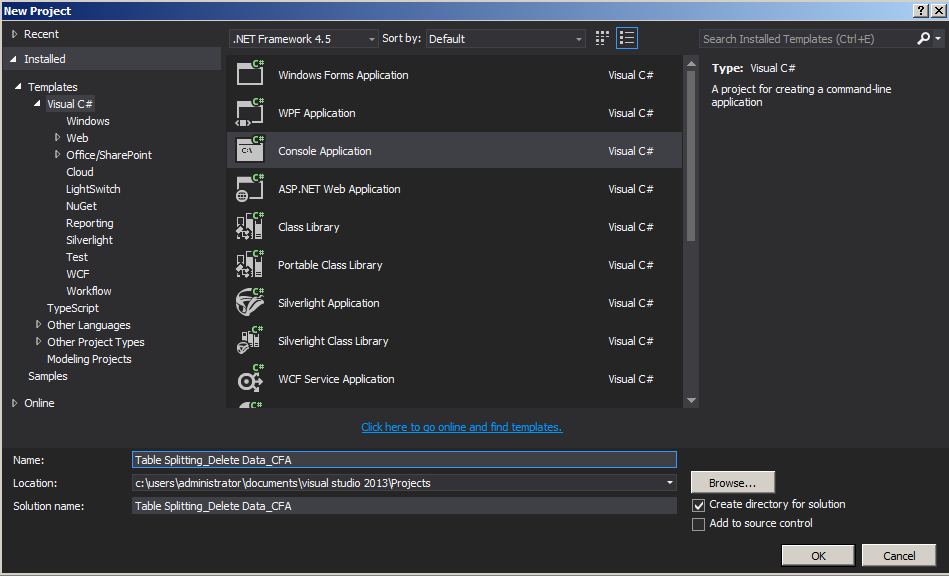

Create a Console application as in the following:

create console application

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8.
  9. namespace Table_Splitting_Delete_Data_CFA
  10. {
  11.     public class Employee
  12.     {
  13.         public Employee()
  14.         {
  15.         }
  16.
  17.         [Key]
  18.         [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  19.         public int EmpId { getset; }
  20.         public string FirstName { getset; }
  21.         public string LastName { getset; }
  22.
  23.         //Navigation Properties
  24.         public EmployeeDetails EmployeeDetails { getset; }
  25.     }
  26. }

Employeedetails.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace Table_Splitting_Delete_Data_CFA
  8. {
  9.     public class EmployeeDetails
  10.     {
  11.         public EmployeeDetails()
  12.         {
  13.         }
  14.
  15.         public int EmpId { getset; }
  16.         public string Phone { getset; }
  17.         public string Email { getset; }
  18.
  19.         //Navigation Properties
  20.         public Employee Employee { getset; }
  21.     }
  22. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  7.
  8. namespace Table_Splitting_Delete_Data_CFA
  9. {
  10.     public class EmployeeContext:DbContext
  11.     {
  12.         public EmployeeContext()
  13.             : base("EmployeeConn")
  14.         {
  15.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  16.         }
  17.
  18.         public DbSet<Employee> Employees { getset; }
  19.
  20.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  21.         {
  22.             modelBuilder.Entity<Employee>()
  23.            .HasKey(pk => pk.EmpId)
  24.            .ToTable("Employees");
  25.
  26.             modelBuilder.Entity<EmployeeDetails>()
  27.                 .HasKey(pk => pk.EmpId)
  28.                 .ToTable("Employees");
  29.
  30.             modelBuilder.Entity<Employee>()
  31.                 .HasRequired(p => p.EmployeeDetails)
  32.                 .WithRequiredPrincipal(c => c.Employee);
  33.
  34.             base.OnModelCreating(modelBuilder);
  35.         }
  36.     }
  37. }

Web.config

  1. <connectionStrings>
  2.     <add name="EmployeeConn"
  3.     connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.     providerName="System.Data.SqlClient"/>
  5.   </connectionStrings>

Program.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace Table_Splitting_Delete_Data_CFA
  8. {
  9.     class Program
  10.     {
  11.         static void Main(string[] args)
  12.         {
  13.             using (var dbContext = new EmployeeContext())
  14.             {
  15.                 var master = dbContext.Set<Employee>().Include("EmployeeDetails")
  16.                         .SingleOrDefault(m => m.EmpId == 1);
  17.                 dbContext.Set<Employee>().Remove(master);
  18.                 dbContext.SaveChanges();
  19.             }
  20.         }
  21.     }
  22. }

Summary

In this article we saw how to do table splitting and delete data operations using Code First Approach. Happy coding!
