Table Splitting Update Data

Introduction

This article shows how to do table splitting and update data operations.

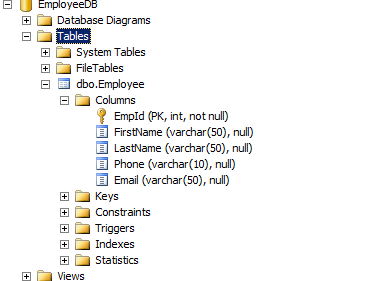

SQL Server table structure

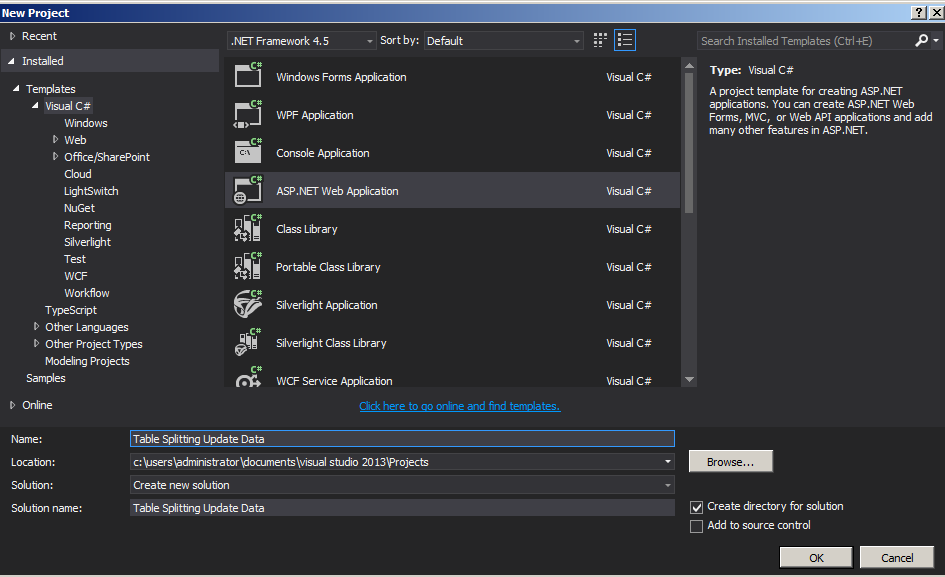

Create an ASP.Net Web Application as in the following:

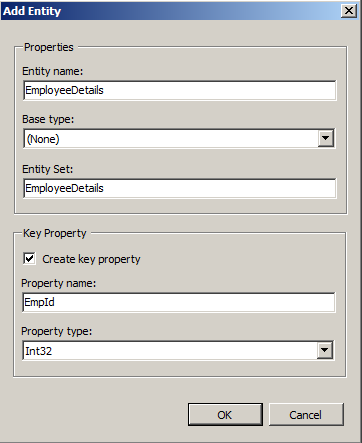

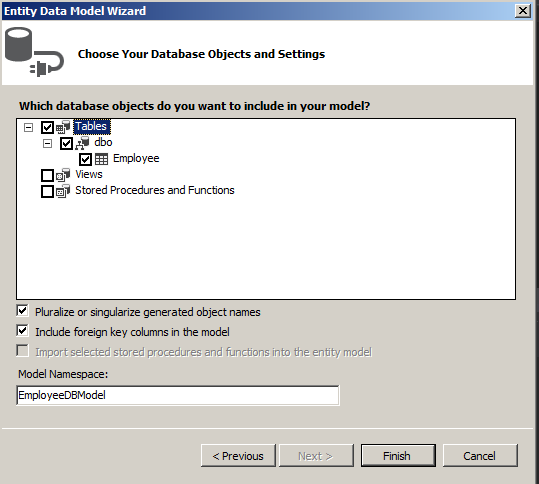

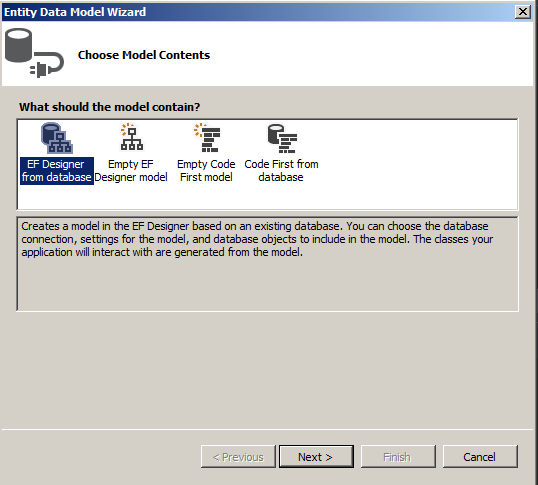

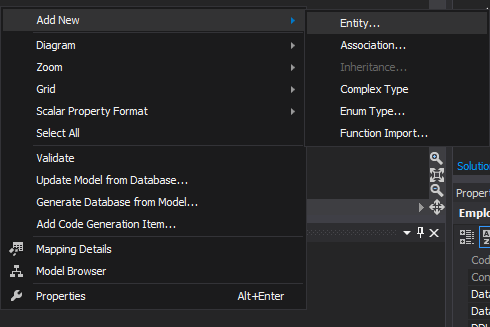

Set up Entity Framework as in the following:

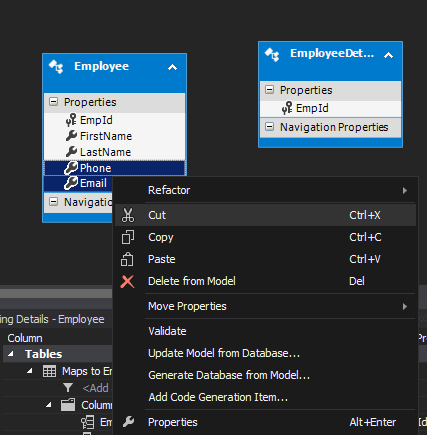

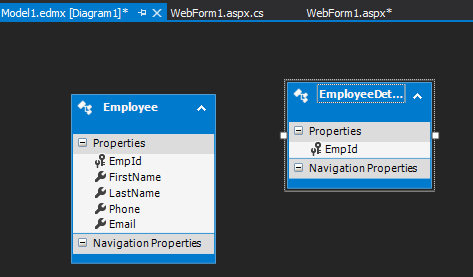

Cut columns from the employee entity as in the following:

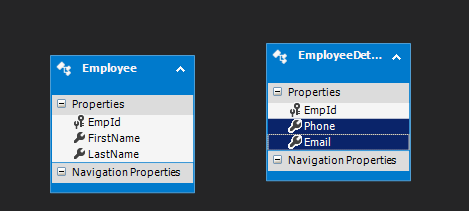

Paste them into the EmployeeDetails entity as in the following:

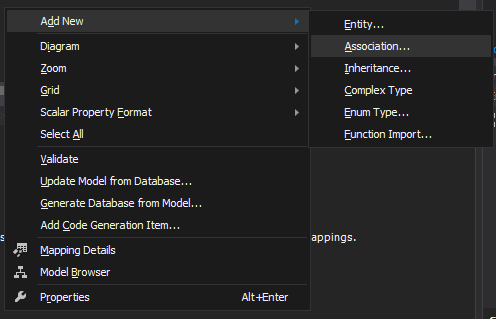

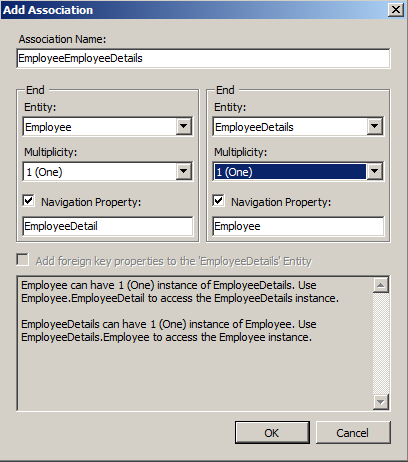

Add an association between Employee and EmployeeDetails as in the following:

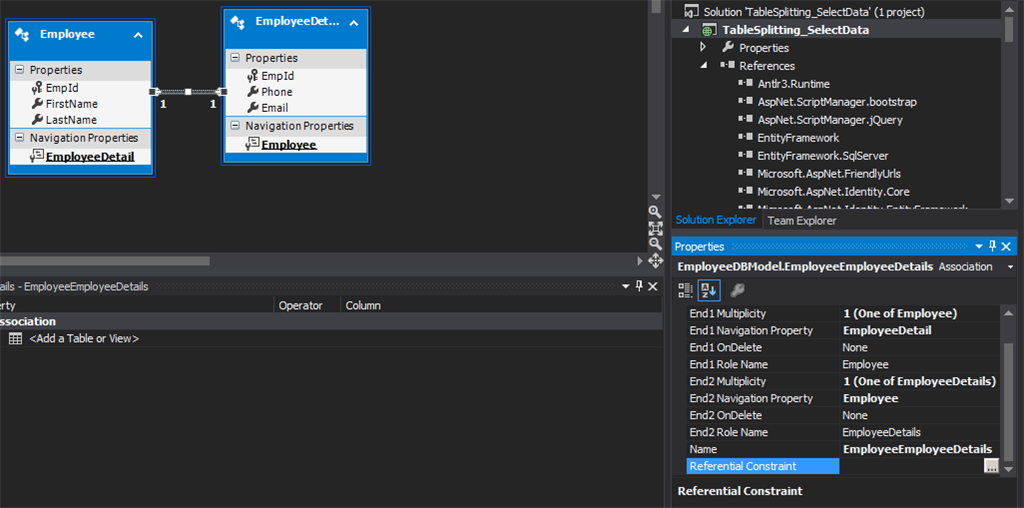

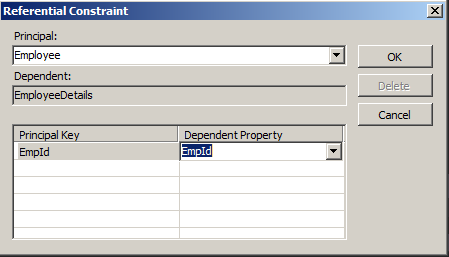

Referential constraints


Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Table_Splitting_Update_Data.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div>
  12.         <asp:Button ID="Button1" runat="server" Text="Update" OnClick="Button1_Click" />
  13.     </div>
  14.     </form>
  15. </body>
  16. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. namespace Table_Splitting_Update_Data
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         protected void Page_Load(object sender, EventArgs e)
  13.         {
  14.
  15.         }
  16.
  17.         protected void Button1_Click(object sender, EventArgs e)
  18.         {
  19.             EmployeeDBEntities empContext = new EmployeeDBEntities();
  20.             int empId = 1;
  21.             var emp = empContext.Employees.Where(a => a.EmpId.Equals(empId)).SingleOrDefault();
  22.             emp.FirstName = "Jonny";
  23.             emp.EmployeeDetail.Email = "jonny@xyz.com";
  24.             empContext.SaveChanges();
  25.         }
  26.     }
  27. }

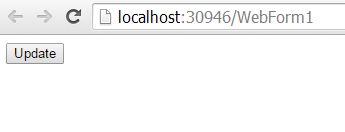

The following is the output of the application:

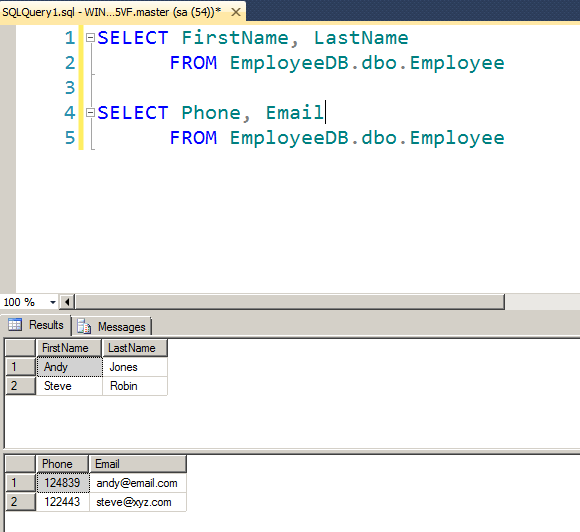

Before performing update operation:

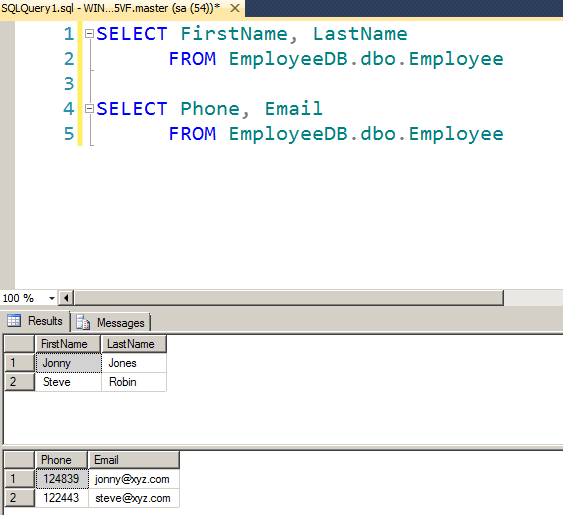

After performing update operation:



Summary

In this article we saw how to do table splitting and update data operations.
Happy coding!
