Telerik RadUniformGrid in Windows Phone 7 Via WCF Service


Introduction

Today, in this article let's learn another new and wonderful concept related to Windows Phone 7, whereby communicating with WCF Service to perform some operation.

The Telerik Rad Controls for Windows Phone 7 can be downloaded from http://www.telerik.com/products/windows-phone.aspx.

The Rad Message Box is used to display the output in a nice and enhanced UI.

Question: What is RadUniformGrid?

In simple terms "The RadUniformGrid panel is a layout panel that allows for ordering items in rows and columns. You can specify the amount of rows and columns by using the NumberOfRows and NumberOfColumns properties. The RadUniformGrid also implies that each row and each column will have the same height/width."

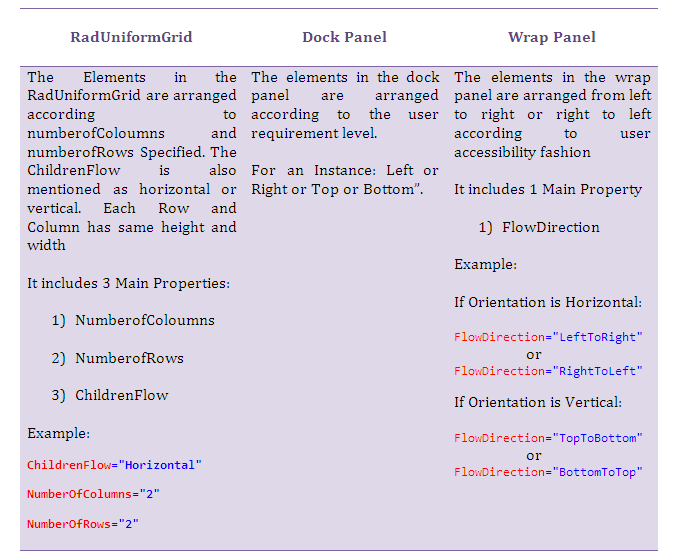

Question: What is the difference between RadUniformGrid, Dock Panel and Wrap Panel?


Let's get this implemented practically for a better idea of this!!!

Step 1: The complete code of the IService1.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WCF_Uniform_Grid
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {

        [OperationContract]
        double add(double a, double b);

        [OperationContract]
        double sub(double a, double b);

        [OperationContract]
        double mul(double a, double b);

        [OperationContract]
        double div(double a, double b);
    }
}

Step 2: The complete code of the Service1.svc.cs looks like this:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

namespace WCF_Uniform_Grid
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {
        public double add(double a, double b)
        {
            return a + b;
        }

        public double sub(double a, double b)
        {
            return a - b;
        }

        public double mul(double a, double b)
        {
            return a * b;
        }

        public double div(double a, double b)
        {
            return a / b;
        }
    }
}


Step 3: The complete code of the Web.Config looks like this:

<?xml version="1.0"?>
<configuration>

  <system.web>
    <compilation debug="true" targetFramework="4.0" />
  </system.web>
  <system.serviceModel>
    <behaviors>
      <serviceBehaviors>
        <behavior>
          <!-- To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->
          <serviceMetadata httpGetEnabled="true"/>
          <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->
          <serviceDebug includeExceptionDetailInFaults="false"/>
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
  </system.serviceModel>
  <system.webServer>
    <modules runAllManagedModulesForAllRequests="true"/>
  </system.webServer>

</configuration>


Step 4: The complete code of the MainPage.xaml looks like this:

<phone:PhoneApplicationPage

    x:Class="RadUniform_Grid_Application_WP7.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:telerik="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Primitives"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait"  Orientation="Portrait"
    shell:SystemTray.IsVisible="True" >

       <!--LayoutRoot is the root grid where all page content is placed-->
       <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Rad Uniform Grid - WCF Service App" FontFamily="Verdana" FontSize="22" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <TextBlock x:Name="txtBlock1"
                       FontFamily="Verdana"
                       FontSize="22"
                       Height="30"
                       HorizontalAlignment="Left"
                       Margin="9,19,0,0"
                       Text="Please Enter First Number: "
                       VerticalAlignment="Top" />

            <TextBox Height="72"
                     HorizontalAlignment="Left"
                     Margin="314,0,0,0"
                     VerticalAlignment="Top"
                     Width="136"
                     Name="txtFirstNumber" />

            <TextBlock Height="30"
                       HorizontalAlignment="Left"
                       Margin="0,110,0,0" Text="Please Enter Second Number: "
                       FontFamily="Verdana"
                       FontSize="22"
                       VerticalAlignment="Top"
                       Name="txtBlock2" />

            <TextBox Height="72"
                     HorizontalAlignment="Left"
                     Margin="320,90,0,0"
                     VerticalAlignment="Top"
                     Width="136"
                     Name="txtSecondNumber"/>

            <TextBlock Height="30"
                       HorizontalAlignment="Left"
                       Margin="74,215,0,0"
                       VerticalAlignment="Top"
                       x:Name="txtBlockError"
                       Foreground="Red"
                       FontFamily="Verdana"
                       FontSize="22"/>
        </Grid>
        <telerik:RadUniformGrid Height="324"
                                HorizontalAlignment="Left"
                                Margin="12,283,0,0"
                                VerticalAlignment="Top"
                                Width="456"
                                Grid.Row="1"
                                ChildrenFlow="Horizontal"
                                NumberOfColumns="2"
                                NumberOfRows="2">

         <Button x:Name="btnAdd"
                 Content="Addition"
                 FontFamily="Verdana"
                 FontSize="22"
                 Background="Green"
                 Click="btnAdd_Click"/>

        <Button  x:Name="btnSub"
                 Content="Substraction"
                 FontFamily="Verdana"
                 FontSize="22"
                 Background="Blue"
                 Click="btnSub_Click"/>

        <Button  x:Name="btnMul"
                 Content="Multiplication"
                 FontFamily="Verdana"
                 FontSize="22"
                 Background="Red"
                 Click="btnMul_Click"/>

       <Button   x:Name="btnDiv"
                 Content="Division"
                 FontFamily="Verdana"
                 FontSize="22"
                 Background="Brown"
                 Click="btnDiv_Click"/>

        </telerik:RadUniformGrid>
    </Grid>

</phone:PhoneApplicationPage>


Step 5: The complete code of the MainPage.xaml.cs looks like this:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Microsoft.Phone.Controls;

using Telerik.Windows.Controls.Primitives;

using RadUniform_Grid_Application_WP7.ServiceReference1;

using Telerik.Windows.Controls;

namespace RadUniform_Grid_Application_WP7
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();

        }

        private void add_Call(object sender, addCompletedEventArgs e)
        {
            RadMessageBox.Show("Addition Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        private void btnAdd_Click(object sender, RoutedEventArgs e)
        {
            txtBlockError.Text = "";
            if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
            {
                txtBlockError.Text = "Please Enter Some Values";
            }
            else
            {
                objClient.addCompleted += new EventHandler<addCompletedEventArgs>(add_Call);
                objClient.addAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
                txtFirstNumber.Text = "";
                txtSecondNumber.Text = "";
            }

        }

        private void sub_Call(object sender, subCompletedEventArgs e)
        {
            RadMessageBox.Show("Subtraction Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        private void btnSub_Click(object sender, RoutedEventArgs e)
        {
            txtBlockError.Text = "";
            if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
            {
                txtBlockError.Text = "Please Enter Some Values";
            }
            else
            {
                objClient.subCompleted += new EventHandler<subCompletedEventArgs>(sub_Call);
                objClient.subAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
                txtFirstNumber.Text = "";
                txtSecondNumber.Text = "";
            }

        }

        private void mul_Call(object sender, mulCompletedEventArgs e)
        {
            RadMessageBox.Show("Multiplication Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        private void btnMul_Click(object sender, RoutedEventArgs e)
        {
            txtBlockError.Text = "";
            if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
            {
                txtBlockError.Text = "Please Enter Some Values";
            }
            else
            {
                objClient.mulCompleted += new EventHandler<mulCompletedEventArgs>(mul_Call);
                objClient.mulAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
                txtFirstNumber.Text = "";
                txtSecondNumber.Text = "";
            }

        }

        private void div_Call(object sender, divCompletedEventArgs e)
        {
            RadMessageBox.Show("Division Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "Rad Uniform Grid via WCF Service", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        private void btnDiv_Click(object sender, RoutedEventArgs e)
        {
            txtBlockError.Text = "";
            if (string.IsNullOrEmpty(txtFirstNumber.Text) || string.IsNullOrEmpty(txtSecondNumber.Text))
            {
                txtBlockError.Text = "Please Enter Some Values";
            }
            else
            {
                objClient.divCompleted += new EventHandler<divCompletedEventArgs>(div_Call);
                objClient.divAsync(Convert.ToDouble(txtFirstNumber.Text), Convert.ToDouble(txtSecondNumber.Text));
                txtFirstNumber.Text = "";
                txtSecondNumber.Text = "";
            }
        }

        #region Instance Variables
        Service1Client objClient = new Service1Client();
        #endregion
    }
}

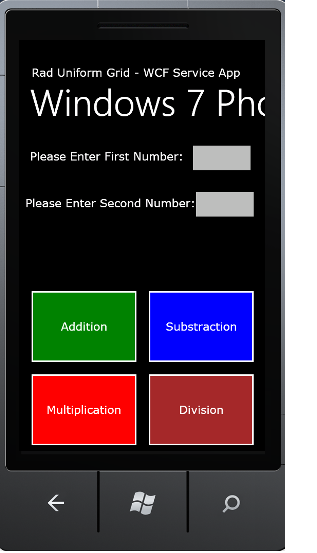

Step 6: The output of the application looks like this:

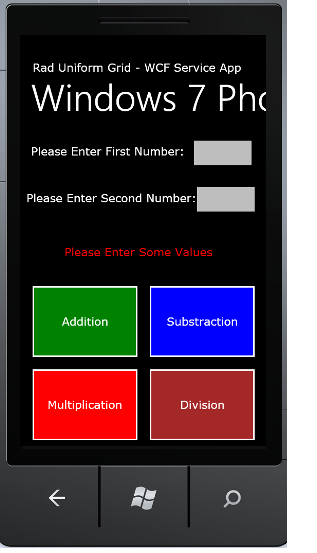

Step 7: The output of the Nothing Entered Application looks like this:

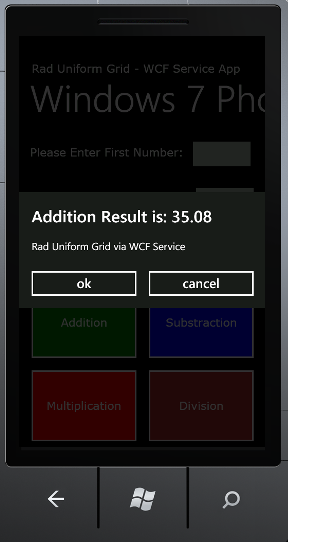

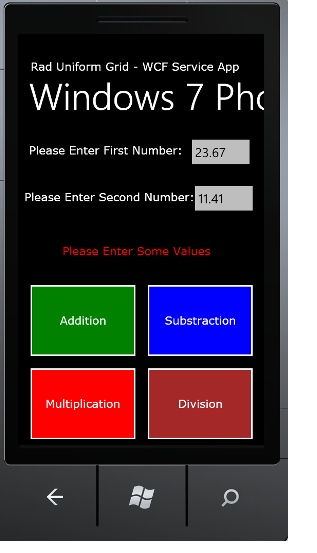

Step 8: The output of the Addition Operation Application looks like this:

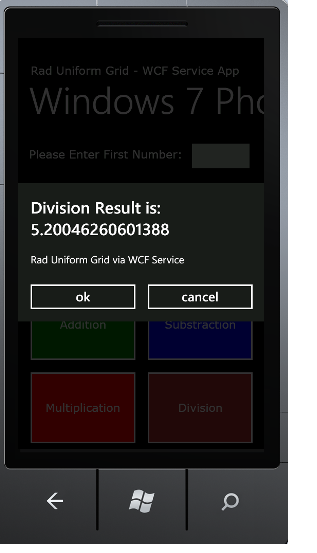

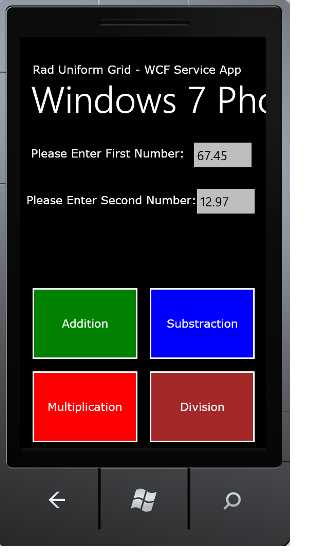

Step 9: The output of the Division Operation Application looks like this:



I hope this article is useful for you.
